| Place of Origin: | China |
|---|---|
| Brand Name: | OUCO |
| Certification: | CE, ISO9001:2008, SGS |
| Model Number: | OUCO OC800H |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Nude |
| Delivery Time: | 2 months |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 500 sets/year |

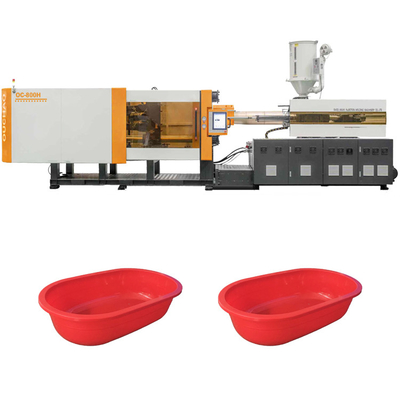

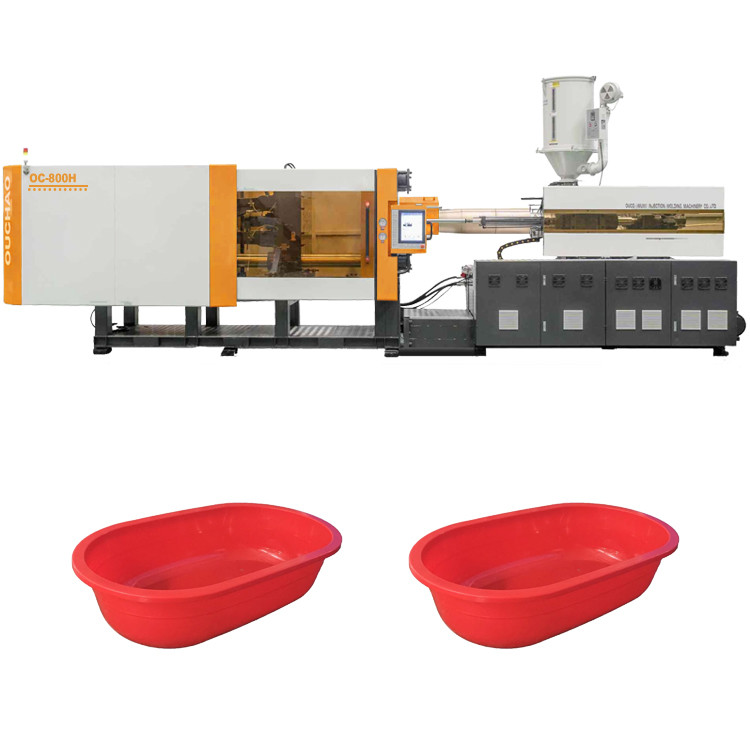

| Product Name: | OUCO 800T High Quality Hydraulic Servo Strong Load-Bearing Capacity Plastic Aquaculture Basin Injection Molding Machine | Type: | Automation |
|---|---|---|---|
| Function: | Plastic Parts Production | Motor: | Servo Energy Saving |
| Color: | Support Customization | Stable Performance: | Short Cycle Time |
| Clamping Way: | Hydraulic | Transport Package: | FCL |
| High Light: | 800T servo hydraulic injection molding machine,Plastic servo hydraulic injection molding machine,OUCO servo hydraulic injection molding machine |
||
We have rich experience and professional technology, and can flexibly respond to various production problems. According to the production requirements of different customers, we propose injection molding machine configuration plans with targeted opinions to ensure that you choose the most suitable equipment. The innovative design concept saves you raw materials and manpower, greatly improves production efficiency, and helps you stand out from the competition. Excellent performance gives your products high quality and exquisite appearance, helping you win market competitiveness. Our team will uphold a pragmatic and innovative work attitude and continue to improve and optimize product performance to meet the changing needs of customers. In the future, we will continue to uphold the concepts of openness and cooperation, work hand in hand with customers, and jointly respond to market challenges and opportunities.
Product Advantages
OC-800H has an industry-leading ultra-large mold opening stroke and is designed to reduce purchase costs for deep cavity users. The enlarged tie rod inner distance and mold shifting stroke allow the mold to be larger and deeper, allowing the production of larger plastic products. In addition, mold clamping and melting are performed simultaneously, saving time and making the process faster. The bearing seat of our equipment is lubricated with thin oil. When the equipment operates at high speed, the lubrication effect is better, which can more effectively reduce friction and extend the service life of the equipment. In terms of power system design, dual servo oil-cooled motors are used, which are powerful and more efficient. They can be applied in any dusty environment and have good heat dissipation, which greatly extends the life of the motor. The high-speed and extra-large special oil circuit design makes the machine run more smoothly and reliably. We firmly believe that by constantly innovating and adopting the most advanced technology and processes, we can ensure that our customers always maintain a competitive advantage and achieve greater business success.
Parameters
| MODEL | OC800H | |||||
| Clamping force (kN) | 8000 | |||||
| Space between tie bar (mm*mm) | 1060*860 | |||||
| Max. mold thickness (mm) | 1000 | |||||
| Min. mold thickness(mm) | 450 | |||||
| Opening stroke (mm) | 1300 | |||||
| Ejector stroke(mm) | 280 | |||||
| Ejector force forward(Kn) | 181 | |||||
| Screw diameter(mm) | 100 | |||||
| Screw L/D ratio | 22 | |||||
| Theoretical injection volume (cm3) | 3927 | |||||
| Shot weight (PS) g | 3729 | |||||
| Injection pressure(MPa) | 151 | |||||
| Injection speed (mm/s) | 89 | |||||
| Injection rate (g/s) | 660 | |||||
| Pump power (Kw) | 83 | |||||
| Oil tank capacity(L) | 1020 | |||||
| Heater power (Kw) | 52 | |||||
| Machine Weight (T) | 27 | |||||
| Machine size L×W×H (m) | 10*2.2*2.4 | |||||

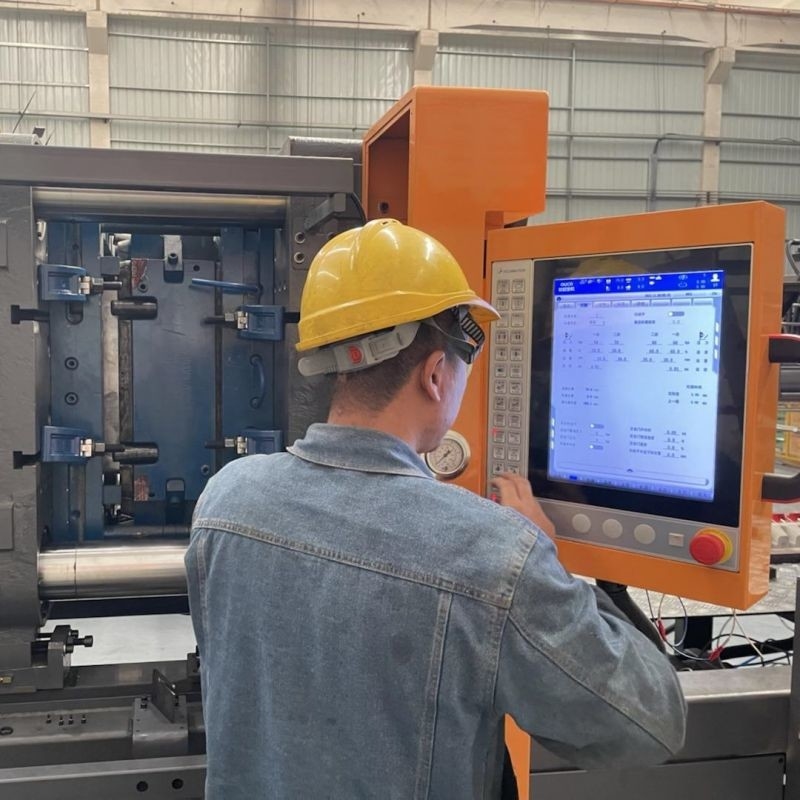

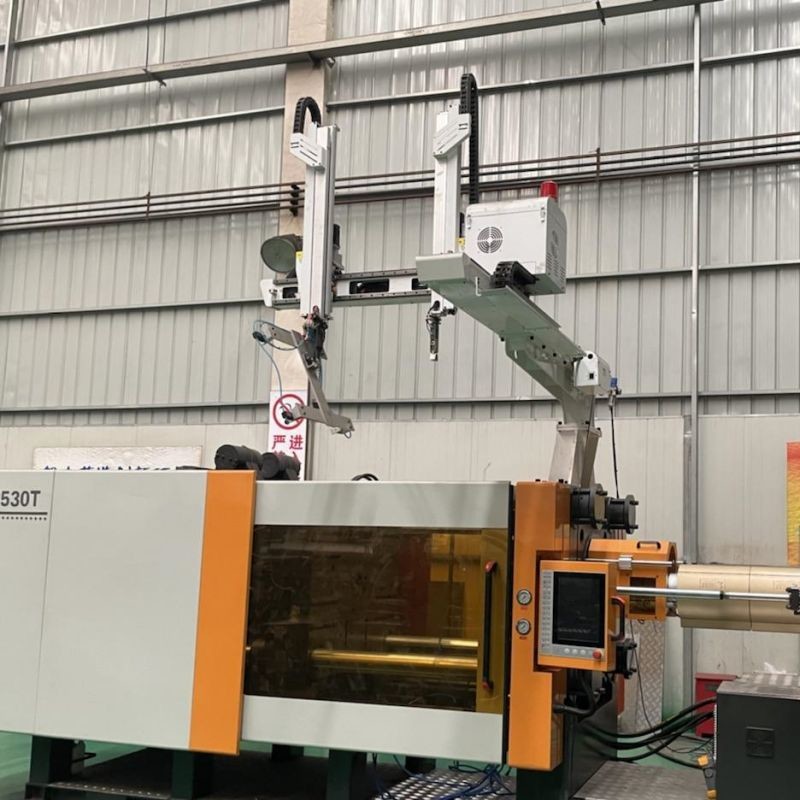

Detail Pictures
