| Place of Origin: | China |
|---|---|
| Brand Name: | OUCO |
| Certification: | CE, ISO9001:2008, SGS |
| Model Number: | OUCO OC550H |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Nude |
| Delivery Time: | 2 months |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 500 sets/year |

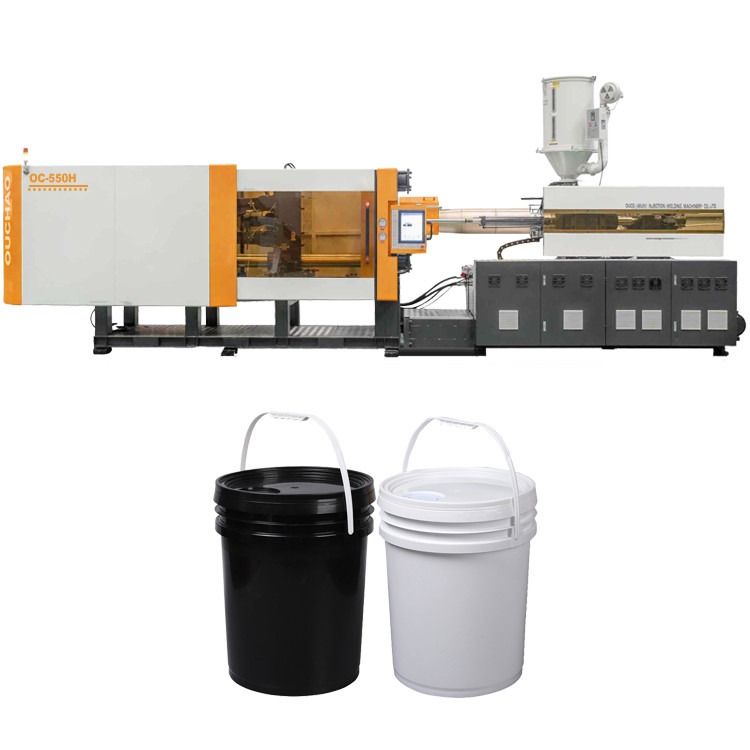

| Product Name: | OUCO 550T Professional Hydraulic Servo Environmentally Friendly Odor-Free Plastic Bucket Injection Molding Machine | Type: | Automation |
|---|---|---|---|
| Function: | Plastic Parts Production | Motor: | Servo Energy Saving |
| Color: | Support Customization | Stable Performance: | Short Cycle Time |
| Clamping Way: | Hydraulic | Transport Package: | FCL |
| High Light: | Hydraulic plastic bucket injection moulding machine,Professional plastic bucket injection moulding machine,Odor-Free bucket moulding machine |
||
We are an enterprise focusing on the research and development, production and sales of injection molding machines. Our machines are compact in structure, made of high-strength materials, durable and easy to maintain and can better adapt to the needs of automated production. If you want to quickly achieve large-scale automated production, we can also provide a series of auxiliary machinery required for injection molding to save you time and effort. The design advantages of the injection molding machine integrate advanced European and American technologies, with strong rigidity, excellent performance, fast response, high efficiency, energy saving and durability. In the workshop, we have a large number of equipment operators with strong skills and high professionalism, who provide a solid guarantee for the high-precision processing and production of products. From standard parts to special materials, we can provide you with a full range of solutions to meet your diverse needs.
Product Advantages

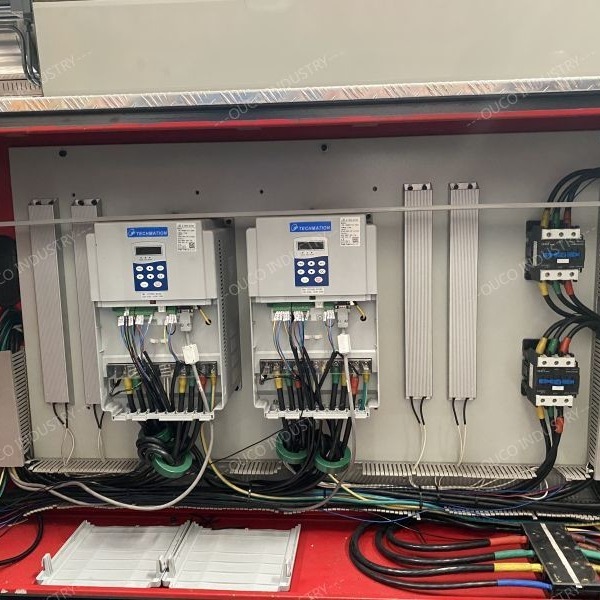

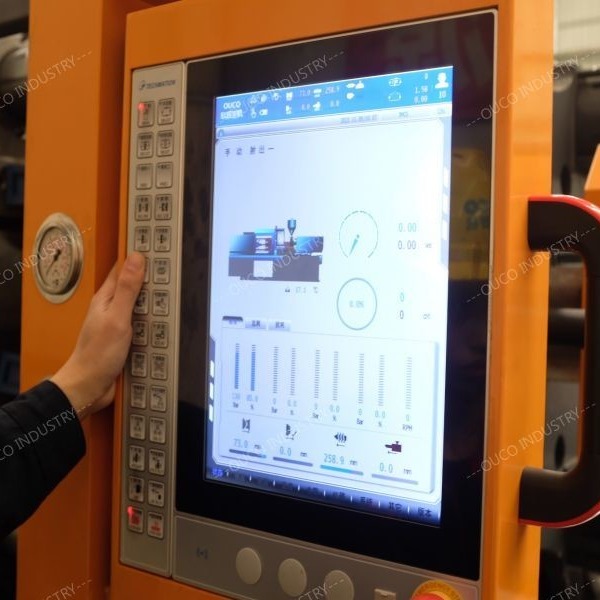

OC-550H is an industry-certified high-efficiency and energy-saving injection molding machine driven by a servo motor that operates at relatively low decibel levels compared to previous machines and is highly reliable. The outward-turning mold clamping structure and direct-pressure clamping ensure 100% clamping force transmission, which more effectively protects the template from deformation, prolongs the service life of the mold, reduces flash and saves materials. The powerful injection device enables a larger injection volume, and the cost of purchasing equipment for the same plastic products is lower. The standard configuration adopts a new generation touch computer from Taiwan Technation with good adaptability, with optional B&R and KEBA computers. The electrical components are imported brands such as Schneider and have a longer service life. OC-550H has high reliability, long life and strong adaptability, helping you quickly respond to production needs in market competition and achieve greater success.
Parameters
| MODEL | OC550H | |||||
| Clamping force (kN) | 5500 | |||||
| Space between tie bar (mm*mm) | 860*800 | |||||
| Max. mold thickness (mm) | 800 | |||||
| Min. mold thickness(mm) | 300 | |||||
| Opening stroke (mm) | 1010 | |||||
| Ejector stroke(mm) | 210 | |||||
| Ejector force forward(Kn) | 103 | |||||
| Screw diameter(mm) | 80 | |||||
| Screw L/D ratio | 22 | |||||
| Theoretical injection volume (cm3) | 2060 | |||||
| Shot weight (PS) g | 1918 | |||||
| Injection pressure(MPa) | 149 | |||||
| Injection speed (mm/s) | 133 | |||||
| Injection rate (g/s) | 646 | |||||
| Motor power (Kw) | 75 | |||||
| Oil tank capacity(L) | 850 | |||||
| Heater power (Kw) | 27 | |||||
| Machine Weight (T) | 20 | |||||
| Machine size L×W×H (m) | 8.7*2.1*2.2 | |||||
Detail Pictures
