| Place of Origin: | China |
|---|---|
| Brand Name: | OUCO |
| Certification: | CE, ISO9001:2008, SGS |
| Model Number: | OUCO OC650H |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Nude |
| Delivery Time: | 2 months |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 500 sets/year |
| Product Name: | Our Factory Is Located In Wuxi City, Jiangsu Province. The Government Has A Reward And Subsidy System For The Manufacturing Industry, The Leadership Has Strongly Supported This Business. OUCO's Employees Are United In Actively Promoting The Development Of | Type: | Automation |
|---|---|---|---|
| Function: | Plastic Parts Production | Motor: | Servo Energy Saving |
| Color: | Support Customization | Stable Performance: | Short Cycle Time |
| Clamping Way: | Hydraulic | Transport Package: | FCL |
| High Light: | OUCO Hydraulic Servo Injection Molding Machine,Outdoor Injection Molding Machine,High Output Injection Molding Machine |
||
Company Advantages
Our factory is located in Wuxi City, Jiangsu Province. The government has a reward and subsidy system for the manufacturing industry, the company leadership has strongly supported this business. OUCO's employees are united in actively promoting the development of the injection molding machine business.
On the technical level, very excellent and experienced technicians have joined our team and are constantly working on the research and development of new products. Old workers who have been in the industry for a long time take newcomers to operate processing equipment together, familiarize themselves with the process flow, and cultivate our own talents.
In terms of sales, we have a wide range of customers in China, such as plastic crate injection molding machines, which are widely praised by customers. Now we are working hard to open up overseas user markets. As an injection molding machine manufacturer, we can promise to bring you cost-effective products at preferential prices, without middlemen making a profit.
Choosing OUCO is the beginning of choosing to create a future with professional and reliable partners!
Product Advantages

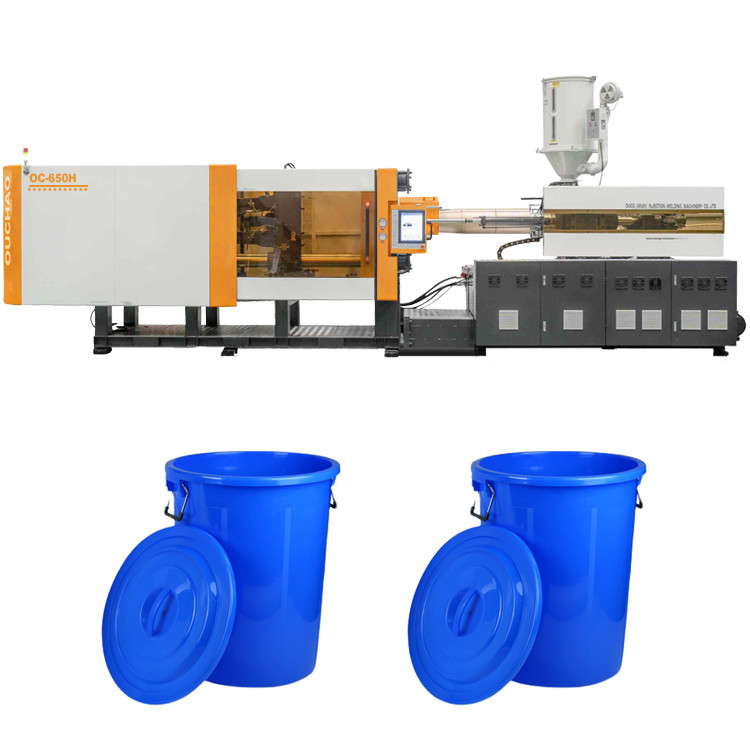

OC-650H is one of the models in our center clamping structure injection molding machine series. Its clamping structure is relatively unique, it adopts an outward-turning design, so that the clamping force can act evenly on the template, which actively protects the template and mold and prolongs the service life. Provide you with continuous production support.
The high-rigidity frame produced and processed by our own factory workshop ensures that the machine has small deformation during operation and more stable production conditions. In the production of trash cans, our machines have a one-level larger mold opening stroke and injection volume, which is friendly to plastic products with deep cavities, has a large mold capacity, can also produce larger plastic baskets and trash cans.
In conjunction with the high-quality parts produced by domestic and foreign manufacturers, our assembly process is also upgraded, which greatly improves the performance of the machine compared to our initial products and meets European standards. The quality of products produced by high-performance injection molding machines is also guaranteed.
Parameters
| MODEL | OC650H | |||||
| Clamping force (kN) | 6500 | |||||
| Space between tie bar (mm*mm) | 960*820 | |||||
| Max. mold thickness (mm) | 900 | |||||
| Min. mold thickness(mm) | 400 | |||||
| Opening stroke (mm) | 1150 | |||||
| Ejector stroke(mm) | 260 | |||||
| Ejector force forward(Kn) | 181 | |||||
| Screw diameter(mm) | 85 | |||||
| Screw L/D ratio | 22 | |||||
| Theoretical injection volume (cm3) | 3730 | |||||
| Shot weight (PS) g | 3602 | |||||
| Injection pressure(MPa) | 137 | |||||
| Injection speed (mm/s) | 93 | |||||
| Injection rate (g/s) | 706 | |||||
| Motor power (Kw) | 75 | |||||
| Oil tank capacity(L) | 950 | |||||
| Heater power (Kw) | 41 | |||||
| Machine Weight (Ton) | 24 | |||||
| Machine size L×W×H (m) | 9*2.1*2.3 | |||||

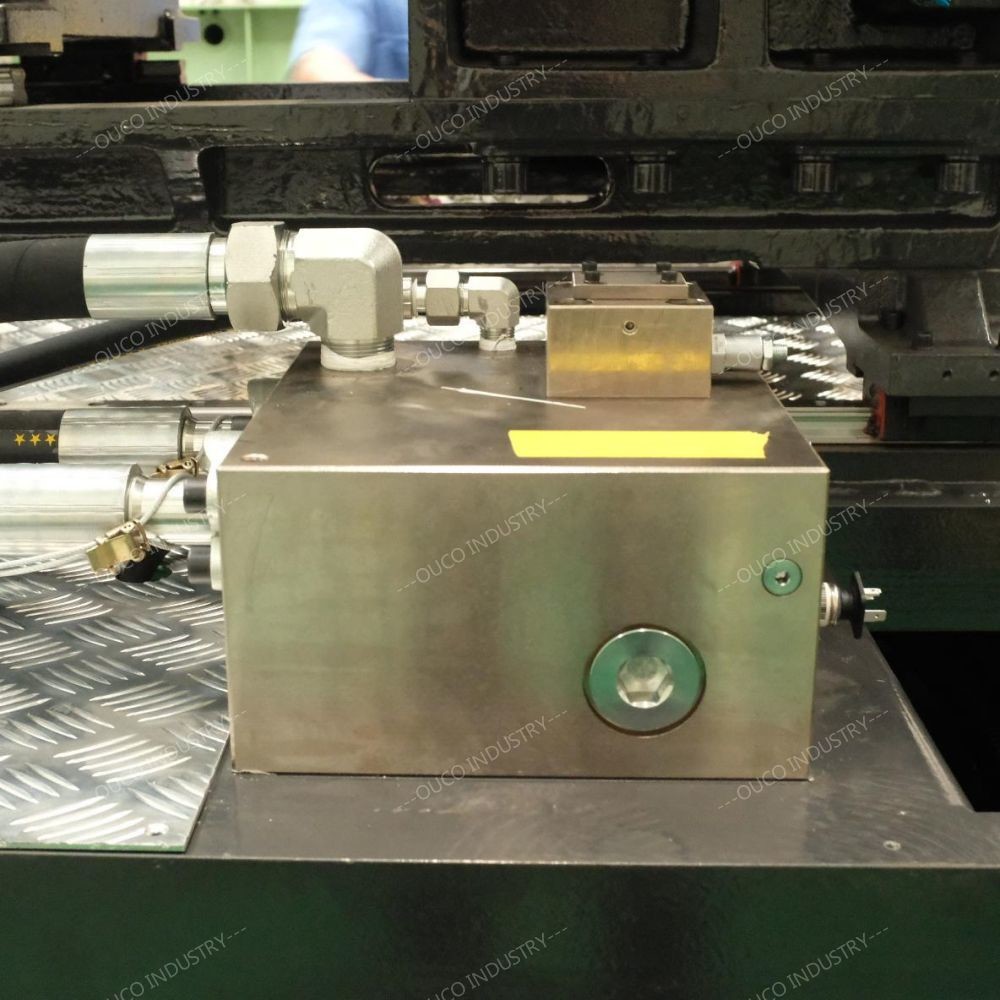

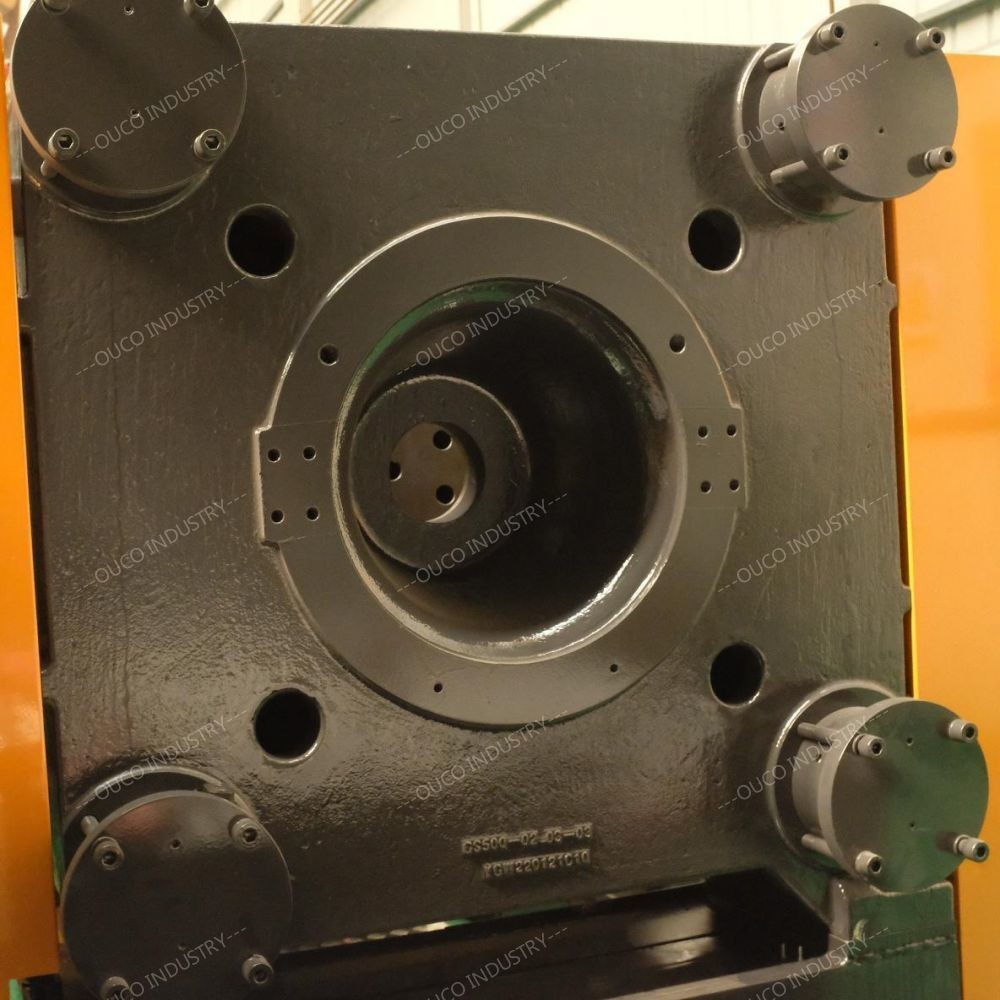

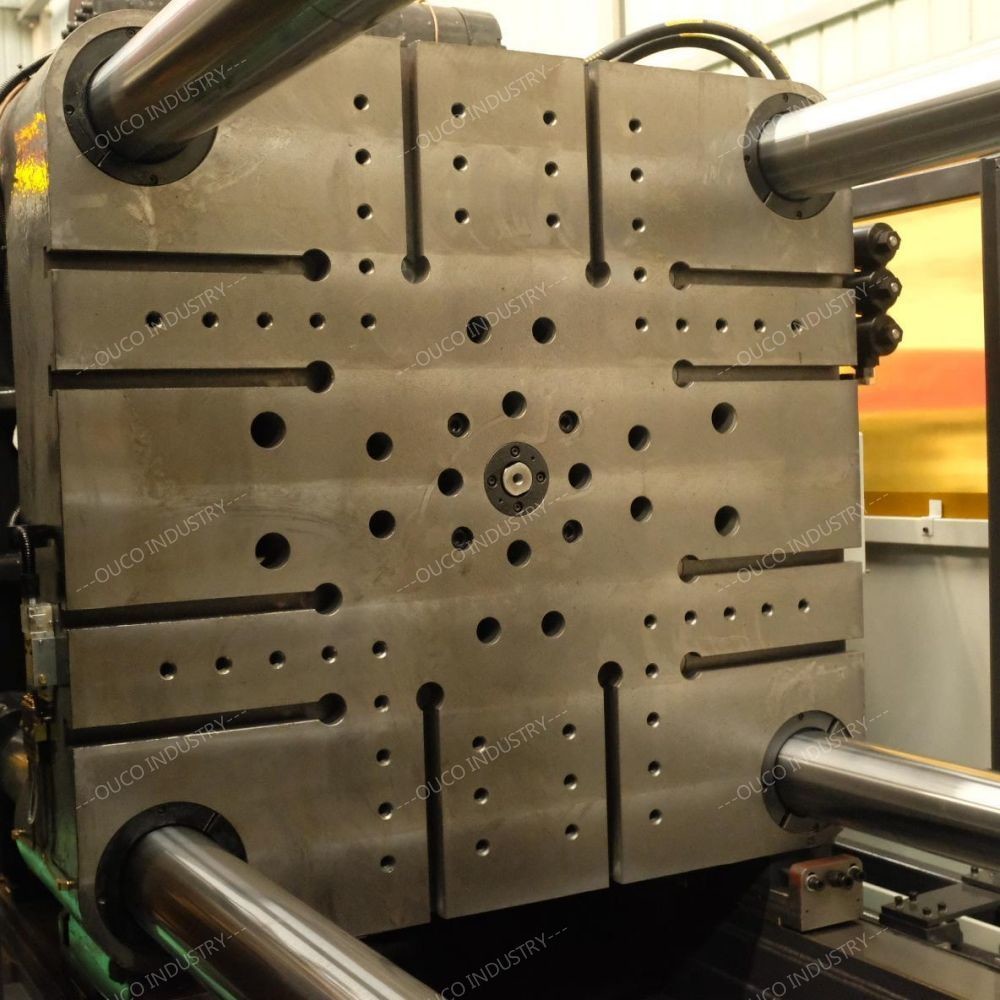

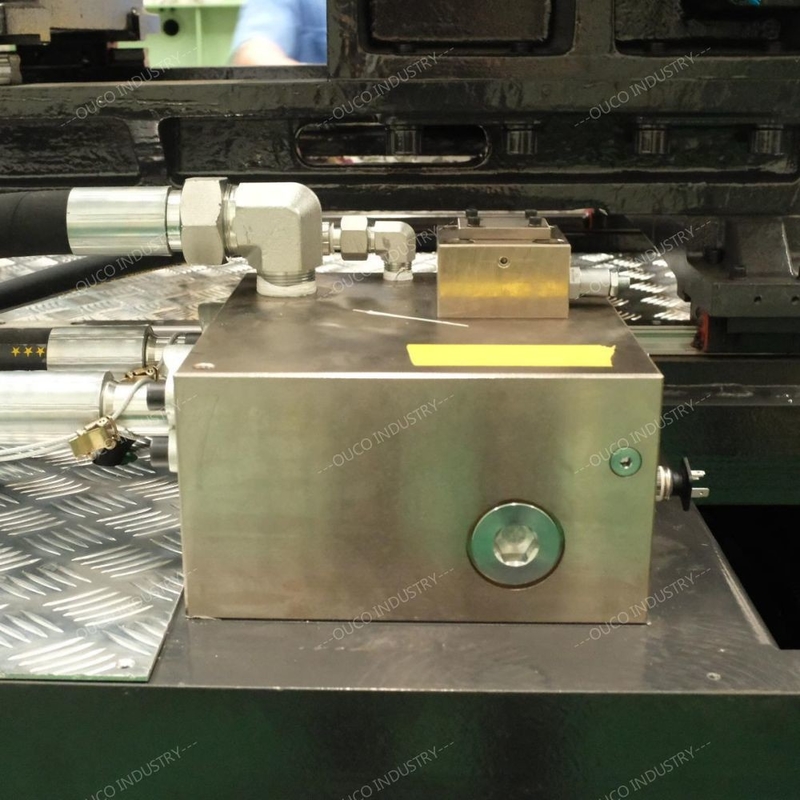

Detail Pictures
