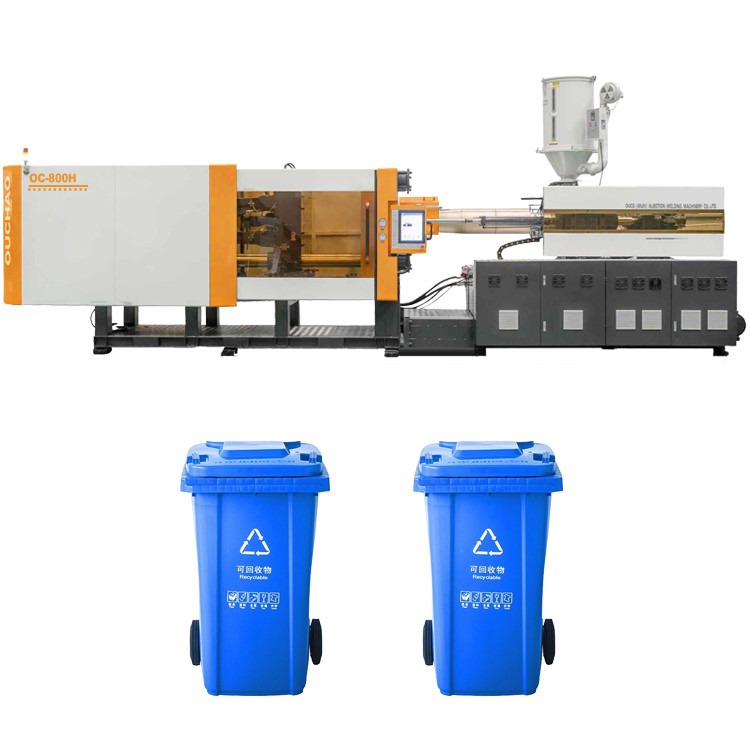

Name: OUCO Energy Saving Environmentally Friendly Injection Molding Machine For Manufacturing Trash Cans
Brand: OUCO
SKU: OCM-800S
Rating: 4.7 (172 reviews)

Detail Information

Product Name:	OUCO Energy-Saving And Environmentally Friendly Injection Molding Machine For Manufacturing Trash Cans	Type:	Automation
Function:	Plastic Parts Production	Motor:	Servo Energy Saving
Color:	Support Customization	Stable Performance:	Short Cycle Time
Clamping Way:	Hydraulic	Transport Package:	FCL
High Light:	Manufacturing Trash Cans Injection Molding Machine , Environmentally Friendly Injection Molding Machine , Energy Saving servo injection molding machine

Product Description

OUCO Energy-Saving And Environmentally Friendly Injection Molding Machine For Manufacturing Trash Cans

The stable and practical characteristics of OUCO injection molding machines have become the new choice for high-efficiency injection molding, and our company can provide customers with customized injection molding machine services, which are favored by the industry. With the service concept of 'more professional, more accurate, more assured', we meet the diversified needs of customers. We keep on researching and innovating, and have been adhering to science and technology for development and quality for survival to develop high quality, high precision, high speed, high energy-saving and stable injection molding machines.

Features and Advantages:

1. optimized curved elbow design, high speed mold closing system, optimized template structure, reduce template deformation to provide greater mold carrying capacity.

2. advanced control interface, high-speed microprocessor, direct access to the menu, data image monitoring, self-diagnostic capability.

3. double cylinder injection unit, more uniform screw force, screw assembly disassembly facilitation design, no need to lower the mold, high product repeatability.

4. Large area support template guide rail, reduce template offset, strengthen the service life of tie rod.

Product Advantages

1.We 30 years of finishing experience with our own finishing center equipment. After-sales service engineers, 5-20 years working experience in injection molding machine service. Specialized in series development, stocked with shorter delivery time.

2. Long mold opening stroke, external flip type mold closing structure, can make bigger plastic products, the same plastic products purchasing equipment cost is low.

3. Dual servo oil-cooled motor, sufficient power, more efficient, can be applied to any dusty environment at the same time, good heat dissipation, a greater extension of the life of the motor.

4. The standard configuration of the better adaptability of Taiwan Hongxun new generation of touch-screen computer, optional Begale and Koba computer.

Parameters

MODEL		OCM-800S
Clamping force (kN)	800
Space between tie bar (mm*mm)	1070*970
Max. mold thickness (mm)	1200
Min. mold thickness(mm)	500
Opening stroke (mm)	2500
Ejector stroke(mm)	280
Ejector force forward(Kn)	212
Screw diameter(mm)	75
Screw L/D ratio	21
Theoretical injection volume (cm3)	1590
Shot weight (PS) g	1462
Injection pressure(MPa)	178
Injection speed (mm/s)	170
Injection rate (g/s)	750
Motor power (Kw)	107.5
Oil tank capacity(L)	900
Heater power (Kw)	30.02
Machine Weight (kg)	35
Machine size L×W×H (mm)	940026002600

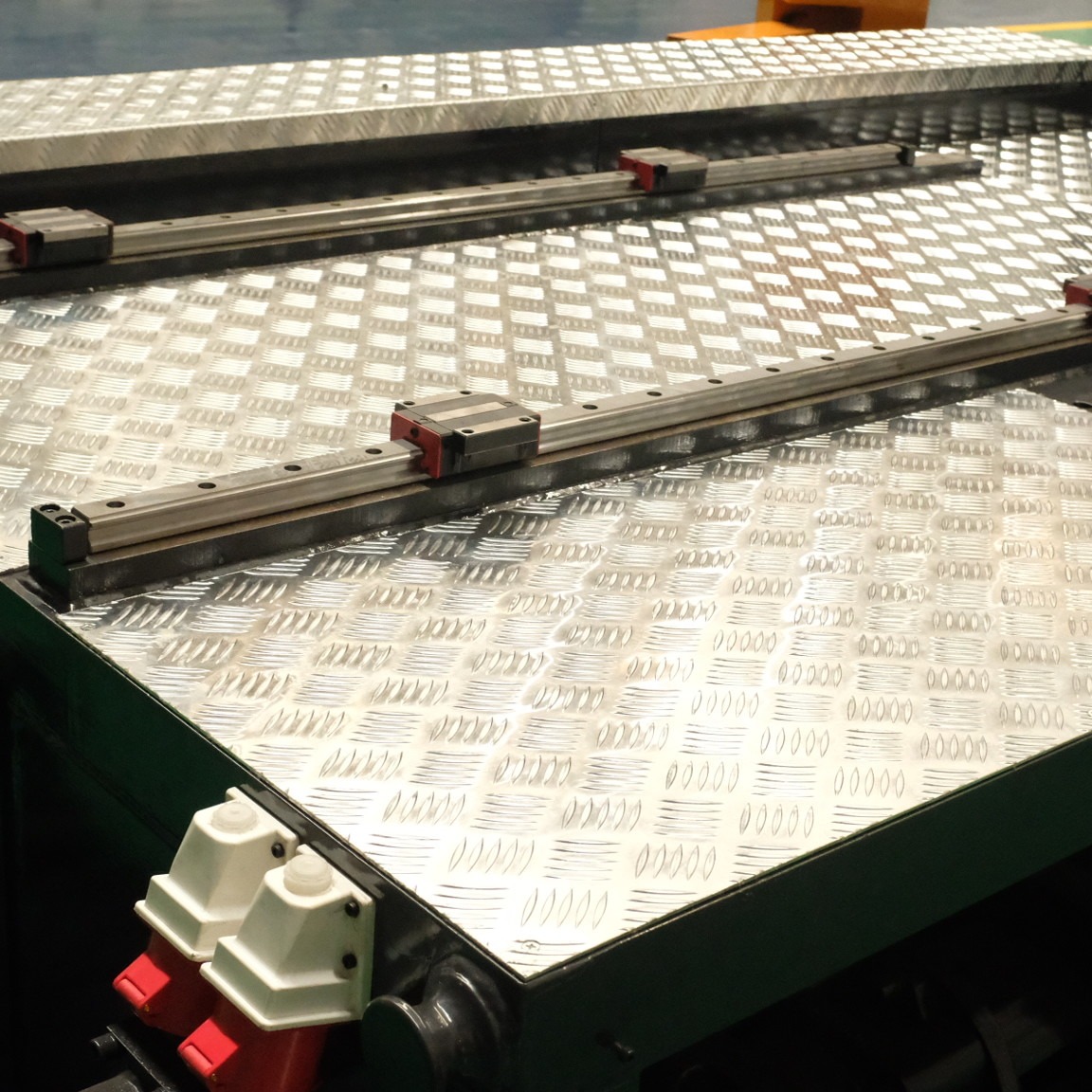

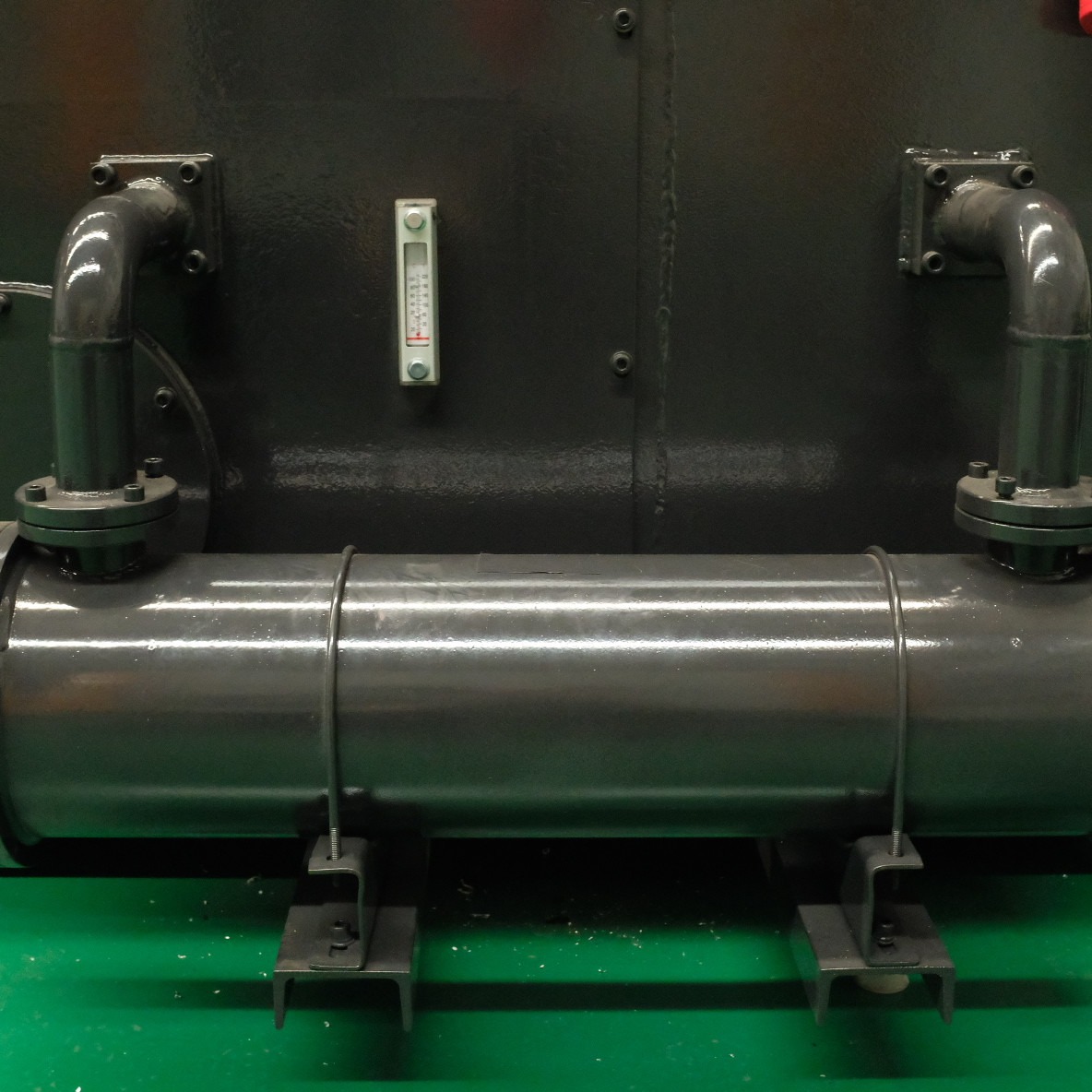

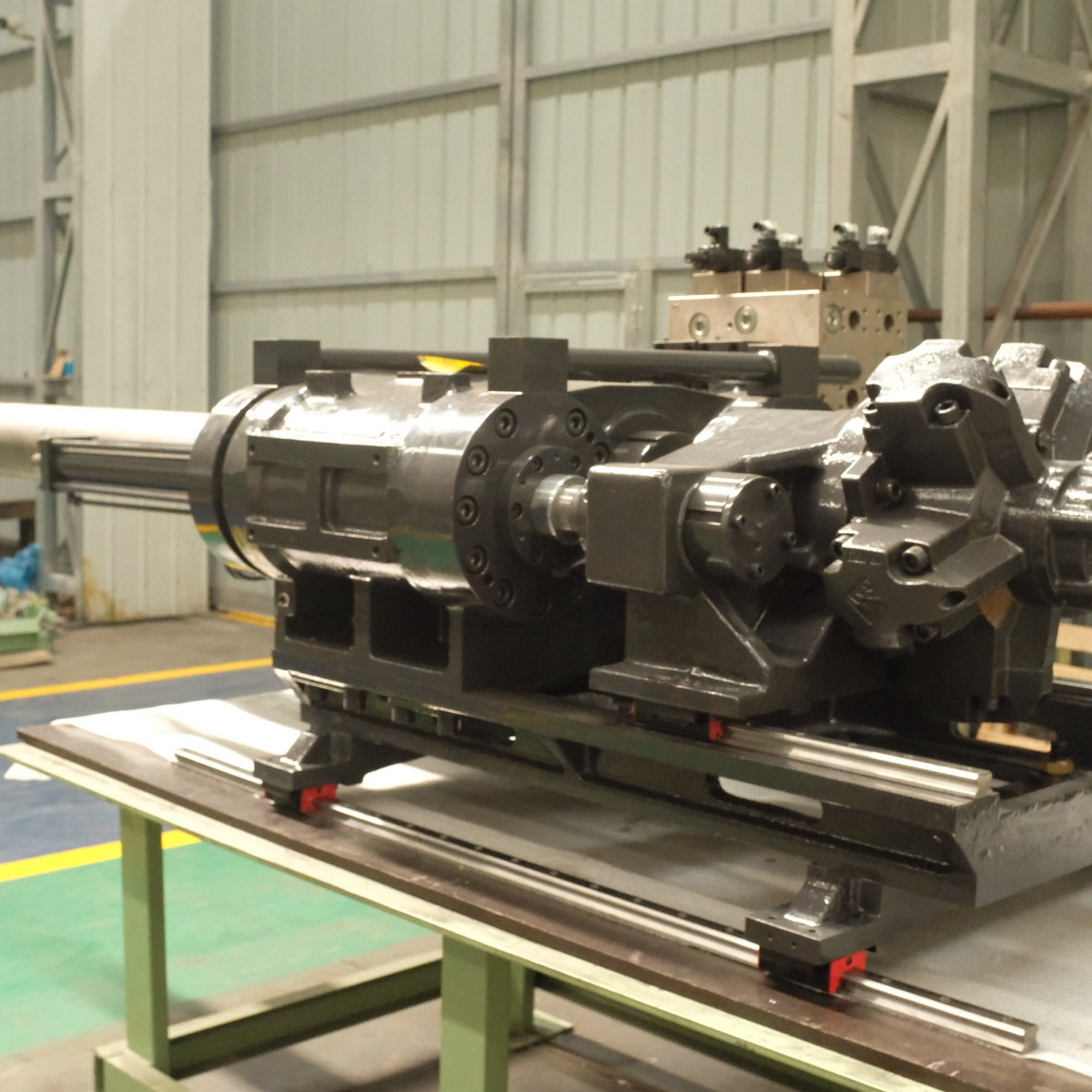

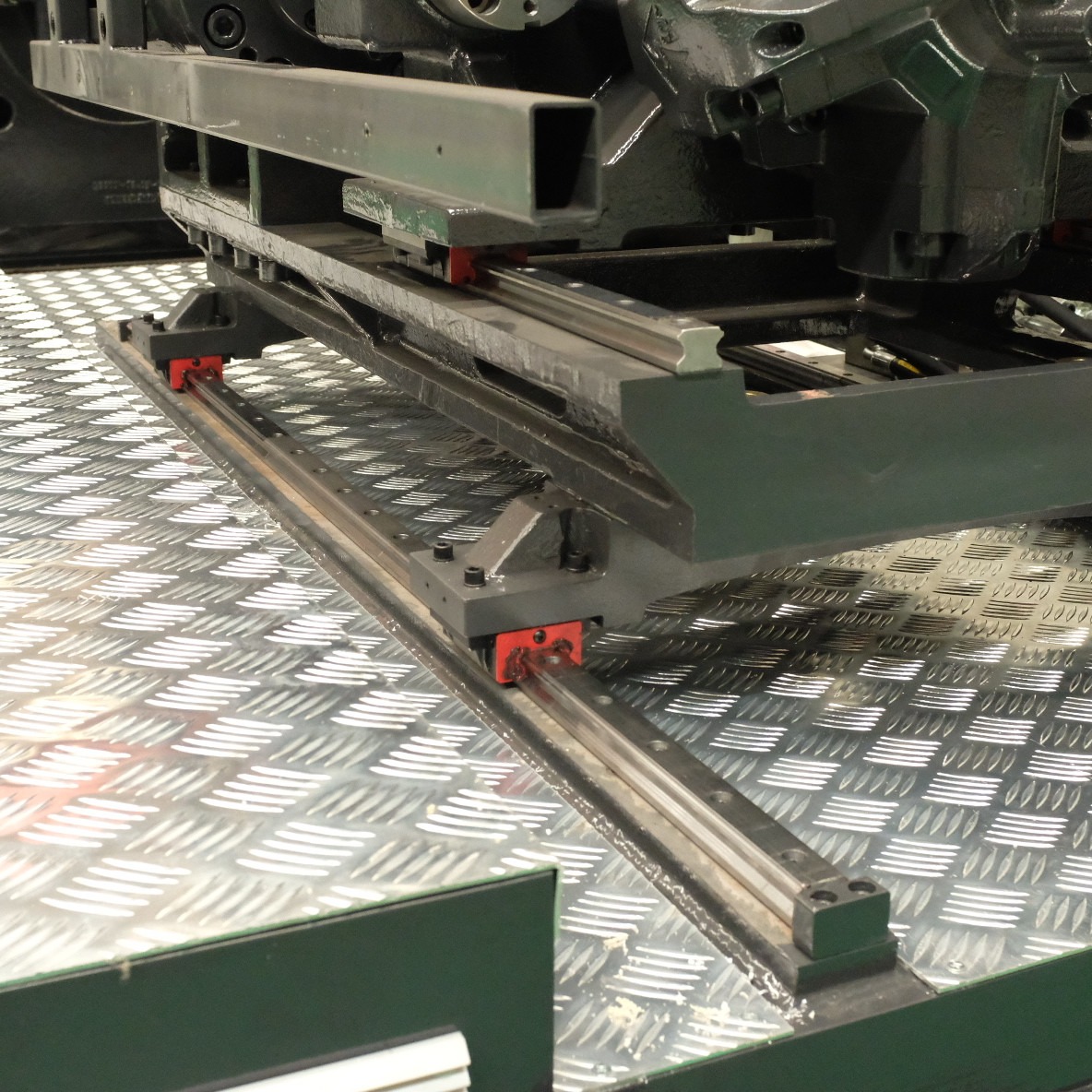

Detail Pictures
OUCO Energy Saving Environmentally Friendly Injection Molding Machine For Manufacturing Trash Cans 0

OUCO Energy Saving Environmentally Friendly Injection Molding Machine For Manufacturing Trash Cans 3
Company Profile

Tag:

Place of Origin:	China
Brand Name:	OUCO
Certification:	CE, ISO9001:2008, SGS
Model Number:	OCM-800S

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Nude
Delivery Time:	2 months
Payment Terms:	T/T, Western Union, L/C
Supply Ability:	500 sets/year
