| Place of Origin: | China |
|---|---|
| Brand Name: | OUCO |
| Certification: | CE, ISO9001:2008, SGS |
| Model Number: | OC-130UV |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Nude |
| Delivery Time: | 2 months |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 500 sets/year |

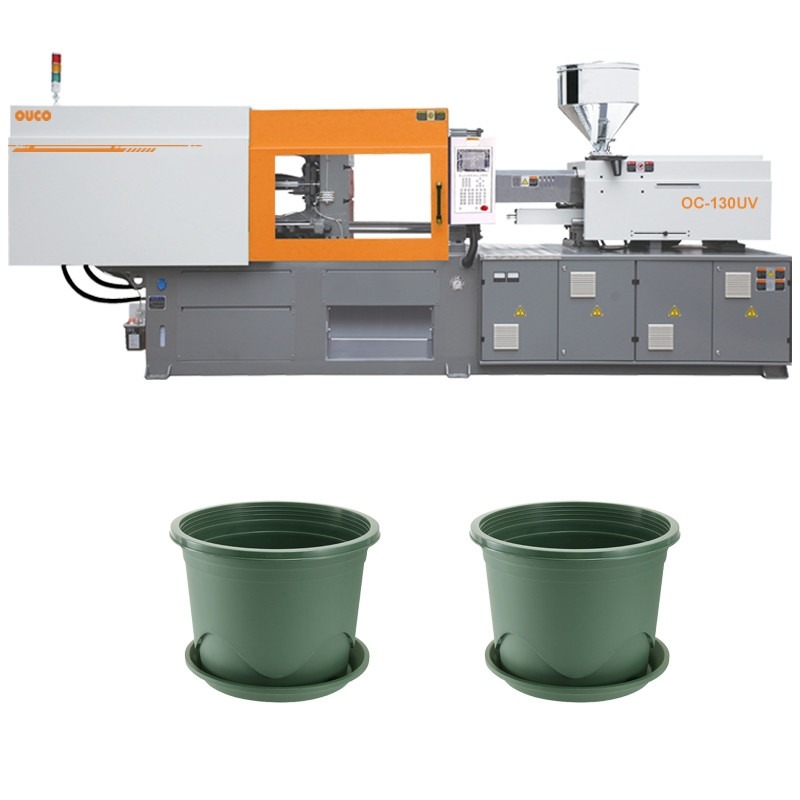

| Product Name: | OUCO 130T Factory Price Hydraulic Servo Lightweight And Breathable Plastic Flower Pot Injection Molding Machine | Type: | Automation |
|---|---|---|---|
| Function: | Plastic Parts Production | Motor: | Servo Energy Saving |
| Color: | Support Customization | Stable Performance: | Short Cycle Time |
| Clamping Way: | Hydraulic | Transport Package: | FCL |
| High Light: | 130T Injection Molding Machine,130T Hydraulic Servo Injection Molding Machine,Breathable Injection Molding Machine |
||
In OUCO, we insist on providing customers with competitive prices to ensure that you obtain excellent injection molding machines at more favorable prices and achieve higher cost-effectiveness. We provide professional recommendations for machine selection, as well as screw and barrel selection, in response to the different plastic product requirements raised by customers in different industries. We firmly believe that a deep understanding and meeting the needs of customers is the cornerstone of providing satisfactory products and services. Let's work together to create a better future!
Product Advantages
OC-130UV servo system has excellent control capabilities, which can accurately adjust the pressure, speed and position of the machine, ensuring extremely high repeatability of the injection position and achieving precise molding results. The nozzle and barrel are heated synchronously, effectively avoiding plastic carbonization and further improving the quality of the product. The injection molding machine adopts a unique dual cylinder injection system, which is fast and stable, reducing the deformation of the fixed template. In addition, the optimized design of screw components significantly enhances the plasticizing ability and effect, ensuring the smooth progress of your production process.
| MODEL | OC130UV | |||||
| Clamping force (kN) | 1300 | |||||
| Space between tie bar (mm*mm) | 410*410 | |||||
| Max. mold thickness (mm) | 450 | |||||
| Min. mold thickness(mm) | 160 | |||||
| Opening stroke (mm) | 380 | |||||
| Ejector stroke(mm) | 120 | |||||
| Ejector force forward(Kn) | 42 | |||||
| Screw diameter(mm) | 45 | |||||
| Screw L/D ratio | 18.5 | |||||
| Theoretical injection volume (cm3) | 302 | |||||
| Shot weight (PS) g | 274 | |||||
| Injection pressure(MPa) | 138 | |||||
| Screw speed (rpm) | 0-180 | |||||
| Dry-cycle time(g/s) | 1.3 | |||||
| Motor power (Kw) | 18.5 | |||||
| Oil tank capacity(L) | 200 | |||||
| Heater power (Kw) | 7.7 | |||||
| Machine Weight (Ton) | 4 | |||||
| Machine size L×W×H (m) | 4.6*1.2*1.8 | |||||

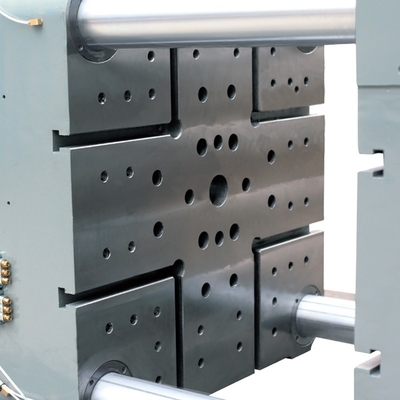

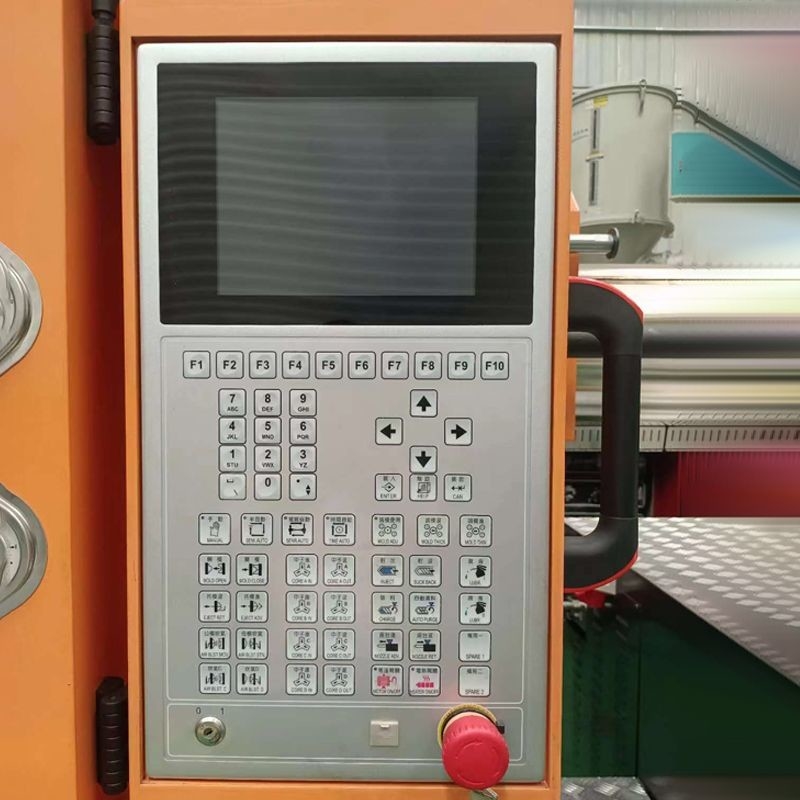

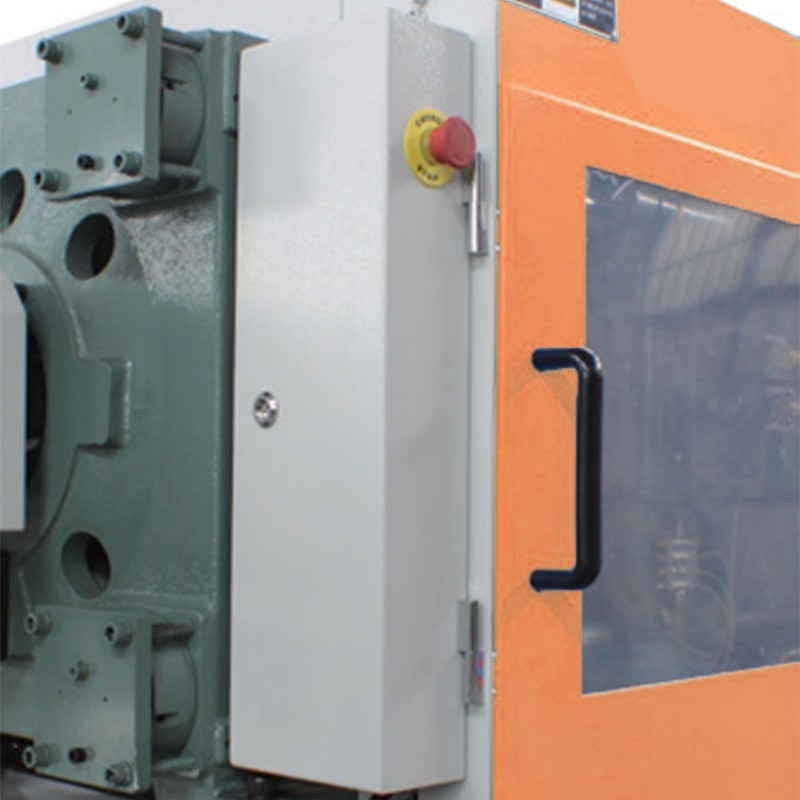

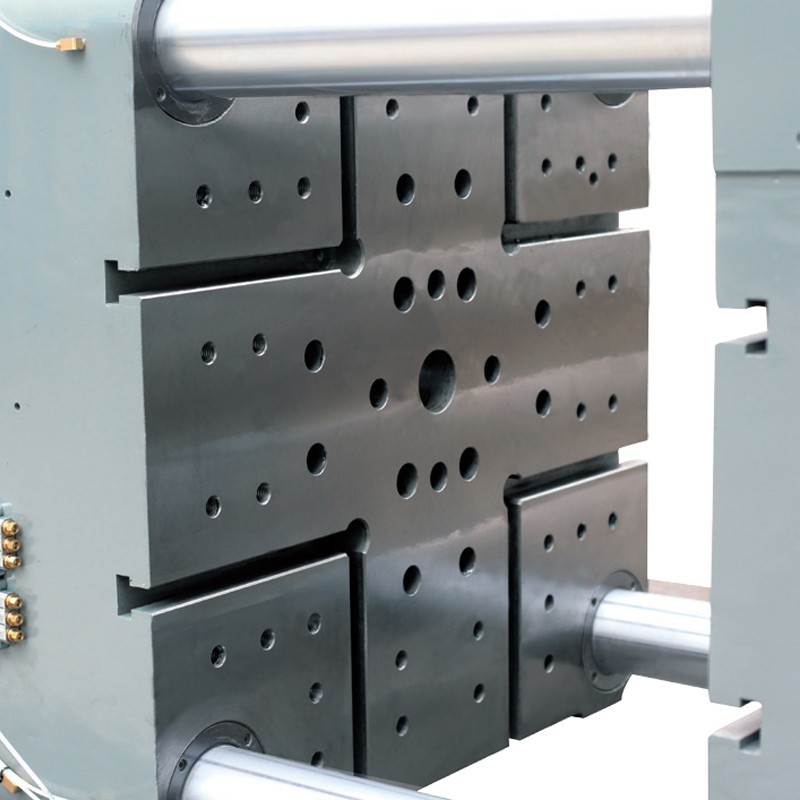

Detail Pictures
