| Place of Origin: | China |
|---|---|
| Brand Name: | OUCO |
| Certification: | CE, ISO9001:2008, SGS |
| Model Number: | OC 280H |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Nude |
| Delivery Time: | 2 months |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 500 sets/year |

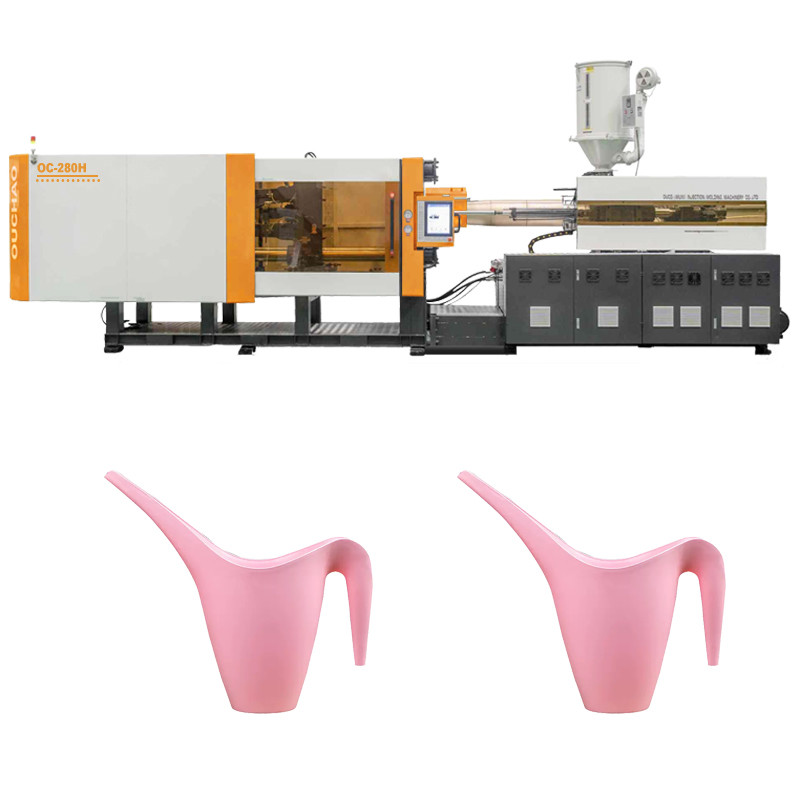

| Product Name: | OUCO 280T High Output Hydraulic Servo Comfortable Grip Plastic Long Mouthed Watering Can Injection Molding Machine | Type: | Automation |
|---|---|---|---|
| Function: | Plastic Parts Production | Motor: | Servo Energy Saving |
| Color: | Support Customization | Stable Performance: | Short Cycle Time |
| Clamping Way: | Hydraulic | Transport Package: | FCL |
| High Light: | Comfortable Grip Injection Molding Machine,280T Injection Molding Machine,High Output Plastic Injection Molding Machine |
||
OUCO is the source manufacturer of injection molding machines, achieving a perfect combination of price advantage and excellent quality. Our goal is to enable every customer to obtain high-quality and high-performance injection molding machine equipment at a reasonable price and to receive comprehensive service support during use. Whether you have a preliminary understanding of injection molding machines or have extensive usage experience, our sales team can provide you with the most suitable product suggestions and solutions. We will always be customer-centric, continuously improve service quality and strive to become your most trusted injection molding machine manufacturer.
Product Advantages
OC-280H steel pipe layout is reasonable, and the high and low pressure oil pipes are stored in the rack, making the whole machine simple and beautiful. The template is designed with high rigidity, and the overall rigidity of the locking unit is improved; Standard T-shaped groove for easy loading and unloading of templates. The evenly distributed locking force and deformation of the template effectively extend the service life of the template. Compared to traditional injection molding machines, the positioning accuracy and repeatability of the mold opening position have been improved, meeting the requirements of precise extraction by the robotic arm, which is beneficial for automated and continuous production, and increasing output. To provide continuous support for your production.
| MODEL | OC280H | |||||
| Clamping force (kN) | 2800 | |||||
| Space between tie bar (mm*mm) | 610*510 | |||||
| Max. mold thickness (mm) | 250 | |||||
| Min. mold thickness(mm) | 650 | |||||
| Opening stroke (mm) | 700 | |||||
| Ejector stroke(mm) | 190 | |||||
| Ejector force forward(Kn) | 62 | |||||
| Screw diameter(mm) | 65 | |||||
| Screw L/D ratio | 22 | |||||
| Theoretical injection volume (cm3) | 994 | |||||
| Shot weight (PS) g | 914 | |||||
| Injection pressure(MPa) | 143 | |||||
| Screw speed (rpm) | 0-200 | |||||
| Injection Rate(g/s) | 359 | |||||
| Motor power (Kw) | 40 | |||||
| Oil tank capacity(L) | 510 | |||||
| Heater power (Kw) | 27 | |||||
| Machine Weight (Ton) | 11 | |||||
| Machine size L×W×H (m) | 8.1*1.9*2.0 | |||||

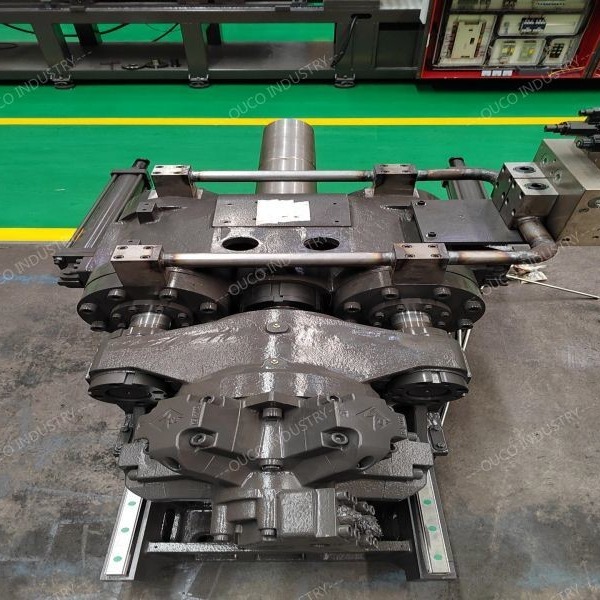

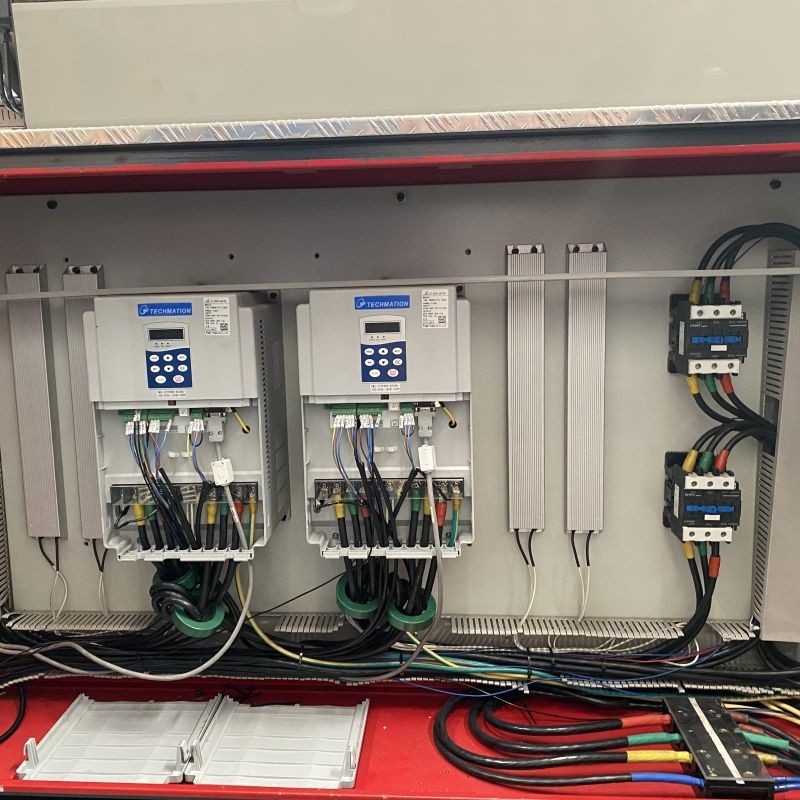

Detail Pictures
