| Place of Origin: | China |
|---|---|
| Brand Name: | OUCO |
| Certification: | CE, ISO9001:2008, SGS |
| Model Number: | OCM-480H |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Nude |
| Delivery Time: | 2 months |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 500 sets/year |

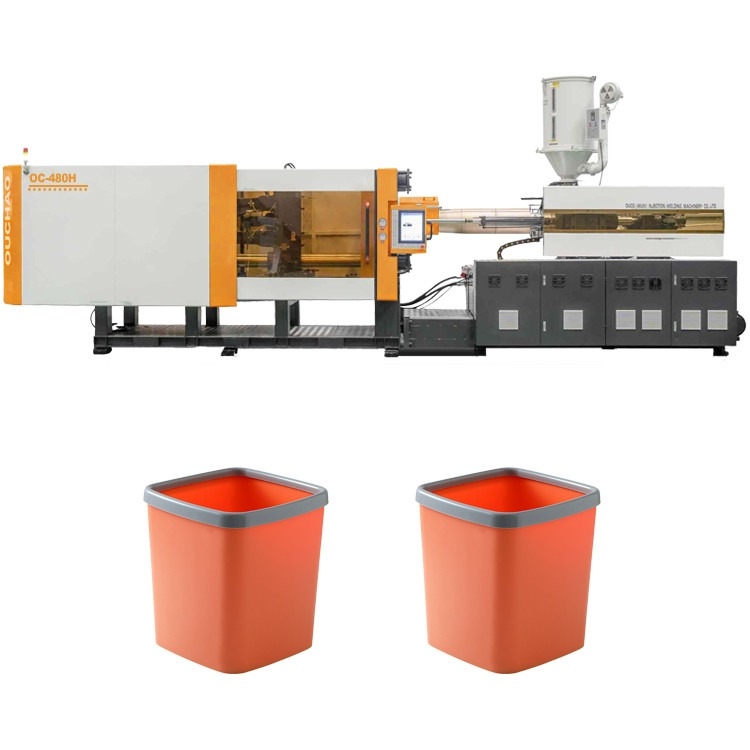

| Product Name: | 480T Yellow Injection Molding Machine Manufacture Small Desktop Waste Bin | Type: | Automation |
|---|---|---|---|
| Function: | Plastic Parts Production | Motor: | Servo Energy Saving |
| Color: | Support Customization | Stable Performance: | Short Cycle Time |
| Clamping Way: | Hydraulic | Transport Package: | FCL |
| High Light: | Waste Bin Injection Molding Machine,480T Injection Molding Machine,Stable Injection Molding Machine |
||
OUCO injection molding machine, modern production line, professional manufacturer. Insisting on the development concept of continuous innovation and focusing on quality and service, we are striving for excellence on the basis of the current stage, constantly introducing advanced technology, strictly controlling the quality of each injection molding machine, and providing our customers with high-quality injection molding machine products and services. We have rich industry experience, good performance and professional injection molding knowledge. Taking it as our responsibility to create real value for our customers and aiming for excellence, we are adhering to the spirit of flexibility and continuous innovation to create high quality, durability, efficiency and value-added products for you. Choose OUCO to power your production!
Product Advantages

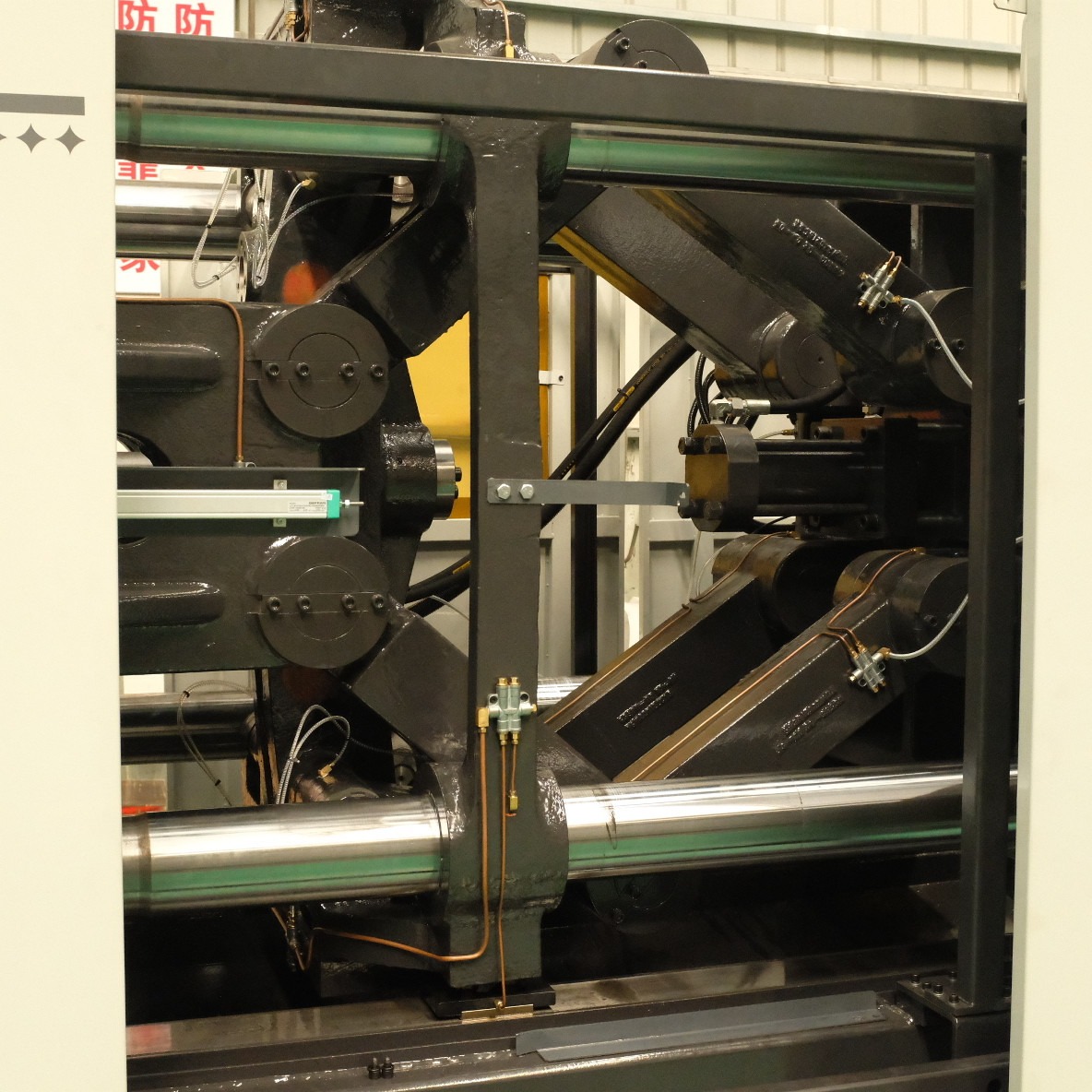

1. Trustworthy center clamping structure: Constantly updated, the clamping force utilization rate is up to 100%. Unprecedented stable clamping interlocking is realized, which ensures more precise and reliable clamping structure.

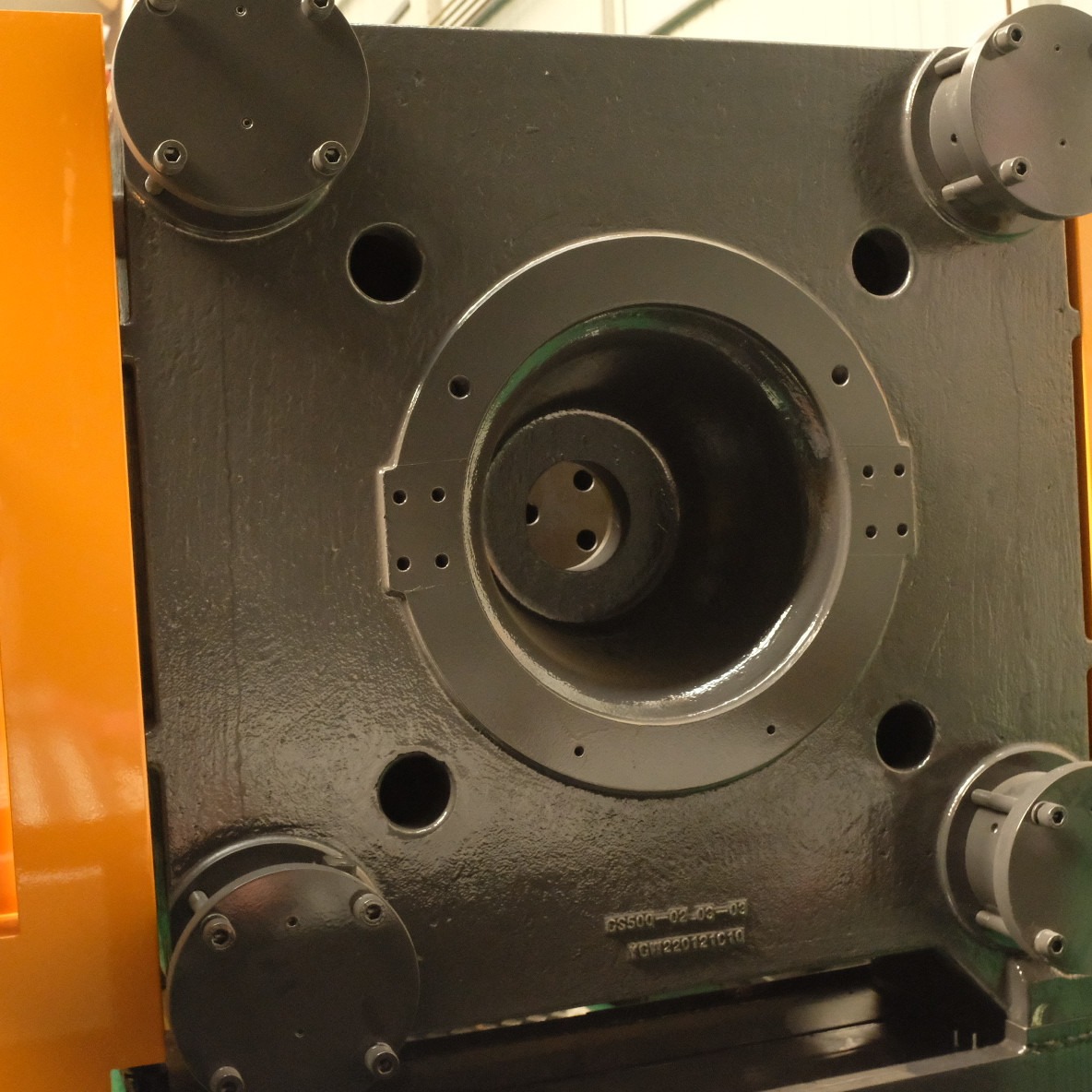

2. Straight-pressure external bending type: the force on the mold plate is even, not easy to deform, protect the mold plate and prolong its service life. 3. Hydraulic mode control system: the torque of mold clamping, ejector, and material filling is put under precise control. High-precision and high-efficiency injection molding machine not only saves electricity and material, but also saves time and effort, creating maximum value for you.
4. Stable quality screw: Using brand-new screw and precise ejection device, matched with ultra-precise processing control, ensures the stability and consistency of the products.
5.Compared with traditional injection molding structure, high precision, less flying edge, save electricity,material, time and labor.
Parameters
| MODEL | OCH-480T | |||||
| Clamping force (kN) | 4800 | |||||
| Space between tie bar (mm*mm) | 820*780 | |||||
| Max. mold thickness (mm) | 730 | |||||
| Min. mold thickness(mm) | 300 | |||||
| Opening stroke (mm) | 900 | |||||
| Ejector stroke(mm) | 190 | |||||
| Ejector force forward(Kn) | 80 | |||||
| Screw diameter(mm) | 85 | |||||
| Screw L/D ratio | 22 | |||||
| Theoretical injection volume (cm3) | 2355 | |||||
| Shot weight (PS) g | 2275 | |||||
| Injection pressure(MPa) | 141 | |||||
| Injection speed (mm/s) | 106 | |||||
| Injection rate (g/s) | 583 | |||||
| Motor power (Kw) | 65 | |||||
| Oil tank capacity(L) | 680 | |||||
| Heater power (Kw) | 35 | |||||
| Machine Weight (t) | 18 | |||||
| Machine size L×W×H (m) | 8.6*2.1*2.2 | |||||
Detail Pictures
