| Place of Origin: | China |
|---|---|
| Brand Name: | OUCO |
| Certification: | CE, ISO9001:2008, SGS |
| Model Number: | OC-170UV |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Nude |
| Delivery Time: | 2 months |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 500 sets/year |

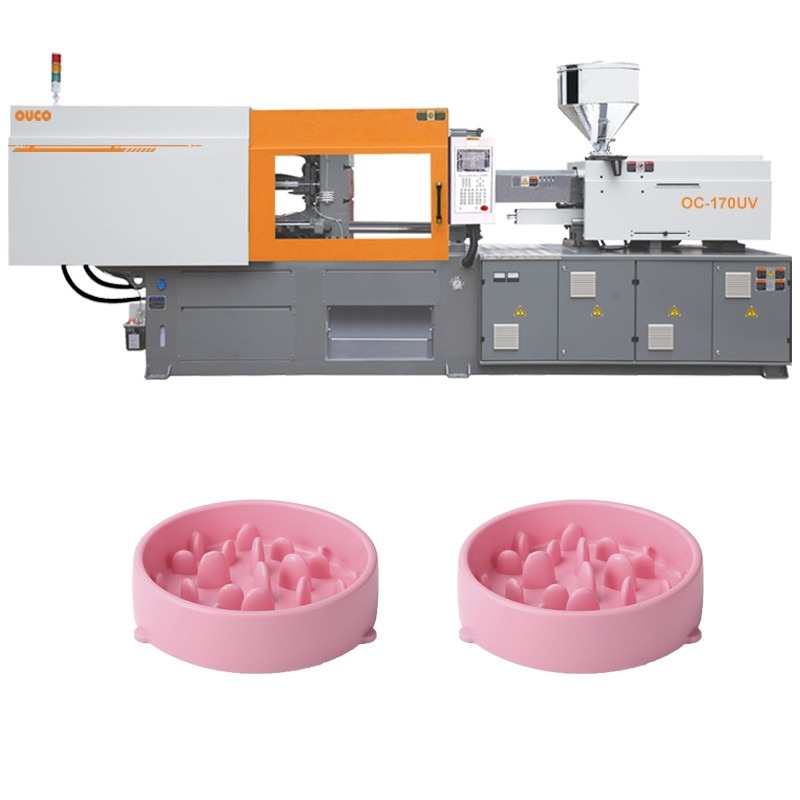

| Product Name: | OUCO 170T High Accuracy Hydraulic Servo Smooth Edged Plastic Pet Feeding Bowl Injection Molding Machine | Type: | Automation |
|---|---|---|---|
| Function: | Plastic Parts Production | Motor: | Servo Energy Saving |
| Color: | Support Customization | Stable Performance: | Short Cycle Time |
| Clamping Way: | Hydraulic | Transport Package: | FCL |
| High Light: | 170T Hydraulic Injection Molding Machine,High Accuracy Injection Molding Machine,Pet Bowl hydraulic injection molding machine |
||
We are a manufacturer of injection molding machines, committed to providing high-quality injection molding machines while maintaining competitive prices. We have established long-term and stable cooperative relationships with well-known suppliers, and can purchase high-quality raw materials and components at lower prices. Through large-scale and specialized production, production efficiency has been improved and production costs have been further reduced. Fundamentally saving you the cost of purchasing machines. For you who need to purchase injection molding machine equipment, our machine is undoubtedly your best choice.
Product Advantages

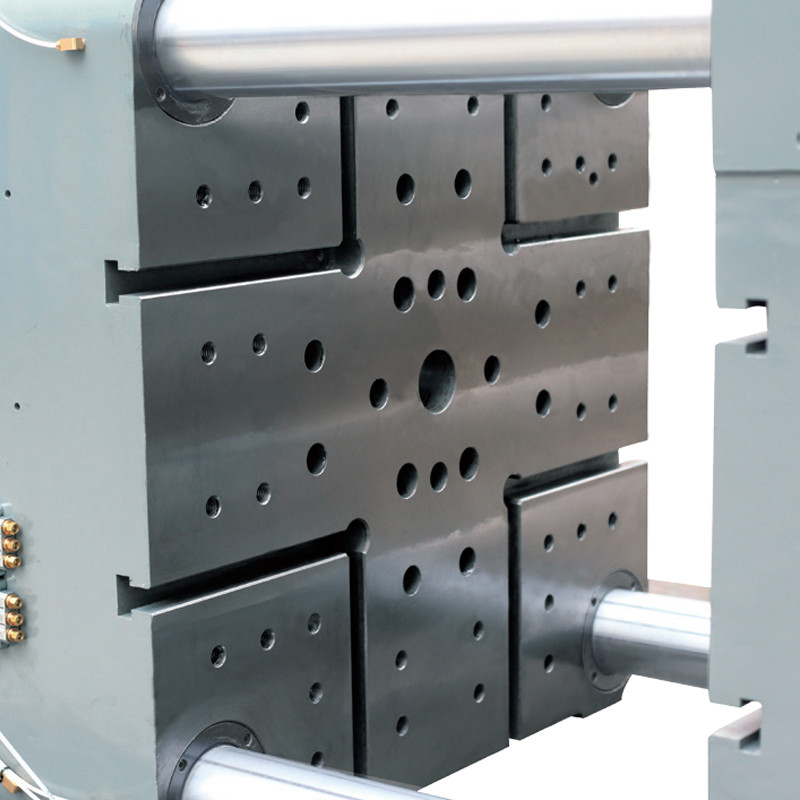

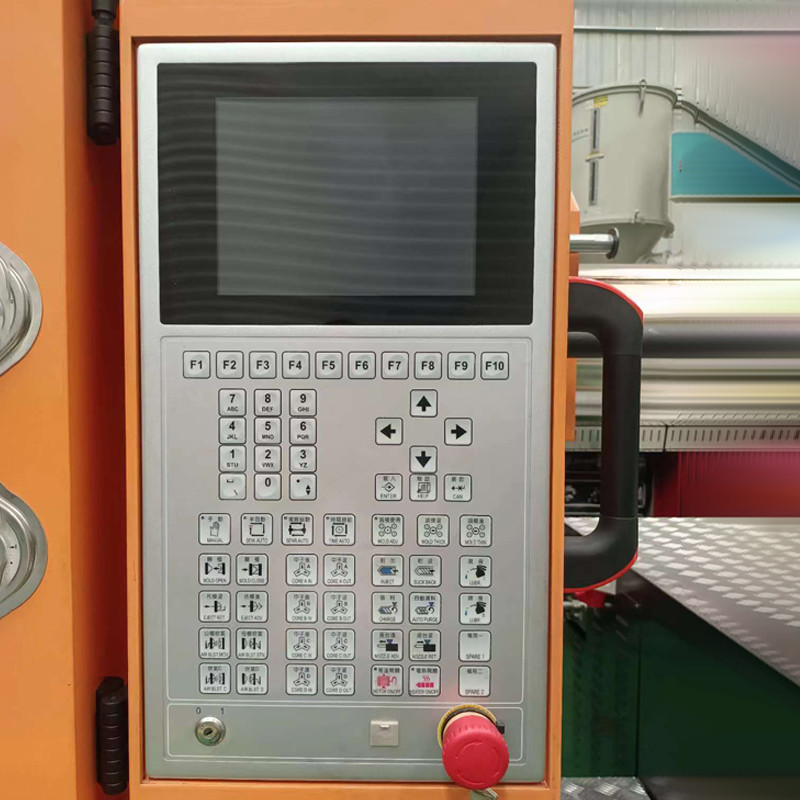

OC-170UV has been optimized and upgraded in terms of templates, making its structure more sturdy and reliable and significantly improving the service life of the molds. The rigid design of the frame enhances its bending resistance, reducing the deformation of the frame and template during operation, maintaining stable production conditions and improving product quality while increasing the yield rate. We focus on the actual experience of our customers, and in the design of the machine's appearance, there are clear lines and strong three-dimensional sense. We use advanced injection molding machine professional computer controllers with multiple languages to choose from and the human-machine interface operation is simple and easy to understand. OC-170UV will inject new energy into your production.
| MODEL | OC170UV | |||||
| Clamping force (kN) | 1700 | |||||
| Space between tie bar (mm*mm) | 460*460 | |||||
| Max. mold thickness (mm) | 530 | |||||
| Min. mold thickness(mm) | 200 | |||||
| Opening stroke (mm) | 430 | |||||
| Ejector stroke(mm) | 140 | |||||
| Ejector force forward(Kn) | 50 | |||||
| Screw diameter(mm) | 50 | |||||
| Screw L/D ratio | 18 | |||||
| Theoretical injection volume (cm3) | 392 | |||||
| Shot weight (PS) g | 368 | |||||
| Injection pressure(MPa) | 138 | |||||
| Screw speed (rpm) | 0-200 | |||||
| Dry-cycle time(sec) | 2.0 | |||||
| Motor power (Kw) | 18.5 | |||||
| Oil tank capacity(L) | 210 | |||||
| Heater power (Kw) | 12.6 | |||||
| Machine Weight (Ton) | 4.8 | |||||
| Machine size L×W×H (m) | 4.9*1.2*2.0 | |||||

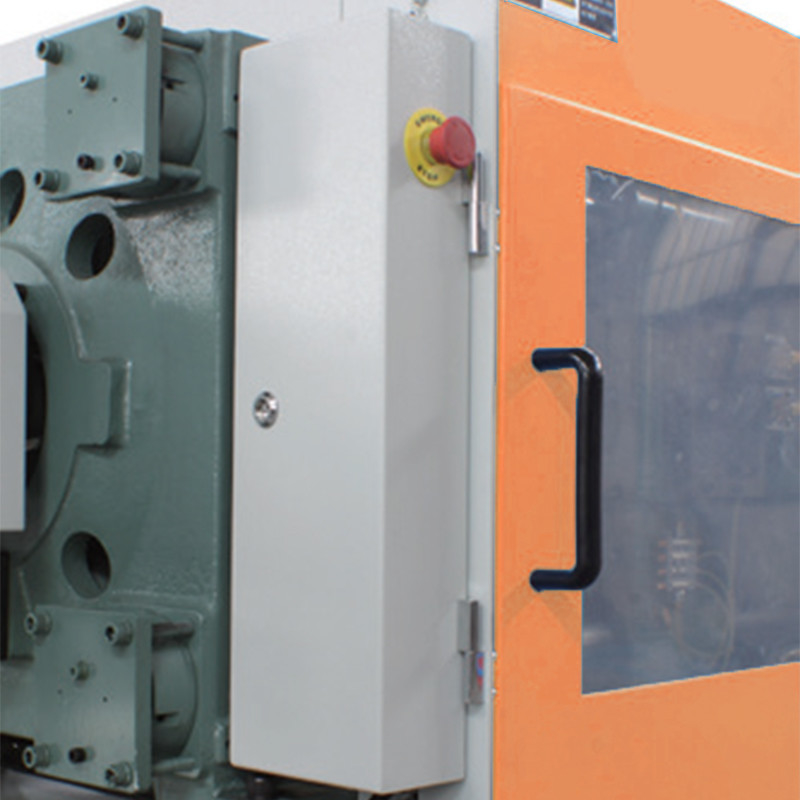

Detail Pictures
