| Place of Origin: | China |
|---|---|
| Brand Name: | OUCO |
| Certification: | CE, ISO9001:2008, SGS |
| Model Number: | OC 280H |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Nude |
| Delivery Time: | 2 months |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 500 sets/year |

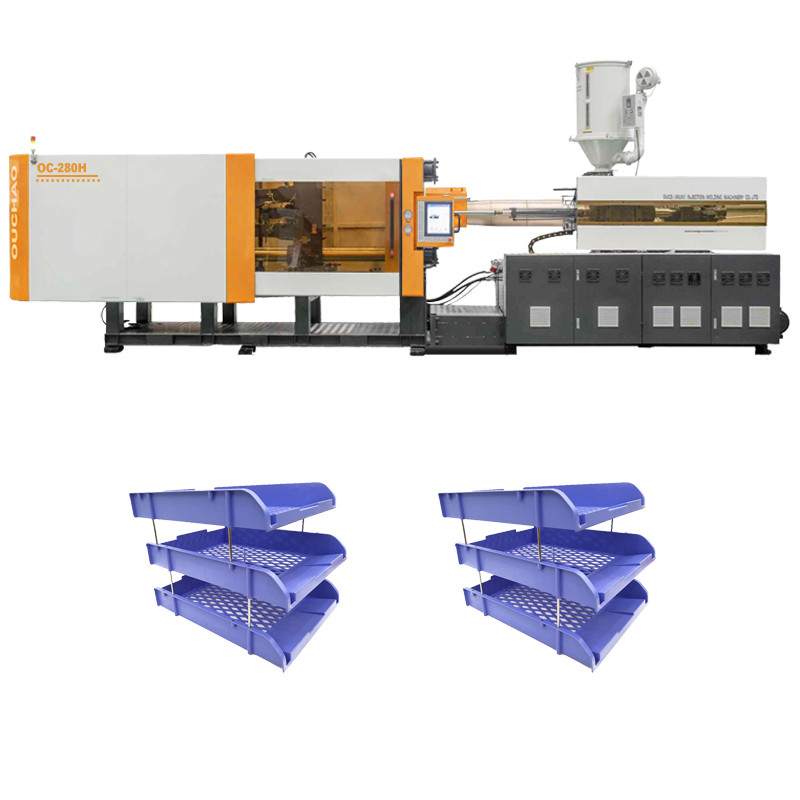

| Product Name: | OUCO 280T Energy Saving Hydraulic Servo Plastic Desk Organizer File Tray Injection Molding Machine | Type: | Automation |
|---|---|---|---|
| Function: | Plastic Parts Production | Motor: | Servo Energy Saving |
| Color: | Support Customization | Stable Performance: | Short Cycle Time |
| Clamping Way: | Hydraulic | Transport Package: | FCL |
| High Light: | Energy Saving Injection Molding Machine,Desk Organizer Injection Molding Machine,280T Hydraulic Servo Injection Molding Machine |
||
We have attracted and trained a large number of skilled and highly educated equipment operators, providing a solid guarantee for the high-precision processing and production of products. We continuously optimize production to ensure that customers can achieve excellent performance and extremely high production efficiency when using injection molding machines. We have a variety of screws with different diameters to choose from according to the different product requirements of our customers, which have a wide range of adaptability. The excellent machine quality and price advantage provide us with the driving force to continue moving forward in the injection molding machine market.
Product Advantages

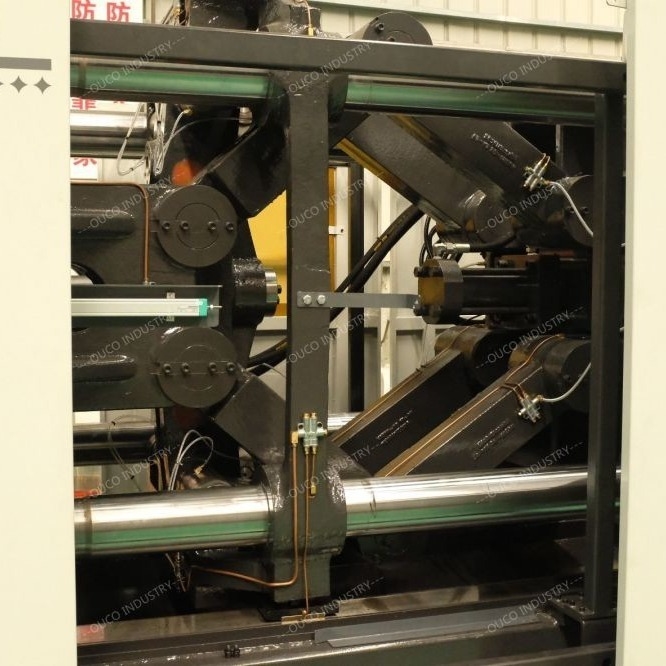

OC-280H will inject efficient, precise and reliable power into your production line. In the design of the injection molding machine, a direct-pressure external curved center clamping structure is adopted. The template is evenly stressed and has small deformation, which plays a positive protective role. The hydraulic system is provided by well-known manufacturers across the country, with large flow, low noise and stable performance. In the injection unit, the dual-rail injection technology enables fast injection response and high product molding accuracy. Whether you are pursuing efficient production or focusing on product quality and environmental protection, our injection molding machines can meet your diverse needs.
| MODEL | OC280H | |||||
| Clamping force (kN) | 2800 | |||||
| Space between tie bar (mm*mm) | 610*510 | |||||
| Max. mold thickness (mm) | 250 | |||||
| Min. mold thickness(mm) | 650 | |||||
| Opening stroke (mm) | 700 | |||||
| Ejector stroke(mm) | 190 | |||||
| Ejector force forward(Kn) | 62 | |||||
| Screw diameter(mm) | 65 | |||||
| Screw L/D ratio | 22 | |||||
| Theoretical injection volume (cm3) | 994 | |||||
| Shot weight (PS) g | 914 | |||||
| Injection pressure(MPa) | 143 | |||||
| Screw speed (rpm) | 0-200 | |||||
| Injection Rate(g/s) | 359 | |||||
| Motor power (Kw) | 40 | |||||
| Oil tank capacity(L) | 510 | |||||
| Heater power (Kw) | 27 | |||||
| Machine Weight (Ton) | 11 | |||||
| Machine size L×W×H (m) | 8.1*1.9*2.0 | |||||

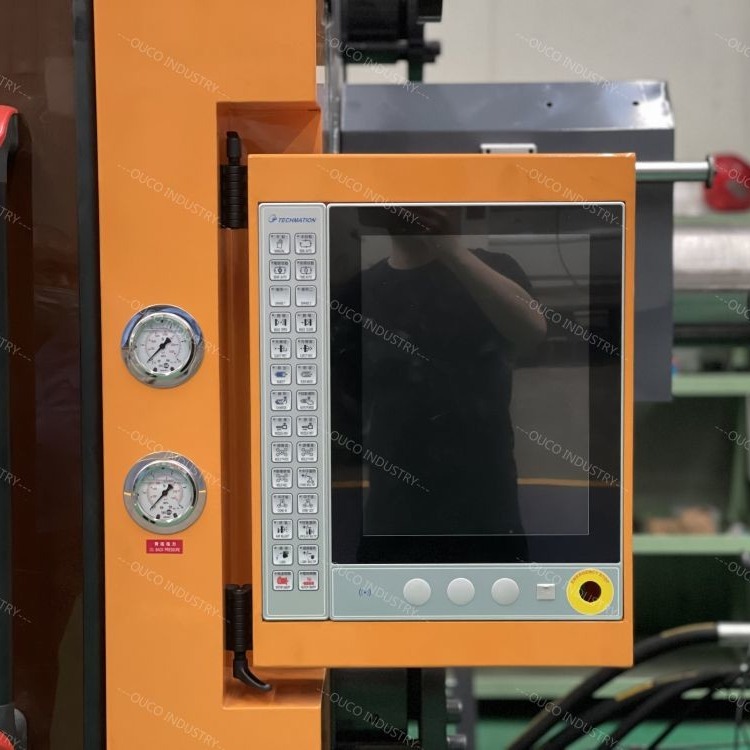

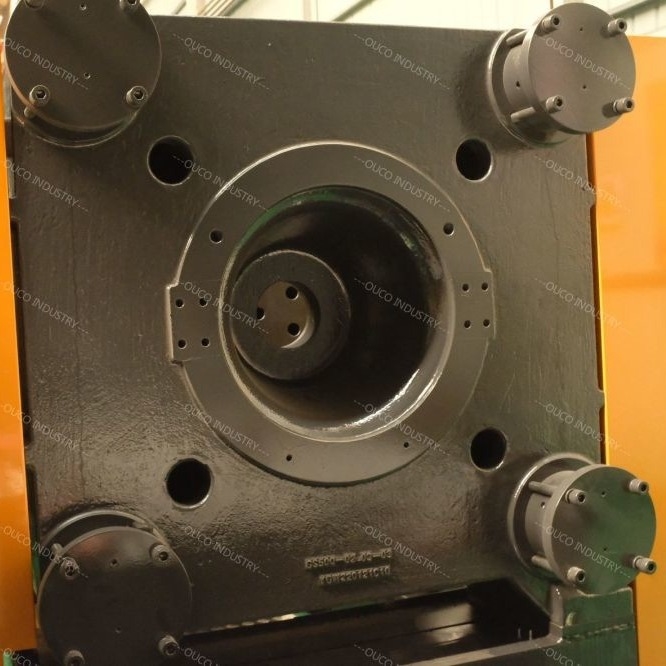

Detail Pictures
