| Place of Origin: | China |
|---|---|
| Brand Name: | OUCO |
| Certification: | CE, ISO9001:2008, SGS |
| Model Number: | OUCO OC480H |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Nude |
| Delivery Time: | 2 months |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 500 sets/year |

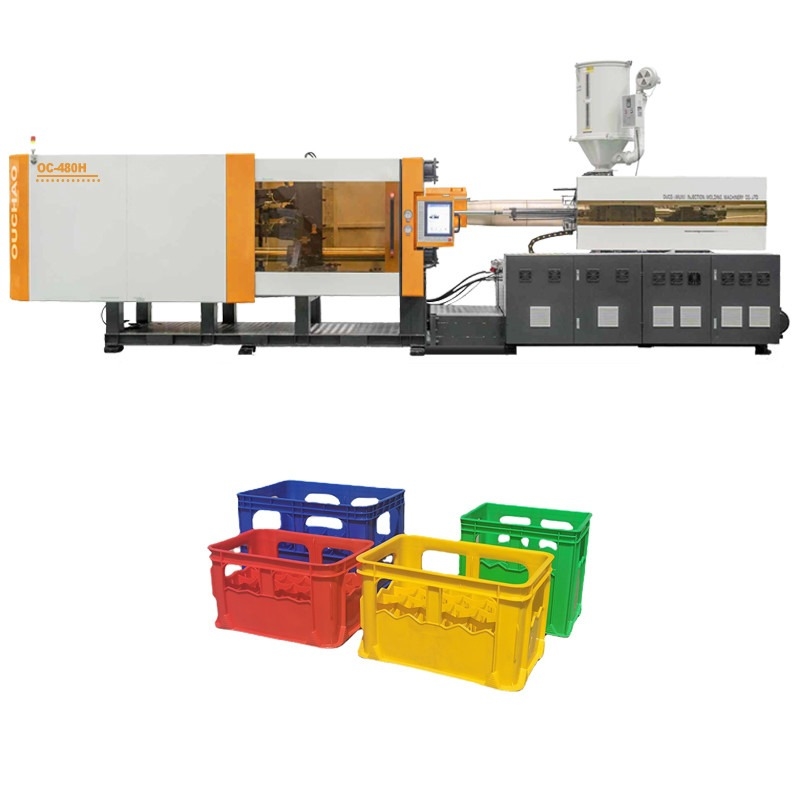

| Product Name: | OUCO 480T Factory Direct Sales Hydraulic Servo Plastic Beer Basket Horizontal Injection Molding Machine | Type: | Automation |
|---|---|---|---|
| Function: | Plastic Parts Production | Motor: | Servo Energy Saving |
| Color: | Support Customization | Stable Performance: | Short Cycle Time |
| Clamping Way: | Hydraulic | Transport Package: | FCL |
| High Light: | 480t horizontal injection molding machine,beer basket horizontal injection molding machine,plastic beer basket horizontal injection machine |
||
Our company is located in Wuxi, Jiangsu, with a complete production process and has passed multiple international quality system certifications, possessing professional scientific research and innovation capabilities. The high-efficiency injection molding machine produced is committed to increasing production capacity, improving product qualification rate, reducing energy consumption and controlling and reducing production costs for customers. As a manufacturer, we produce and sell directly without intermediaries earning price differences. We have a certain price advantage and fundamentally control procurement costs.
Product Advantages
OC-480H adopts a linear guide design in the injection unit, which has light load, reduced wear and accurate, it also has stable injection control. In recent years, our technical staff have continuously challenged themselves to improve production processes. Due to the improvement of part accuracy and assembly process, the machine performance reaches European standards. The rigidity of the formwork is enhanced, the deformation is lower, and the service life of the formwork and the whole machine is extended. If you are interested in our machines, please feel free to contact us.
Parameters
| MODEL | OC480H | |||||
| Clamping force (kN) | 4800 | |||||
| Space between tie bar (mm*mm) | 820*780 | |||||
| Max. mold thickness (mm) | 730 | |||||
| Min. mold thickness(mm) | 300 | |||||
| Opening stroke (mm) | 900 | |||||
| Ejector stroke(mm) | 190 | |||||
| Ejector force forward(Kn) | 80 | |||||
| Screw diameter(mm) | 85 | |||||
| Screw L/D ratio | 22 | |||||
| Theoretical injection volume (cm3) | 2355 | |||||
| Shot weight (PS) g | 2275 | |||||
| Injection pressure(MPa) | 208 | |||||
| Injection speed (mm/s) | 141 | |||||
| Injection rate (g/s) | 583 | |||||
| Motor power (Kw) | 65 | |||||
| Oil tank capacity(L) | 680 | |||||
| Heater power (Kw) | 35 | |||||
| Machine Weight (Ton) | 18 | |||||
| Machine size L×W×H (m) | 8.6*2.1*2.2 | |||||

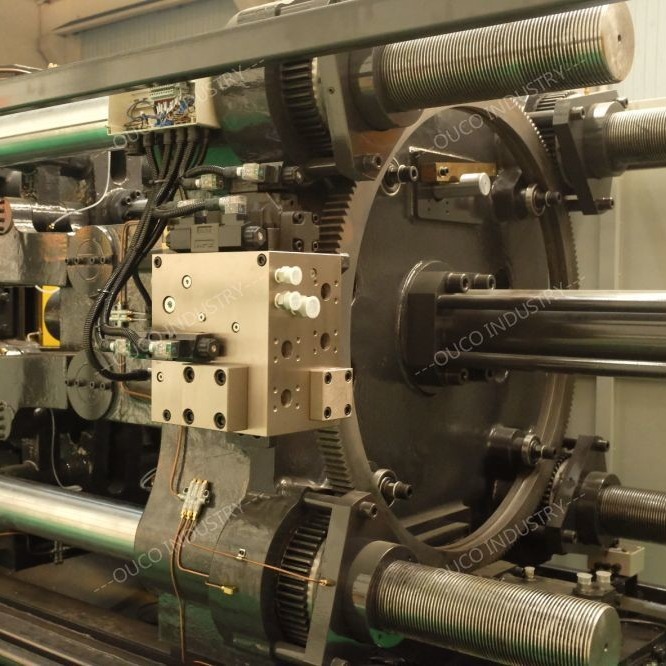

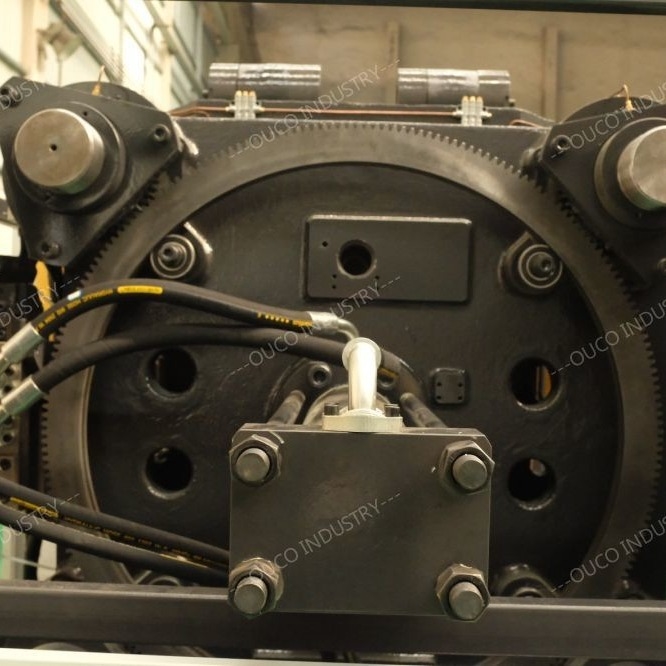

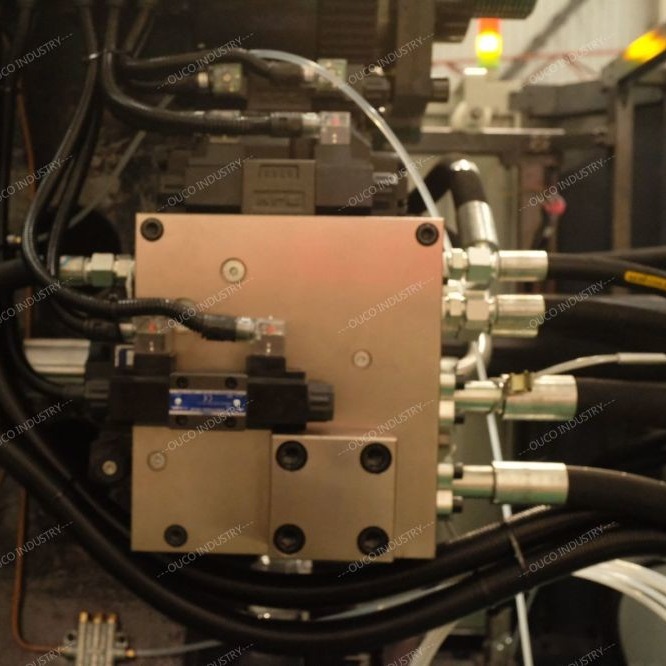

Detail Pictures
