| Place of Origin: | China |
|---|---|
| Brand Name: | OUCO |
| Certification: | CE, ISO9001:2008, SGS |
| Model Number: | OC 280H |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Nude |
| Delivery Time: | 2 months |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 500 sets/year |

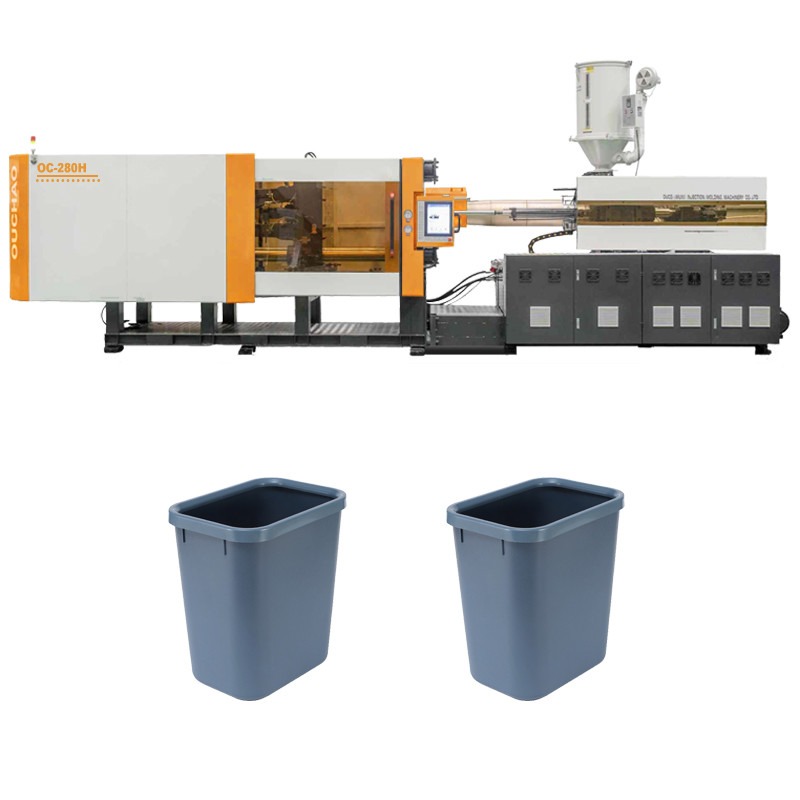

| Product Name: | OUCO 280T New Design Hydraulic Servo Household Plastic Trash Cans Injection Molding Machine | Type: | Automation |
|---|---|---|---|
| Function: | Plastic Parts Production | Motor: | Servo Energy Saving |
| Color: | Support Customization | Stable Performance: | Short Cycle Time |
| Clamping Way: | Hydraulic | Transport Package: | FCL |
| High Light: | 280 t plastic injection molding machine,trash cans plastic injection molding machine,household trash cans injection moulding machine |
||
By constantly comparing with market brands, we summarize our own advantages and actively promote them. Ultimately, we win the trust and praise of customers with high performance, highly stable products and customized services. Various large-scale advanced precision processing equipment in the factory ensure the high precision and consistency of injection molding machine products. OUCO injection molding machine is your wise choice to open the door to wealth.
Product Advantages

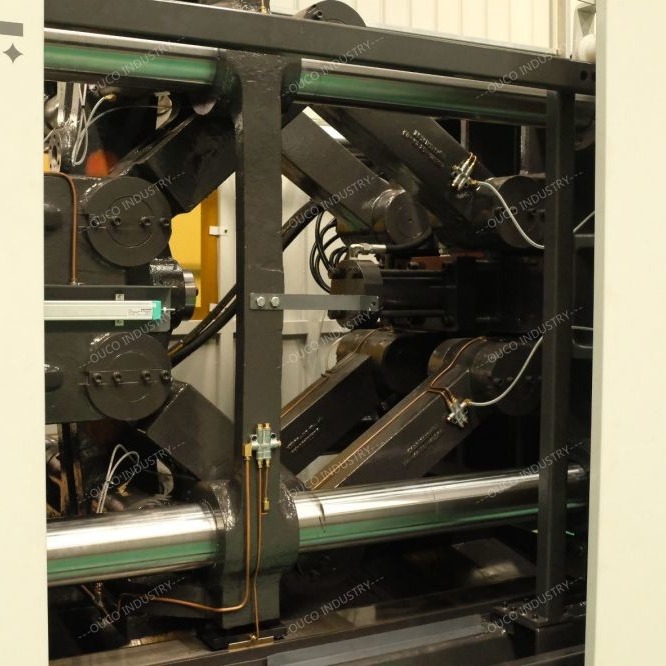

OC-280H is designed with a centre-locked clamping structure and the mold-locking utilization rate is as high as 100%. The repeatability of mold opening and closing is high and less flash is produced compared to traditional structures. The machine adopts the latest servo system technology, which is more green and energy-saving, saving you costs from the most fundamental raw materials and energy consumption. Reasonable oil circuit design further improves the operating speed and reduces the product molding cycle.
| MODEL | OC280H | |||||
| Clamping force (kN) | 2800 | |||||
| Space between tie bar (mm*mm) | 610*510 | |||||
| Max. mold thickness (mm) | 250 | |||||
| Min. mold thickness(mm) | 650 | |||||
| Opening stroke (mm) | 700 | |||||
| Ejector stroke(mm) | 190 | |||||
| Ejector force forward(Kn) | 62 | |||||
| Screw diameter(mm) | 65 | |||||
| Screw L/D ratio | 22 | |||||
| Theoretical injection volume (cm3) | 994 | |||||
| Shot weight (PS) g | 914 | |||||
| Injection pressure(MPa) | 143 | |||||
| Screw speed (rpm) | 0-200 | |||||
| Injection Rate(g/s) | 359 | |||||
| Motor power (Kw) | 40 | |||||
| Oil tank capacity(L) | 510 | |||||
| Heater power (Kw) | 27 | |||||
| Machine Weight (Ton) | 11 | |||||
| Machine size L×W×H (m) | 8.1*1.9*2.0 | |||||

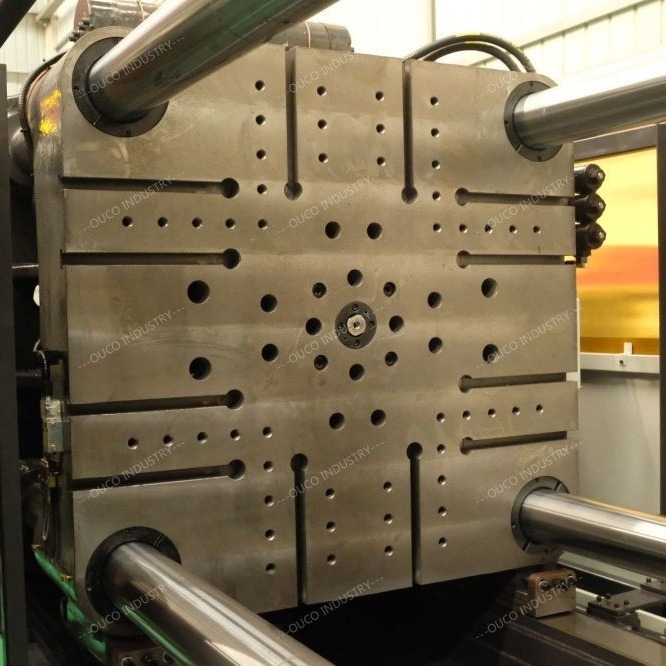

Detail Pictures
