| Place of Origin: | China |
|---|---|
| Brand Name: | OUCO |
| Certification: | CE, ISO9001:2008, SGS |
| Model Number: | OCM-400UV |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Nude |
| Delivery Time: | 2 months |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 500 sets/year |

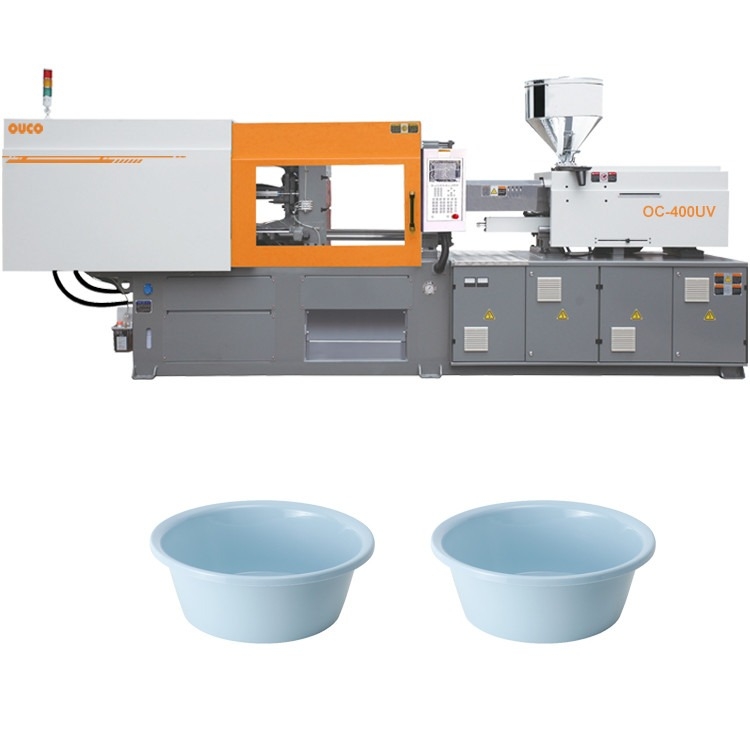

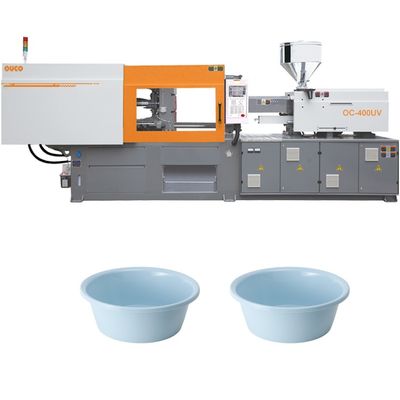

| Product Name: | 400T Injection Molding Machine For High Precision Production Of Washbasins | Type: | Automation |
|---|---|---|---|
| Function: | Plastic Parts Production | Motor: | Servo Energy Saving |
| Color: | Support Customization | Stable Performance: | Short Cycle Time |
| Clamping Way: | Hydraulic | Transport Package: | FCL |
| High Light: | 400T horizontal injection molding,High Precision Production horizontal injection molding,Production Washbasins horizontal injection machine |
||
OUCO always pursues progress by virtue of strict quality control. In the continuous development of science and technology, we follow the pace of the times, and constantly study and introduce advanced technology to inject new vitality into our machines. You pursue quality and efficiency, we provide you with excellent quality to your satisfaction.
Product Advantages
The OUCO 400T injection molding machine uses a well-known servo oil pump system, which saves energy and power compared to conventional hydraulic systems. Efficient response, the speed can meet the customer's requirement of efficiency. Long service life, the screw is made of alloy, corrosion and abrasion resistant, which prolongs the life of the machine.
Parameters
| MODEL | OCH-400T | |||||
| Clamping force (kN) | 4000 | |||||
| Space between tie bar (mm*mm) | 730*710 | |||||
| Max. mold thickness (mm) | 730 | |||||
| Min. mold thickness(mm) | 250 | |||||
| Opening stroke (mm) | 670 | |||||
| Ejector stroke(mm) | 185 | |||||
| Ejector force forward(Kn) | 111 | |||||
| Screw diameter(mm) | 90 | |||||
| Screw L/D ratio | 19 | |||||
| Theoretical injection volume (cm3) | 2290 | |||||
| Shot weight (PS) g | 2084 | |||||
| Injection pressure(MPa) | 125 | |||||
| Injection speed (mm/s) | 106 | |||||
| Injection rate (g/s) | 583 | |||||
| Motor power (Kw) | 55 | |||||
| Oil tank capacity(L) | 820 | |||||
| Heater power (Kw) | 32.3 | |||||
| Machine Weight (t) | 17 | |||||
| Machine size L×W×H (m) | 8.6*1.8*2.3 | |||||

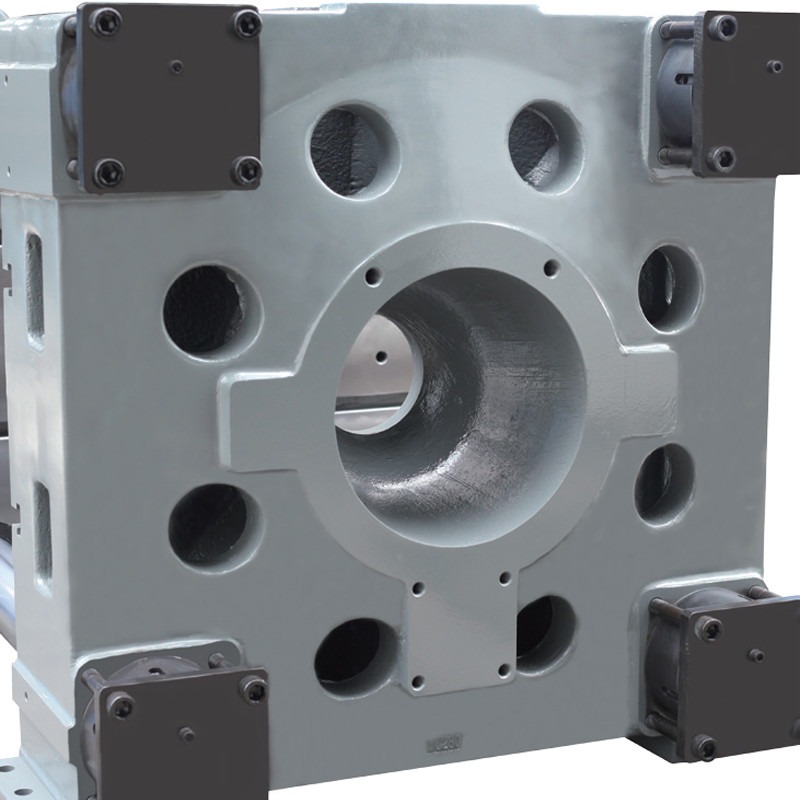

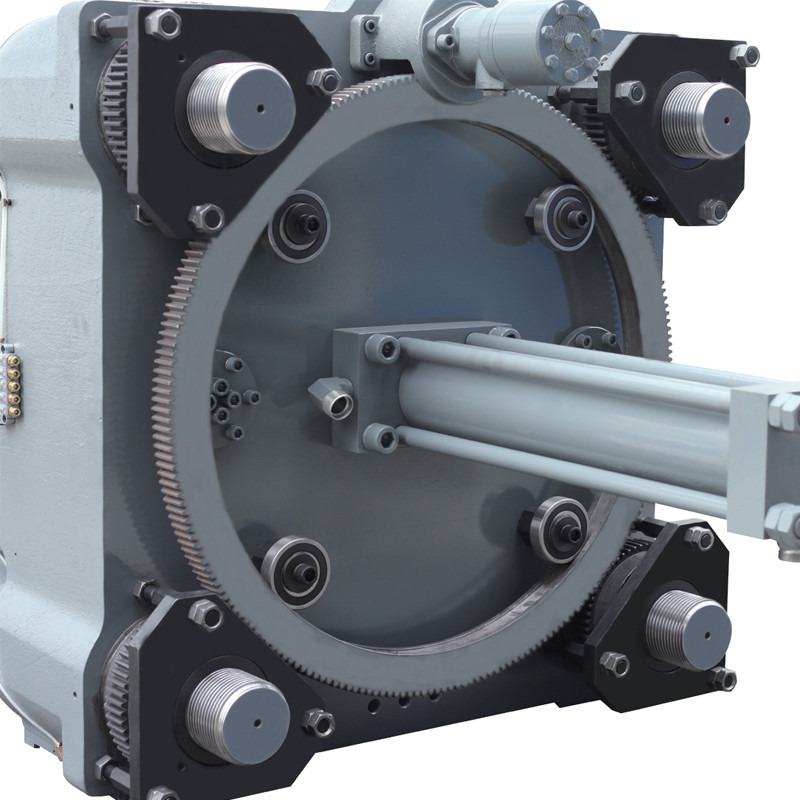

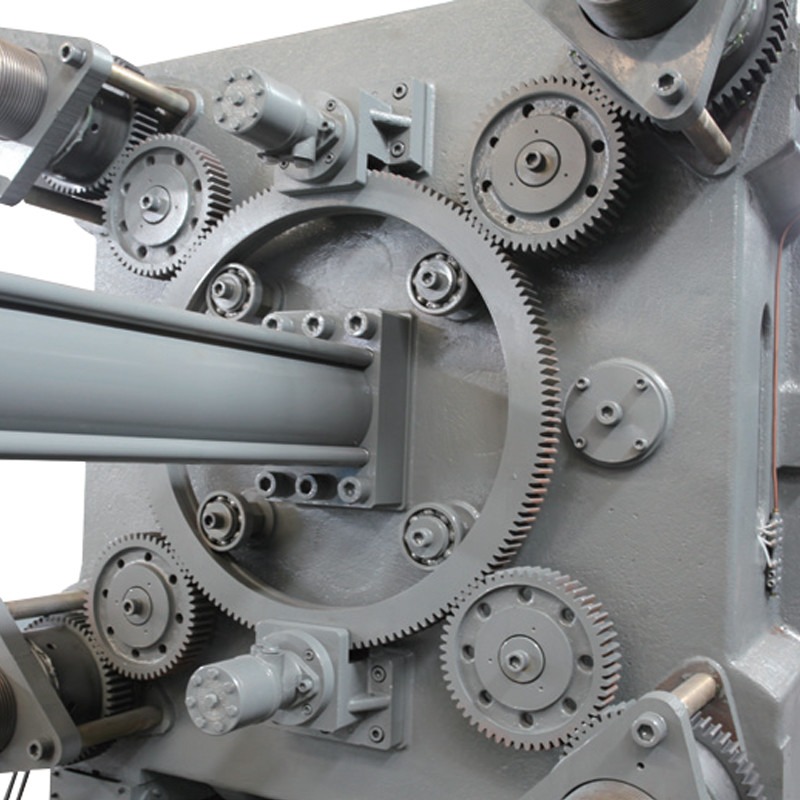

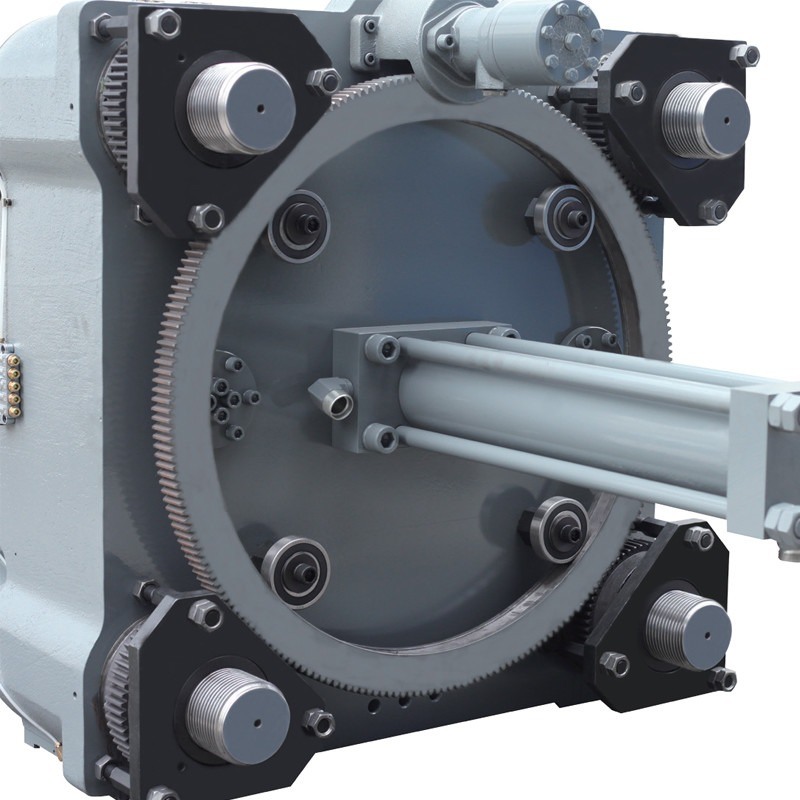

Detail Pictures
