| Place of Origin: | China |
|---|---|
| Brand Name: | OUCO |
| Certification: | CE, ISO9001:2008, SGS |
| Model Number: | OUCO OC480H |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Nude |
| Delivery Time: | 2 months |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 500 sets/year |

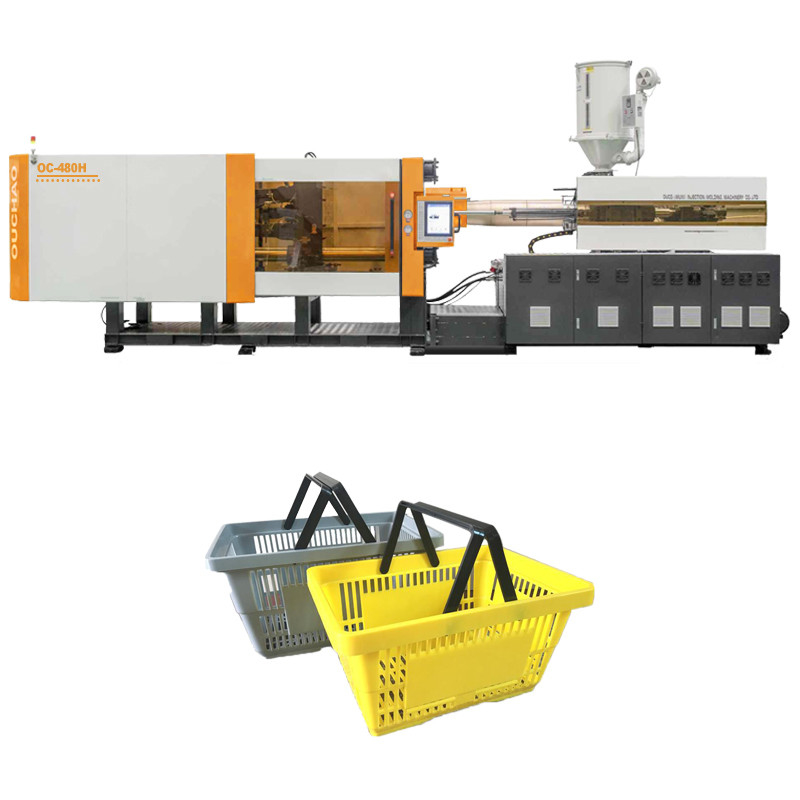

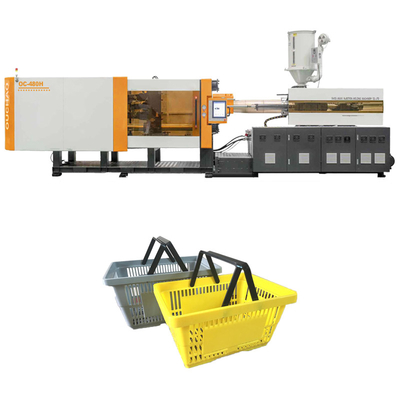

| Product Name: | 480T Plastic Durable Shopping Basket Making Injection Molding Machine | Type: | Automation |
|---|---|---|---|
| Function: | Plastic Parts Production | Motor: | Servo Energy Saving |
| Color: | Support Customization | Stable Performance: | Short Cycle Time |
| Clamping Way: | Hydraulic | Transport Package: | FCL |
| High Light: | 480t servo motor injection molding machine,servo motor injection molding machine hydraulic,shopping basket hydraulic injection molding machine |
||
Company Advantages
With excellent machine quality and price advantages, we have won the trust of our customers and have established a solid foundation in the injection molding machine market. The innovative design of OUCO injection molding machines can not only save you raw material and labor costs, but also significantly improve production efficiency.
Through optimized design, our equipment can show excellent performance in the production process, which fully proves the excellent quality of OUCO injection molding machines.
In addition, our injection molding machines also have significant advantages in ease of operation, durability and reliability. The efficient injection molding process can ensure that every product meets strict quality standards, thereby reducing the scrap rate and improving the overall production efficiency. Our after-sales service team is also ready to provide customers with professional technical support and solutions to ensure that customers have no worries during use.
Choosing OUCO injection molding machines means choosing high quality, high efficiency and high returns. Let us work together to create a brilliant future.
Product Advantages
Screw design:
To meet the different production needs of customers, we provide screws of various diameters for you to choose from. In addition, each equipped screw is strictly inspected before leaving the factory, which can greatly improve the injection accuracy and effectively reduce the defective rate of products.
Linear slide:
The injection unit is designed with a linear slide, which has good dynamic characteristics, smoother movement and faster response speed. This is especially important for high-speed injection processes, which can effectively reduce vibration and impact and ensure the stability and consistency of the injection process.
Multiple text options and real-time data monitoring:
The control computer system supports multiple text options, which is convenient for customers to choose the appropriate operation mode according to different needs. At the same time, it can monitor various key data in real time, including temperature, pressure, etc., to ensure the stability and controllability of the production process.

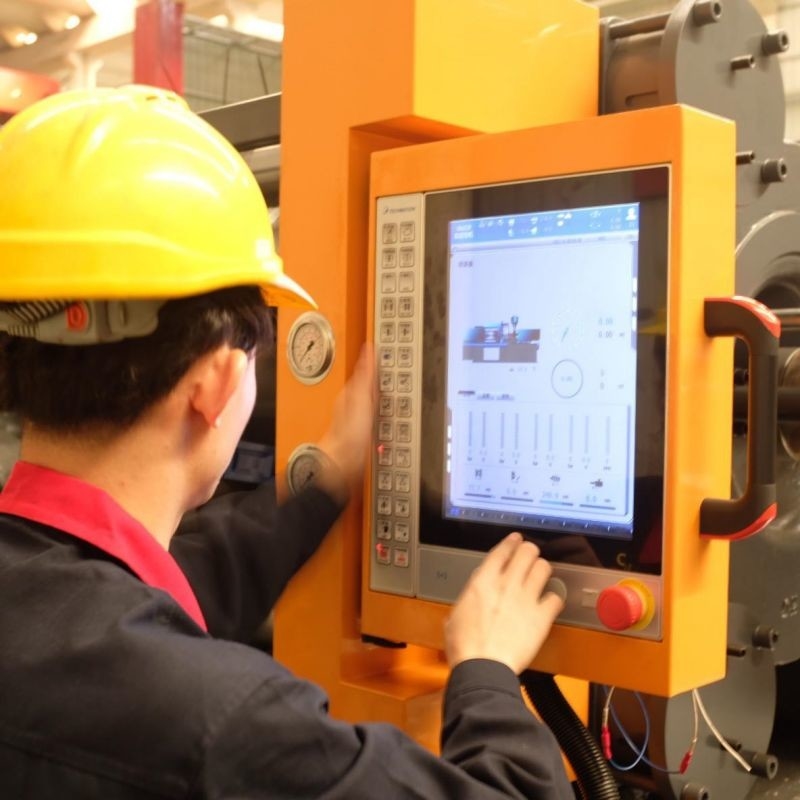

Intuitive and easy-to-operate human-machine interface:
The injection molding machine adopts an intuitive and simple human-machine interface design, which is easy to operate. You can get started quickly and improve operating efficiency and work comfort.
Parameters
| MODEL | OC480H | |||||
| Clamping force (kN) | 4800 | |||||
| Space between tie bar (mm*mm) | 820*780 | |||||
| Max. mold thickness (mm) | 730 | |||||
| Min. mold thickness(mm) | 300 | |||||
| Opening stroke (mm) | 900 | |||||
| Ejector stroke(mm) | 190 | |||||
| Ejector force forward(Kn) | 80 | |||||
| Screw diameter(mm) | 85 | |||||
| Screw L/D ratio | 22 | |||||
| Theoretical injection volume (cm3) | 2355 | |||||
| Shot weight (PS) g | 2275 | |||||
| Injection pressure(MPa) | 208 | |||||
| Injection speed (mm/s) | 141 | |||||
| Injection rate (g/s) | 583 | |||||
| Motor power (Kw) | 65 | |||||
| Oil tank capacity(L) | 680 | |||||
| Heater power (Kw) | 35 | |||||
| Machine Weight (Ton) | 18 | |||||
| Machine size L×W×H (m) | 8.6*2.1*2.2 | |||||

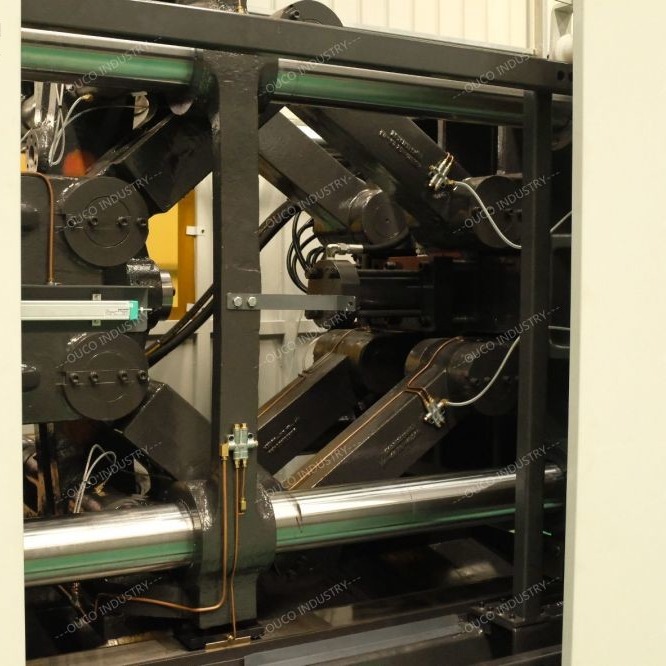

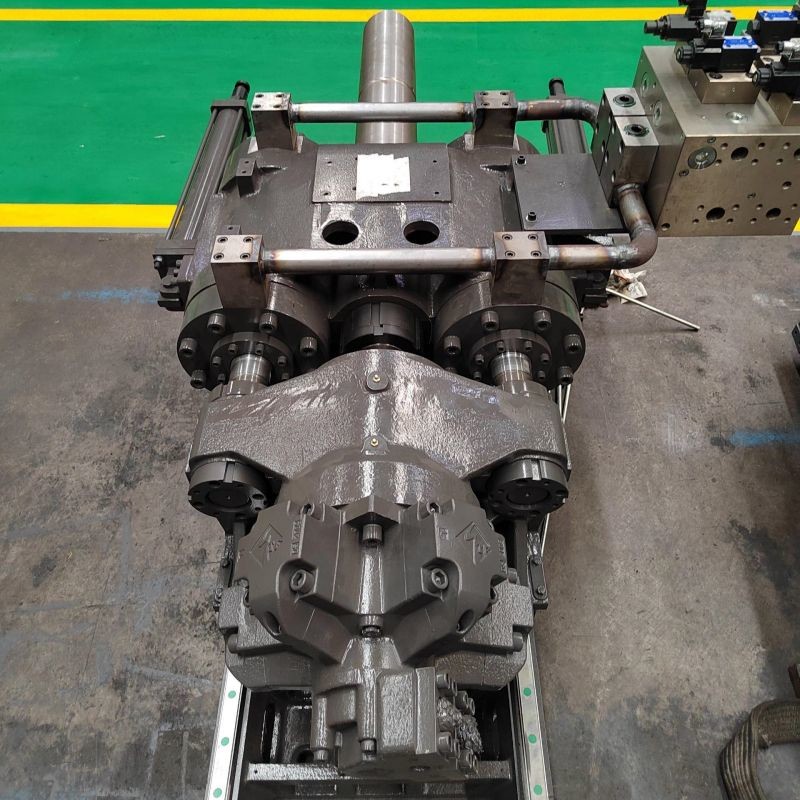

Detail Pictures
