| Place of Origin: | China |
|---|---|
| Brand Name: | OUCO |
| Certification: | CE, ISO9001:2008, SGS |
| Model Number: | OC-220UV |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Nude |
| Delivery Time: | 2 months |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 500 sets/year |
| Product Name: | OUCO 220T High Quality Hydraulic Servo Kitchen Knife Fork Storage Box Injection Molding Machine | Type: | Automation |
|---|---|---|---|
| Function: | Plastic Parts Production | Motor: | Servo Energy Saving |
| Color: | Support Customization | Stable Performance: | Short Cycle Time |
| Clamping Way: | Hydraulic | Transport Package: | FCL |
| Highlight: | 220T horizontal injection molding machine,Kitchen Box horizontal injection molding machine,220T horizontal injection machine |
||
We always pursue steady development and strive to make every injection molding machine a good product. Helping customers solve problems and creating greater value for customers is the unremitting goal of OUCO injection molding machine. With excellent product quality, professional services and excellent technical guarantee, we have won the trust and praise of many customers. We will continue to bring high-quality injection molding machine products to customers around the world with ultra-high cost performance to help your business develop.
Product Advantages
OC-220UV hydraulic unit is composed of a well-known brand of oil pump and control valve. It has better pressure bearing performance, effectively guarantees the accuracy, reliability, stability and durability of the machine and it also has environmentally friendly features such as low noise. The clamping force is controllable and evenly applied to the mold, protecting the mold and extending the service life of the machine. The plastic products produced are more precise, stronger and more durable.
| MODEL | OC-220UV | |||||
| Clamping force (kN) | 2200 | |||||
| Space between tie bar (mm*mm) | 510*510 | |||||
| Max. mold thickness (mm) | 550 | |||||
| Min. mold thickness(mm) | 200 | |||||
| Opening stroke (mm) | 480 | |||||
| Ejector stroke(mm) | 150 | |||||
| Ejector force forward(Kn) | 67 | |||||
| Screw diameter(mm) | 55 | |||||
| Screw L/D ratio | 18 | |||||
| Theoretical injection volume (cm3) | 569 | |||||
| Shot weight (PS) g | 520 | |||||
| Injection pressure(MPa) | 145 | |||||
| Screw speed (rpm) | 0-200 | |||||
| Dry-cycle time (sec) | 4.5 | |||||
| Motor power (Kw) | 23 | |||||
| Oil tank capacity(L) | 310 | |||||
| Heater power (Kw) | 13.1 | |||||
| Machine Weight (Ton) | 6.3 | |||||
| Machine size L×W×H (m) | 5.4*1.3*2.1 | |||||

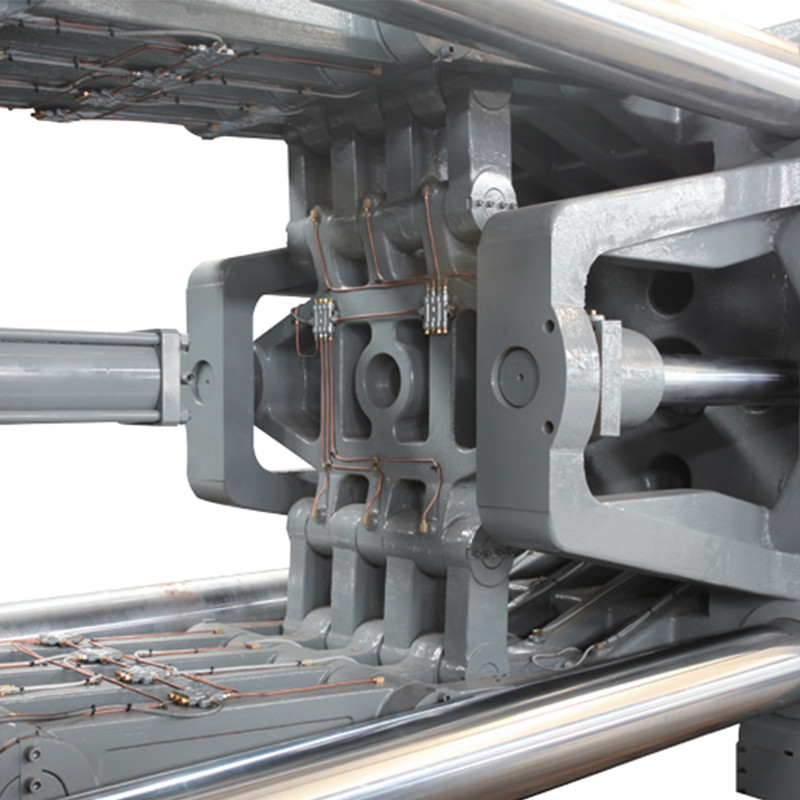

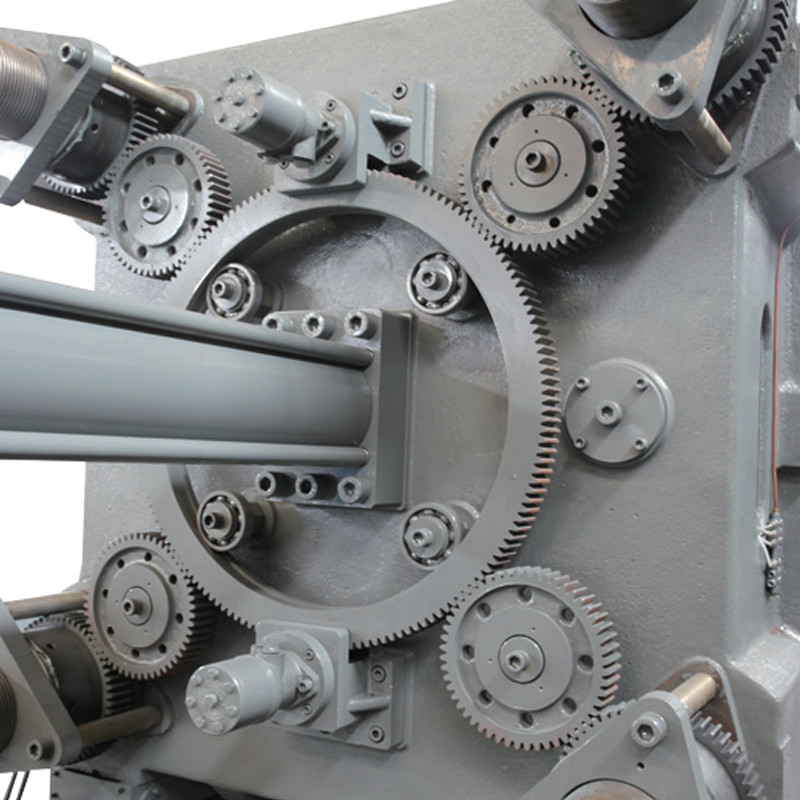

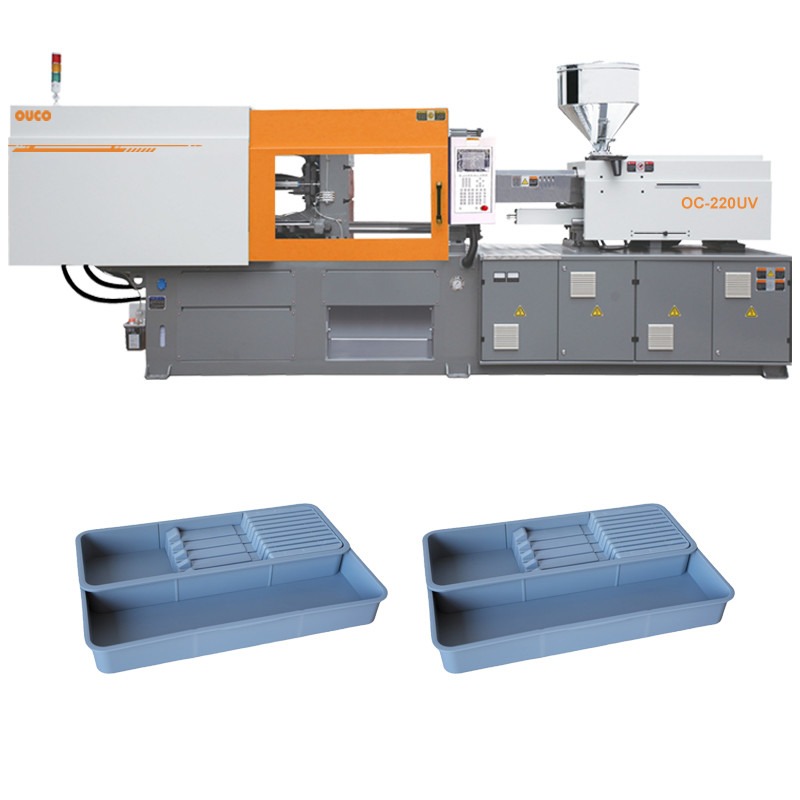

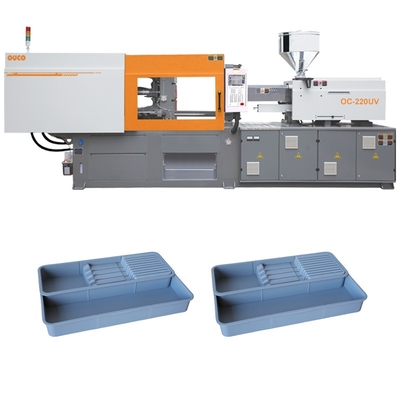

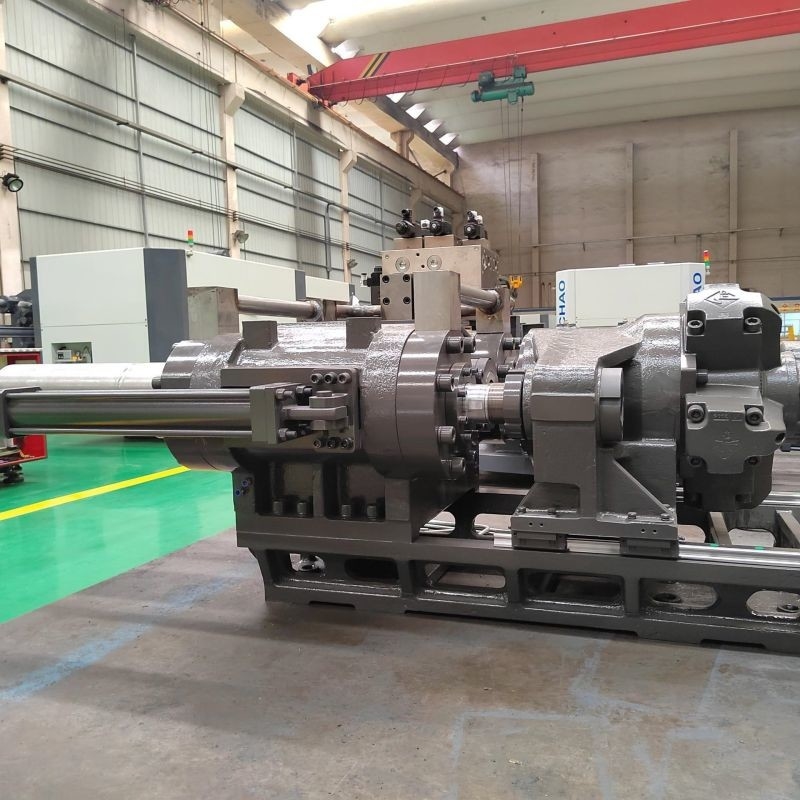

Detail Pictures
