| Place of Origin: | China |
|---|---|
| Brand Name: | OUCO |
| Certification: | CE, ISO9001:2008, SGS |
| Model Number: | OCM-650H |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Nude |
| Delivery Time: | 2 months |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 500 sets/year |
| Product Name: | 650T Orange Energy Saving Support For Customization Plastic Storage Box Screw C Injection Molding Machine Making | Type: | Automation |
|---|---|---|---|
| Function: | Plastic Parts Production | Motor: | Servo Energy Saving |
| Color: | Support Customization | Stable Performance: | Short Cycle Time |
| Clamping Way: | Hydraulic | Transport Package: | FCL |
| High Light: | 650t high precision injection molding machine,energy saving high precision injection molding machine,650t high precision injection molding |
||
OUCO injection molding machine has been in the business for many years with rich experience. Adhering to the 'advanced technology, made in China' as the basis for creating maximum value for the enterprise, and 'technical practicality' as the core competitiveness to serve our customers.
Product Advantages
OUCO650T injection molding machine is equipped with a special control computer for high-response injection moulding machine to achieve precise regulation of parameters; the central clamping structure reduces the deformation of the tie bar bearing, and the moving template moves the high-strength steel belt, which makes the manufactured plastic products sturdy and durable without deformation.
Parameters
| MODEL | OCH-650T | |||||
| Clamping force (kN) | 6500 | |||||
| Space between tie bar (mm*mm) | 960*820 | |||||
| Max. mold thickness (mm) | 900 | |||||
| Min. mold thickness(mm) | 400 | |||||
| Opening stroke (mm) | 1150 | |||||
| Ejector stroke(mm) | 260 | |||||
| Ejector force forward(Kn) | 181 | |||||
| Screw diameter(mm) | 95 | |||||
| Screw L/D ratio | 22 | |||||
| Theoretical injection volume (cm3) | 3367 | |||||
| Shot weight (PS) g | 3251 | |||||
| Injection pressure(MPa) | 152 | |||||
| Injection speed (mm/s) | 93 | |||||
| Injection rate (g/s) | 637 | |||||
| Motor power (Kw) | 75 | |||||
| Oil tank capacity(L) | 950 | |||||
| Heater power (Kw) | 41 | |||||
| Machine Weight (kg) | 24 | |||||
| Machine size L×W×H (mm) | 9000*2100*2300 | |||||

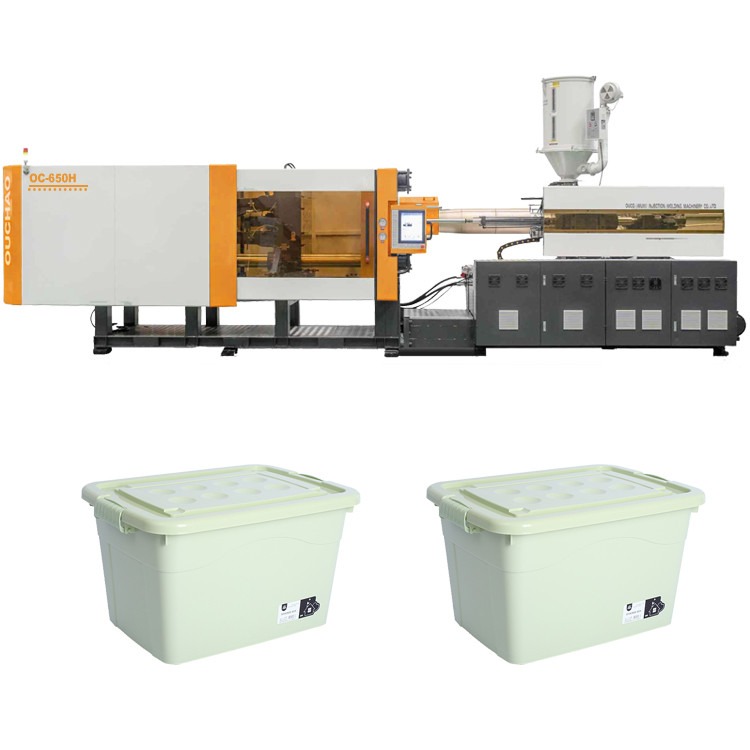

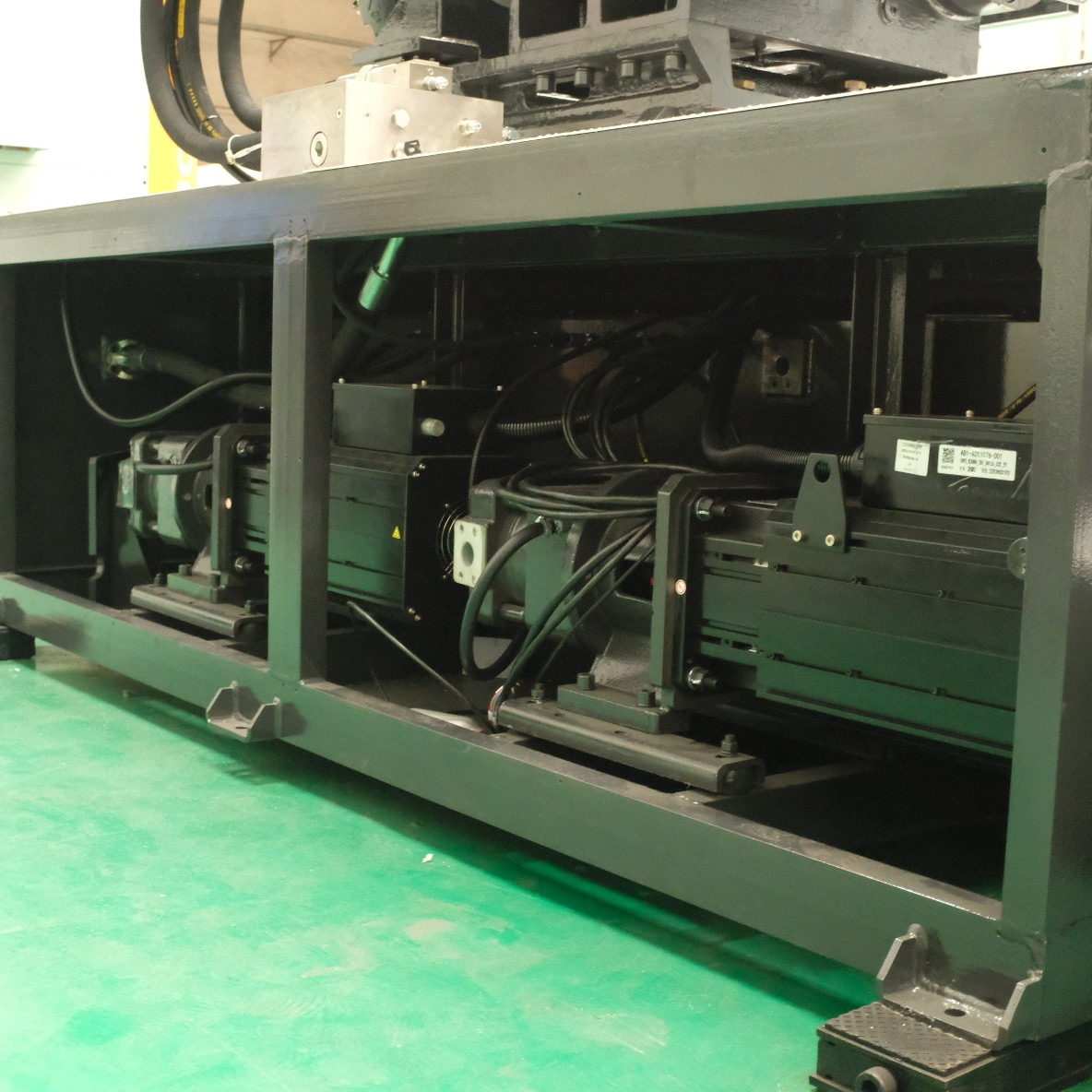

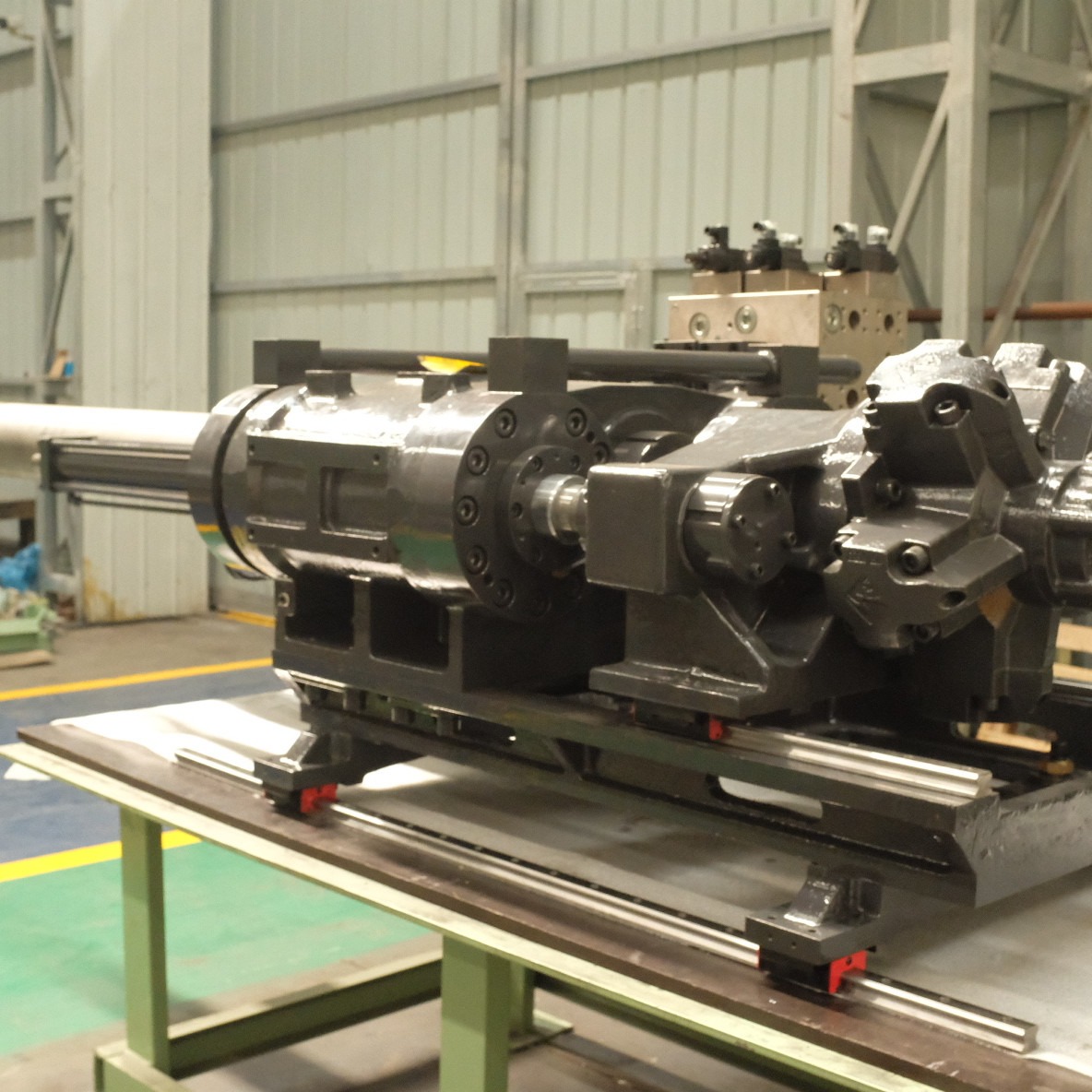

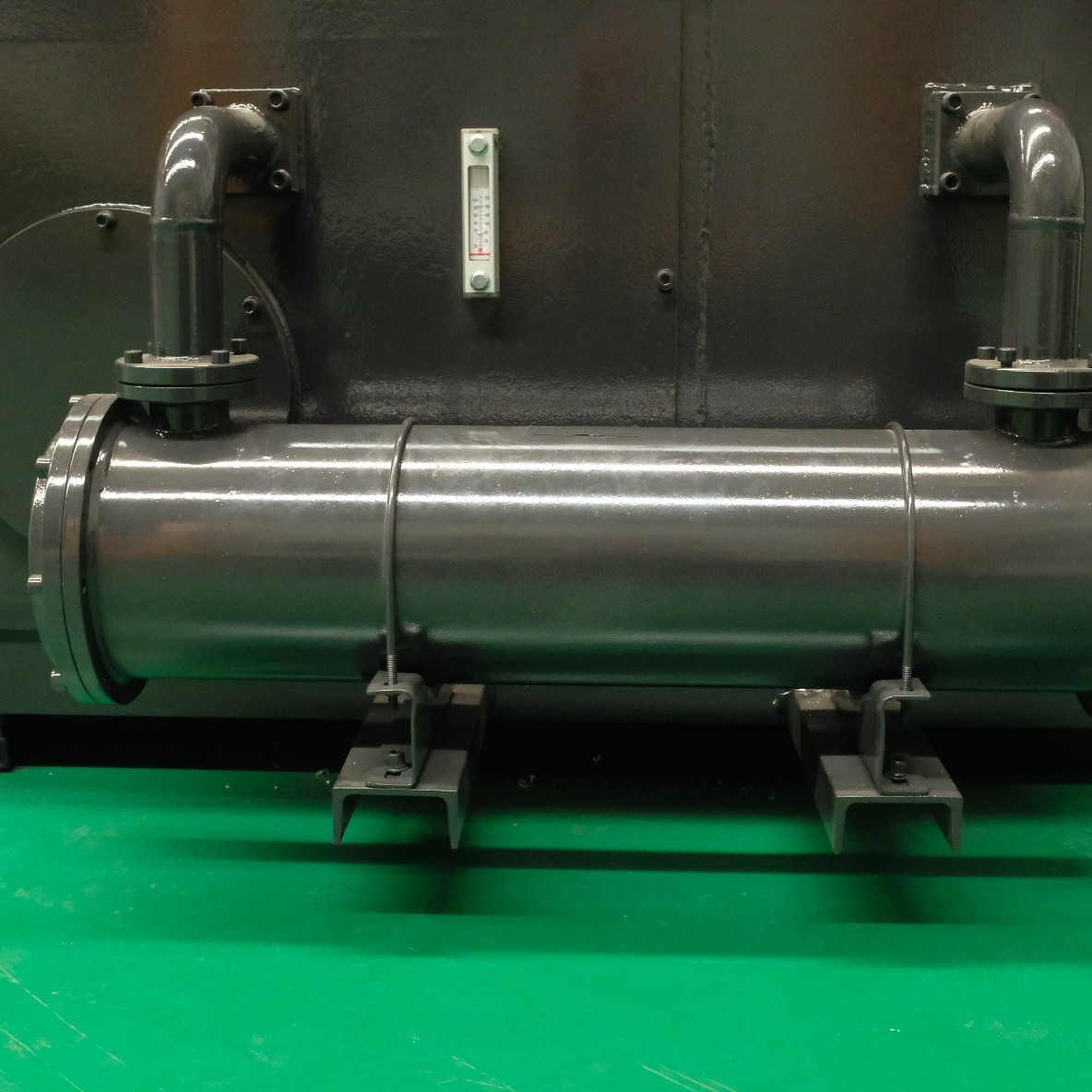

Detail Pictures
