| Place of Origin: | China |
|---|---|
| Brand Name: | OUCO |
| Certification: | CE, ISO9001:2008, SGS |
| Model Number: | OC 280H |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Nude |
| Delivery Time: | 2 months |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 500 sets/year |

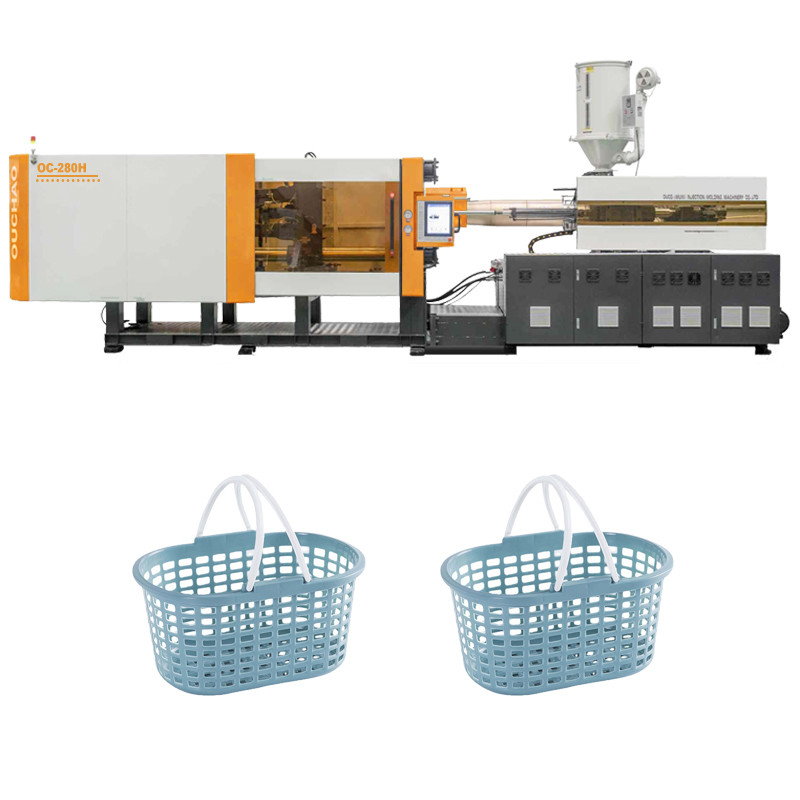

| Product Name: | OUCO 280T Advanced Technology Hydraulic Servo Bathroom Shower Plastic Storage Basket Injection Molding Machine | Type: | Automation |
|---|---|---|---|
| Function: | Plastic Parts Production | Motor: | Servo Energy Saving |
| Color: | Support Customization | Stable Performance: | Short Cycle Time |
| Clamping Way: | Hydraulic | Transport Package: | FCL |
| High Light: | 280t horizontal injection moulding,plastic storage basket horizontal injection moulding,advanced horizontal injection machine |
||
Since OUCO establishment, we have closely observed the latest trends in the market and continuously improved our manufacturing processes and technologies. The sales and technical teams work closely together to provide you with a cost-effective purchasing and usage experience. We have been committed to the production of high-efficiency injection molding machines, reducing energy consumption, saving raw materials and fundamentally saving costs for you.
Product Advantages
OC-280H has a large mold opening stroke and the clamping force utilization rate reaches 100%. OC-280H is equipped with a servo system. The servo motor control system only delivers hydraulic oil when needed, greatly reducing heat generation and greatly reducing oil cooling requirements. Coupled with the improvement of part accuracy and assembly technology, the machine performance reaches European standards. The products produced are strong and wear-resistant. OC-280H will be the best choice for your company to continuously improve its competitiveness in the industry.
| MODEL | OC280H | |||||
| Clamping force (kN) | 2800 | |||||
| Space between tie bar (mm*mm) | 610*510 | |||||
| Max. mold thickness (mm) | 250 | |||||
| Min. mold thickness(mm) | 650 | |||||
| Opening stroke (mm) | 700 | |||||
| Ejector stroke(mm) | 190 | |||||
| Ejector force forward(Kn) | 62 | |||||
| Screw diameter(mm) | 65 | |||||
| Screw L/D ratio | 22 | |||||
| Theoretical injection volume (cm3) | 994 | |||||
| Shot weight (PS) g | 914 | |||||
| Injection pressure(MPa) | 143 | |||||
| Screw speed (rpm) | 0-200 | |||||
| Injection Rate(g/s) | 359 | |||||
| Motor power (Kw) | 40 | |||||
| Oil tank capacity(L) | 510 | |||||
| Heater power (Kw) | 27 | |||||
| Machine Weight (Ton) | 11 | |||||
| Machine size L×W×H (m) | 8.1*1.9*2.0 | |||||

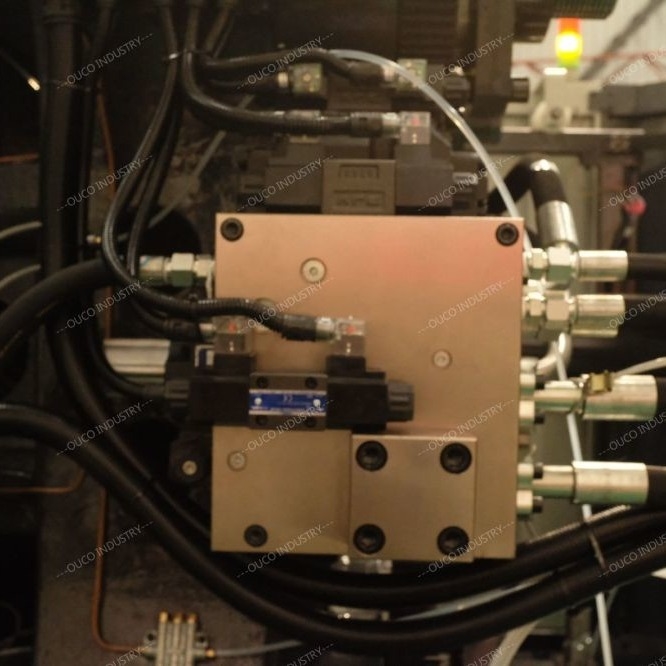

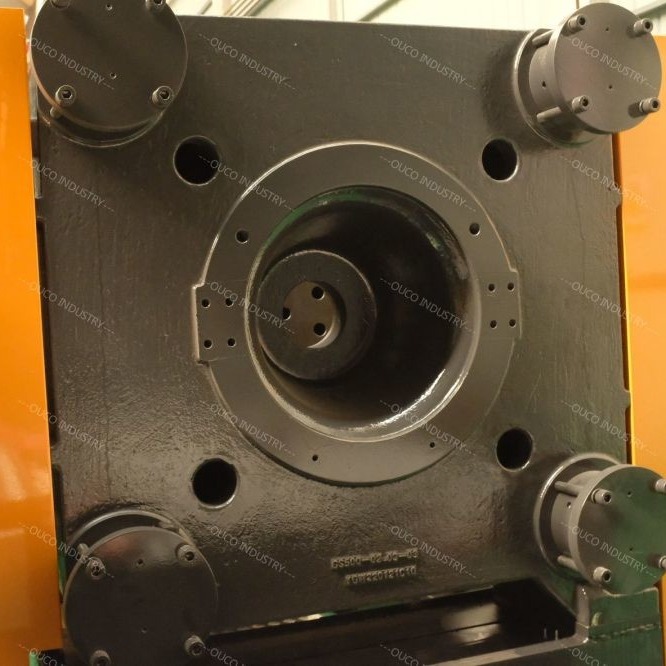

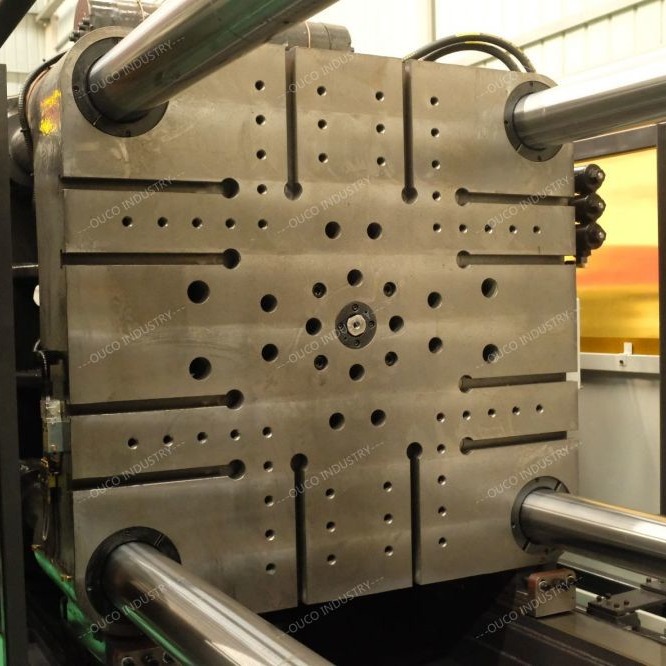

Detail Pictures
