| Place of Origin: | China |
|---|---|
| Brand Name: | OUCO |
| Certification: | CE, ISO9001:2008, SGS |
| Model Number: | OCM-550H |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Nude |
| Delivery Time: | 2 months |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 500 sets/year |

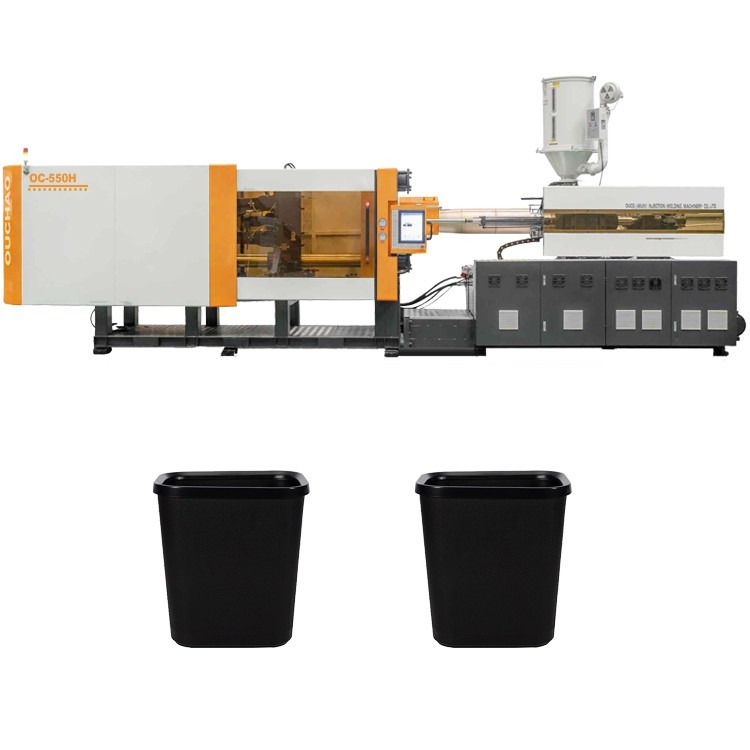

| Product Name: | Yellow Environmental Protection Hydraulic Servo Plastic Garbage Container 550T Injection Molding Machine Making | Type: | Automation |
|---|---|---|---|
| Function: | Plastic Parts Production | Motor: | Servo Energy Saving |
| Color: | Support Customization | Stable Performance: | Short Cycle Time |
| Clamping Way: | Hydraulic | Transport Package: | FCL |
| High Light: | garbage container plastic injection molding machine,550t plastic injection machine,garbage container plastic injection machine |
||
OUCO injection molding machine, made in China, takes customer's demand as the standard, focuses on design, is proficient in development, pays attention to production, and sells with precision. We can provide you with better customised service for injection molding machine, which can reduce your production cost, increase the added value of your products and improve your production efficiency.
Product Advantages
OUCO550T, with increased tie bar spacing, meets the application of molds for large sizes of bins and improves production efficiency. Centre clamping structure, clamping force 100%, the product is not easy to deform, high quality, long service life. Adopting injection, opening and closing double rails, the machine runs smoothly and the products are accurately molded.
Parameters
| MODEL | OCH-550T | |||||
| Clamping force (kN) | 5500 | |||||
| Space between tie bar (mm*mm) | 860*800 | |||||
| Max. mold thickness (mm) | 800 | |||||
| Min. mold thickness(mm) | 300 | |||||
| Opening stroke (mm) | 1010 | |||||
| Ejector stroke(mm) | 210 | |||||
| Ejector force forward(Kn) | 103 | |||||
| Screw diameter(mm) | 90 | |||||
| Screw L/D ratio | 22 | |||||
| Theoretical injection volume (cm3) | 2608 | |||||
| Shot weight (PS) g | 2519 | |||||
| Injection pressure(MPa) | 118 | |||||
| Injection speed (mm/s) | 133 | |||||
| Injection rate (g/s) | 817 | |||||
| Motor power (Kw) | 75 | |||||
| Oil tank capacity(L) | 850 | |||||
| Heater power (Kw) | 41 | |||||
| Machine Weight (t) | 20 | |||||
| Machine size L×W×H (m) | 8.7*2.1*2.2 | |||||

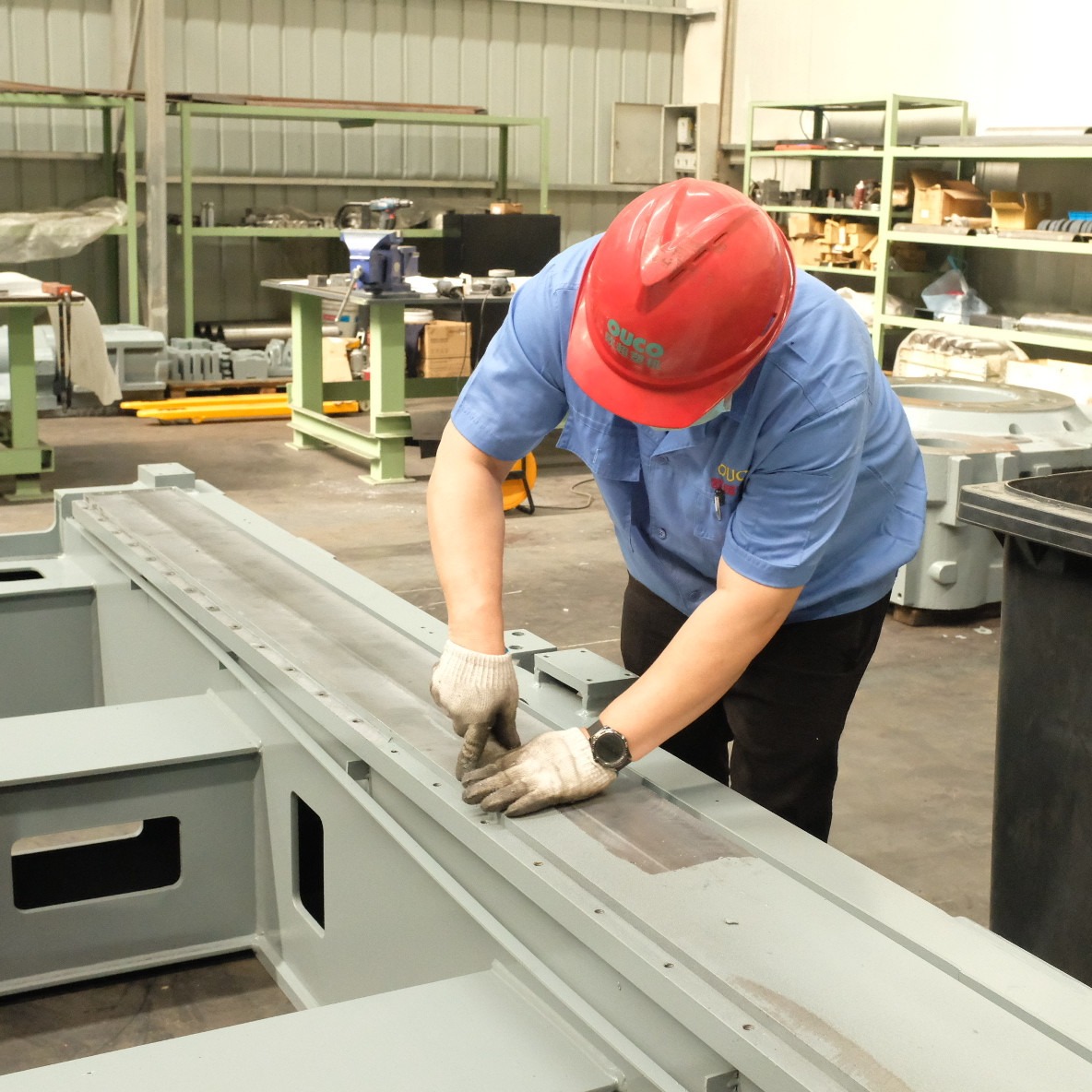

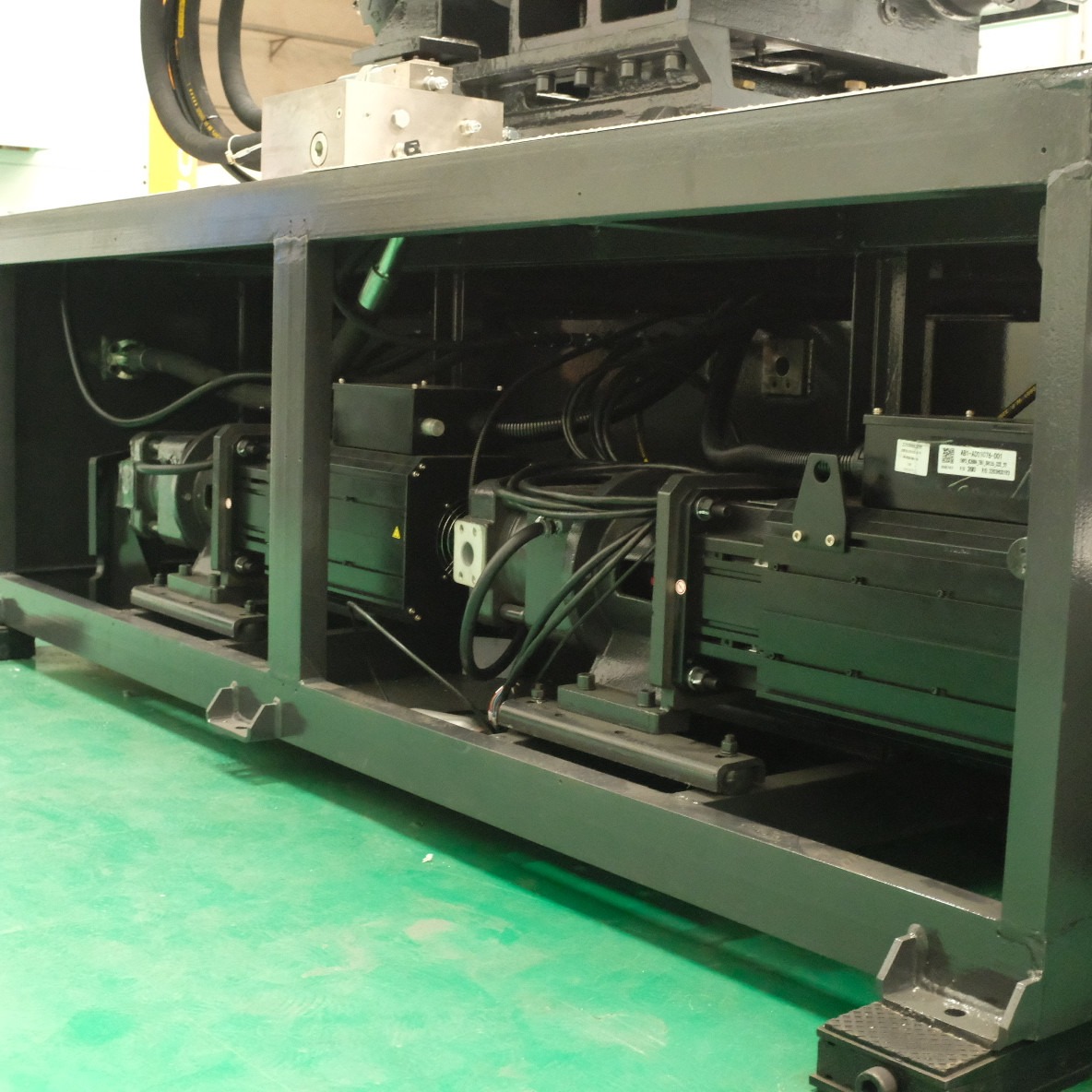

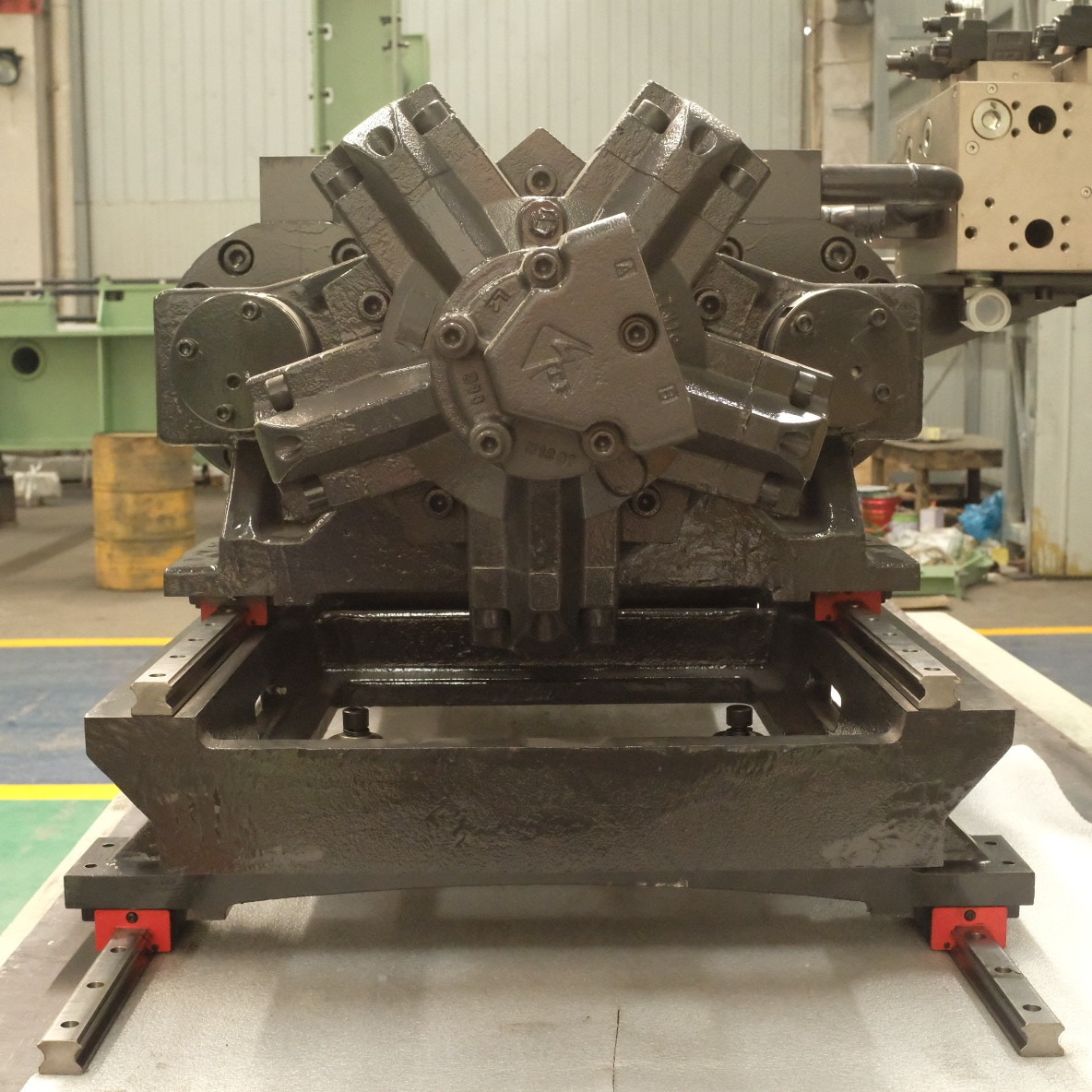

Detail Pictures
