| Place of Origin: | China |
|---|---|
| Brand Name: | OUCO |
| Certification: | CE, ISO9001:2008, SGS |
| Model Number: | OCM-480H |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Nude |
| Delivery Time: | 2 months |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 500 sets/year |

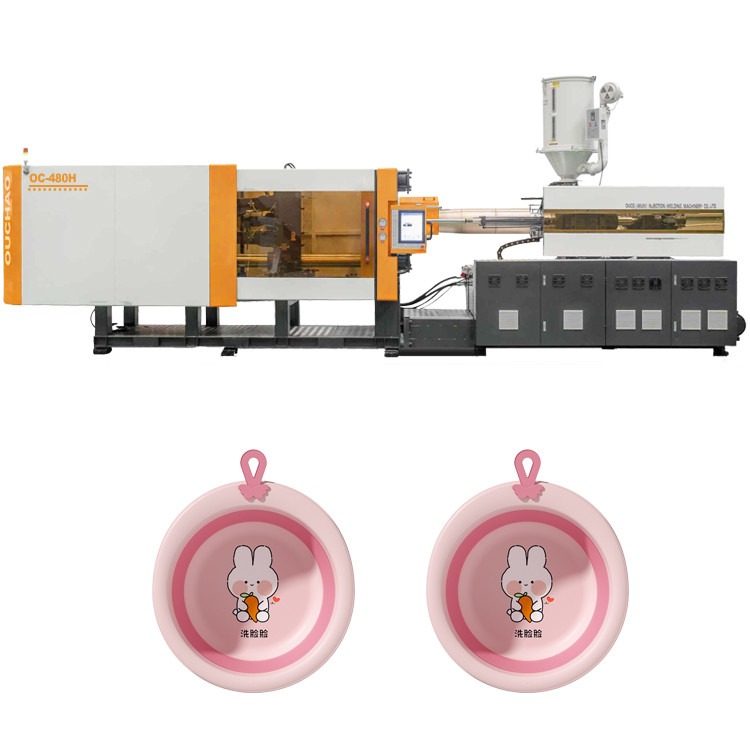

| Product Name: | Horizontal Yellow 480T Sturdy And Durable Support Customization Plastic Basin Injection Molding Machine Making | Type: | Automation |
|---|---|---|---|
| Function: | Plastic Parts Production | Motor: | Servo Energy Saving |
| Color: | Support Customization | Stable Performance: | Short Cycle Time |
| Clamping Way: | Hydraulic | Transport Package: | FCL |
| High Light: | plastic basin horizontal molding machine,sturdy horizontal molding machine,plastic basin horizontal injection machine |
||
OUCO injection molding machine, with modern production line, upholds the development concept of innovation, quality and service, supported by advanced technology, and strictly controls the quality of injection molding machine, just to meet your different needs and provide high quality injection molding machine products and services.
Product Advantages
OUCO 480T adopts energy efficient system with plasticising unit, which effectively reduces energy consumption and cooling usage. Adopting high compact oil pump with high response control system ensures high precision of machine operation, high quality of produced plastic products, high production efficiency and short plasticising cycle, creating maximum value for you.We're trustworthy.
Parameters
| MODEL | OCH-480T | |||||
| Clamping force (kN) | 4800 | |||||
| Space between tie bar (mm*mm) | 820*780 | |||||
| Max. mold thickness (mm) | 730 | |||||
| Min. mold thickness(mm) | 300 | |||||
| Opening stroke (mm) | 900 | |||||
| Ejector stroke(mm) | 190 | |||||
| Ejector force forward(Kn) | 80 | |||||
| Screw diameter(mm) | 85 | |||||
| Screw L/D ratio | 22 | |||||
| Theoretical injection volume (cm3) | 2355 | |||||
| Shot weight (PS) g | 2275 | |||||
| Injection pressure(MPa) | 141 | |||||
| Injection speed (mm/s) | 106 | |||||
| Injection rate (g/s) | 583 | |||||
| Motor power (Kw) | 65 | |||||
| Oil tank capacity(L) | 680 | |||||
| Heater power (Kw) | 35 | |||||
| Machine Weight (t) | 18 | |||||
| Machine size L×W×H (m) | 8.6*2.1*2.2 | |||||

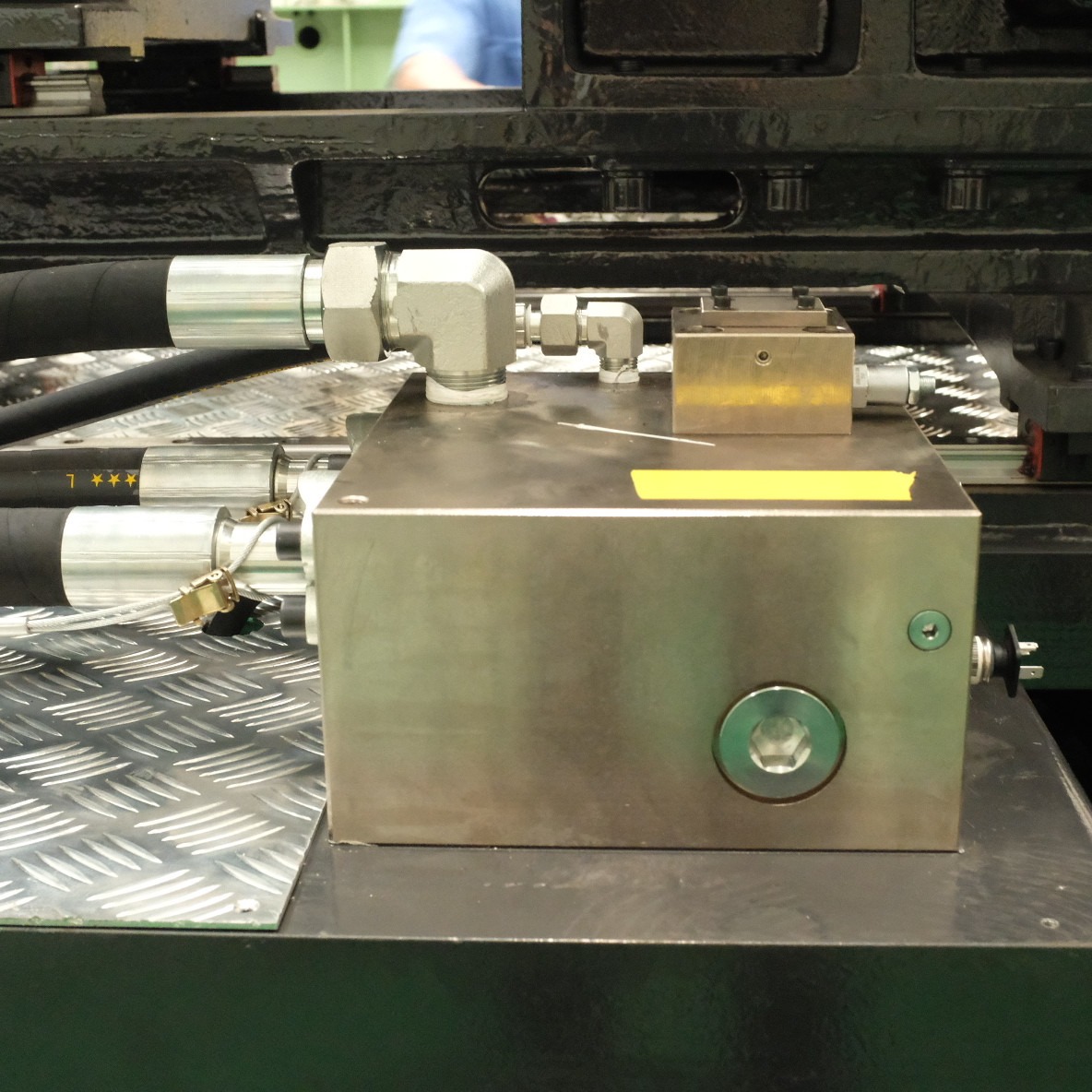

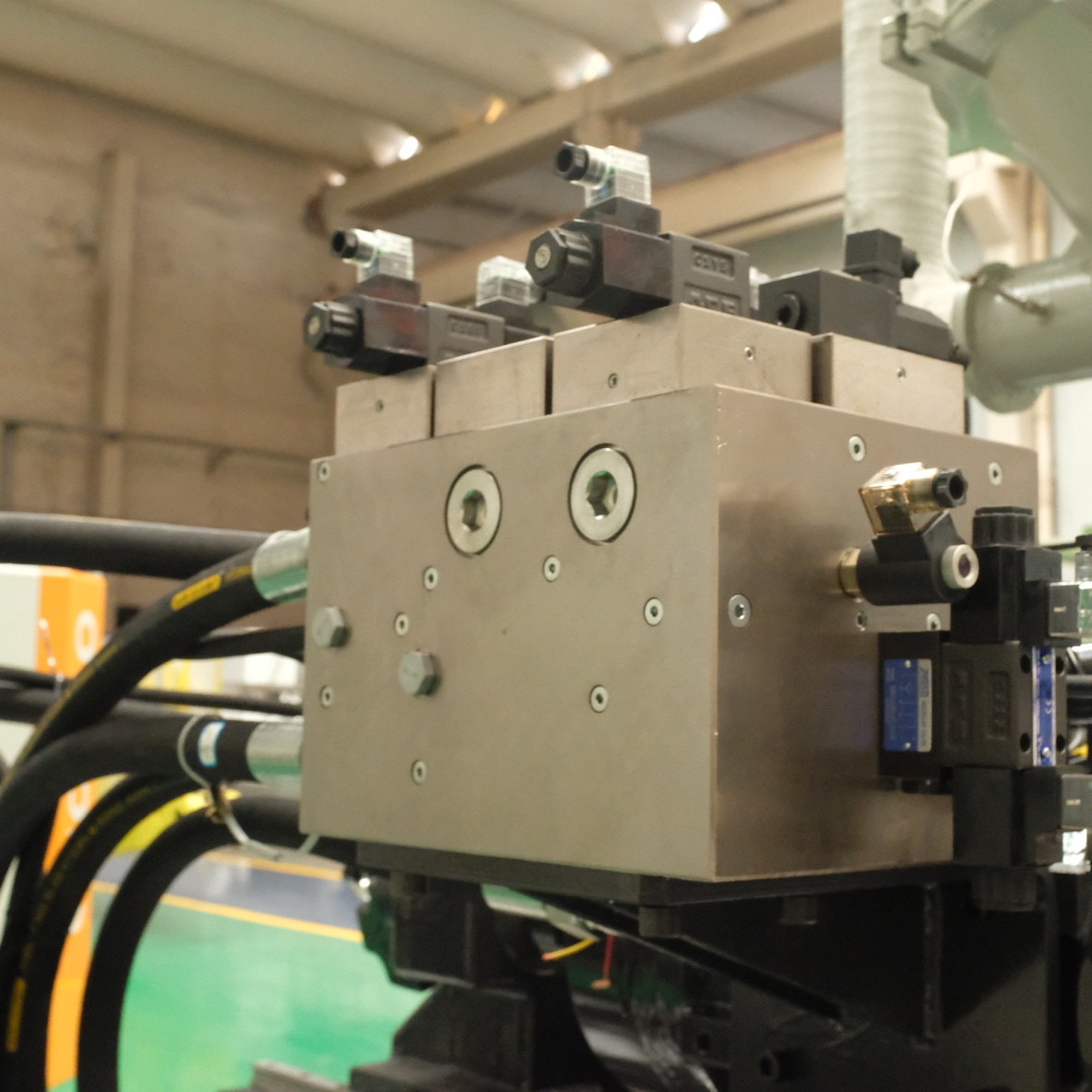

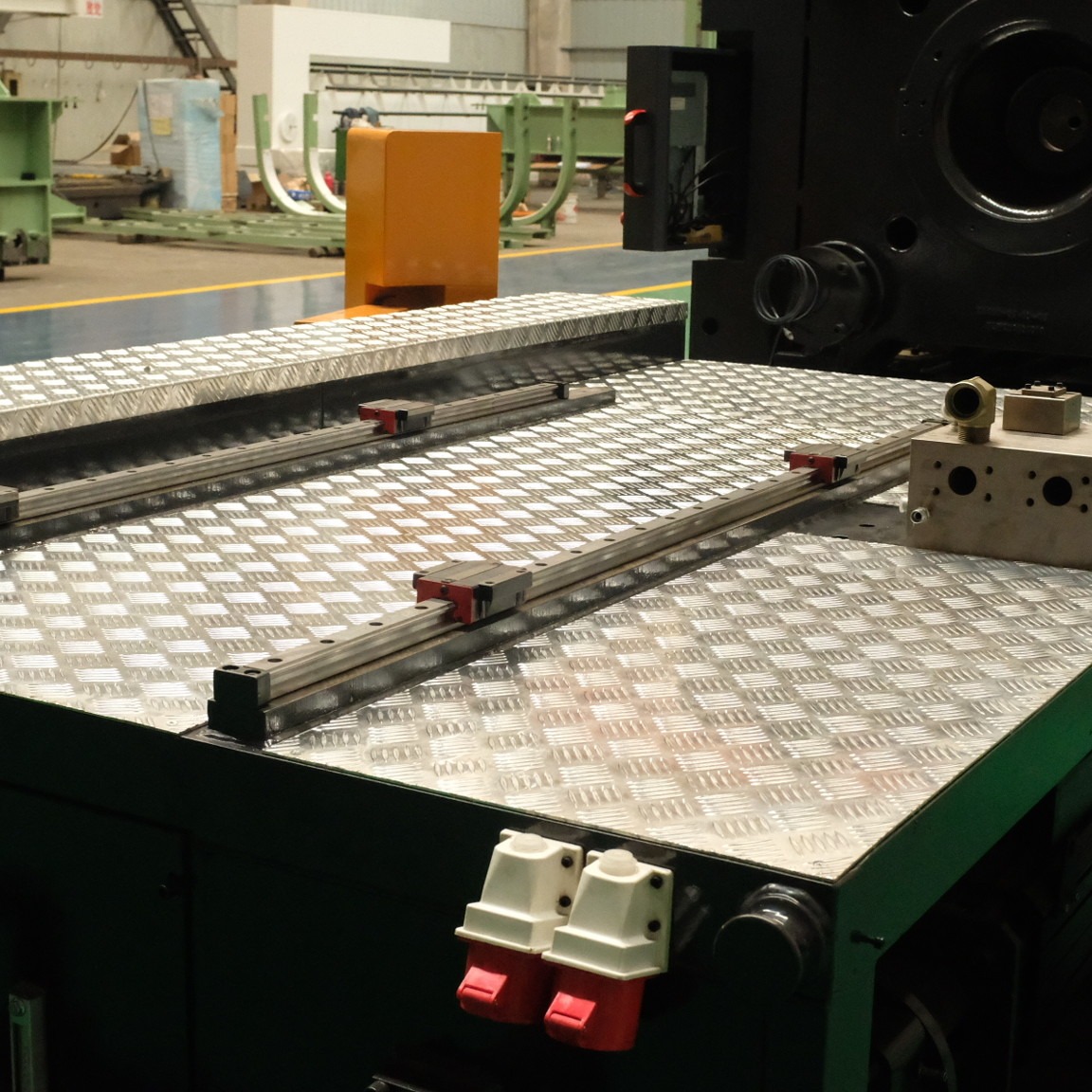

Detail Pictures
