| Place of Origin: | China |
|---|---|
| Brand Name: | OUCO |
| Certification: | CE, ISO9001:2008, SGS |
| Model Number: | OC 280H |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Nude |
| Delivery Time: | 2 months |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 500 sets/year |

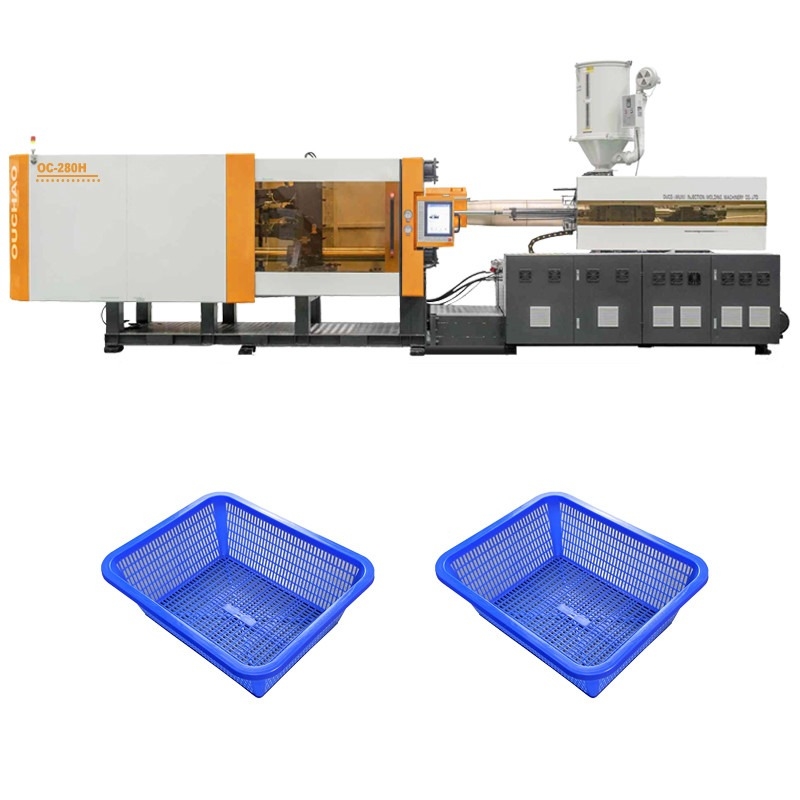

| Product Name: | 280T Plastic Vegetable Washing Basket Injection Molding Machine | Type: | Automation |
|---|---|---|---|
| Function: | Plastic Parts Production | Motor: | Servo Energy Saving |
| Color: | Support Customization | Stable Performance: | Short Cycle Time |
| Clamping Way: | Hydraulic | Transport Package: | FCL |
| High Light: | horizontal injection molding machine 280t,vegetable basket horizontal injection molding machine,horizontal injection machine 280t |
||
Company Advantages
With the strong support of the company's leaders, and relying on the location advantage of Jiangsu Province with many talents, we have formed a team related to injection molding machines. We invited engineers with rich experience in the industry to develop OUCO's own injection molding machine products.
In order to provide customers with high-performance machines, we introduced many large-scale finishing equipment into the workshop and insisted on checking every procedure ourselves. Every day we can see the busy backs of workers operating machines in the finishing center.
With the unremitting efforts of many parties, we have launched the standard fast series of injection molding machines, which is also the best-selling series now. This series is suitable for the production of plastic products such as daily necessities. The team will match the appropriate injection molding machine model according to the production needs of customers and recommend high-quality solutions.
Achieving a win-win situation with customers and helping customers realize their return on investment as soon as possible is our unremitting pursuit. We always believe that the success of our customers is our greatest success.
Product Advantages
First, the setting of the double-cylinder balanced injection system can enhance the repetitive accuracy of each injection cycle, thereby ensuring that the quality of each product reaches the same high standard during mass production.
Secondly, we are equipped with a low-noise and high-response oil pump system, which reduces the noise of the machine during operation to a certain extent and improves the environmental comfort of the operator. The fast-response oil pump increases the machine's operating speed.
Then, the template has both T-slot and conventional threaded hole designs, which makes it convenient for you to directly install various molds after purchasing the injection molding machine and start producing plastic products.
Finally, in order to ensure product quality and operator safety, the injection molding machine control computer can quickly detect and warn of abnormal data and do a good job of implementing monitoring. So that you can put into production with peace of mind.
| MODEL | OC280H | |||||
| Clamping force (kN) | 2800 | |||||
| Space between tie bar (mm*mm) | 610*510 | |||||
| Max. mold thickness (mm) | 250 | |||||
| Min. mold thickness(mm) | 650 | |||||
| Opening stroke (mm) | 700 | |||||
| Ejector stroke(mm) | 190 | |||||
| Ejector force forward(Kn) | 62 | |||||
| Screw diameter(mm) | 65 | |||||
| Screw L/D ratio | 22 | |||||
| Theoretical injection volume (cm3) | 994 | |||||
| Shot weight (PS) g | 914 | |||||
| Injection pressure(MPa) | 143 | |||||
| Screw speed (rpm) | 0-200 | |||||
| Injection Rate(g/s) | 359 | |||||
| Motor power (Kw) | 40 | |||||
| Oil tank capacity(L) | 510 | |||||
| Heater power (Kw) | 27 | |||||
| Machine Weight (Ton) | 11 | |||||
| Machine size L×W×H (m) | 8.1*1.9*2.0 | |||||
