| Place of Origin: | China |
|---|---|
| Brand Name: | OUCO |
| Certification: | CE, ISO9001:2008, SGS |
| Model Number: | OCM-650H |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Nude |
| Delivery Time: | 2 months |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 500 sets/year |

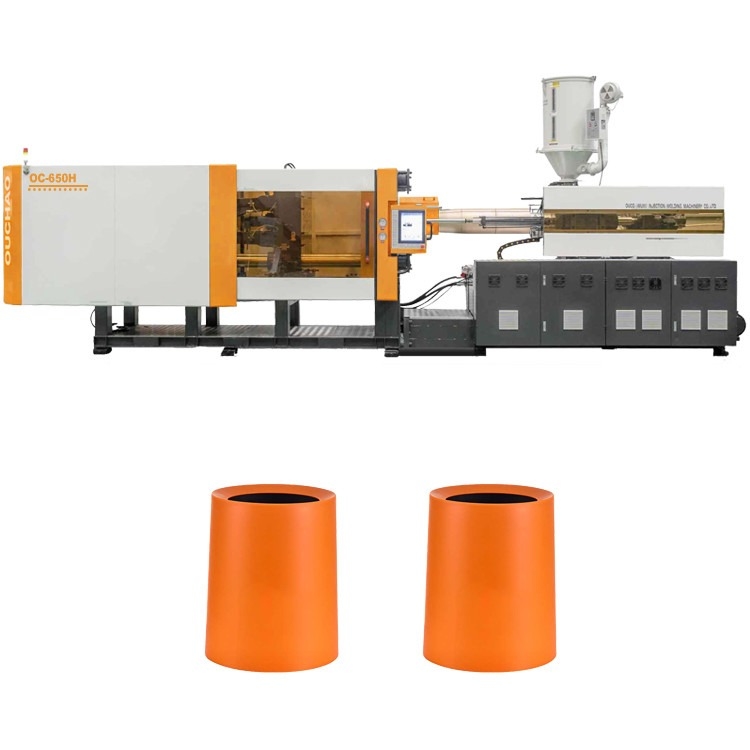

| Product Name: | 650T Yellow Plastic Garbage Servo Motor Center Clamping High Performance Injection Molding Machine Making | Type: | Automation |
|---|---|---|---|
| Function: | Plastic Parts Production | Motor: | Servo Energy Saving |
| Color: | Support Customization | Stable Performance: | Short Cycle Time |
| Clamping Way: | Hydraulic | Transport Package: | FCL |
| High Light: | 650T injection machine,Plastic Garbage injection machine |
||
OUCO is a high-tech enterprise focusing on the development and manufacture of precision injection molding machine equipment. Adopting advanced technology, it integrates design, manufacturing, assembly, testing and sales to provide complete and professional customer-oriented injection molding machines.OUCO continuously competes with other brands and wins customers' trust with high performance, high quality products and customized services. In the future, OUCO will take intelligent, efficient, precise and energy-saving as the direction of innovation and development, and is committed to improving the core competitiveness of customers and building a modern high-tech brand with sustainable development.
Product Advantages
OUCO650T,more than just a machine, it's a technologically advanced machine that can help you win in the marketplace. It's a breakthrough in traditional processes, producing complex and sophisticated injection molds efficiently, giving you a wider range of innovative possibilities. Providing excellent performance, it integrates a wide range of properties into a single unit to improve the feel and appearance of plastic garbage, helping you to create impressive products that enhance quality, increase efficiency and create value for you.
Parameters
| MODEL | OCH-650T | |||||
| Clamping force (kN) | 6500 | |||||
| Space between tie bar (mm*mm) | 960*820 | |||||
| Max. mold thickness (mm) | 900 | |||||
| Min. mold thickness(mm) | 400 | |||||
| Opening stroke (mm) | 1150 | |||||
| Ejector stroke(mm) | 260 | |||||
| Ejector force forward(Kn) | 181 | |||||
| Screw diameter(mm) | 100 | |||||
| Screw L/D ratio | 22 | |||||
| Theoretical injection volume (cm3) | 3730 | |||||
| Shot weight (PS) g | 3602 | |||||
| Injection pressure(MPa) | 137 | |||||
| Injection speed (mm/s) | 93 | |||||
| Injection rate (g/s) | 706 | |||||
| Motor power (Kw) | 75 | |||||
| Oil tank capacity(L) | 950 | |||||
| Heater power (Kw) | 41 | |||||
| Machine Weight (kg) | 24 | |||||
| Machine size L×W×H (mm) | 9000*2100*2300 | |||||

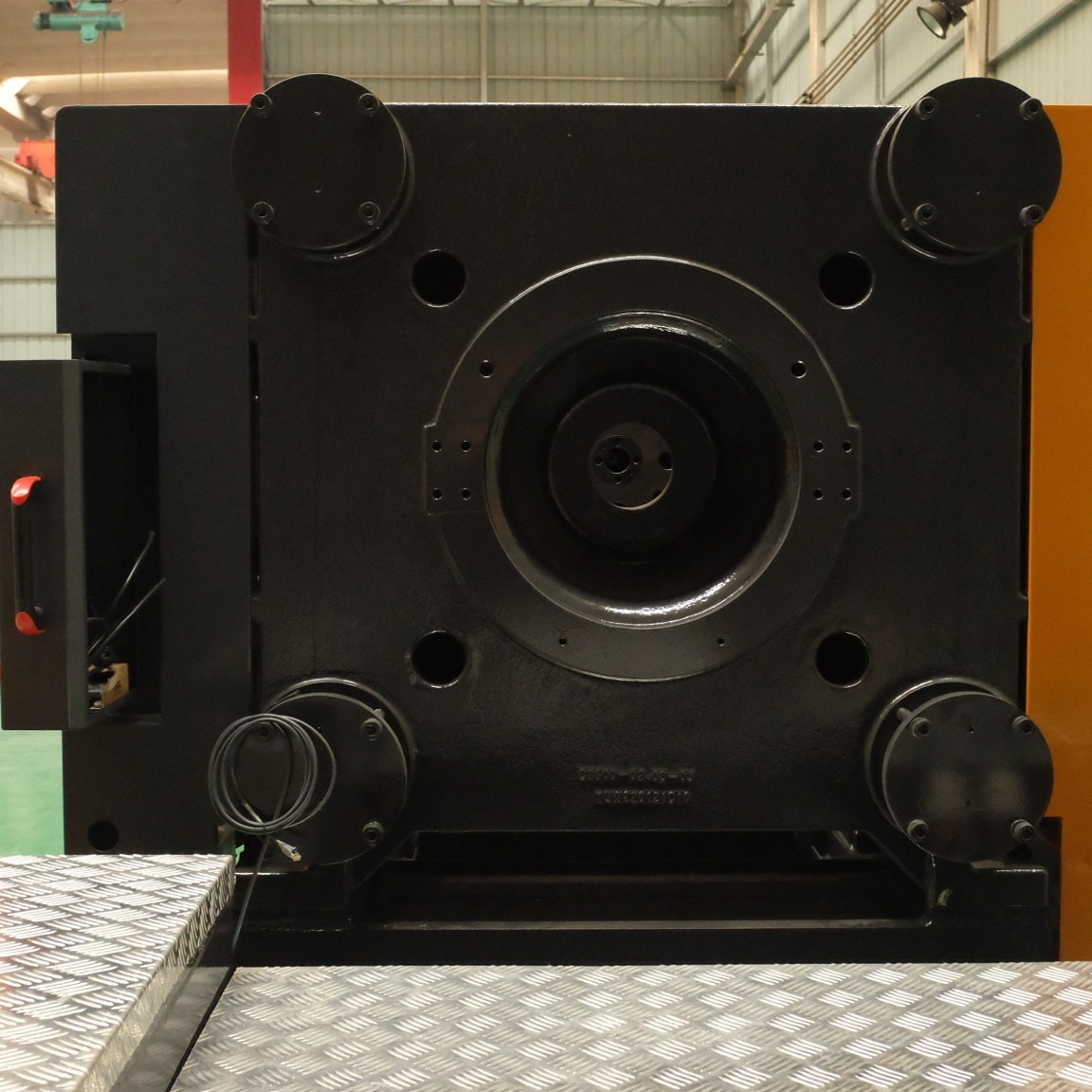

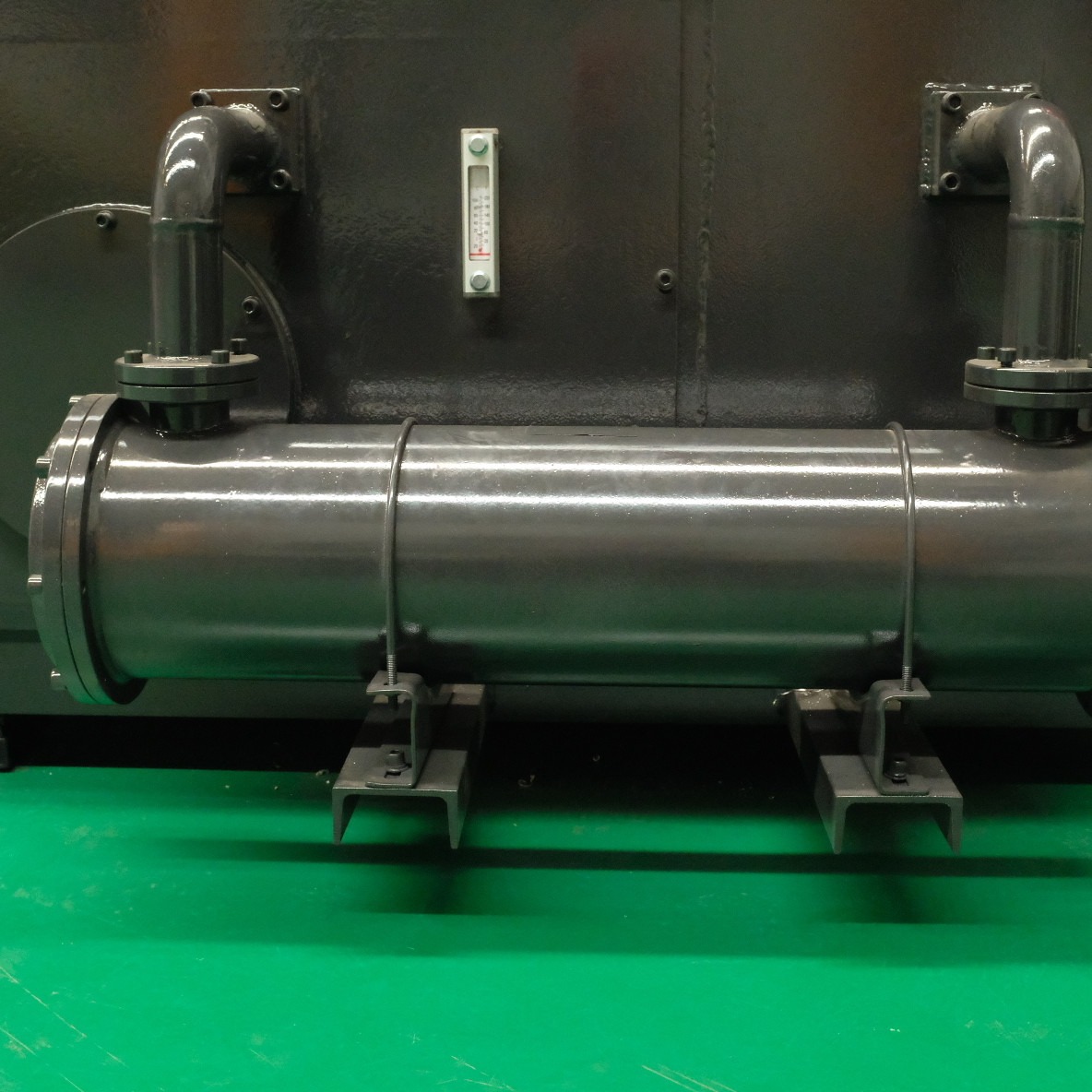

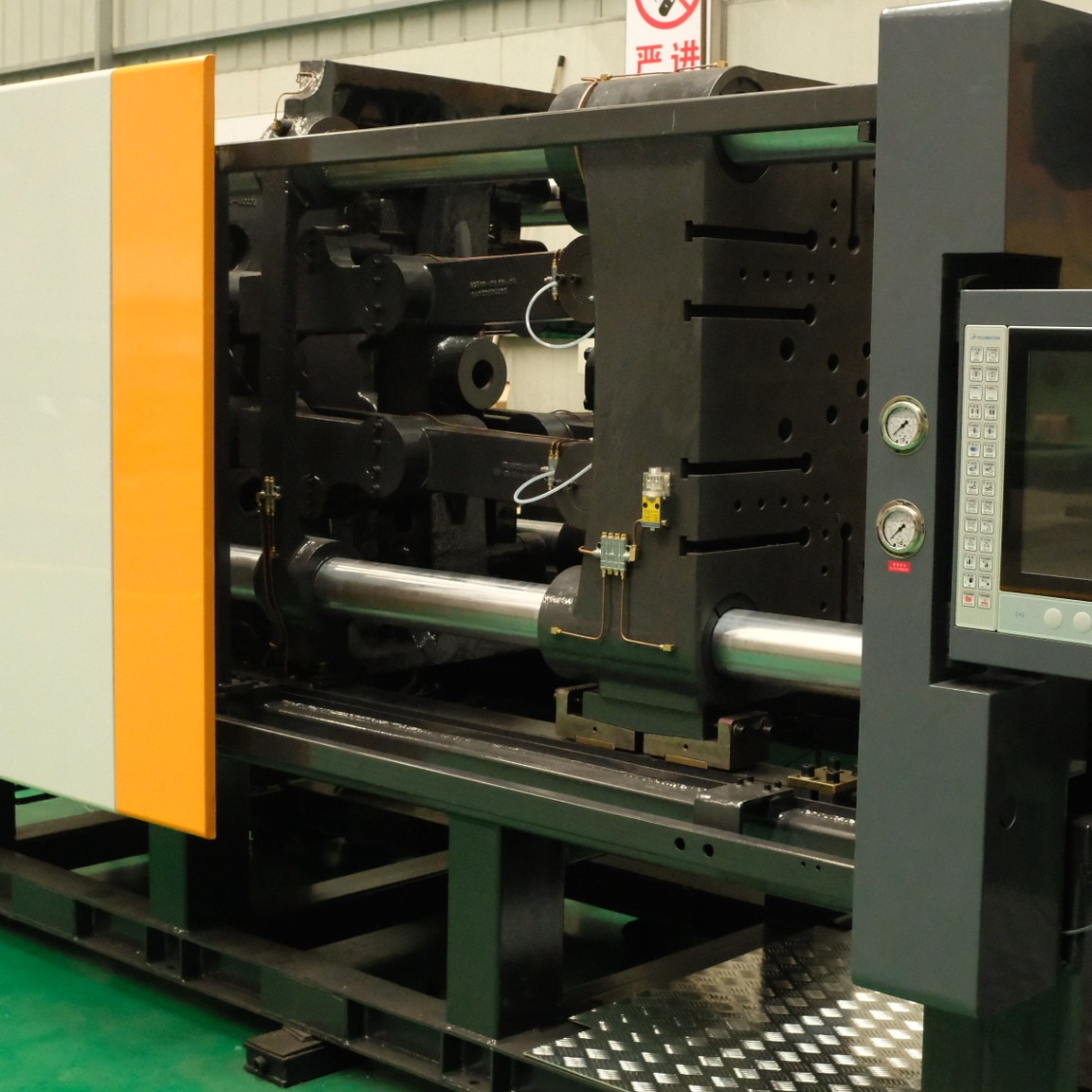

Detail Pictures
