| Place of Origin: | China |
|---|---|
| Brand Name: | OUCO |
| Certification: | CE, ISO9001:2008, SGS |
| Model Number: | OCM-98H |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Nude |
| Delivery Time: | 2 months |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 500 sets/year |

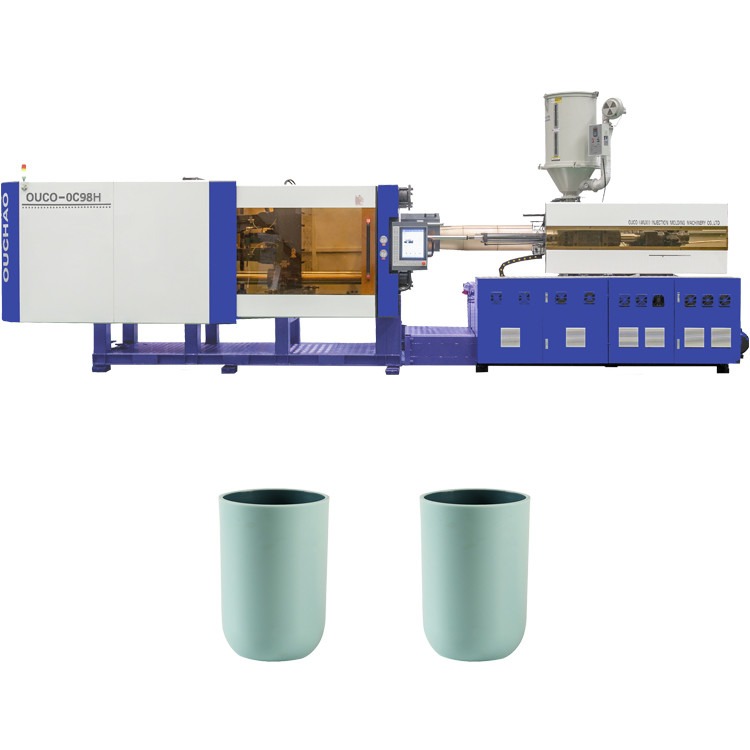

| Product Name: | 98T Blue Servo Motor Injection Molding Machine Making For Plastic Cup High Performance High Output | Type: | Automation |
|---|---|---|---|
| Function: | Plastic Parts Production | Motor: | Servo Energy Saving |
| Color: | Support Customization | Stable Performance: | Short Cycle Time |
| Clamping Way: | Hydraulic | Transport Package: | FCL |
| High Light: | 98t servo motor injection molding machine,performance servo motor injection molding machine |
||
OUCHAO 98T high output injection moulding machine, the industry leading injection moulding machine, is designed for high performance products. We have fully considered the human-machine interaction, which makes the operation easier and more intuitive. Simply by setting and adjusting the parameters on the control panel, the machine can run efficiently and quickly, creating greater profit margins for your business. We also offer customised designs and configurations to meet your specific needs, giving you unprecedented production advantages. Our flexibility not only improves product versatility, but also takes the feel and look of your products to a new level. With a green focus, our machines are also driving innovation and development in the plastics industry, helping you take your plastics production to the next level.
Parameters
| MODEL | OCM-98H | |||||
| Clamping force (kN) | 980 | |||||
| Space between tie bar (mm*mm) | 360*360 | |||||
| Max. mold thickness (mm) | 360 | |||||
| Min. mold thickness(mm) | 150 | |||||
| Opening stroke (mm) | 310 | |||||
| Ejector stroke(mm) | 100 | |||||
| Ejector force forward(Kn) | 27 | |||||
| Screw diameter(mm) | 40 | |||||
| Screw L/D ratio | 18.6 | |||||
| Theoretical injection volume (cm3) | 181 | |||||
| Shot weight (PS) g | 165 | |||||
| Injection pressure(MPa) | 149 | |||||
| Injection speed (mm/s) | 113 | |||||
| Injection rate (g/s) | 113 | |||||
| Motor power (Kw) | 11 | |||||
| Oil tank capacity(L) | 16 | |||||
| Heater power (Kw) | 5.8 | |||||
| Machine Weight (kg) | 3.5 | |||||
| Machine size L×W×H (mm) | 4100*1250*1800 | |||||

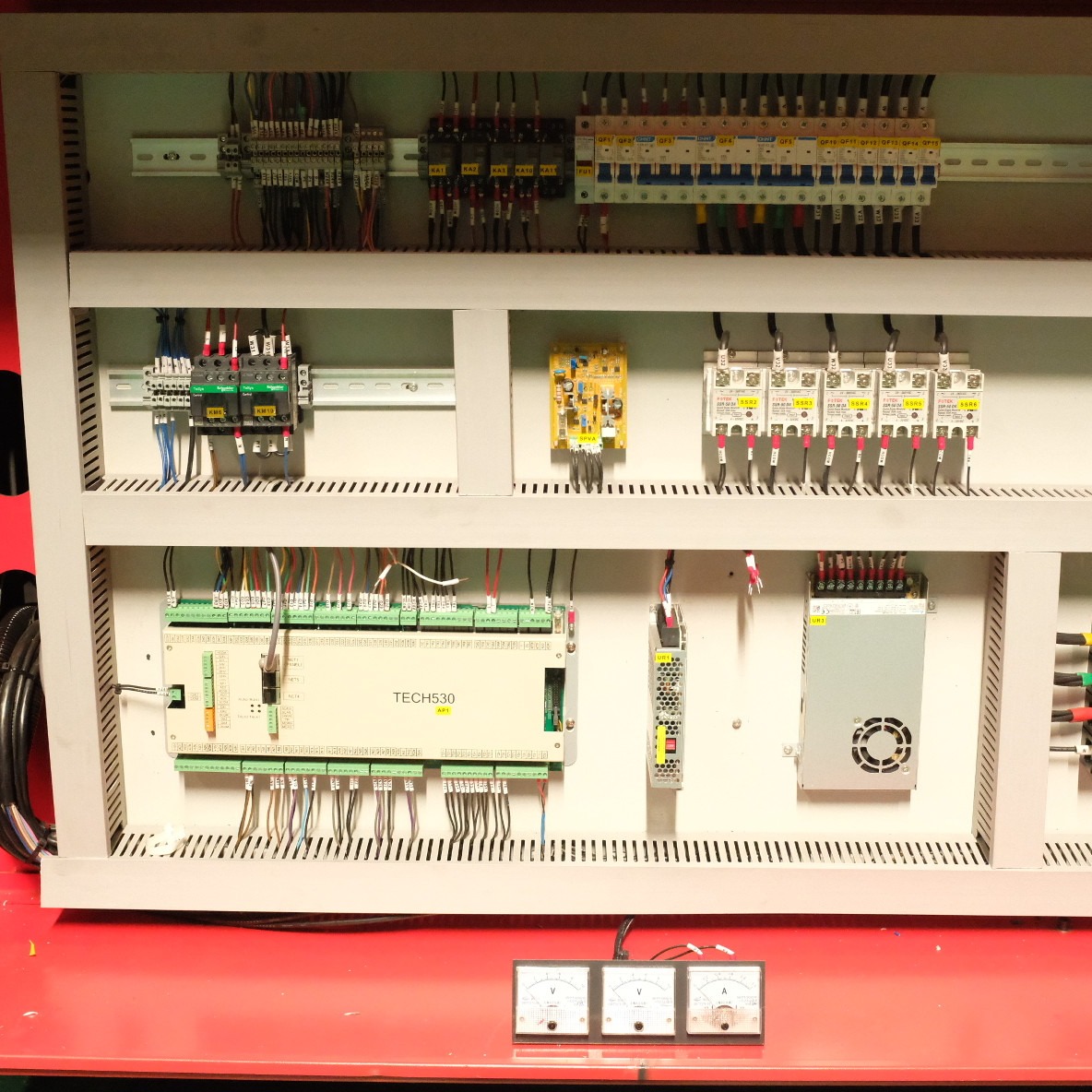

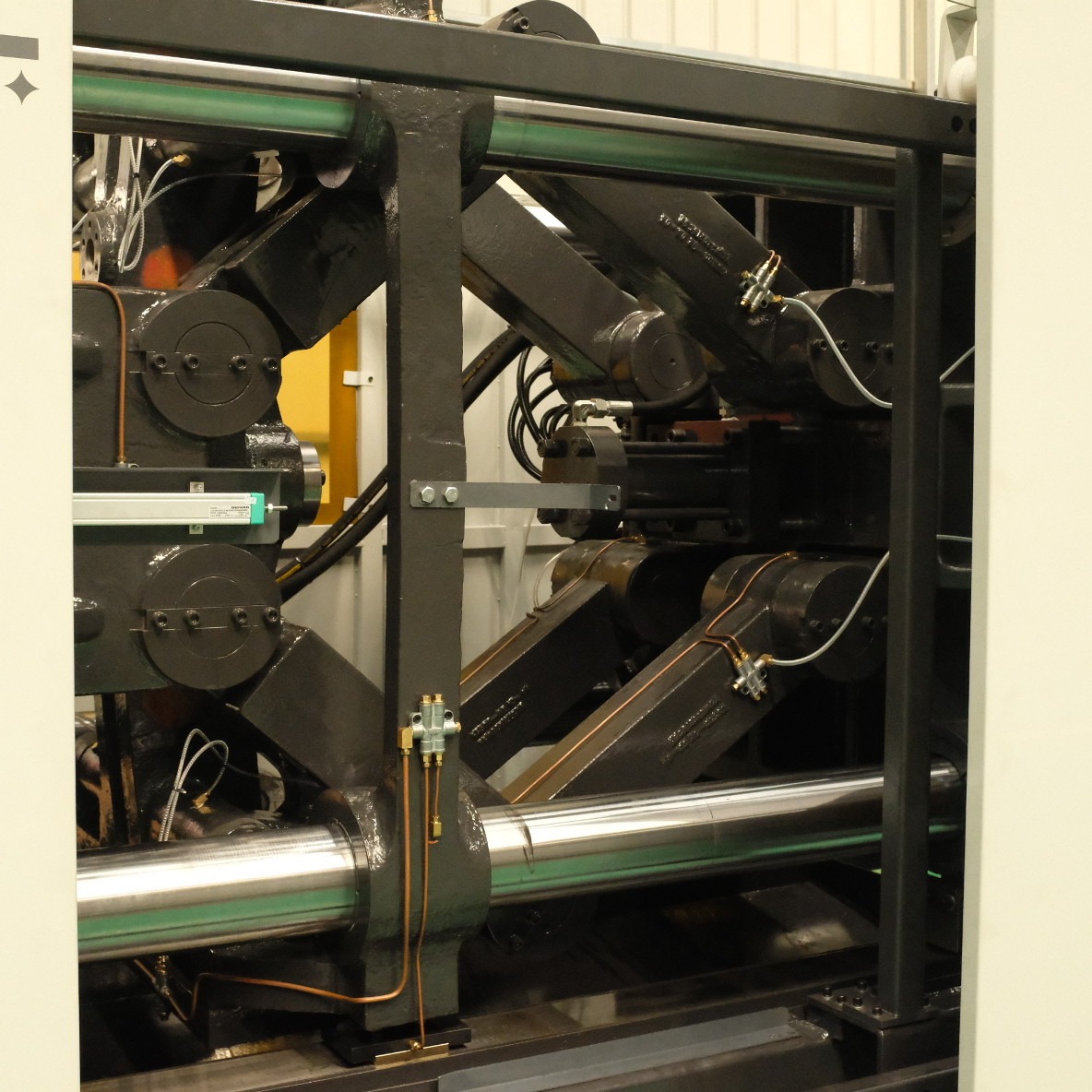

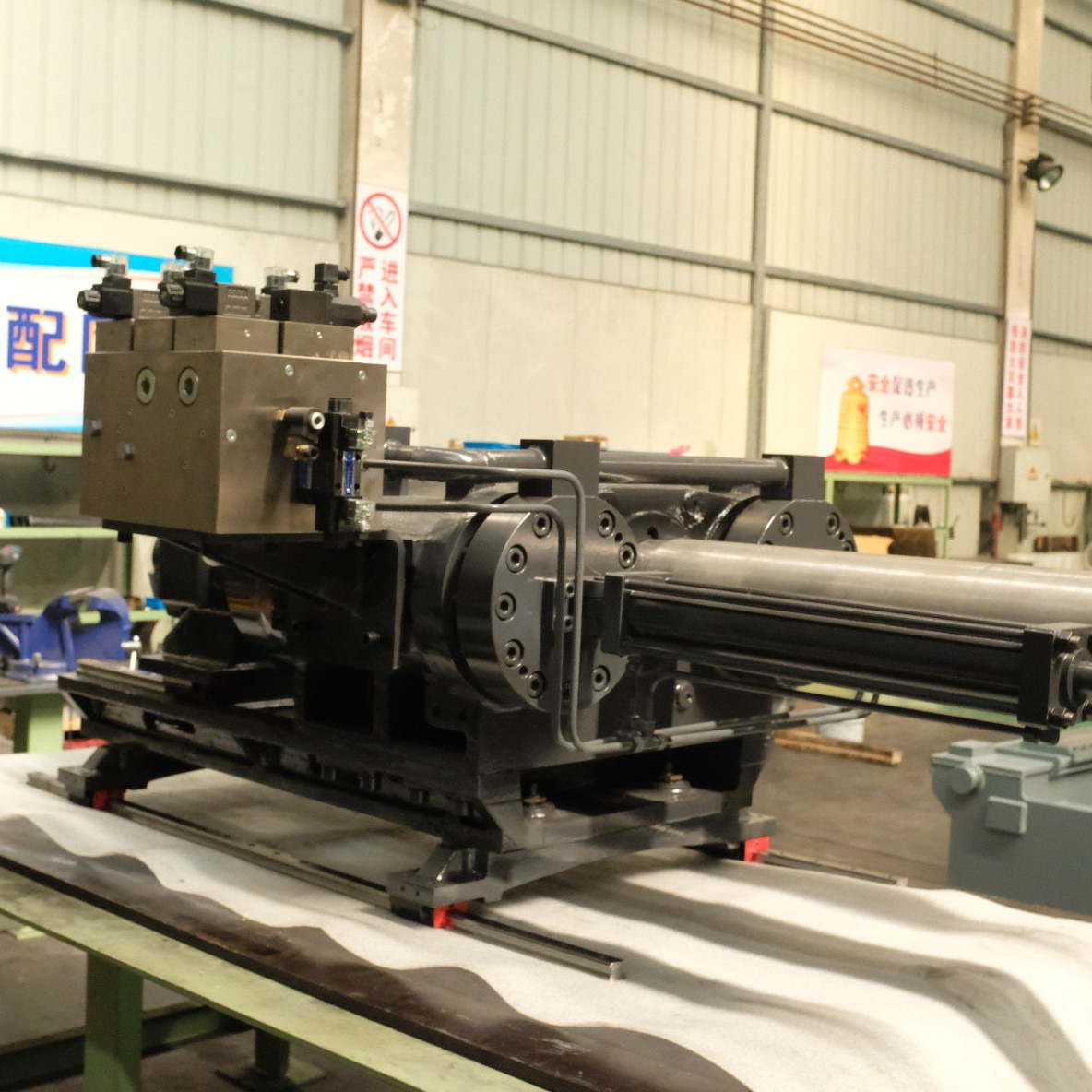

Detail Pictures
