| Place of Origin: | China |
|---|---|
| Brand Name: | OUCO |
| Certification: | CE, ISO9001:2008, SGS |
| Model Number: | OC-130UV |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Nude |
| Delivery Time: | 2 months |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 500 sets/year |

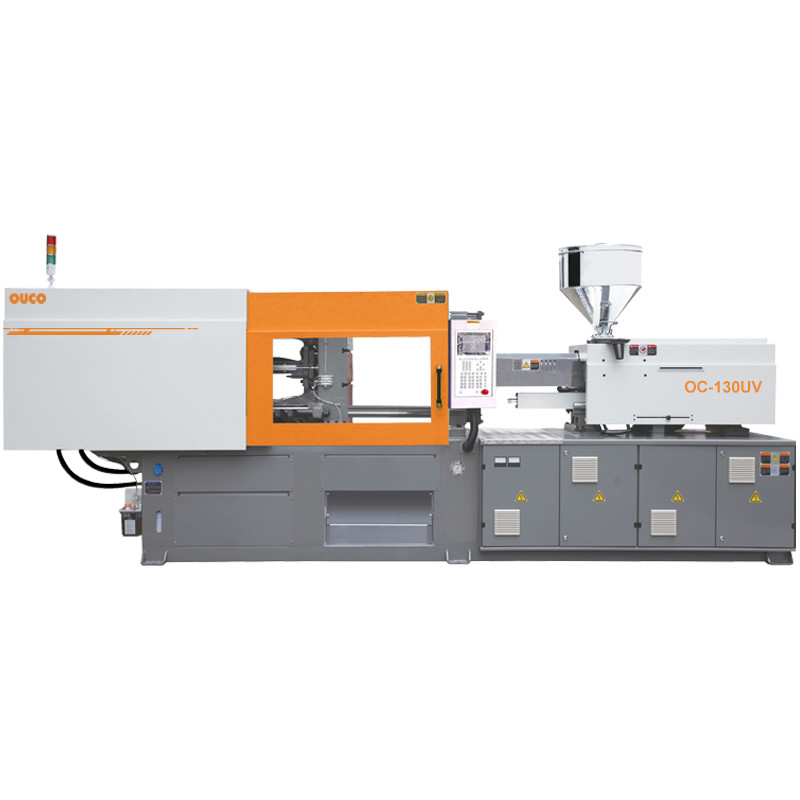

| Product Name: | OUCO 130T New Design Hydraulic Servo Balcony Plastic Clothes Hanger Horizontal Injection Molding Machine | Type: | Automation |
|---|---|---|---|
| Function: | Plastic Parts Production | Motor: | Servo Energy Saving |
| Color: | Support Customization | Stable Performance: | Short Cycle Time |
| Clamping Way: | Hydraulic | Transport Package: | FCL |
| High Light: | 130T hydraulic clamping injection molding machine,OUCO hydraulic clamping injection molding machine |
||
After many years of development, OUCO already has a professional and experienced team. From early sales to later after-sales service, the sales and technical teams will work closely to ensure that you have a good experience using the machine. Our injection molding machines will create a faster, more efficient and easier to operate production method for you. We have won praise and trust from many customers with our high-performance, high-stability products and customized services.
Product Advantages
OUCO-OC178H will be your excellent choice when producing plastic products, pushing product production to new heights. The extra large mold opening stroke makes the mold and template evenly stressed, effectively protecting and extending the service life of your injection molding machine. The advanced injection molding system not only injects high efficiency into your production process, but also effectively shortens the product production and molding cycle, reducing the overall cost.
| MODEL | OC130UV | |||||
| Clamping force (kN) | 1300 | |||||
| Space between tie bar (mm*mm) | 410*410 | |||||
| Max. mold thickness (mm) | 450 | |||||
| Min. mold thickness(mm) | 160 | |||||
| Opening stroke (mm) | 380 | |||||
| Ejector stroke(mm) | 120 | |||||
| Ejector force forward(Kn) | 42 | |||||
| Screw diameter(mm) | 45 | |||||
| Screw L/D ratio | 18.5 | |||||
| Theoretical injection volume (cm3) | 302 | |||||
| Shot weight (PS) g | 274 | |||||
| Injection pressure(MPa) | 138 | |||||
| Screw speed (rpm) | 0-180 | |||||
| Dry-cycle time(g/s) | 1.3 | |||||
| Motor power (Kw) | 18.5 | |||||
| Oil tank capacity(L) | 200 | |||||
| Heater power (Kw) | 7.7 | |||||
| Machine Weight (Ton) | 4 | |||||
| Machine size L×W×H (m) | 4.6*1.2*1.8 | |||||

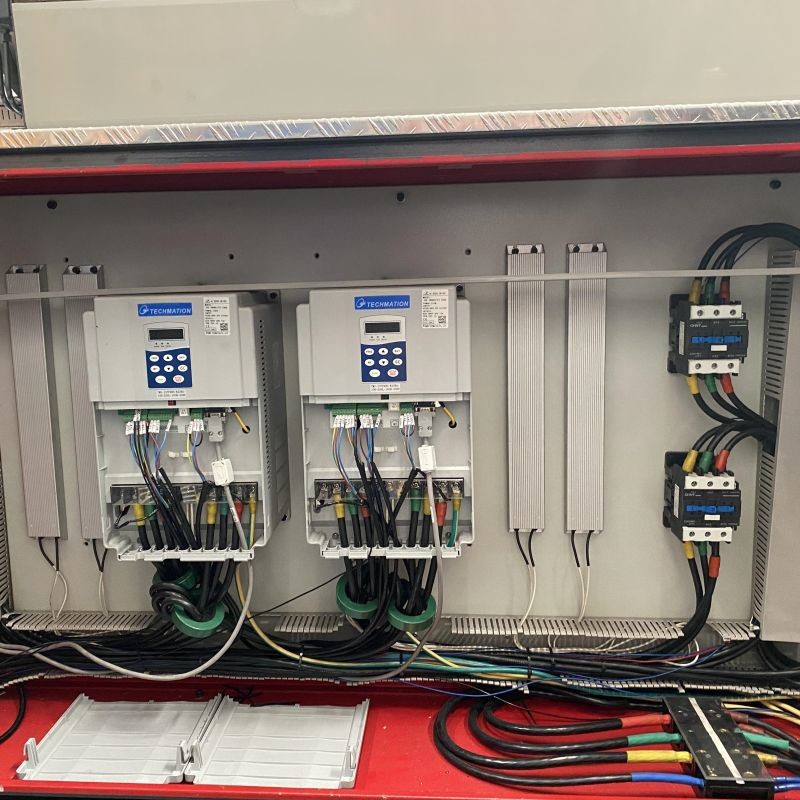

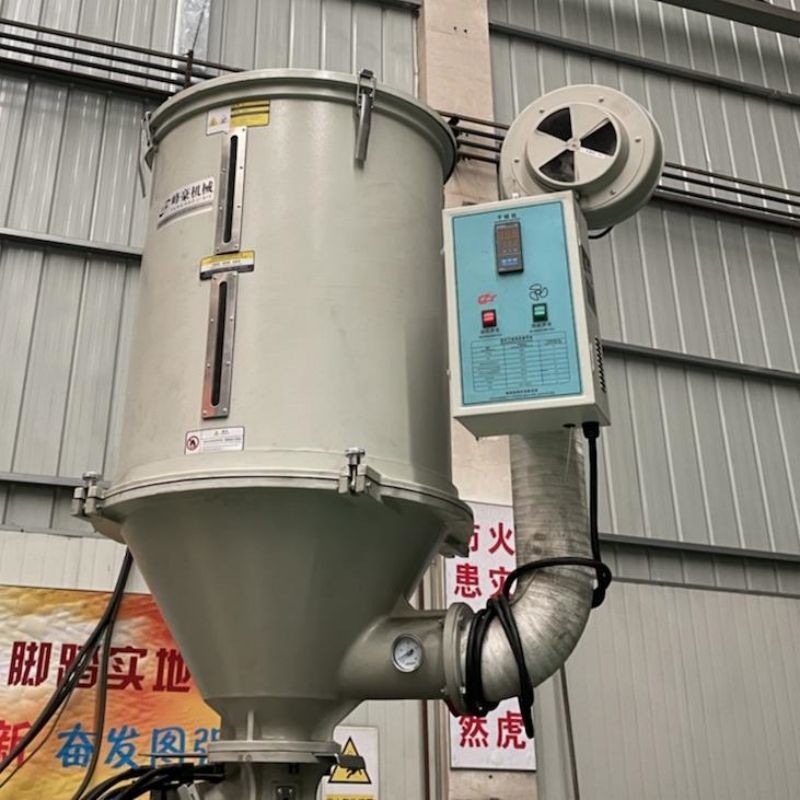

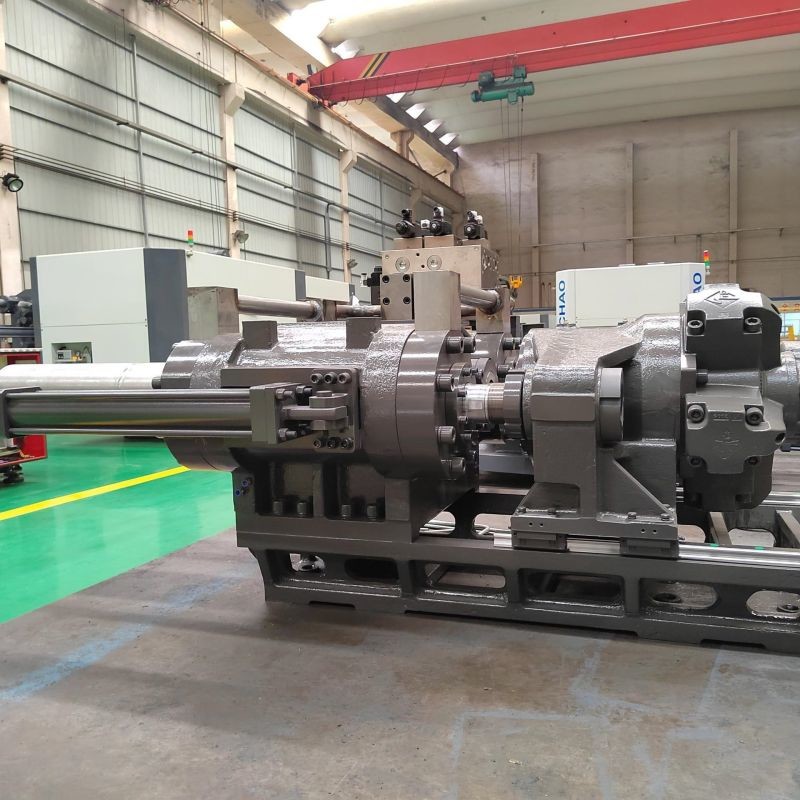

Detail Pictures
