| Place of Origin: | China |
|---|---|
| Brand Name: | OUCO |
| Certification: | CE, ISO9001:2008, SGS |
| Model Number: | OCM-68H |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Nude |
| Delivery Time: | 2 months |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 500 sets/year |

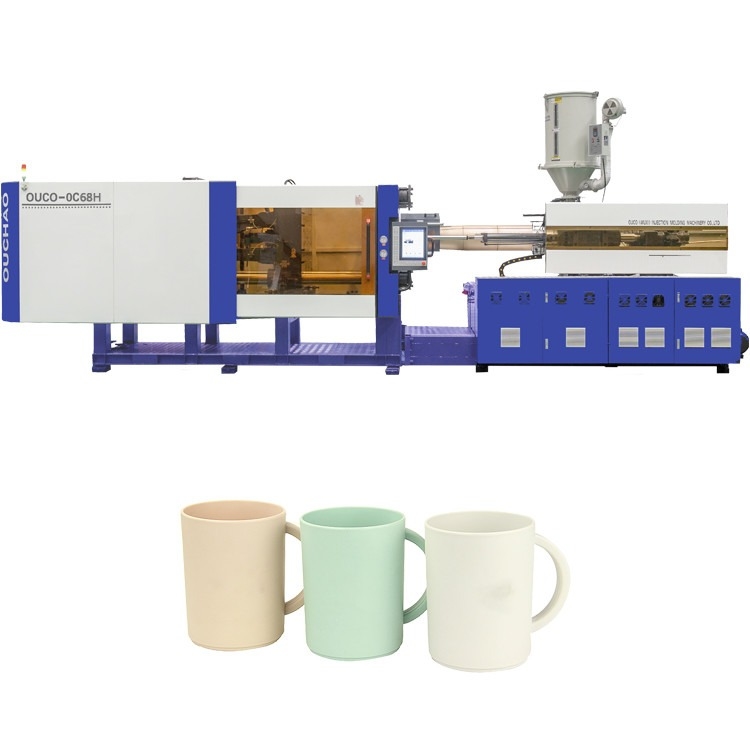

| Product Name: | 68T Blue Servo Motor Injection Molding Machine Making For Plastic Cup High Precision High Output | Type: | Automation |
|---|---|---|---|
| Function: | Plastic Parts Production | Motor: | Servo Energy Saving |
| Color: | Support Customization | Stable Performance: | Short Cycle Time |
| Clamping Way: | Hydraulic | Transport Package: | FCL |
| High Light: | 68T servo motor injection molding machine,Precision servo motor injection molding machine |
||
OUCHAO 68T injection moulding machine, which can be said to have excellent performance, is ideal for you to manufacture high quality plastic cups. Adopt advanced injection moulding technology to create exclusive plastic water cups. We focus on innovation and reliability, customer-oriented, precise temperature control, strict production, accurate and fast to make as many high-quality products as possible for you. Choosing OUCHAO is choosing efficiency, we basically achieve machine automation, which greatly reduces the labour cost. Servo-hydraulic pressure makes the manufactured products not only beautiful in appearance, but also durable, providing you with excellent performance and quality assurance.
Parameters
| MODEL | OCM-68H | |||||
| Clamping force (kN) | 680 | |||||
| Space between tie bar (mm*mm) | 310*310 | |||||
| Max. mold thickness (mm) | 320 | |||||
| Min. mold thickness(mm) | 120 | |||||
| Opening stroke (mm) | 270 | |||||
| Ejector stroke(mm) | 70 | |||||
| Ejector force forward(Kn) | 22 | |||||
| Screw diameter(mm) | 34 | |||||
| Screw L/D ratio | 19 | |||||
| Theoretical injection volume (cm3) | 113 | |||||
| Shot weight (PS) g | 103 | |||||
| Injection pressure(MPa) | 143 | |||||
| Injection speed (mm/s) | 120 | |||||
| Injection rate (g/s) | 93.6 | |||||
| Motor power (Kw) | 7.5 | |||||
| Oil tank capacity(L) | 16 | |||||
| Heater power (Kw) | 5.15 | |||||
| Machine Weight (kg) | 2.6 | |||||
| Machine size L×W×H (mm) | 4040*1000*1720 | |||||

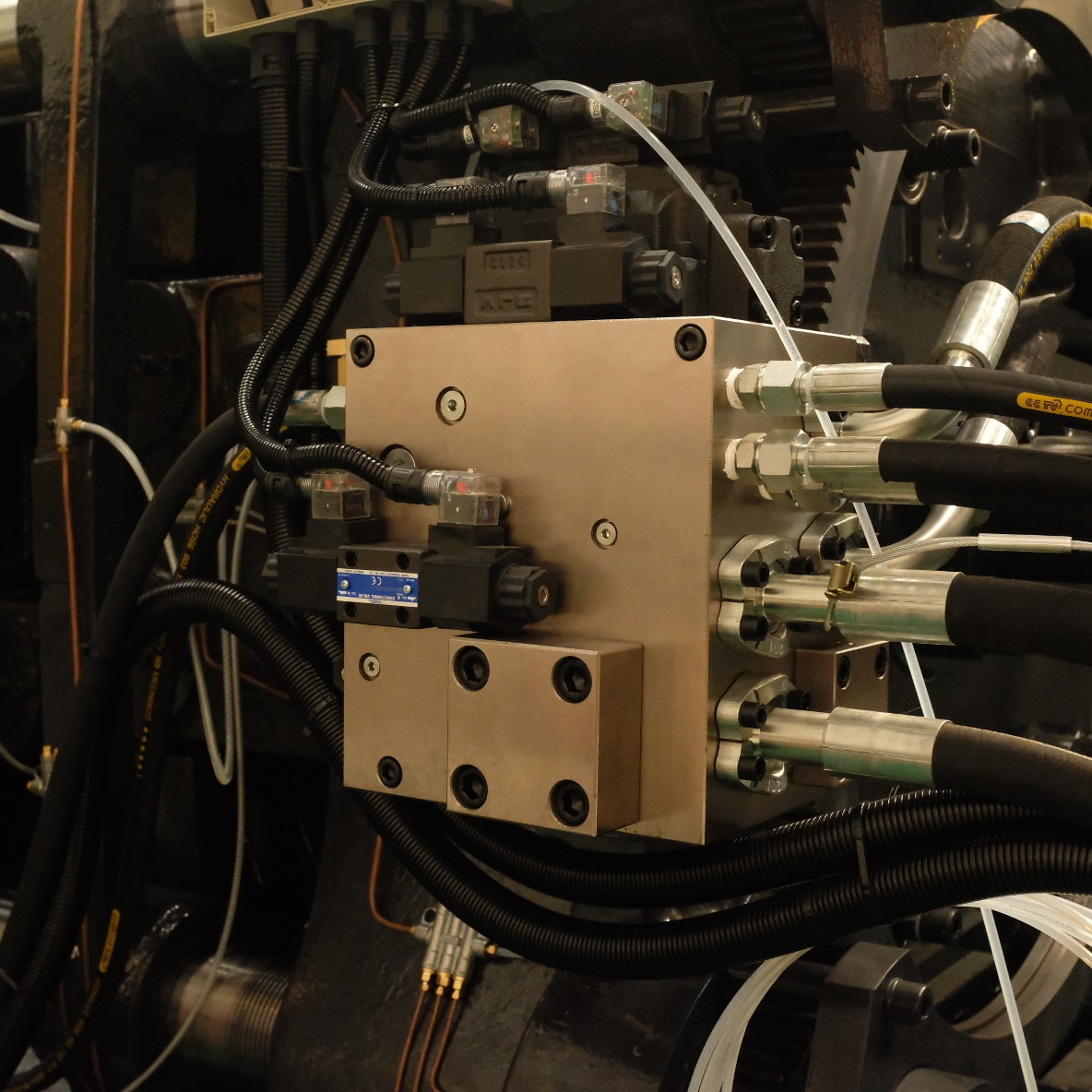

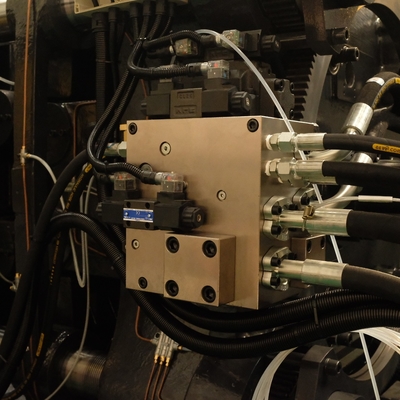

Detail Pictures
