| Place of Origin: | China |
|---|---|
| Brand Name: | OUCO |
| Certification: | CE, ISO9001:2008, SGS |
| Model Number: | OUCO OC128H |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Nude |
| Delivery Time: | 2 months |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 500 sets/year |
| Product Name: | OUCO 128T High Efficiency Hydraulic Servo Plastic Scoop Horizontal Injection Molding Machine For Digging Garden Yard | Type: | Automation |
|---|---|---|---|
| Function: | Plastic Parts Production | Motor: | Servo Energy Saving |
| Color: | Support Customization | Stable Performance: | Short Cycle Time |
| Clamping Way: | Hydraulic | Transport Package: | FCL |
| High Light: | 128t servo motor injection molding machine,yard servo motor injection molding machine,high efficiency hydraulic injection machine |
||
Our injection molding machines can handle various thermoplastic materials such as PP, PE, PS, ABS,PC, PVC, PET, etc. Can meet the needs of customers to produce products with different materials. The price of our product varies based on the model, specifications, and customized requirements. If you are interested in our company but hesitant about the price. Please contact the company's sales representative based on website information first. After listening to your needs, we will provide you with better solutions and quotations.
Product Advantages
Our injection molding machine has dual servo oil-cooled motors, which are powerful and more efficient. They can be used in any dusty environment and have good heat dissipation, which greatly extends the life of the motor. Powerful injection device enables larger injection volume. To produce the same plastic products, if you buy our machines, the cost of purchasing equipment will be lower. Mold opening and ejection are carried out simultaneously to shorten the product molding cycle.
| MODEL | OC128H | |||||
| Clamping force (kN) | 1280 | |||||
| Space between tie bar (mm*mm) | 415*375 | |||||
| Max. mold thickness (mm) | 400 | |||||
| Min. mold thickness(mm) | 150 | |||||
| Opening stroke (mm) | 360 | |||||
| Ejector stroke(mm) | 120 | |||||
| Ejector force forward(Kn) | 40 | |||||
| Screw diameter(mm) | 42 | |||||
| Screw L/D ratio | 20 | |||||
| Theoretical injection volume (cm3) | 221 | |||||
| Shot weight (PS) g | 205 | |||||
| Injection pressure(MPa) | 170 | |||||
| Screw speed (rpm) | 0-220 | |||||
| Injection rate (g/s) | 110 | |||||
| Motor power (Kw) | 11 | |||||
| Oil tank capacity(L) | 230 | |||||
| Heater power (Kw) | 6.9 | |||||
| Machine Weight (Ton) | 3.8 | |||||
| Machine size L×W×H (m) | 4.4*1.36*1.8 | |||||

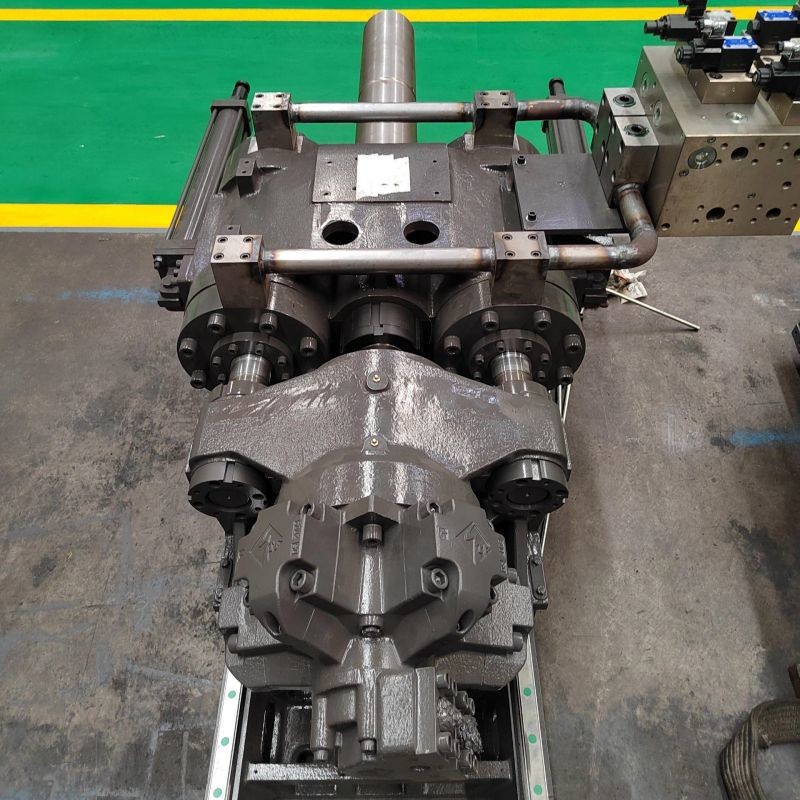

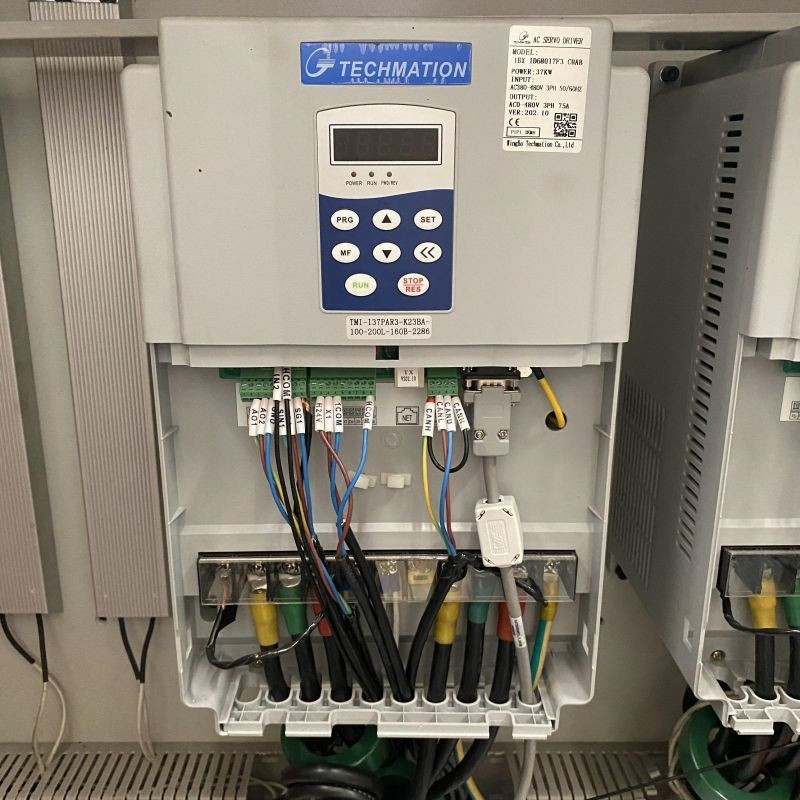

Detail Pictures
