| Place of Origin: | China |
|---|---|
| Brand Name: | OUCO |
| Certification: | CE, ISO9001:2008, SGS |
| Model Number: | OUCO OC128H |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Nude |
| Delivery Time: | 2 months |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 500 sets/year |

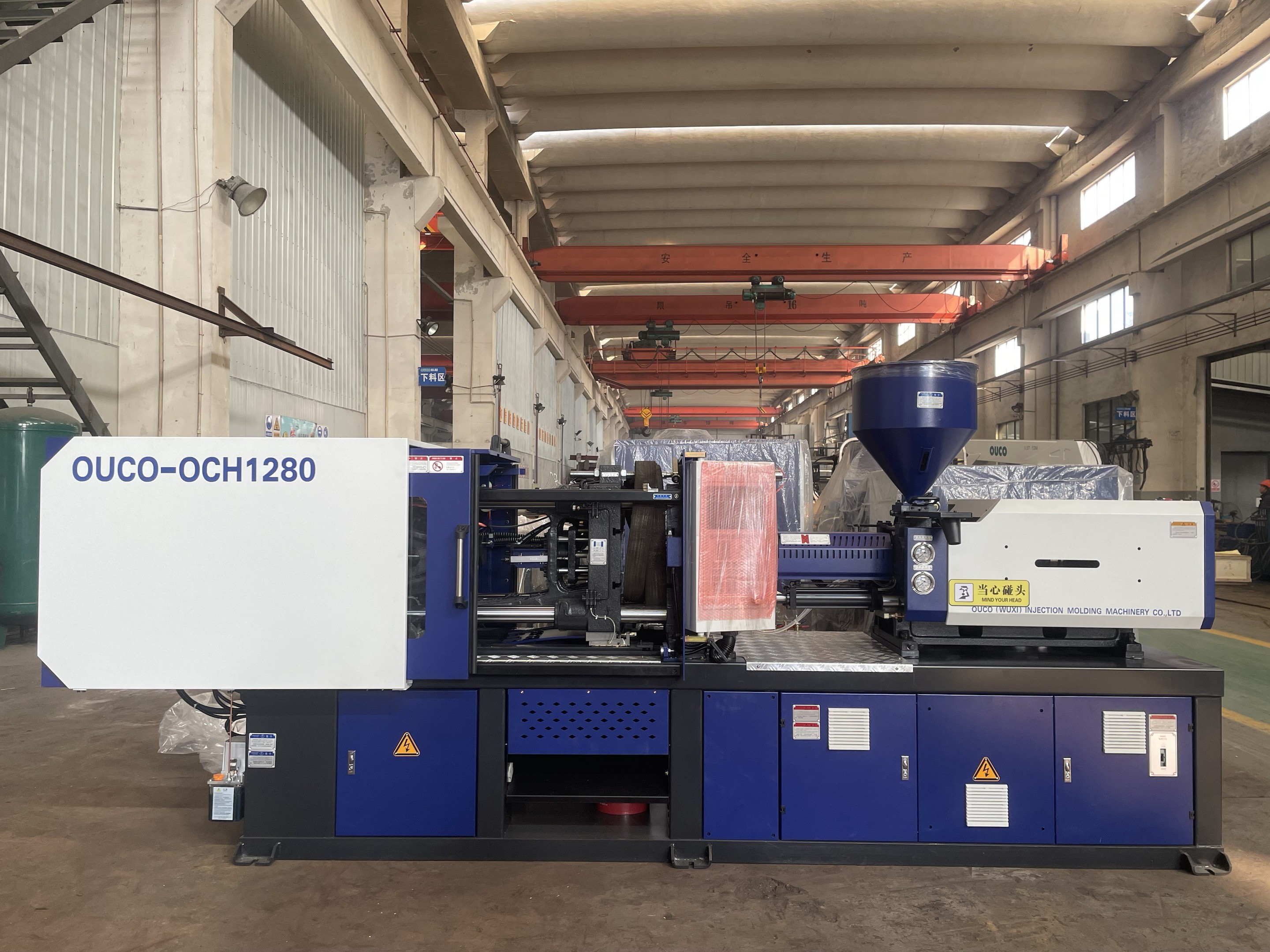

| Product Name: | OUCO 128T Good Quality Hydraulic Servo Desktop Plastic Pen Holder Horizontal Injection Molding Machine | Type: | Automation |
|---|---|---|---|
| Function: | Plastic Parts Production | Motor: | Servo Energy Saving |
| Color: | Support Customization | Stable Performance: | Short Cycle Time |
| Clamping Way: | Hydraulic | Transport Package: | FCL |
| High Light: | OUCO 128T hydraulic injection molding,Plastic Pen Holder hydraulic injection molding |
||
Since its establishment, Oucha has pursued the concept of creating greater value for customers and has always been committed to meeting customer needs. We firmly believe that a professional technical team and sales team can provide customers with better services during the purchase process. As a manufacturer of injection molding machines, we attach great importance to the quality of the machines, as well as testing and adjustments before leaving the factory. Customer's trust is our best reputation.
Product Advantages
The obvious advantage of OUCO's plastic servo injection molding machine is their energy efficiency. By using servo motors to control the injection process, OUCO's machines can significantly reduce energy consumption compared to traditional hydraulic systems. This also makes OUCO's machines a more environmentally friendly choice. Another advantage is the high utilization rate of clamping force. The mode locking unit has outward turning center-locked clamping structure with an exceptionally large opening stoke which effectively protect the template and mold. The clamping force utilization rate is as high as 100%, which makes the products produced less prone to problems such as burrs and deformation. The clamping force utilization rate is as high as 100%, which makes the products produced less prone to problems such as burrs and deformation.
Parameters
| MODEL | OC128H | |||||
| Clamping force (kN) | 1280 | |||||
| Space between tie bar (mm*mm) | 415*375 | |||||
| Max. mold thickness (mm) | 400 | |||||
| Min. mold thickness(mm) | 150 | |||||
| Opening stroke (mm) | 360 | |||||
| Ejector stroke(mm) | 120 | |||||
| Ejector force forward(Kn) | 40 | |||||
| Screw diameter(mm) | 42 | |||||
| Screw L/D ratio | 20 | |||||
| Theoretical injection volume (cm3) | 221 | |||||
| Shot weight (PS) g | 205 | |||||
| Injection pressure(MPa) | 170 | |||||
| Screw speed (rpm) | 0-220 | |||||
| Injection rate (g/s) | 110 | |||||
| Motor power (Kw) | 11 | |||||
| Oil tank capacity(L) | 230 | |||||
| Heater power (Kw) | 6.9 | |||||
| Machine Weight (Ton) | 3.8 | |||||
| Machine size L×W×H (m) | 4.4*1.36*1.8 | |||||

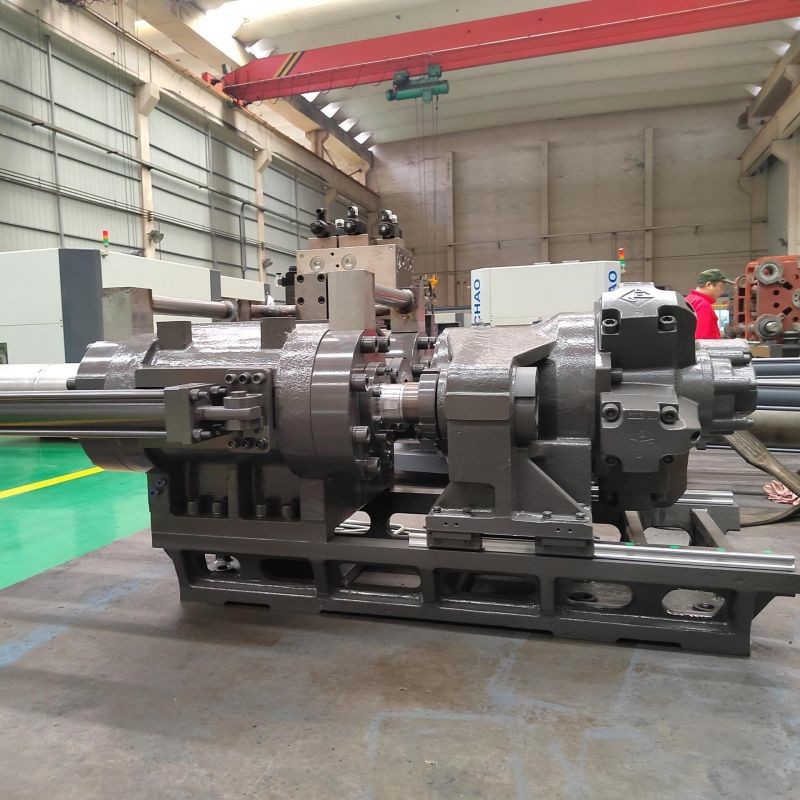

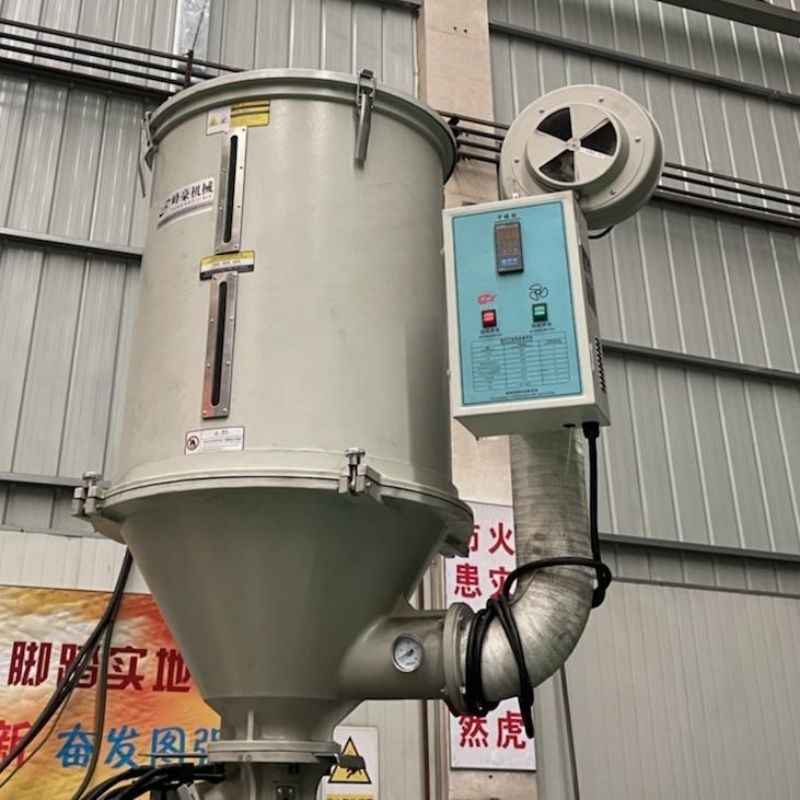

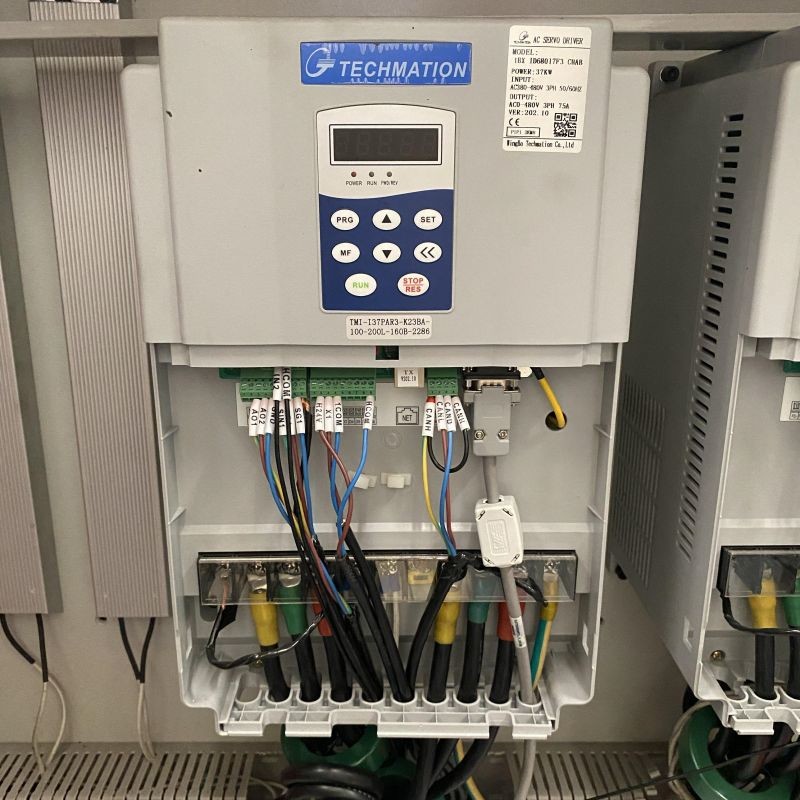

Detail Pictures
Company Profile
