| Place of Origin: | China |
|---|---|
| Brand Name: | OUCO |
| Certification: | CE, ISO9001:2008, SGS |
| Model Number: | OUCO OC128H |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Nude |
| Delivery Time: | 2 months |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 500 sets/year |
| Product Name: | OUCO 128T High Accuracy Hydraulic Servo Plastic Soap Box Injection Molding Machine | Type: | Automation |
|---|---|---|---|
| Function: | Plastic Parts Production | Motor: | Servo Energy Saving |
| Color: | Support Customization | Stable Performance: | Short Cycle Time |
| Clamping Way: | Hydraulic | Transport Package: | FCL |
| High Light: | Accuracy servo motor injection molding machine,servo motor injection molding machine 128T |
||
OUCO is a manufacturer of injection molding machines. It has a price advantage and there will be no middlemen making the difference. We will also provide customers with customized services and provide suggestions on selecting machine models and specific accessories for their different products. As an excellent manufacturer, we also focus on after-sales service to ensure that customers can receive timely help during use.
Product Advantages
The electronic control unit of OUCO injection molding machine adopts advanced computers which is available in multiple languages. It's easy to operate and has fast response speed. The hydraulic system is provided by well-known manufacturers across the country. It's designed and manufactured with high-speed, over-sized and special oil circuits. The overall machine has low noise and stable performance. On the basis of precise control, OUCO plastic injection molding machines improve productivity, reduce energy consumption and save costs. The products produced are more sturdy and durable aren't easily damaged.
Parameters
| MODEL | OC128H | |||||
| Clamping force (kN) | 1280 | |||||
| Space between tie bar (mm*mm) | 415*375 | |||||
| Max. mold thickness (mm) | 400 | |||||
| Min. mold thickness(mm) | 150 | |||||
| Opening stroke (mm) | 360 | |||||
| Ejector stroke(mm) | 120 | |||||
| Ejector force forward(Kn) | 40 | |||||
| Screw diameter(mm) | 42 | |||||
| Screw L/D ratio | 20 | |||||
| Theoretical injection volume (cm3) | 221 | |||||
| Shot weight (PS) g | 205 | |||||
| Injection pressure(MPa) | 170 | |||||
| Screw speed (rpm) | 0-220 | |||||
| Injection rate (g/s) | 110 | |||||
| Motor power (Kw) | 11 | |||||
| Oil tank capacity(L) | 230 | |||||
| Heater power (Kw) | 6.9 | |||||
| Machine Weight (Ton) | 3.8 | |||||
| Machine size L×W×H (m) | 4.4*1.36*1.8 | |||||

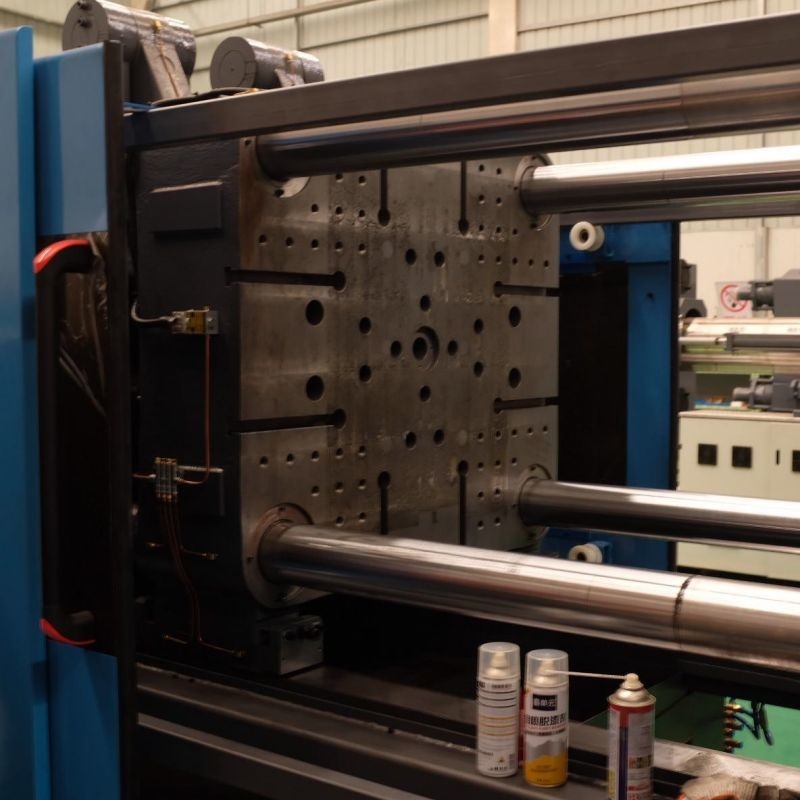

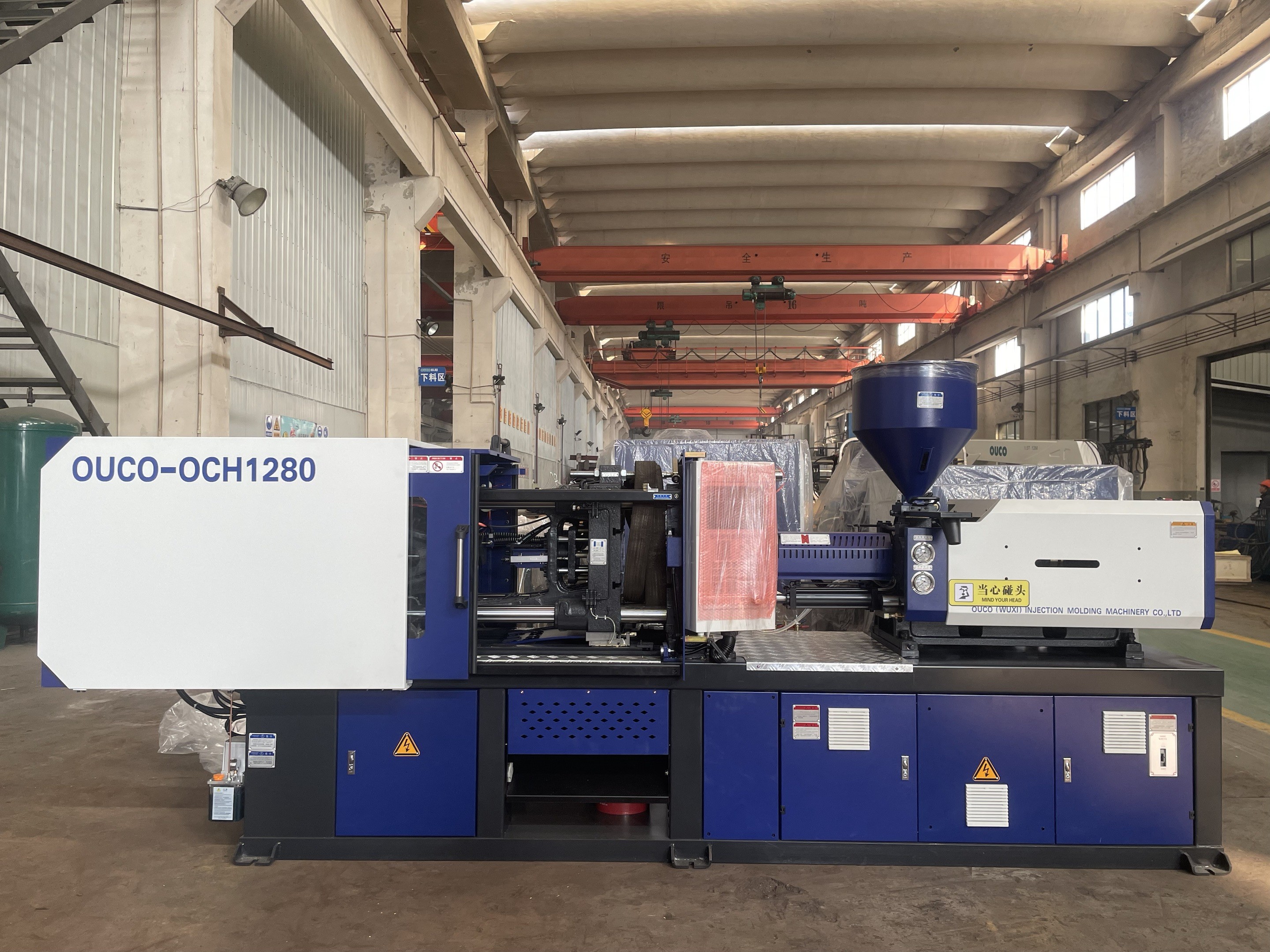

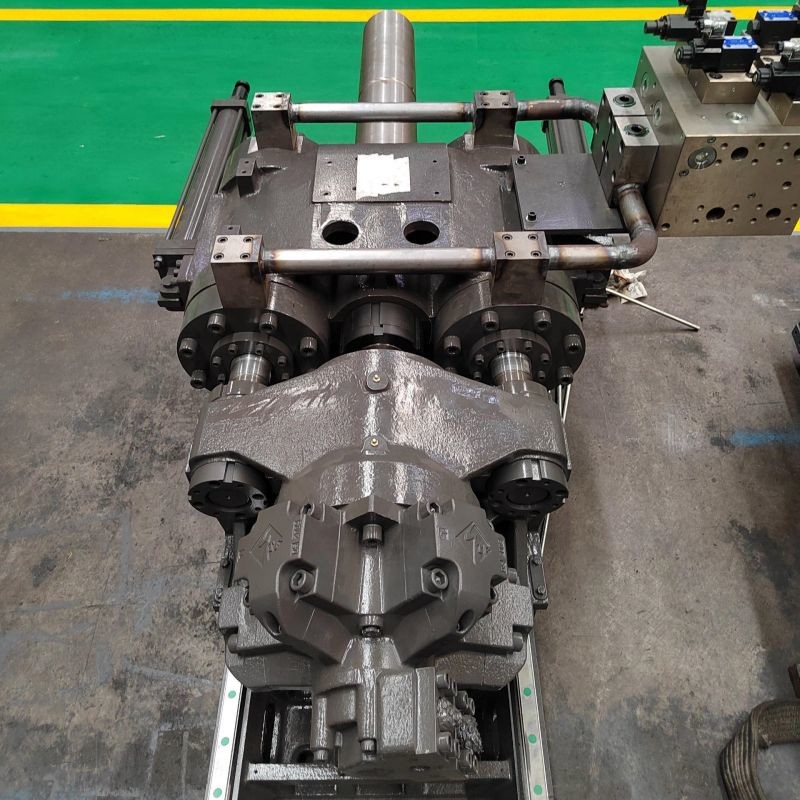

Detail Pictures
