| Place of Origin: | China |
|---|---|
| Brand Name: | OUCO |
| Certification: | CE, ISO9001:2008, SGS |
| Model Number: | OUCO OC98H |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Nude |
| Delivery Time: | 2 months |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 500 sets/year |
| Product Name: | OUCO 98T High Quality Hydraulic Servo Plastic Toothbrush Cup Injection Molding Machine | Type: | Automation |
|---|---|---|---|
| Function: | Plastic Parts Production | Motor: | Servo Energy Saving |
| Color: | Support Customization | Stable Performance: | Short Cycle Time |
| Clamping Way: | Hydraulic | Transport Package: | FCL |
| High Light: | 98T servo motor injection molding machine,servo motor injection molding machine Plastic,Toothbrush Cup hydraulic plastic machine |
||
Since its establishment, OUCO Injection Molding Machine has continuously absorbed excellent cases from its peers and persisted in developing its own high-performance injection molding machines. Each specification of machine can be equipped with 2 or 3 different injection structures according to customer needs. We will as always as walk in the front of the market, fearless of hardships and challenges
Product Advantages
Our injection molding machine products are designed with energy saving and environmental protection factors in mind. They adopt servo motors and internal gear pump power systems to reduce energy consumption which are in line with the trend of sustainable development in today's society. OUCO injection molding machine injection unit adopts double-cylinder double-rail injection technology, which has fast injection response, high precision and low inertia. Advanced injection molding machine production technology ensures products with high molding accuracy, strength and durability.
Parameters
| MODEL | OC98H | |||||
| Clamping force (kN) | 980 | |||||
| Space between tie bar (mm*mm) | 360*360 | |||||
| Max. mold thickness (mm) | 360 | |||||
| Min. mold thickness(mm) | 150 | |||||
| Opening stroke (mm) | 310 | |||||
| Ejector stroke(mm) | 100 | |||||
| Ejector force forward(Kn) | 27 | |||||
| Screw diameter(mm) | 34 | |||||
| Screw L/D ratio | 21.8 | |||||
| Theoretical injection volume (cm3) | 131 | |||||
| Shot weight (PS) g | 119 | |||||
| Injection pressure(MPa) | 206 | |||||
| Screw speed (rpm) | 0-220 | |||||
| Injection rate (g/s) | 81.2 | |||||
| Motor power (Kw) | 11 | |||||
| Oil tank capacity(L) | 150 | |||||
| Heater power (Kw) | 5.8 | |||||
| Machine Weight (Ton) | 3.5 | |||||
| Machine size L×W×H (m) | 4.1*1.25*1.8 | |||||

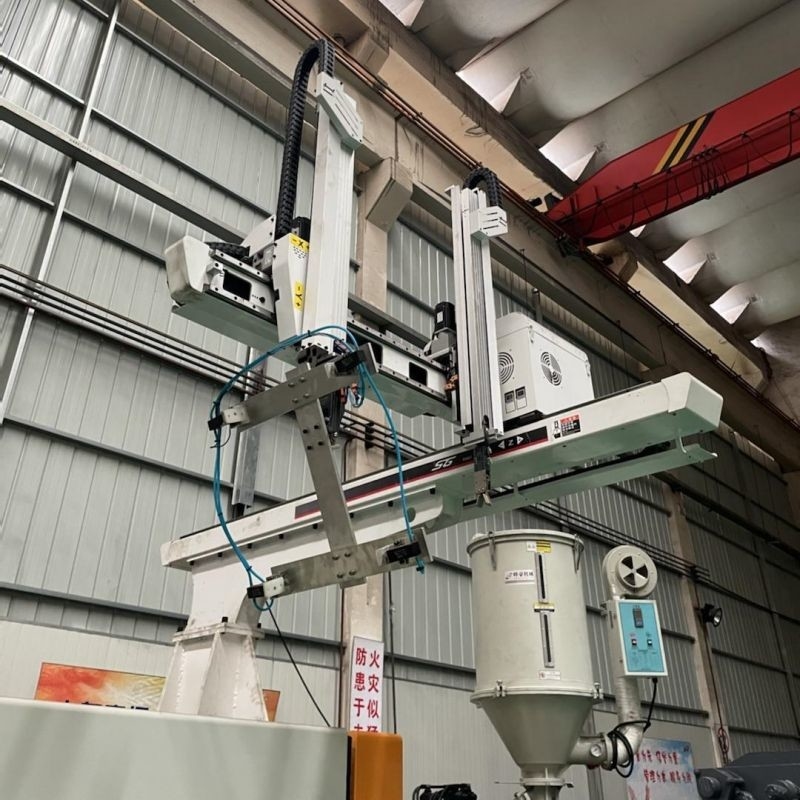

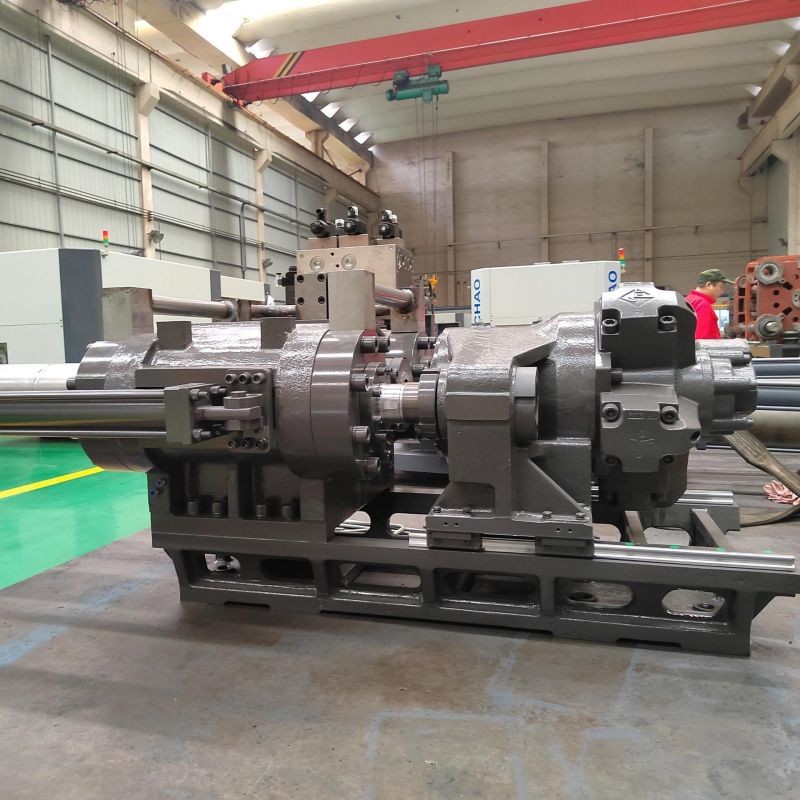

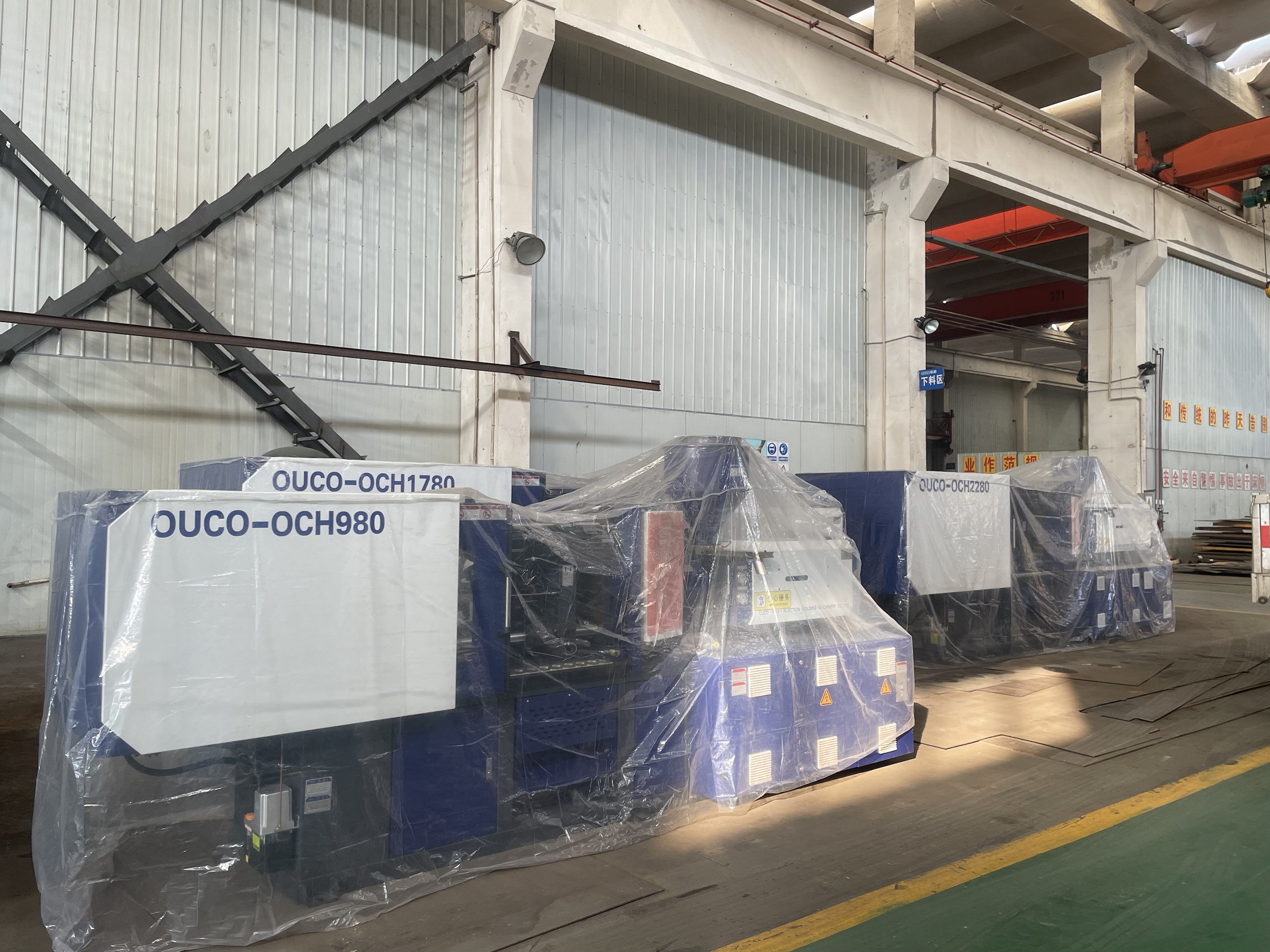

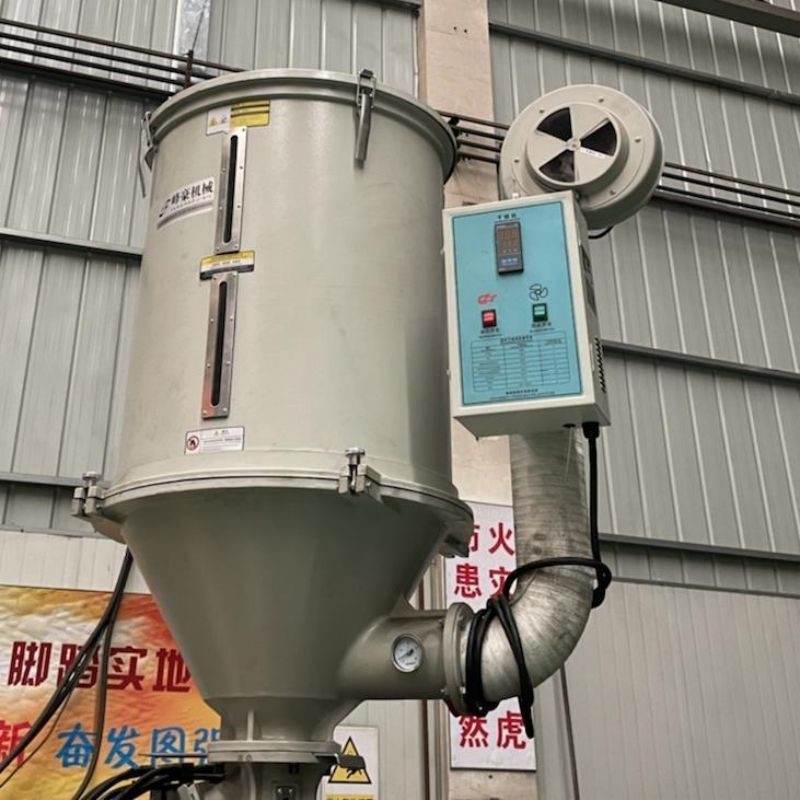

Detail Pictures
