| Place of Origin: | China |
|---|---|
| Brand Name: | OUCO |
| Certification: | CE, ISO9001:2008, SGS |
| Model Number: | OCM-90UV |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Nude |
| Delivery Time: | 2 months |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 500 sets/year |

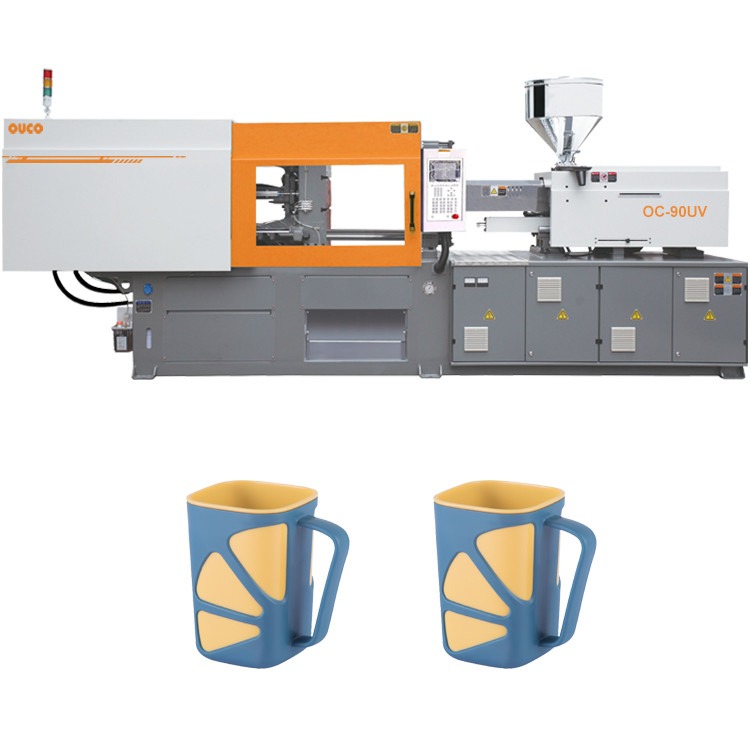

| Product Name: | 90T Blue Plastic Injection Molding Machine Making For Cups Hydraulic Servo High Speed High Output | Type: | Automation |
|---|---|---|---|
| Function: | Plastic Parts Production | Motor: | Servo Energy Saving |
| Color: | Support Customization | Stable Performance: | Short Cycle Time |
| Clamping Way: | Hydraulic | Transport Package: | FCL |
| High Light: | 90t horizontal injection molding machine,making cups horizontal injection molding machine,high output horizontal injection machine |
||
OUCO injection moulding machine is also known as multi-component injection moulding machine, with the addition of auxiliary machines, products with complex structures can be manufactured. We provide high quality customised injection moulding machine service oriented to meet customers' demands. We use advanced centre clamping structure to provide only high quality, high precision, high quality and high performance products to our customers. With both price and quality advantages, we hope to bring you the best service and mutual benefits.
Product Advantages
Plastic cups produced with OUCO machines are super cost effective! Made from PC, they are lightweight and easy to carry, have a strong machine clamping force, are unbreakable and durable, and are relatively inexpensive. With the development of the times, the aesthetics of the public is also changing, and a small plastic cup can also tell a person's taste. We can produce plastic cups with many designs and colours according to customers' requirements, which are beautiful and generous. Most importantly, plastic cups are made of environmentally friendly materials, which can meet the needs of daily use and also contribute to the protection of the environment, practical and environmentally friendly.
Parameters
| MODEL | OCM-90UV | |||||
| Clamping force (kN) | 900 | |||||
| Space between tie bar (mm*mm) | 360*360 | |||||
| Max. mold thickness (mm) | 150 | |||||
| Min. mold thickness(mm) | 360 | |||||
| Opening stroke (mm) | 320 | |||||
| Ejector stroke(mm) | 100 | |||||
| Ejector force forward(Kn) | 31 | |||||
| Screw diameter(mm) | 38 | |||||
| Screw L/D ratio | 18.5 | |||||
| Theoretical injection volume (cm3) | 181 | |||||
| Shot weight (PS) g | 170 | |||||
| Injection pressure(MPa) | 152 | |||||
| Injection speed (mm/s) | 130 | |||||
| Injection rate (g/s) | 130 | |||||
| Motor power (Kw) | 14 | |||||
| Oil tank capacity(L) | 160 | |||||
| Heater power (Kw) | 6.5 | |||||
| Machine Weight (kg) | 3100 | |||||
| Machine size L×W×H (mm) | 4200*1100*1700 | |||||

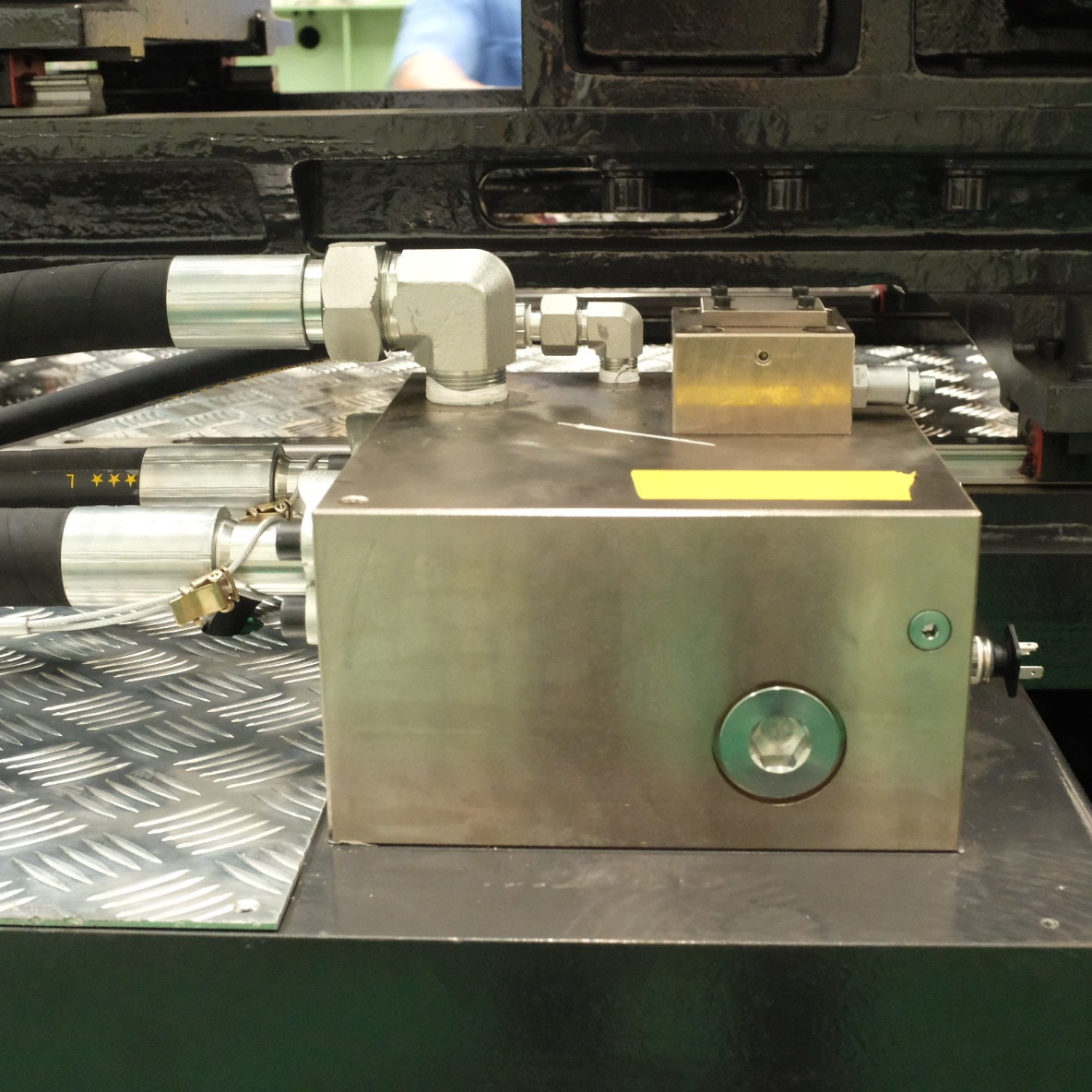

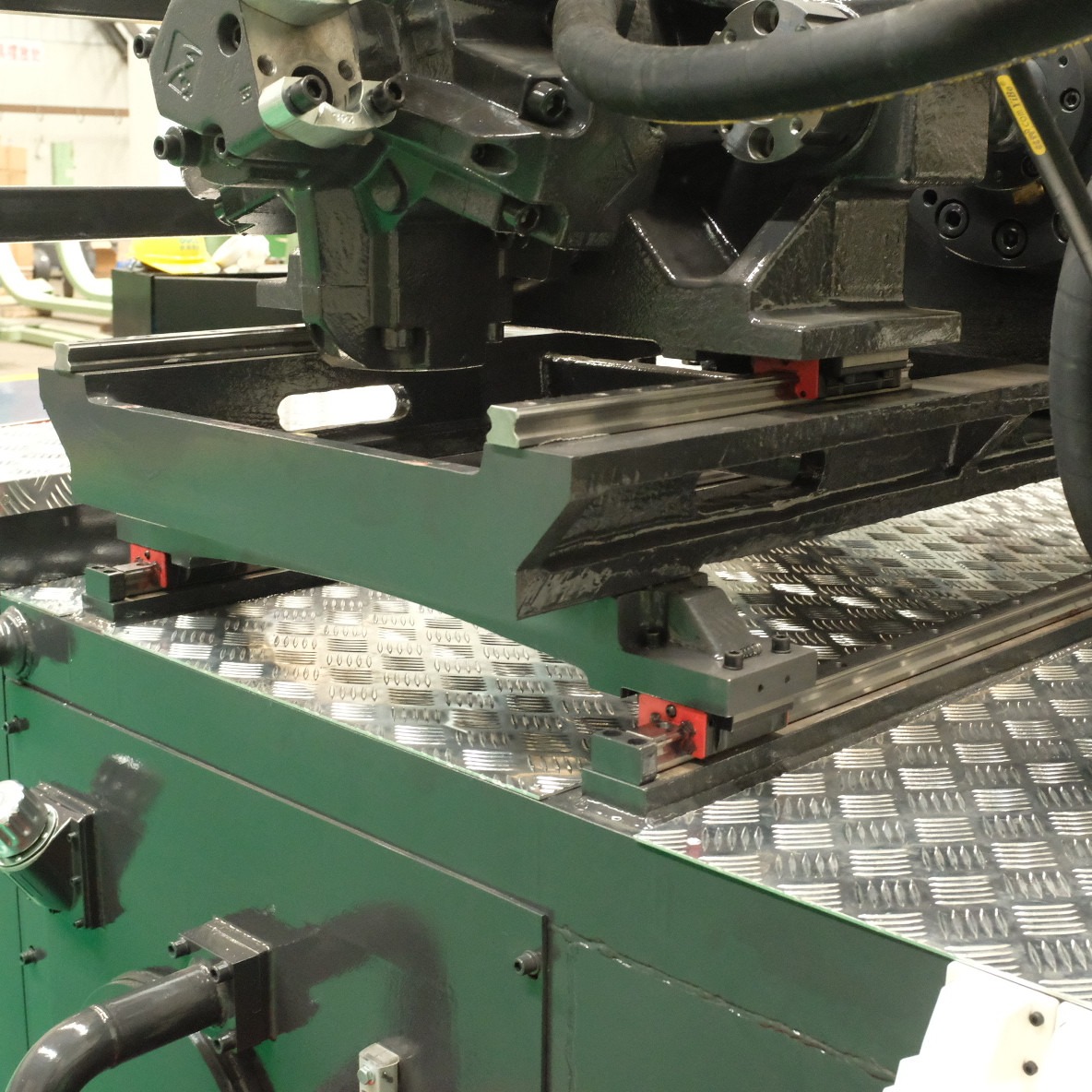

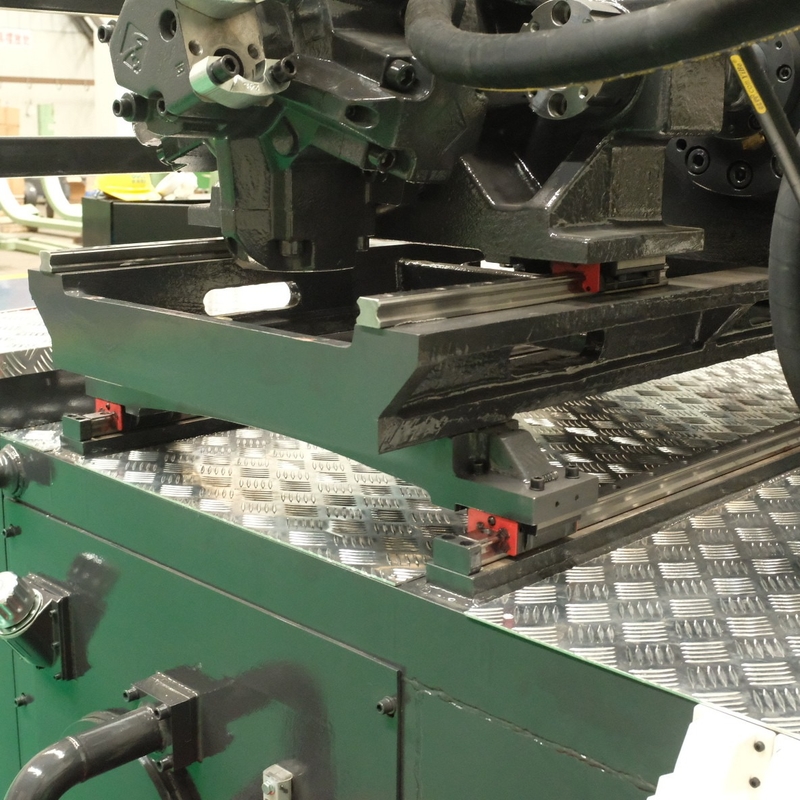

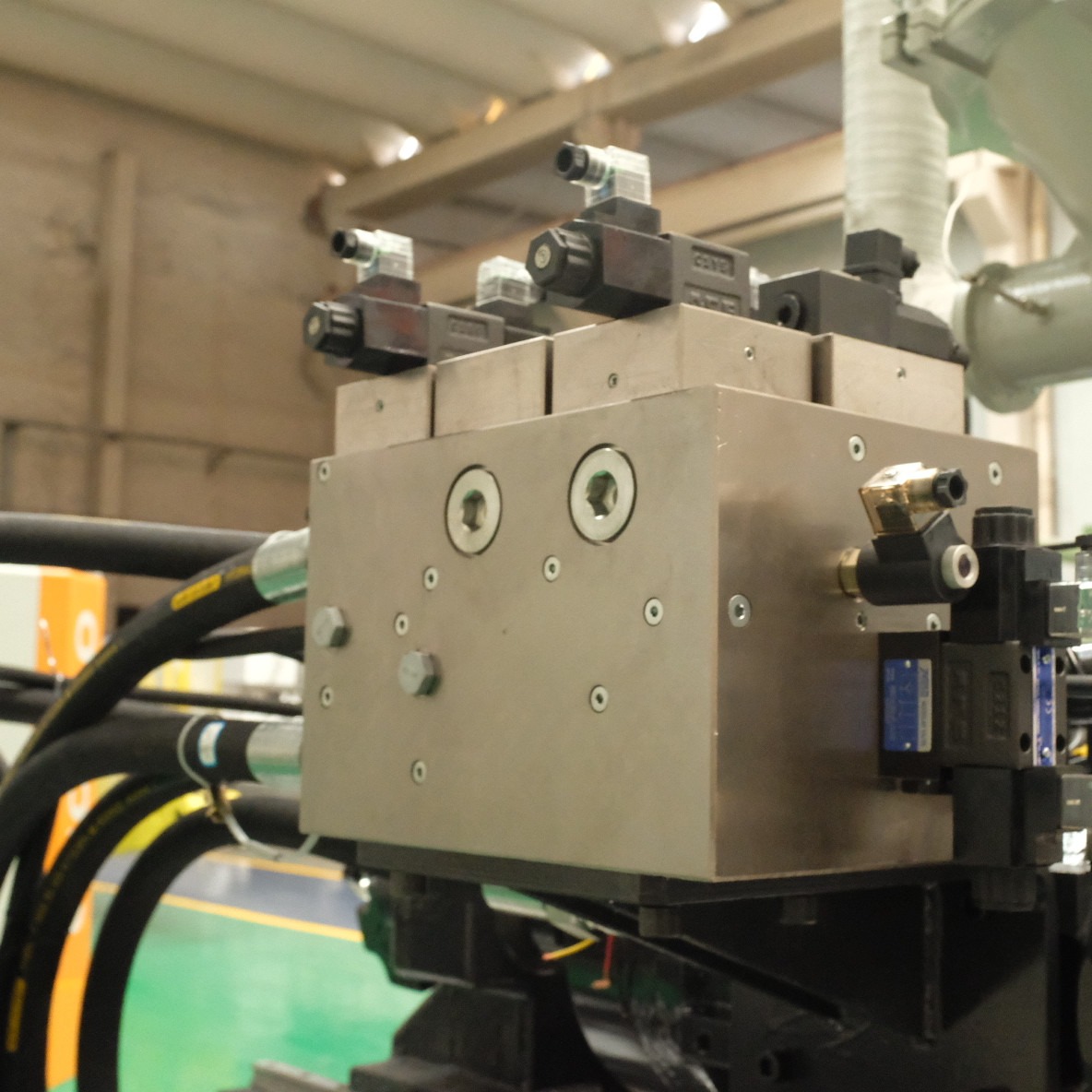

Detail Pictures
