| Place of Origin: | China |
|---|---|
| Brand Name: | OUCO |
| Certification: | CE, ISO9001:2008, SGS |
| Model Number: | OUCO OC650D |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Nude |
| Delivery Time: | 2 months |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 500 sets/year |
| Product Name: | OUCO 650T High Quality High Output Hydraulic Servo Plastic Turnover Box Injection Molding Machine | Type: | Automation |
|---|---|---|---|
| Function: | Plastic Parts Production | Motor: | Servo Energy Saving |
| Color: | Support Customization | Stable Performance: | Short Cycle Time |
| Clamping Way: | Hydraulic | Transport Package: | FCL |
| High Light: | 650T hydraulic plastic moulding machine,High Output hydraulic plastic moulding machine |
||
OUCO has 40 years of rich experience in machinery and equipment manufacturing. During the production and research and development of injection molding machines, OUCO always pays attention to market changes and trends and constantly innovates in order to provide customers with high-quality, high-performance machines. Meeting customer's needs and creating greater value for customers is OUCO the eternal concept of OUCO injection molding.
Product Advantages
OUCO is the source manufacturer of injection molding machines and we have certain advantages in terms of price. Screws can be customized according to the product. OUCO plastic injection molding machine is outward turning center-locked clamping structure, has high utilization rate of clamping force.By using servo motors to control the injection process, OUCO’s machines can significantly reduce energy consumption compared to traditional hydraulic systems. The products produced have the characteristics of high precision and less flying edge.
Parameters
| MODEL | OC650D | |||||
| Clamping force (kN) | 6500 | |||||
| Space between tie bar (mm*mm) | 960*820 | |||||
| Max. mold thickness (mm) | 900 | |||||
| Min. mold thickness(mm) | 400 | |||||
| Opening stroke (mm) | 1150 | |||||
| Ejector stroke(mm) | 260 | |||||
| Ejector force forward(Kn) | 181 | |||||
| Screw diameter(mm) | 85 | |||||
| Screw L/D ratio | 22 | |||||
| Theoretical injection volume (cm3) | 3730 | |||||
| Shot weight (PS) g | 3602 | |||||
| Injection pressure(MPa) | 137 | |||||
| Injection speed (mm/s) | 93 | |||||
| Injection rate (g/s) | 706 | |||||
| Motor power (Kw) | 75 | |||||
| Oil tank capacity(L) | 950 | |||||
| Heater power (Kw) | 41 | |||||
| Machine Weight (Ton) | 24 | |||||
| Machine size L×W×H (m) | 9*2.1*2.3 | |||||

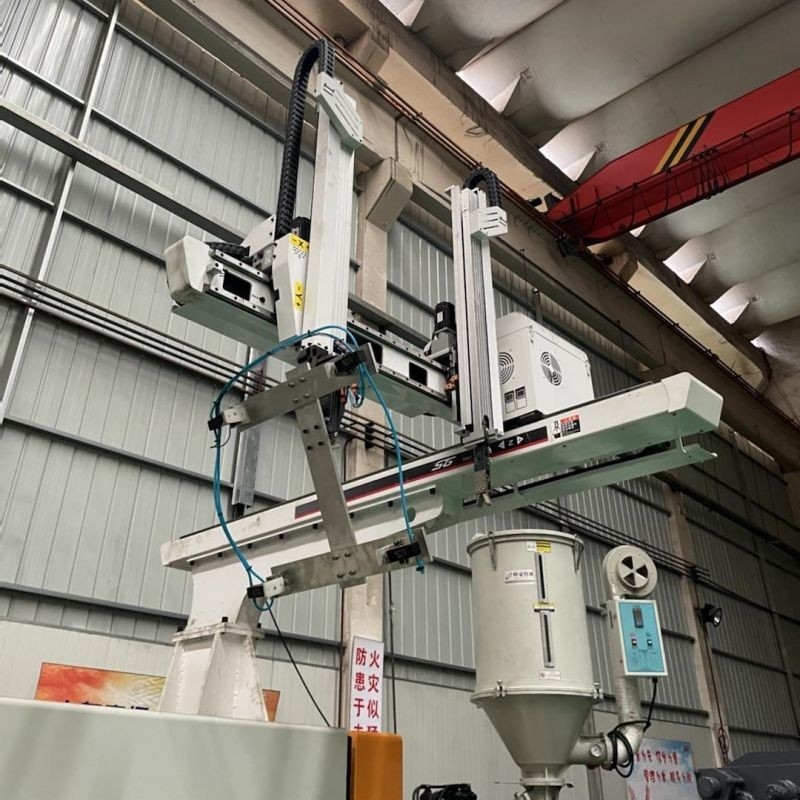

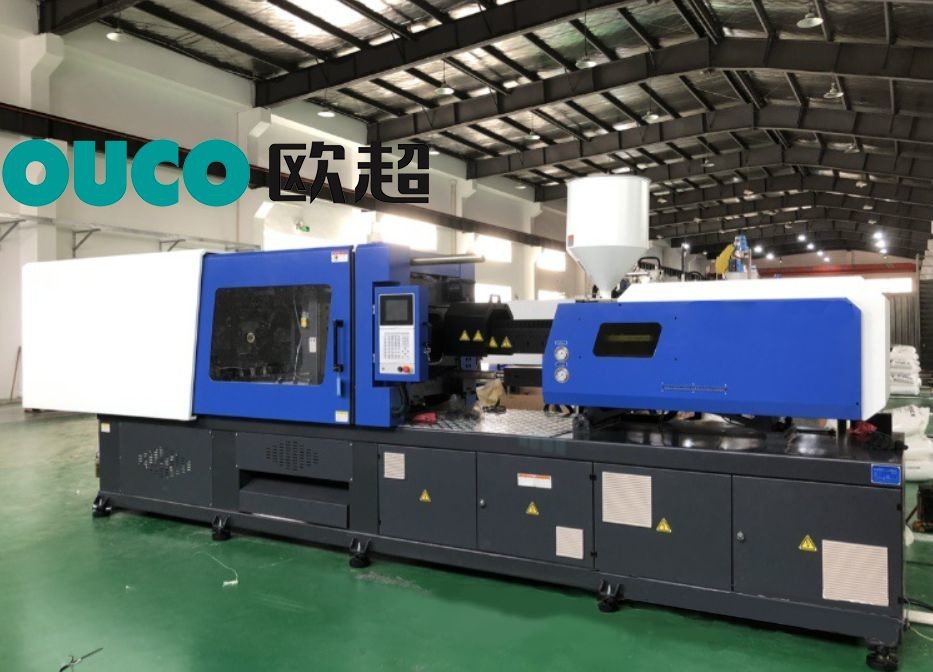

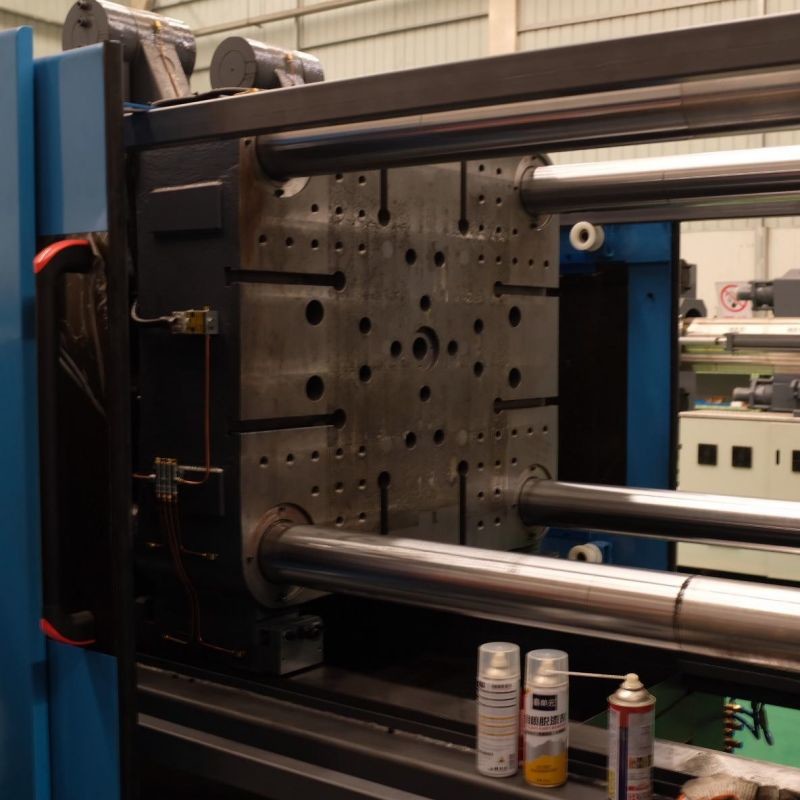

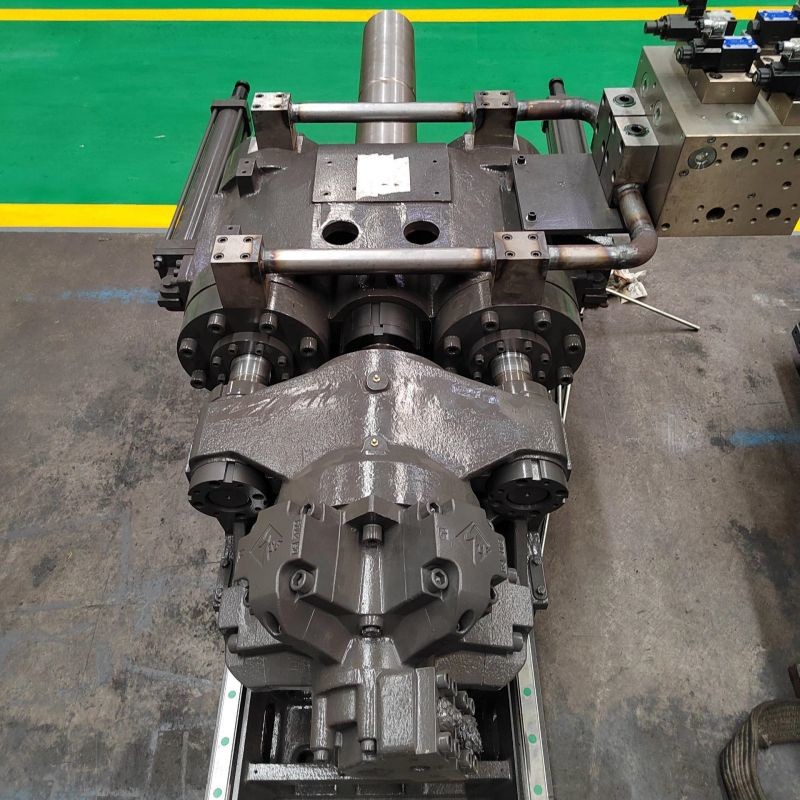

Detail Pictures
