| Place of Origin: | China |
|---|---|
| Brand Name: | OUCO |
| Certification: | CE, ISO9001:2008, SGS |
| Model Number: | OCM-800S |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Nude |
| Delivery Time: | 2 months |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 500 sets/year |

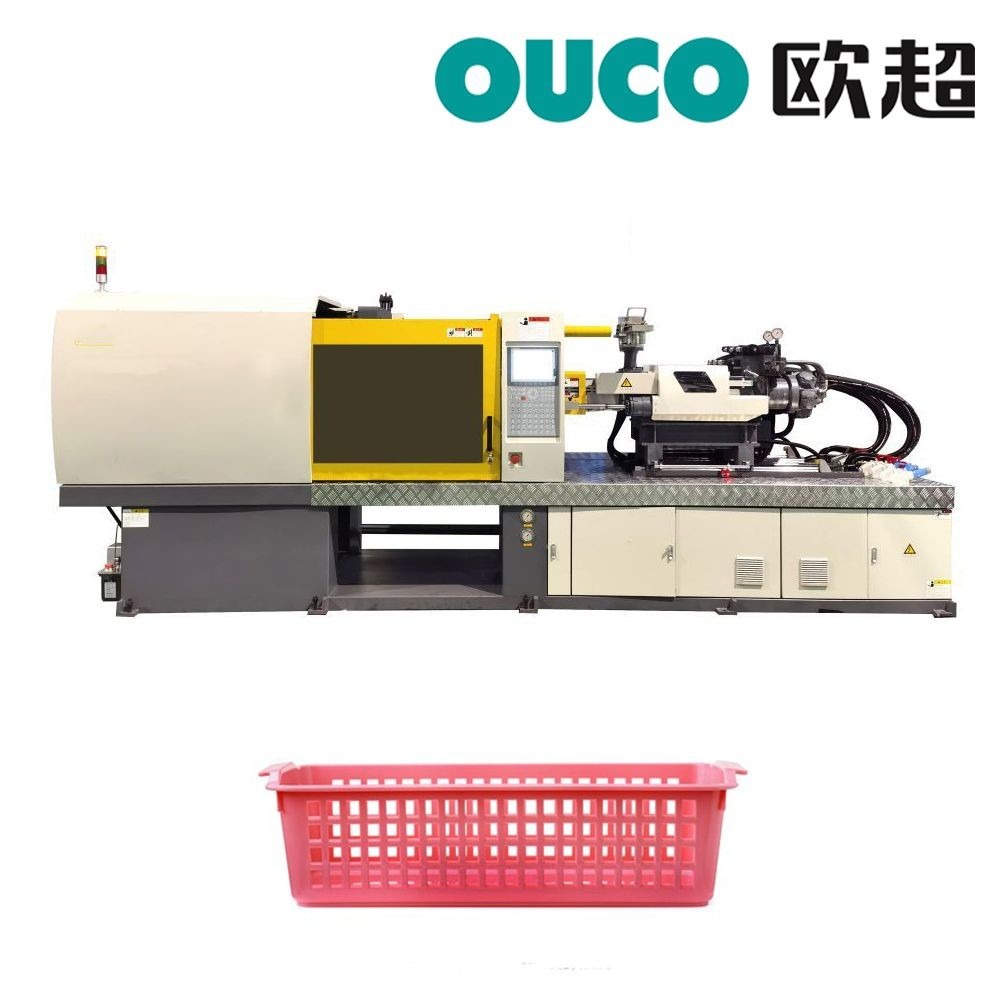

| Product Name: | 800T Yellow High Quality High Output Plastic Injection Molding Machine For Vegetable Container Servo Motor | Type: | Automation |
|---|---|---|---|
| Function: | Plastic Parts Production | Motor: | Servo Energy Saving |
| Color: | Support Customization | Stable Performance: | Short Cycle Time |
| Clamping Way: | Hydraulic | Transport Package: | FCL |
| High Light: | 800T servo hydraulic injection molding machine,Container servo hydraulic injection molding machine |
||
OUCO injection moulding machine adheres to the concept of customer service, with European standards to create high-quality injection moulding machines, the use of servo motor energy-saving system, in energy saving and emission reduction at the same time greatly improve the efficiency of the most core of the central clamping structure, the clamping force for the product to provide a quality assurance. The machine also has a certain advantage in automation, to a certain extent, reduce the ineffective labour force, reduce the cost of employment, and strive to bring customers the maximum return on investment.
Product Advantages
Fruit baskets produced with our injection moulding machines are of superior quality and performance. These baskets can be used and handled with confidence, can withstand high pressure and weight, and are not easily damaged or deformed. With the latest technology and central clamping system, the surface of the baskets is smooth and even, and their service life is longer than those produced by ordinary machines. And we can also provide personalised service to customise the size and dimensions for a wide range of uses.
Parameters
| MODEL | OCM-800S | |||||
| Clamping force (kN) | 800 | |||||
| Space between tie bar (mm*mm) | 1070*970 | |||||
| Max. mold thickness (mm) | 1200 | |||||
| Min. mold thickness(mm) | 500 | |||||
| Opening stroke (mm) | 2500 | |||||
| Ejector stroke(mm) | 280 | |||||
| Ejector force forward(Kn) | 212 | |||||
| Screw diameter(mm) | 75 | |||||
| Screw L/D ratio | 21 | |||||
| Theoretical injection volume (cm3) | 1590 | |||||
| Shot weight (PS) g | 1462 | |||||
| Injection pressure(MPa) | 178 | |||||
| Injection speed (mm/s) | 170 | |||||
| Injection rate (g/s) | 750 | |||||
| Motor power (Kw) | 107.5 | |||||
| Oil tank capacity(L) | 900 | |||||
| Heater power (Kw) | 30.02 | |||||
| Machine Weight (kg) | 35 | |||||
| Machine size L×W×H (mm) | 9400*2600*2600 | |||||

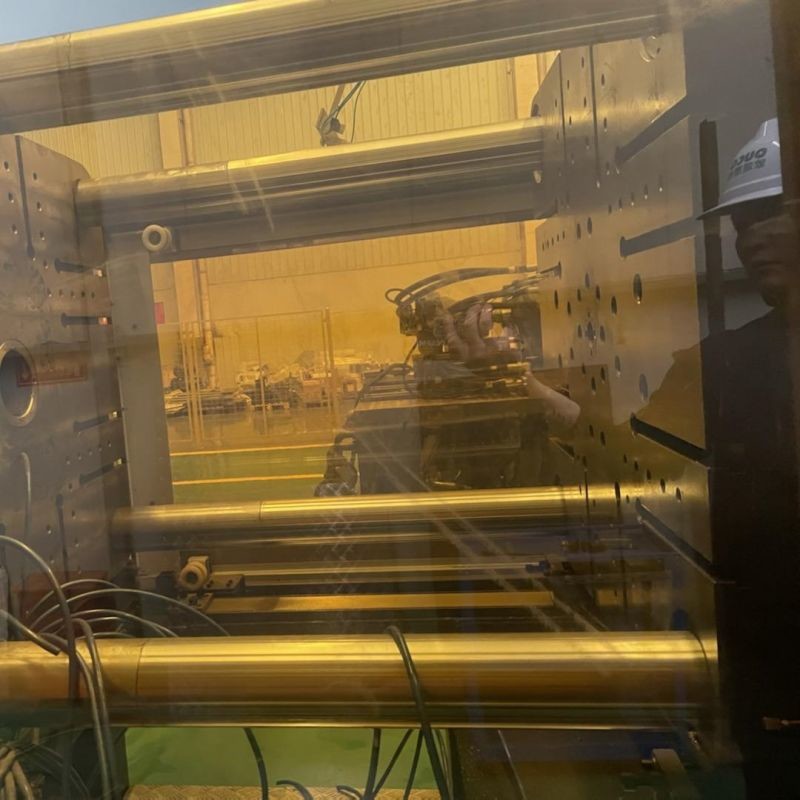

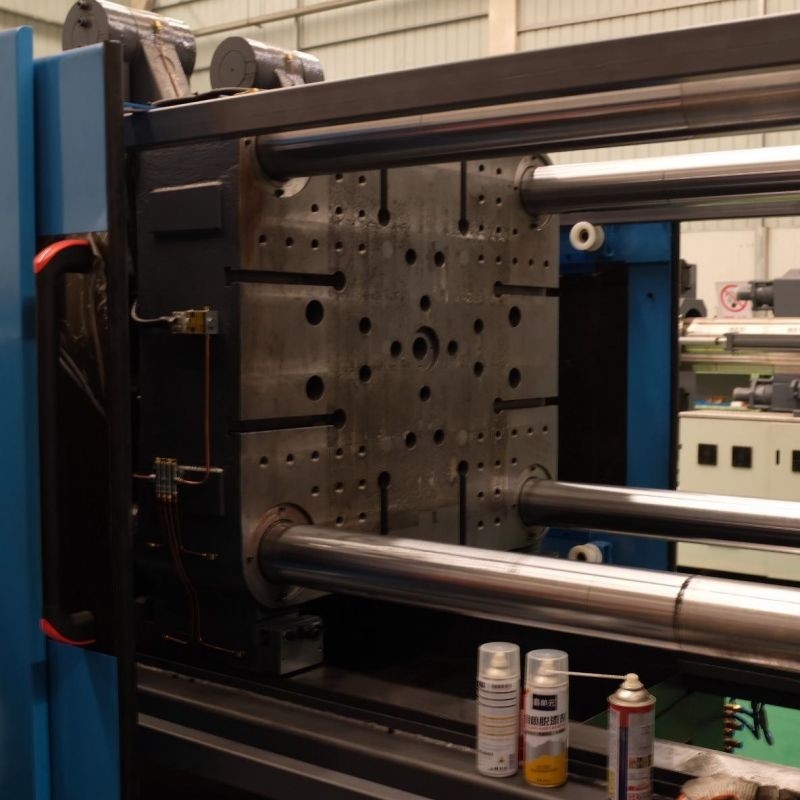

Detail Pictures
