| Place of Origin: | China |
|---|---|
| Brand Name: | OUCO |
| Certification: | CE, ISO9001:2008, SGS |
| Model Number: | OUCO OC480H |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Nude |
| Delivery Time: | 2 months |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 500 sets/year |

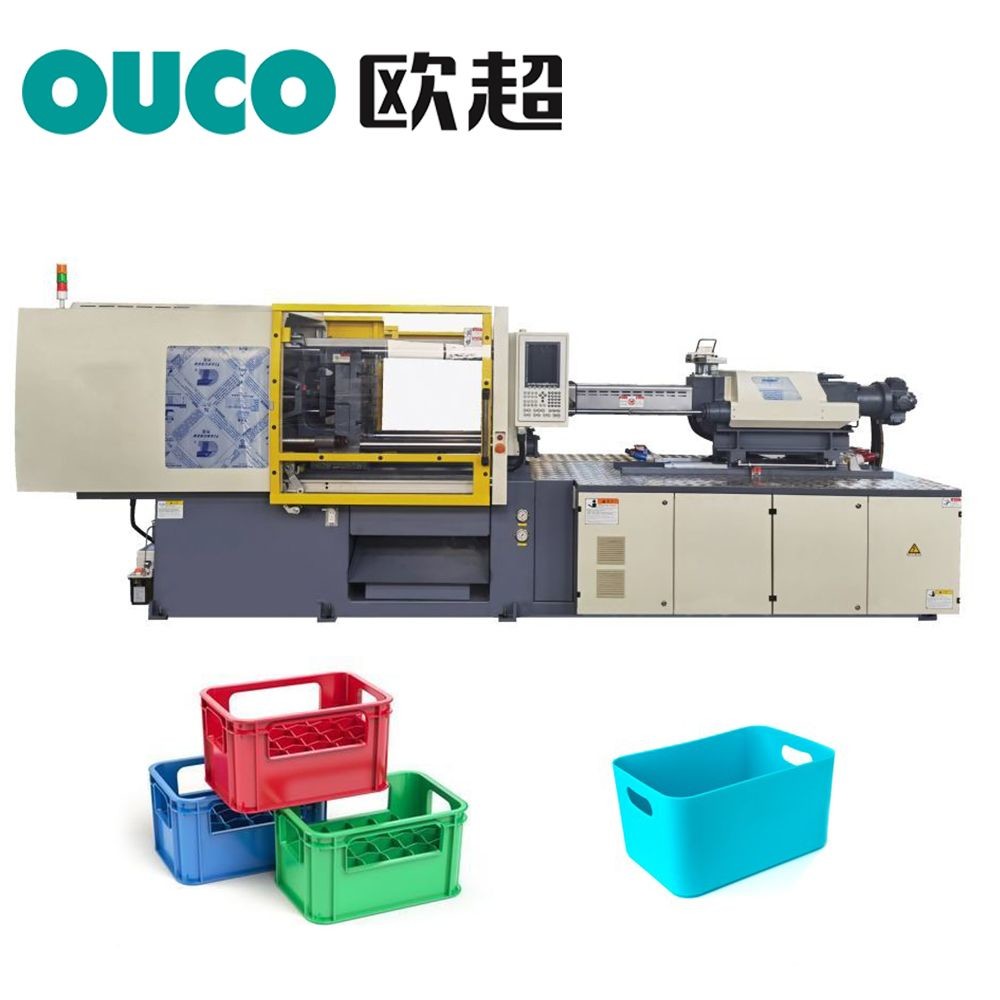

| Product Name: | 480 Ton Servo Motor Injection Molding Machine For Plastic Bottle Crate Soda Beer Transport | Type: | Automation |
|---|---|---|---|
| Function: | Plastic Parts Production | Motor: | Servo Energy Saving |
| Color: | Support Customization | Stable Performance: | Short Cycle Time |
| Clamping Way: | Hydraulic | Transport Package: | FCL |
| High Light: | 480Ton servo motor injection molding machine,automation servo motor injection molding machine,servo hydraulic injection molding machine 480Ton |
||
OUCO creates different series of products with high standards and strict requirements. Our team can customize professional production plans and recommend the most suitable injection molding machine type according to customers' production needs.
Product Advantages
OUCO plastic injection molding machine adopts servo motor and internal gear pump power system.It realizes the power output mode of giving as much as needed which greatly saves energy and reduces energy. The entire machine has low noise during the production process and the products produced also have stable performance and wear resistance.
Parameters
| MODEL | OC480H | |||||
| Clamping force (kN) | 4800 | |||||
| Space between tie bar (mm*mm) | 820*780 | |||||
| Max. mold thickness (mm) | 730 | |||||
| Min. mold thickness(mm) | 300 | |||||
| Opening stroke (mm) | 900 | |||||
| Ejector stroke(mm) | 190 | |||||
| Ejector force forward(Kn) | 80 | |||||
| Screw diameter(mm) | 70 | |||||
| Screw L/D ratio | 22 | |||||
| Theoretical injection volume (cm3) | 1597 | |||||
| Shot weight (PS) g | 1543 | |||||
| Injection pressure(MPa) | 208 | |||||
| Injection speed (mm/s) | 106 | |||||
| Injection rate (g/s) | 396 | |||||
| Motor power (Kw) | 65 | |||||
| Oil tank capacity(L) | 680 | |||||
| Heater power (Kw) | 35 | |||||
| Machine Weight (Ton) | 18 | |||||
| Machine size L×W×H (m) | 8.6*2.1*2.2 | |||||

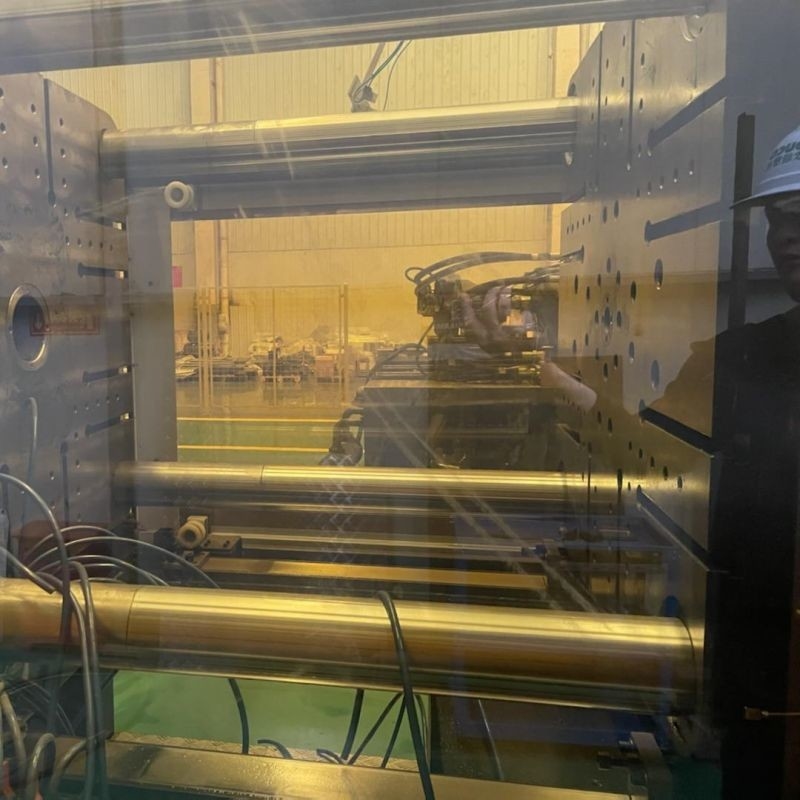

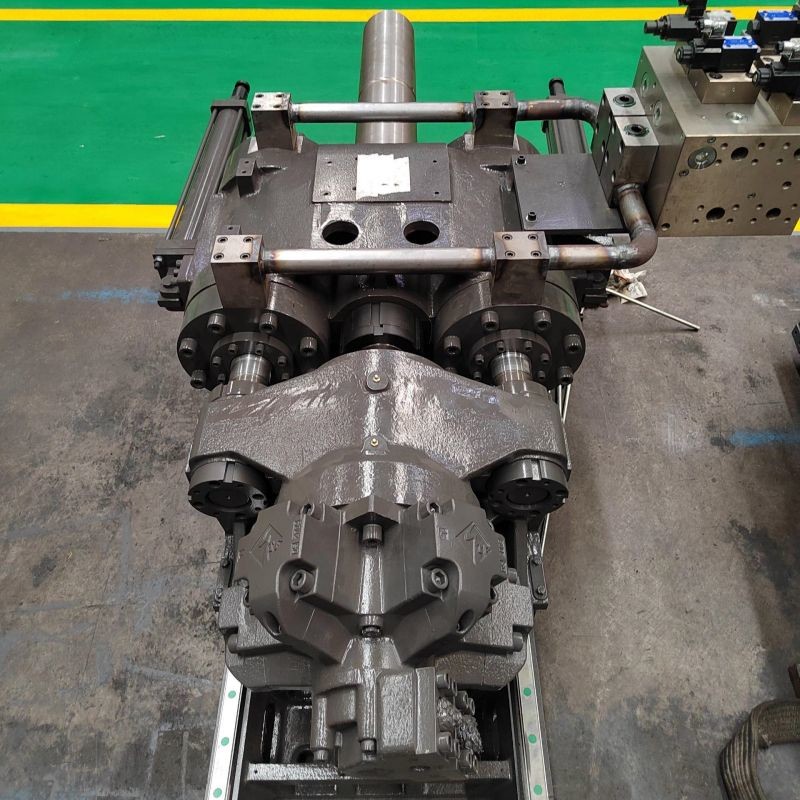

Detail Pictures
