| Place of Origin: | China |
|---|---|
| Brand Name: | OUCO |
| Certification: | CE, ISO9001:2008, SGS |
| Model Number: | OUCO OC550H |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Nude |
| Delivery Time: | 2 months |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 500 sets/year |

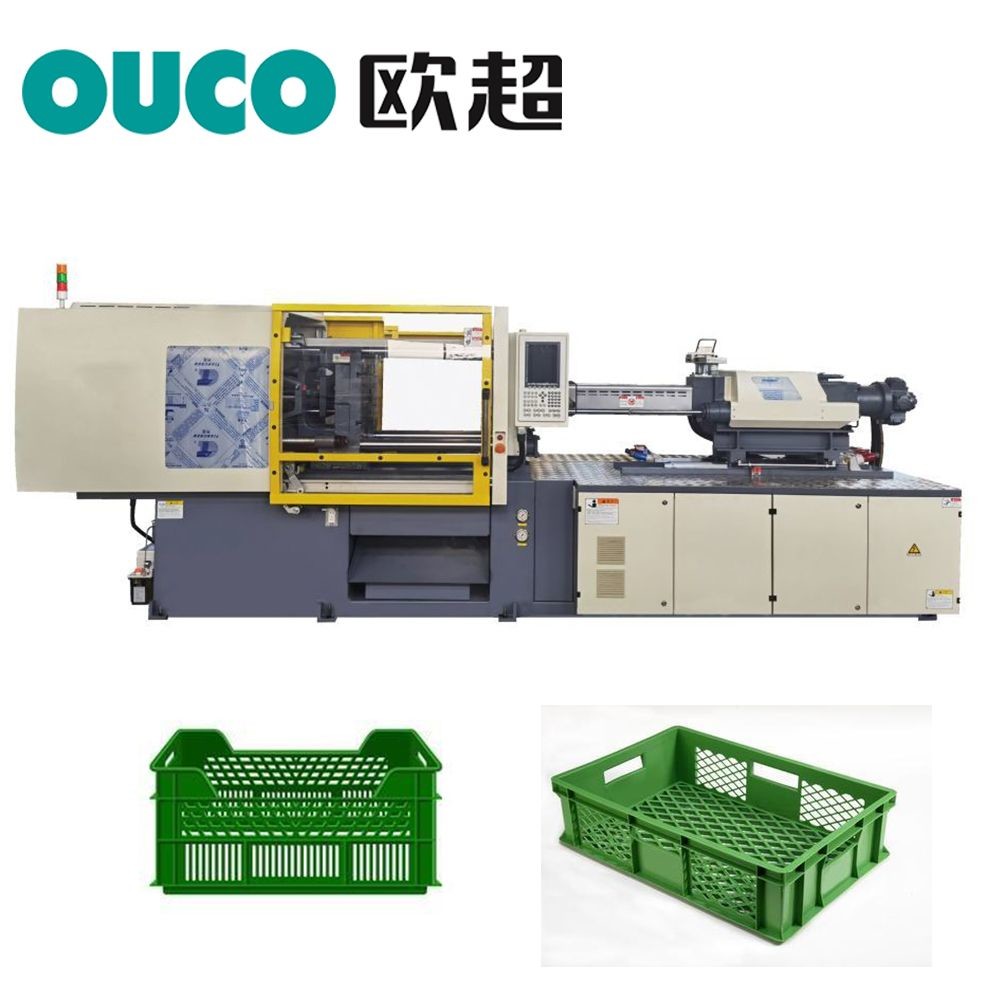

| Product Name: | OUCO 550T Hydraulic Servo High Accuracy Plastic Injection Molding Machine Fruit Vegetable Turnover Box | Type: | Automation |
|---|---|---|---|
| Function: | Plastic Parts Production | Motor: | Servo Energy Saving |
| Color: | Support Customization | Stable Performance: | Short Cycle Time |
| Clamping Way: | Hydraulic | Transport Package: | FCL |
| High Light: | ouco servo motor injection molding machine,550T servo motor injection molding machine,550T injection molding machine servo motor |
||
OUCO has always been committed to meeting the needs of customers, constantly striving in energy-saving,precision, automation and other aspects of machines. Our eternal goal is to bring higher value to our customers.
Product Advantages
Compared with tradional injectional molding structure, OUCO plastic injection molding machine has the characteristic of saving electricity,material and less flying edge. The exceptionally laege opening stroke ensures even force distribution on the template and mold,effectively procting the template and mold. The fruit vegetable turnover boxs produced are sturdy,durable and not easily damaged.
Parameters
| MODEL | OC550H | |||||
| Clamping force (kN) | 5500 | |||||
| Space between tie bar (mm*mm) | 860*800 | |||||
| Max. mold thickness (mm) | 800 | |||||
| Min. mold thickness(mm) | 300 | |||||
| Opening stroke (mm) | 1010 | |||||
| Ejector stroke(mm) | 210 | |||||
| Ejector force forward(Kn) | 103 | |||||
| Screw diameter(mm) | 80 | |||||
| Screw L/D ratio | 22 | |||||
| Theoretical injection volume (cm3) | 2060 | |||||
| Shot weight (PS) g | 1918 | |||||
| Injection pressure(MPa) | 149 | |||||
| Injection speed (mm/s) | 133 | |||||
| Injection rate (g/s) | 646 | |||||
| Motor power (Kw) | 75 | |||||
| Oil tank capacity(L) | 850 | |||||
| Heater power (Kw) | 27 | |||||
| Machine Weight (T) | 20 | |||||
| Machine size L×W×H (m) | 8.7*2.1*2.2 | |||||

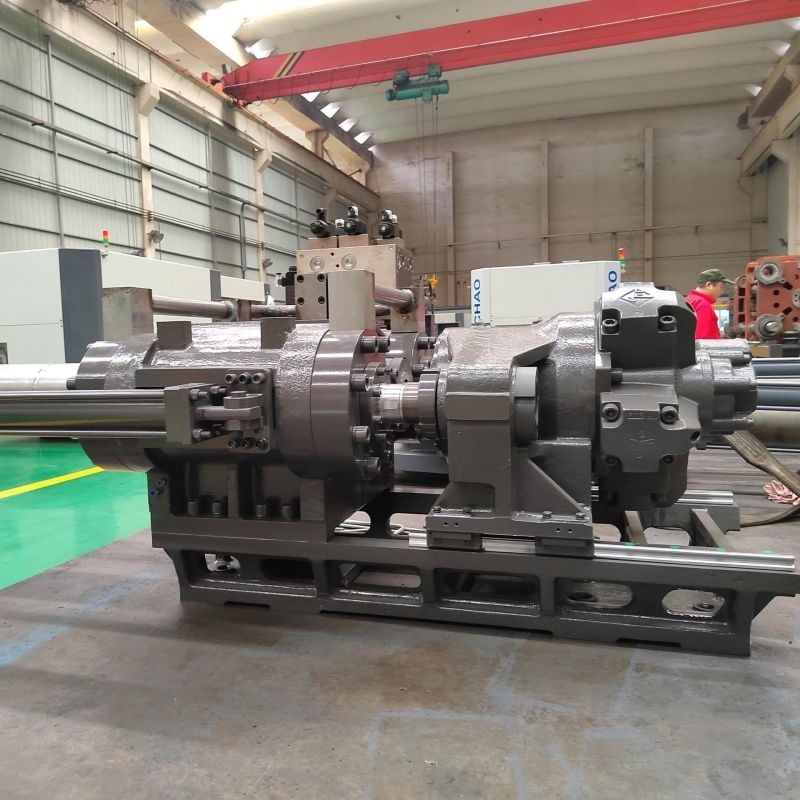

Detail Pictures
