| Place of Origin: | China |
|---|---|
| Brand Name: | OUCO |
| Certification: | CE, ISO9001:2008, SGS |
| Model Number: | OUCO OC328H |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Nude |
| Delivery Time: | 2 months |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 500 sets/year |

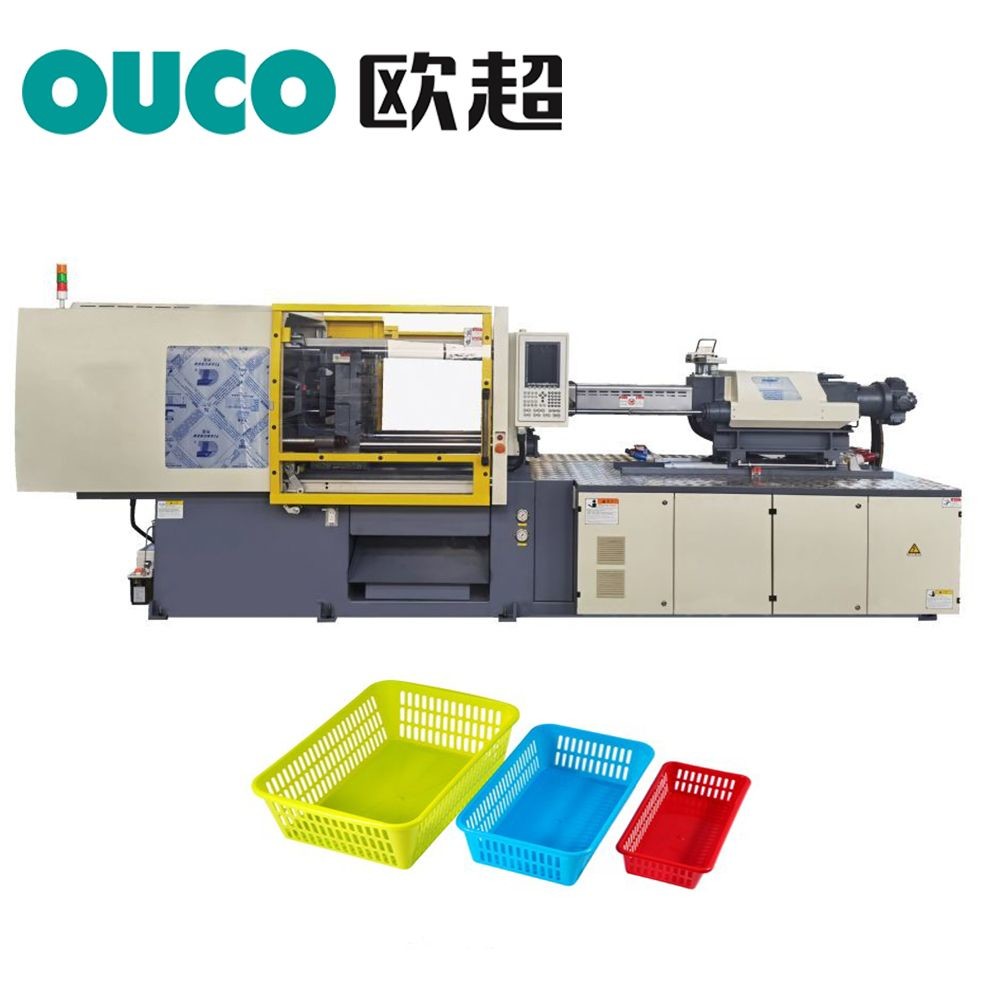

| Product Name: | OUCO 328T Hydraulic Servo High Output Plastic Medicine Basket Injection Molding Machine | Type: | Automation |
|---|---|---|---|
| Function: | Plastic Parts Production | Motor: | Servo Energy Saving |
| Color: | Support Customization | Stable Performance: | Short Cycle Time |
| Clamping Way: | Hydraulic | Transport Package: | FCL |
| High Light: | 328t servo motor injection molding machine,plastic servo motor injection molding machine,customization injection molding machine servo motor |
||
Ouchao has introduced internationally advanced processing and testing equipment, strict quality control and testing procedures to ensure that every plastic injection molding machine leaving the factory can achieve high quality.
Product Advantages
The OUCO plastic injection moulding machine has high-performance servo motor
dynamic control system. It owns twin cylinder balanced injection system. Multiple-stage control for pressure, speed, position to inject, keep pressure, charge material.
Parameters
| MODEL | OC328T | |||||
| Clamping force (kN) | 3280 | |||||
| Space between tie bar (mm*mm) | 660*660 | |||||
| Max. mold thickness (mm) | 710 | |||||
| Min. mold thickness(mm) | 250 | |||||
| Opening stroke (mm) | 660 | |||||
| Ejector stroke(mm) | 160 | |||||
| Ejector force forward(Kn) | 70 | |||||
| Screw diameter(mm) | 60 | |||||
| Screw L/D ratio | 24.3 | |||||
| Theoretical injection volume (cm3) | 974 | |||||
| Shot weight (PS) g | 886 | |||||
| Injection pressure(MPa) | 244 | |||||
| Injection speed (mm/s) | 310 | |||||
| Injection rate (g/s) | 310 | |||||
| Motor power (Kw) | 37 | |||||
| Oil tank capacity(L) | 510 | |||||
| Heater power (Kw) | 24.7 | |||||
| Machine Weight (T) | 12.5 | |||||
| Machine size L×W×H (m) | 6.8*1.8*2.35 | |||||

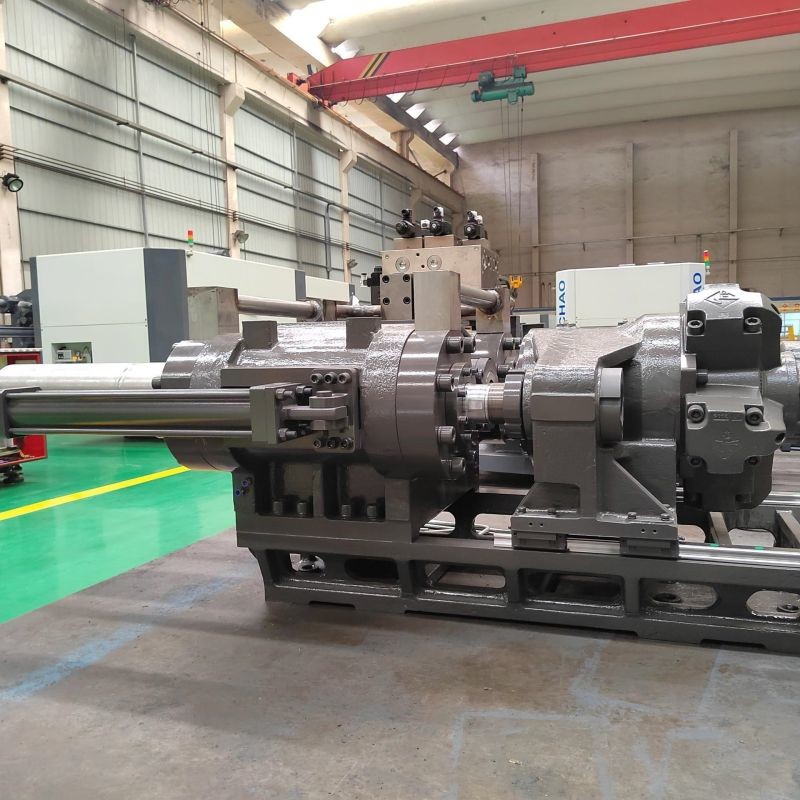

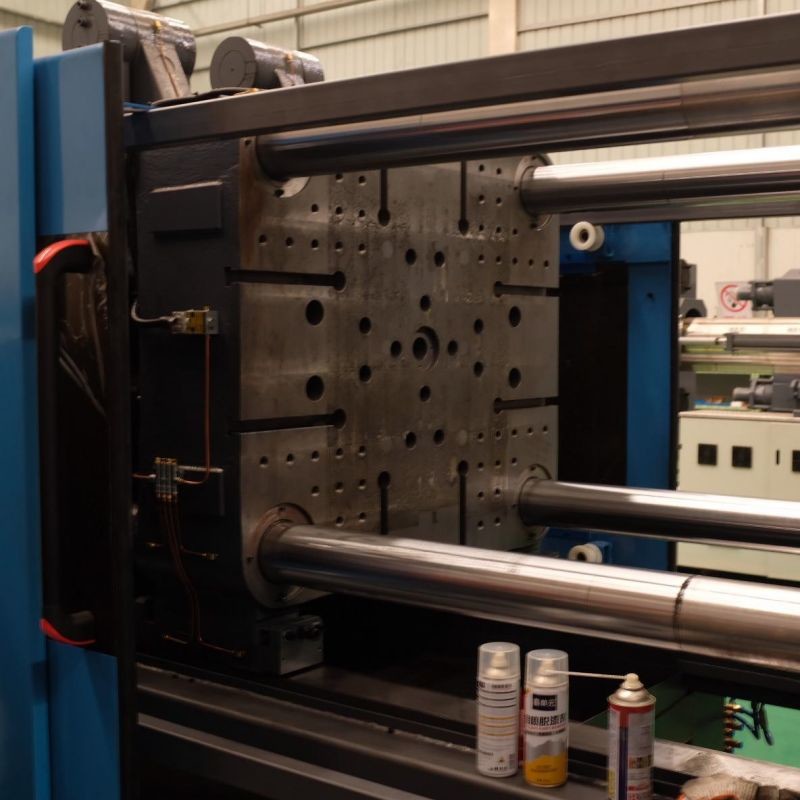

Detail Pictures
Company Profile
