| Place of Origin: | China |
|---|---|
| Brand Name: | OUCO |
| Certification: | CE, ISO9001:2008, SGS |
| Model Number: | OUCO OC380H |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Nude |
| Delivery Time: | 2 months |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 500 sets/year |

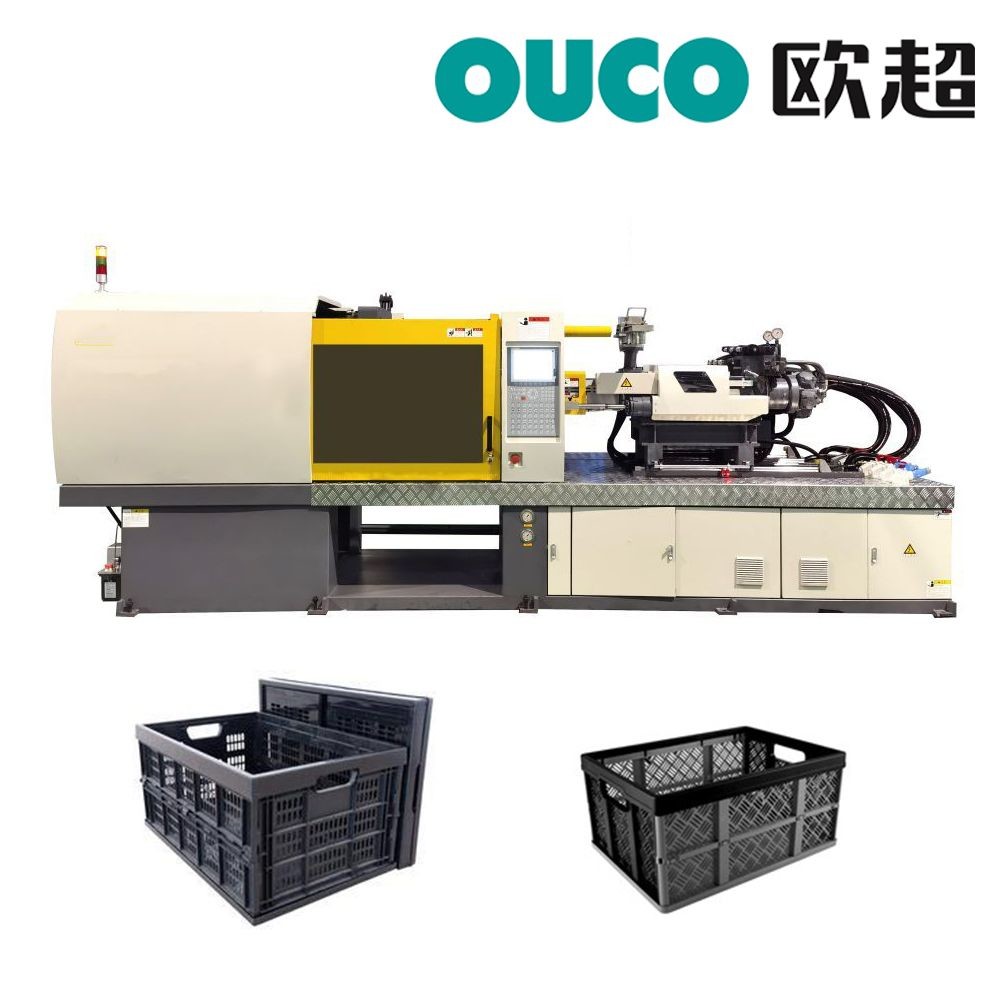

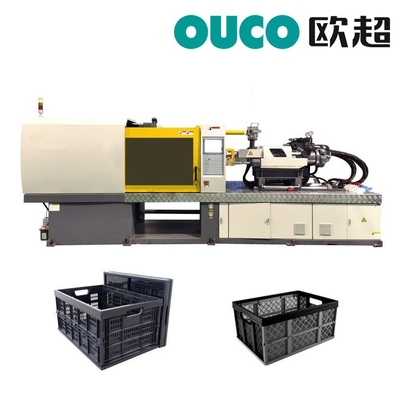

| Product Name: | OUCO 380 Ton Foldable Plastic Crate Injection Molding Machine High Speed Plastic Injection Molding Machine | Type: | Automation |
|---|---|---|---|
| Function: | Plastic Parts Production | Motor: | Servo Energy Saving |
| Color: | Support Customization | Stable Performance: | Short Cycle Time |
| Clamping Way: | Hydraulic | Transport Package: | FCL |
| High Light: | 380ton servo motor injection molding machine,advanced servo motor injection molding machine,foldable crate plastic injection molding machine |
||
OUCO has advanced injection molding machine production technology, committed to developing high-quality injection molding machine equipment. OUCO has a professional team which can provide customers with efficient and energy-saving solutions according to requirements.
Product Advantages
OUCO Injection Molding Machine is widely used for producing plastic crate products of various sizes. The products produced have characteristics such as high stability and wear resistance, etc. OUCO can also equip corresponding machine parts according to customer production needs.
Parameters
| MODEL | OC380H | |||||
| Clamping force (kN) | 3800 | |||||
| Space between tie bar (mm*mm) | 720*680 | |||||
| Max. mold thickness (mm) | 730 | |||||
| Min. mold thickness(mm) | 300 | |||||
| Opening stroke (mm) | 800 | |||||
| Ejector stroke(mm) | 190 | |||||
| Ejector force forward(Kn) | 62 | |||||
| Screw diameter(mm) | 85 | |||||
| Screw L/D ratio | 22 | |||||
| Theoretical injection volume (cm3) | 1347 | |||||
| Shot weight (PS) g | 1301 | |||||
| Injection pressure(MPa) | 174 | |||||
| Injection speed (mm/s) | 99 | |||||
| Injection rate (g/s) | 368 | |||||
| Motor power (Kw) | 47.5 | |||||
| Oil tank capacity(L) | 510 | |||||
| Heater power (Kw) | 27 | |||||
| Machine Weight (Ton) | 13 | |||||
| Machine size L×W×H (m) | 8.3*1.9*2.0 | |||||
