| Place of Origin: | China |
|---|---|
| Brand Name: | OUCO |
| Certification: | CE, ISO9001:2008, SGS |
| Model Number: | OCM-380C |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Nude |
| Delivery Time: | 2 months |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 500 sets/year |

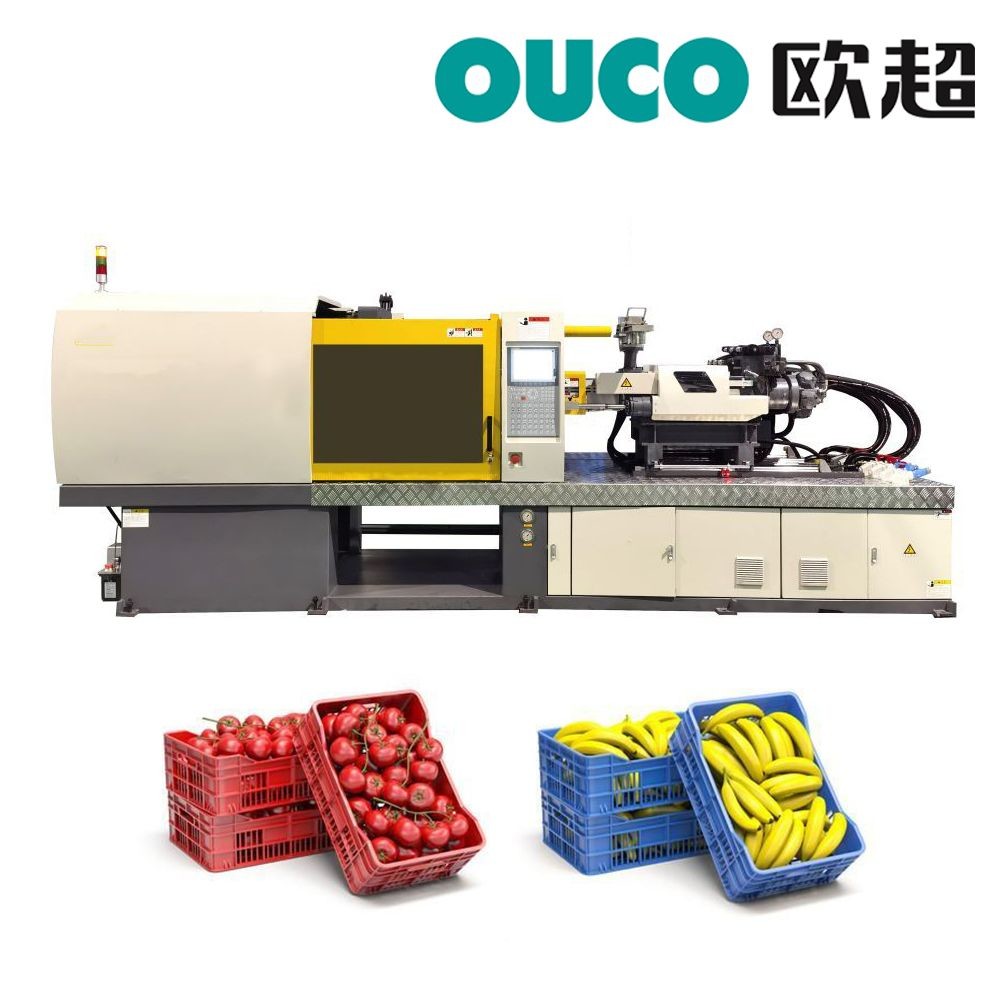

| Product Name: | OUCO 380T High Speed Plastic Crate Injection Molding Machine For Specialized Fruit Basket Production | Type: | Automation |
|---|---|---|---|
| Function: | Plastic Parts Production | Motor: | Servo Energy Saving |
| Color: | Support Customization | Stable Performance: | Short Cycle Time |
| Clamping Way: | Hydraulic | Transport Package: | FCL |
| High Light: | servo drive plastic injection molding equipment,crate plastic injection molding equipment,crate injection molding machine servo motor |
||
Introducing to you OUCHO 380 tonne injection moulding machine, which is specially designed for fruit baskets. This injection moulding machine adopts a direct-pressing outer arc centre clamping structure with 100% clamping force, just for you to create high quality fruit baskets. Adopting advanced manufacturing technology, it provides unrivalled precision and efficiency in the production of every product. Equipped with servo voltage, which greatly reduces waste and achieves precise conversion, our quality is trustworthy.
Product Advantages
High production efficiency: the fast type injection moulding machine can produce more fruit baskets in the same time, which improves the production efficiency.
Shape stability: the centre clamping structure ensures the consistency of the shape and size of the fruit baskets, which guarantees the quality of the products.
More product styles: Improved customised design allows unique fruit baskets to be customised according to the different needs of different customers.
Less after-sales maintenance: automated production improves precision and accuracy, ensures excellent product quality, durability, wear-resistant and drop-resistant.
Parameters
| MODEL | OCM-380C | |||||
| Clamping force (kN) | 3800 | |||||
| Space between tie bar (mm*mm) | 720*680 | |||||
| Max. mold thickness (mm) | 730 | |||||
| Min. mold thickness(mm) | 300 | |||||
| Opening stroke (mm) | 800 | |||||
| Ejector stroke(mm) | 190 | |||||
| Ejector force forward(Kn) | 62 | |||||
| Screw diameter(mm) | 80 | |||||
| Screw L/D ratio | 22 | |||||
| Theoretical injection volume (cm3) | 1759 | |||||
| Shot weight (PS) g | 1699 | |||||
| Injection pressure(MPa) | 133 | |||||
| Injection speed (mm/s) | 99 | |||||
| Injection rate (g/s) | 481 | |||||
| Motor power (Kw) | 47.5 | |||||
| Oil tank capacity(L) | 510 | |||||
| Heater power (Kw) | 27 | |||||
| Machine Weight (kg) | 13 | |||||
| Machine size L×W×H (m) | 8.2*1.9*2.0 | |||||

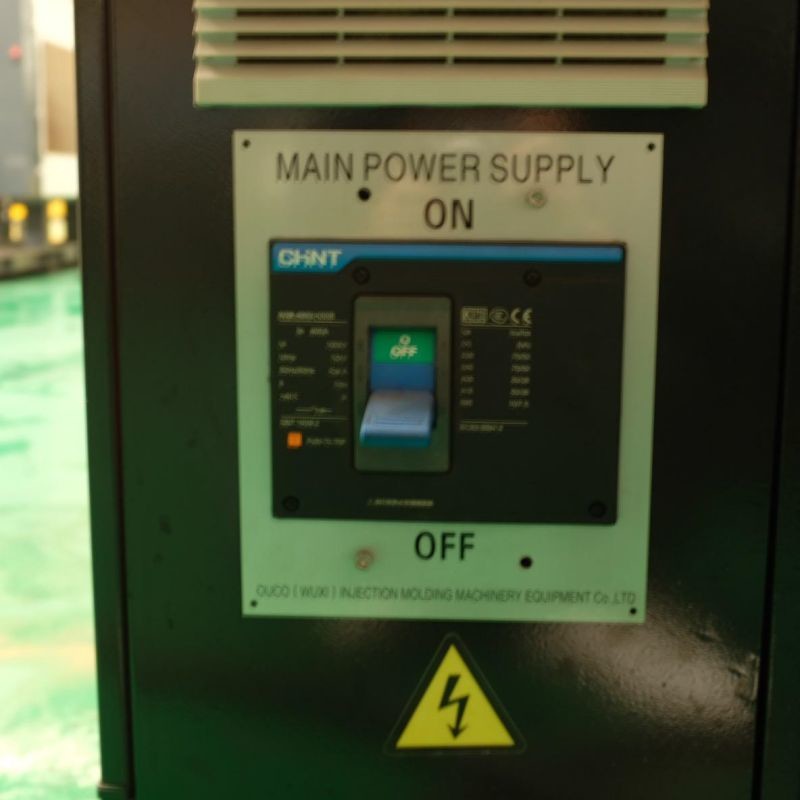

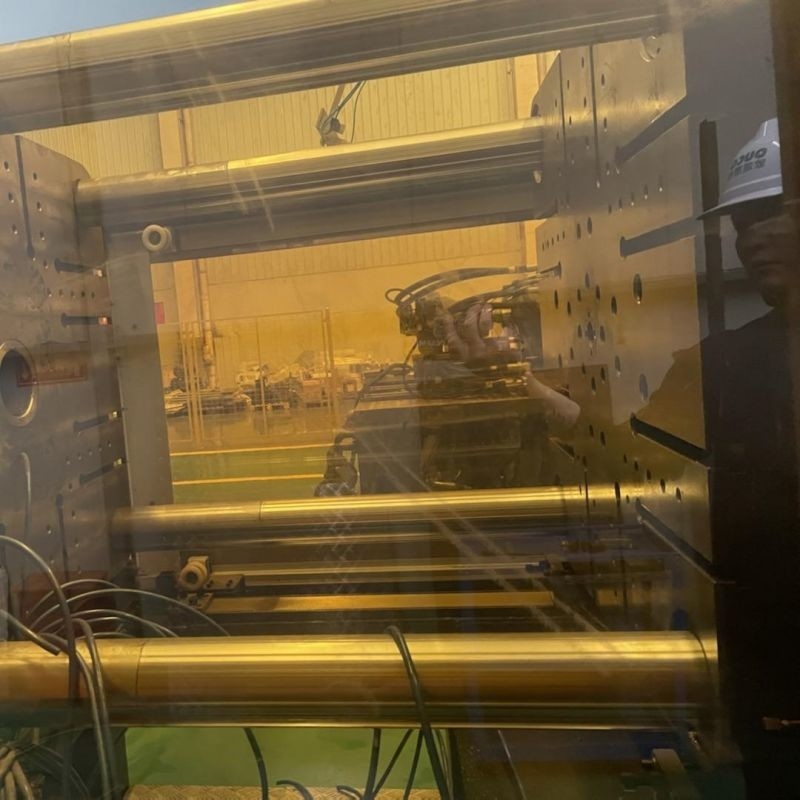

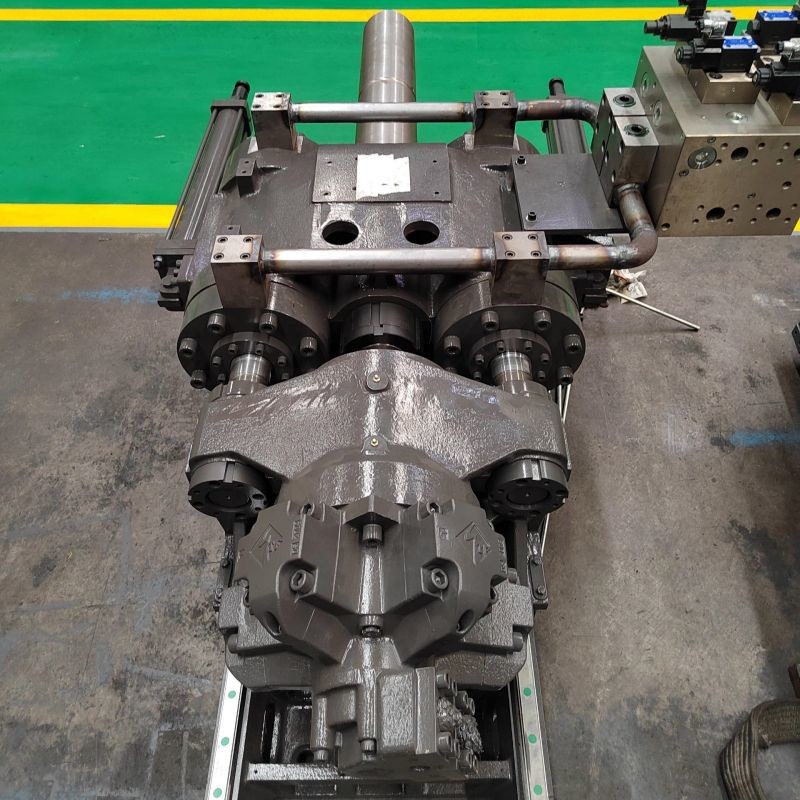

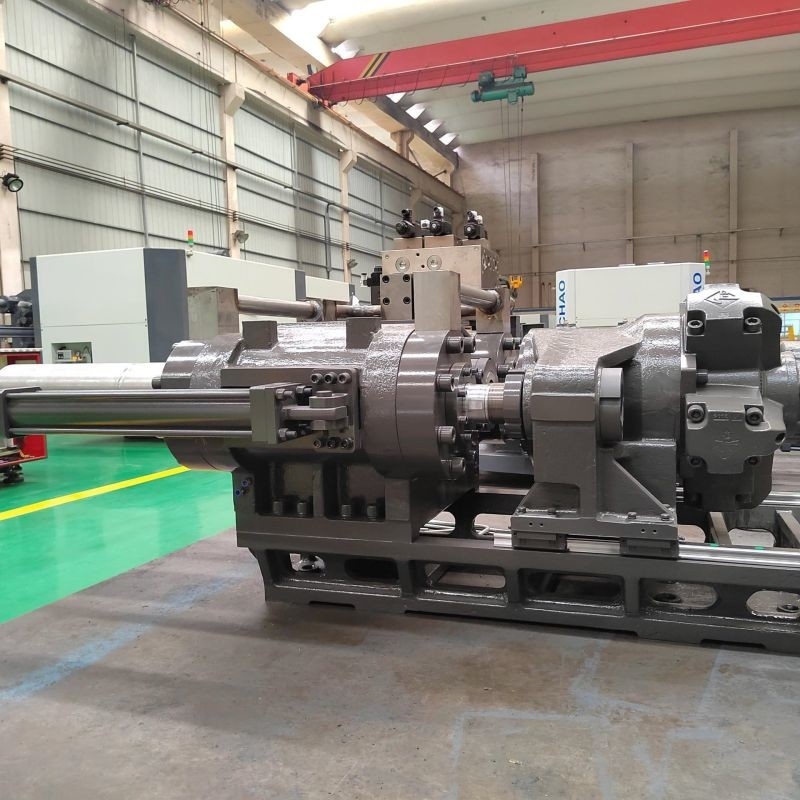

Detail Pictures
