| Place of Origin: | China |
|---|---|
| Brand Name: | OUCO |
| Certification: | CE, ISO9001:2008, SGS |
| Model Number: | OUCO-350T |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Nude |
| Delivery Time: | 2 months |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 500 sets/year |

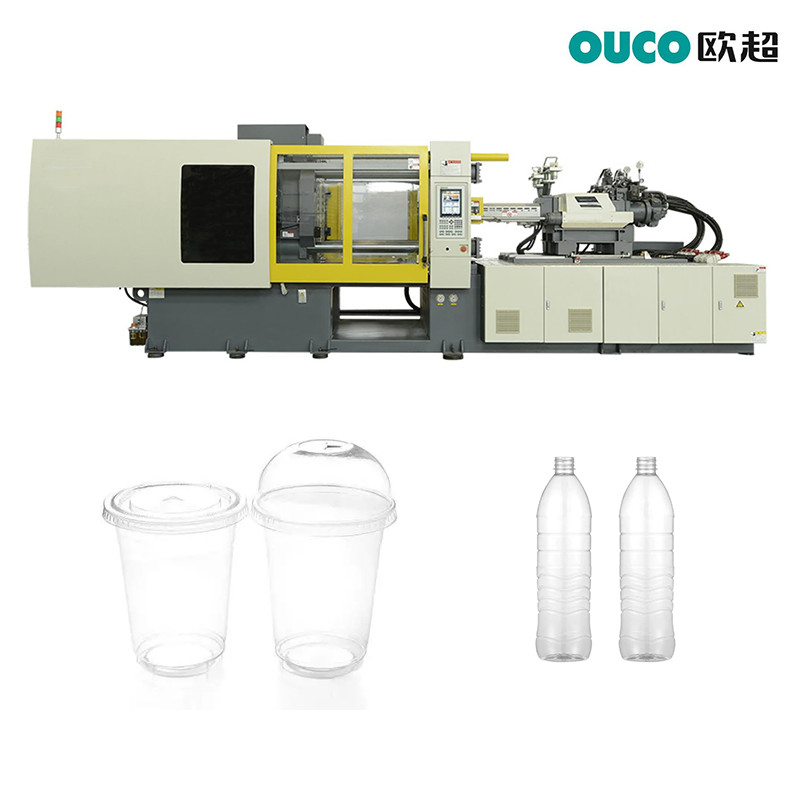

| Product Name: | OUCO PET Injection Molding Machine Small Tonnage Machine Professional Customization | Type: | Automation |
|---|---|---|---|
| Function: | Plastic Parts Production | Motor: | Servo Energy Saving |
| Color: | Support Customization | Stable Performance: | Short Cycle Time |
| Clamping Way: | Hydraulic | TraFCLnsport Package: | FCL |
| Highlight: | OUCO PET Injection Molding Machine,FCL PET Injection Molding Machine,Customization PET Injection Molding Machine |
||
Product Description
1. Modular injection unit with excellent acceleration performance
2. High-speed machine tool high stiffness clamping unit.
3. High response and low noise hydraulic system.
4. Optimized control system with good response and accuracy
Product Parameters
|
DESCRIPTION
|
UNIT
|
DATA
|
OUCO-120T |
|
Injection unit
|
Shot volume
|
cm3
|
307.6
|
|
Shot weight (PS)
|
g
|
359.8
|
|
|
oz
|
12.6
|
||
|
Screw diameter
|
mm
|
48
|
|
|
Injection pressure
|
Mpa
|
136.7
|
|
|
Screw L:D ratio
|
|
24:1
|
|
|
Max. injection speed
|
mm/s
|
96
|
|
|
Plasticizing Capacity (PET)
|
g/s
|
37
|
|
|
Screw stroke
|
mm
|
170
|
|
|
Screw speed(stepless)
|
r/min
|
0-181
|
|
|
Clamping unit
|
Clamping force
|
kN
|
1200
|
|
Opening stroke
|
mm
|
360
|
|
|
Space between bars
|
mm*mm
|
410x370
|
|
|
Max. Daylight
|
mm
|
760
|
|
|
Mold thickness(Min.Max)
|
mm
|
145-400
|
|
|
Ejector stroke
|
mm
|
120
|
|
|
Ejector number
|
|
5
|
|
|
Ejector force
|
kN
|
42
|
|
|
Power unit
|
Hydraulic system pressure
|
Mpa
|
17.5
|
|
Pump Motor
|
kw
|
15
|
|
|
Heating capacity
|
kw
|
11.2
|
|
|
Number of temp control zones
|
|
5
|
|
|
General unit
|
Oil tank capacity
|
L
|
195
|
|
Machine dimensions(LxWxH)
|
m*m*m
|
4.95x1.23x1.62
|
|
|
Machine weight
|
kg
|
3600
|
