| Place of Origin: | China |
|---|---|
| Brand Name: | OUCO |
| Certification: | CE, ISO9001:2008, SGS |
| Model Number: | OUCO-350T |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Nude |
| Delivery Time: | 2 months |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 500 sets/year |

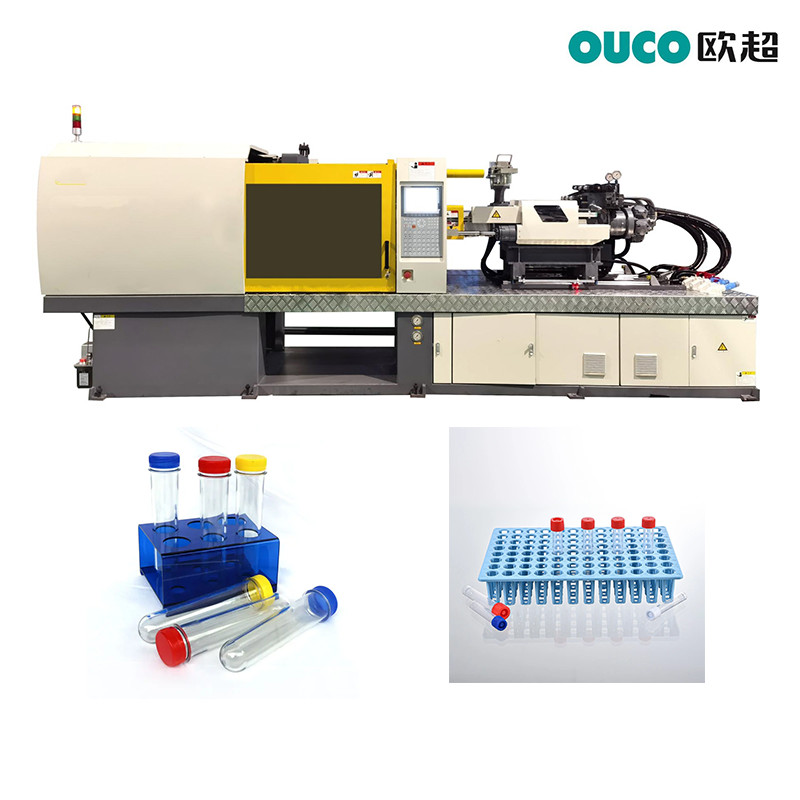

| Product Name: | Customized Shot Weight 120Ton PET Injection Molding Machine In China | Type: | Automation |
|---|---|---|---|
| Function: | Plastic Parts Production | Motor: | Servo Energy Saving |
| Color: | Support Customization | Stable Performance: | Short Cycle Time |
| Clamping Way: | Hydraulic | Transport Package: | FCL |
| Highlight: | SGS 120 Ton Injection Molding Machine,Hydraulic 120 ton injection molding machine,48mm shot weight injection molding |
||
Product Description
1. Platen With T-slot + Mold Clamp Hole Combination.The platen uses T-slot + mold clamp hole combination in the horizontal direction and mold clamp holes in the vertical direction to facilitate the mold loading and unloading and enhance the overall rigidity of the platen.
2. Customized Shot Weight Depending on the needs of current and future products and the suitable types of products and molds for each model, the machine can be customized with different injection weight options to meet requirements on product weight .
3. More Professional . Adopted special PET plastic plasticizing assemblies, it could decrease plasticizing temperature and AA value, which could effectively improve PET contraction problems and transparency. Besides, according to different clients in various fields, we respectively prepared colored PET, special PET high-mixed color screw, special water-based preform and oil-based preform high-speed screw, etc
4. Optimized control system with good response and accuracy ,With standard T-slot platen, die change time is shorted. The complete machine operates more effectively.
Product Parameters
|
DESCRIPTION
|
UNIT
|
DATA
|
|
|
Injection unit
|
Shot volume
|
cm3
|
307.6
|
|
Shot weight (PS)
|
g
|
359.8
|
|
|
oz
|
12.6
|
||
|
Screw diameter
|
mm
|
48
|
|
|
Injection pressure
|
Mpa
|
136.7
|
|
|
Screw L:D ratio
|
|
24:1
|
|
|
Max. injection speed
|
mm/s
|
96
|
|
|
Plasticizing Capacity (PET)
|
g/s
|
37
|
|
|
Screw stroke
|
mm
|
170
|
|
|
Screw speed(stepless)
|
r/min
|
0-181
|
|
|
Clamping unit
|
Clamping force
|
kN
|
1200
|
|
Opening stroke
|
mm
|
360
|
|
|
Space between bars
|
mm*mm
|
410x370
|
|
|
Max. Daylight
|
mm
|
760
|
|
|
Mold thickness(Min.Max)
|
mm
|
145-400
|
|
|
Ejector stroke
|
mm
|
120
|
|
|
Ejector number
|
|
5
|
|
|
Ejector force
|
kN
|
42
|
|
|
Power unit
|
Hydraulic system pressure
|
Mpa
|
17.5
|
|
Pump Motor
|
kw
|
15
|
|
|
Heating capacity
|
kw
|
11.2
|
|
|
Number of temp control zones
|
|
5
|
|
|
General unit
|
Oil tank capacity
|
L
|
195
|
|
Machine dimensions(LxWxH)
|
m*m*m
|
4.95x1.23x1.62
|
|
|
Machine weight
|
kg
|
3600
|

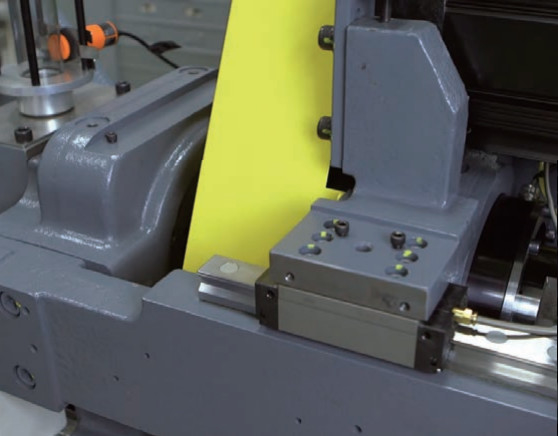

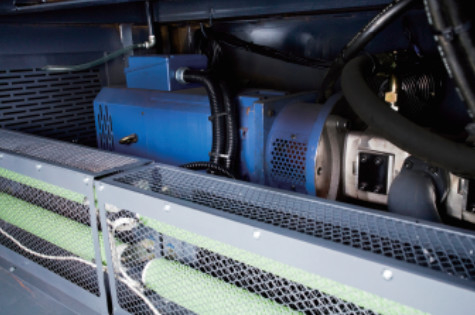

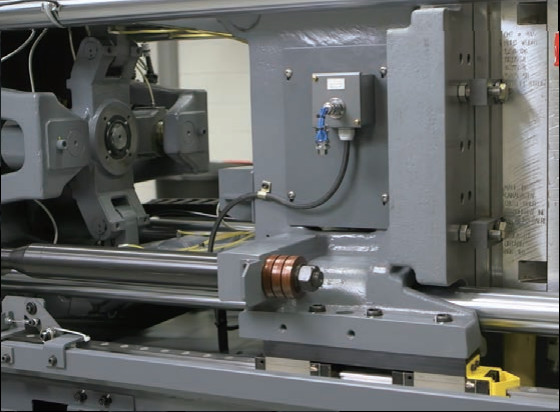

Detail Pictures
