| Place of Origin: | China |
|---|---|
| Brand Name: | OUCO |
| Certification: | CE, ISO9001:2008, SGS |
| Model Number: | OUCO-P630T |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Nude |
| Delivery Time: | 2 months |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 500 sets/year |

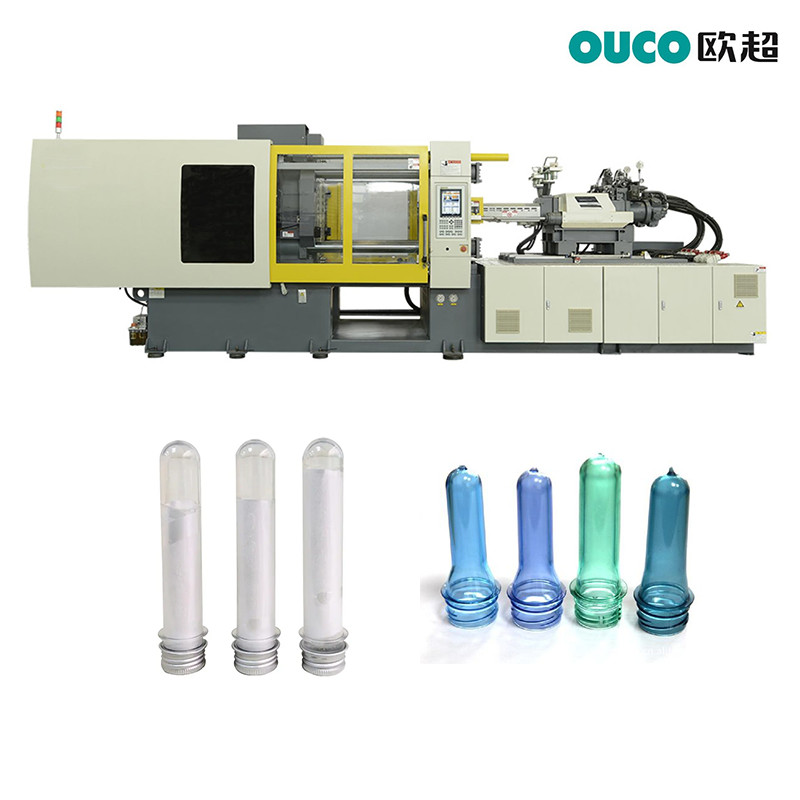

| Product Name: | 630 T PET-Preform Injection Molding Machine For Sale Near Me With High Torque Melt Motor | Plastic Processed: | PP,PC,PVC |
|---|---|---|---|
| Applicable: | Manufacturing Plant,Food&Beverage | Type: | Automation |
| Warranty: | 1 Year | Machinery: | Provided |
| Place Of Origin: | Wuxi,China | Selling Points: | Competitive Price |
| Video Outgoing-inspection: | Provided | Machine Style: | Horizontal |
| Condition: | New | Lead Time: | About 50 Days |
| High Light: | 630 T PET Injection Molding Machine,PET Injection Molding Machine SGS,870mm automated injection molding machine |
||
OUCO is a factory focusing on the research and development of PET injection molding machines. There are now 4 ways to produce bottles, the methods are as follows,
1. Produced by extrusion blow molding machine
2. Two-step method: first use the injection machine to make the preform, and then use the blow molding machine to blow the bottle.
3. Vertical injection blowing machine with rotating platen and 3 working stations
4. Vertical injection blowing machine with rotary platen and 4 working stations
OUCO focuses on helping customers make preform injection molding machines. The equipment is stable and efficient, which can help our customers quickly expand the market and obtain huge profits.
Product Details
1. Adopt special design screw and high torque melt motor to facilitate the plasticizing and molding of PET material;
2. Equipped with ejector device, which is sufficient for the production of PET products;
3. Adopting high power electric pump system, which shortens the cycle time and improves the production efficiency.
TECHNICAL PARAMETER
| TECHNICAL PARAMETER TABLE | |||
| INJECTION UNIT | SCREW DIAMETER | mm | 100 |
| SCREW L/D RATIO | L/D | 24 | |
| INJECTION CAPACITY IN THEORY | cm3 | 3512 | |
| INJECTION WEIGHT(PET) | g | 3863 | |
| INJECTION PRESSURE | MPa | 184 | |
| INJECTION RATE | g/s | 470 | |
| PLASTICIZING CAPACITY | g/s | 85 | |
| SCREW SPEED | rpm | 125 | |
| CLAMPING UNIT | CLAMPING FORCE | KN | 6300 |
| MOVING MOULD-PLATE STROKE | mm | 870 | |
| MAX. MOULD HEIGHT | mm | 900 | |
| MIN. MOULD HEIGHT | mm | 350 | |
| SPACE BETWEEN TIE-BARS (W×H) | mm | 900x850 | |
| HYDRAULIC EJECTOR FORCE | mm | 200 | |
| HYDRAULIC EJECTOR STROKE | KN | 260 | |
| EJECTOR NUMBER | n | 17 | |
| OTHERS | PUMP PRESSURE | MPa | 16 |
| MOTOR /DRIVING POWER | KW | 55 | |
| HEATING CAPACITY | KW | 42 | |
| MACHINE DIMENSION (L×W×H) | m | 9.5x2.4x2.7 | |
| MACHINE WEIGHT | t | 31.5 | |
| OIL TANK CAPACITY | L | 1136 | |

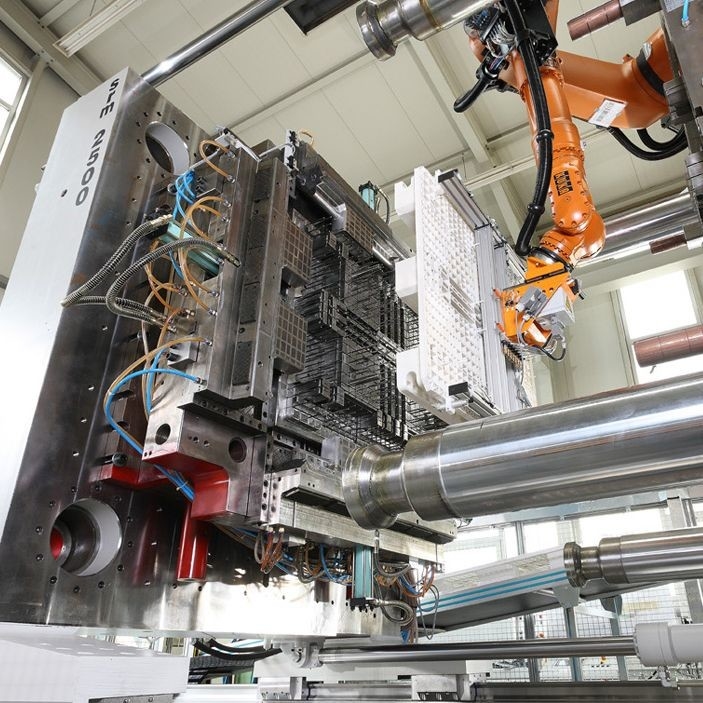

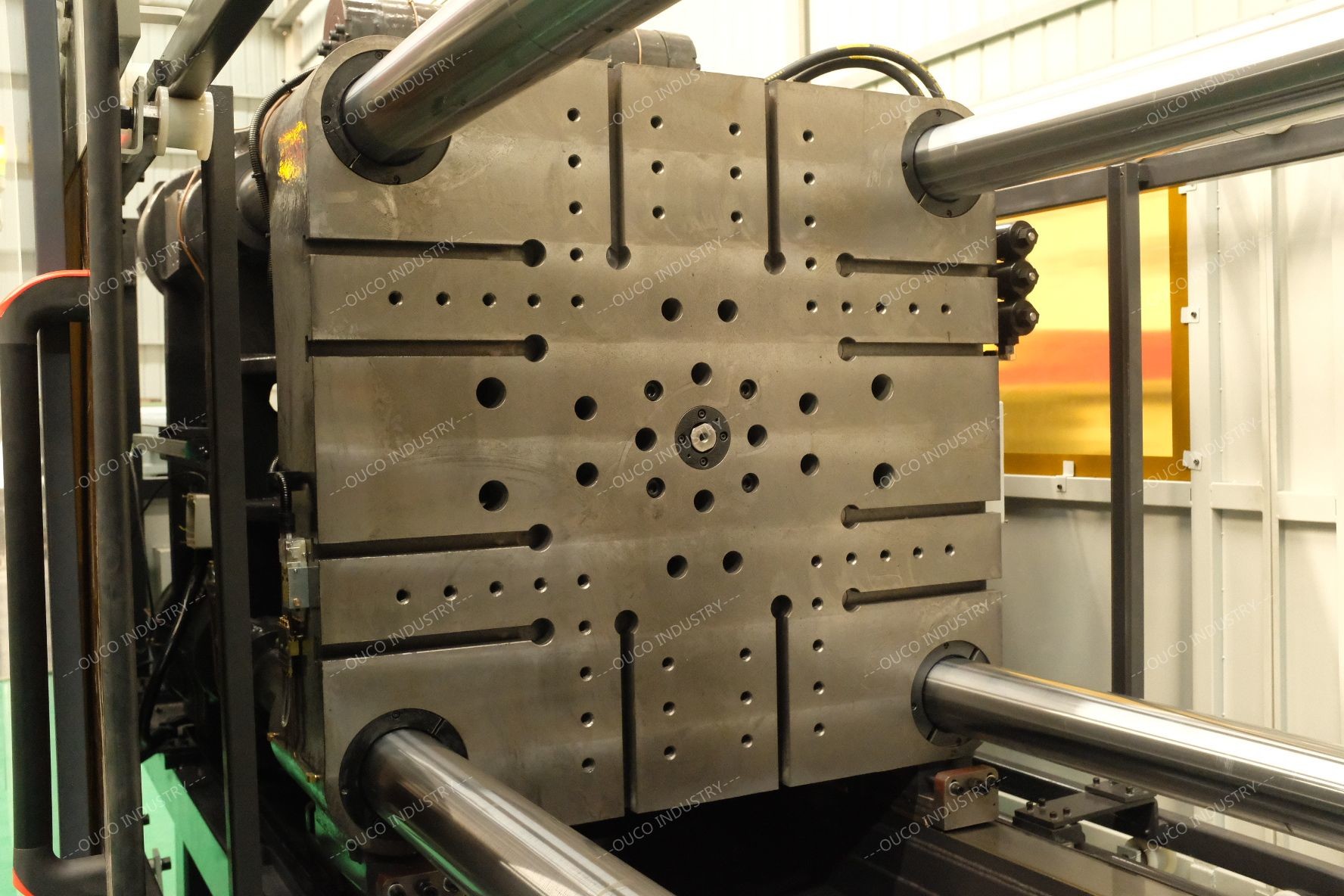

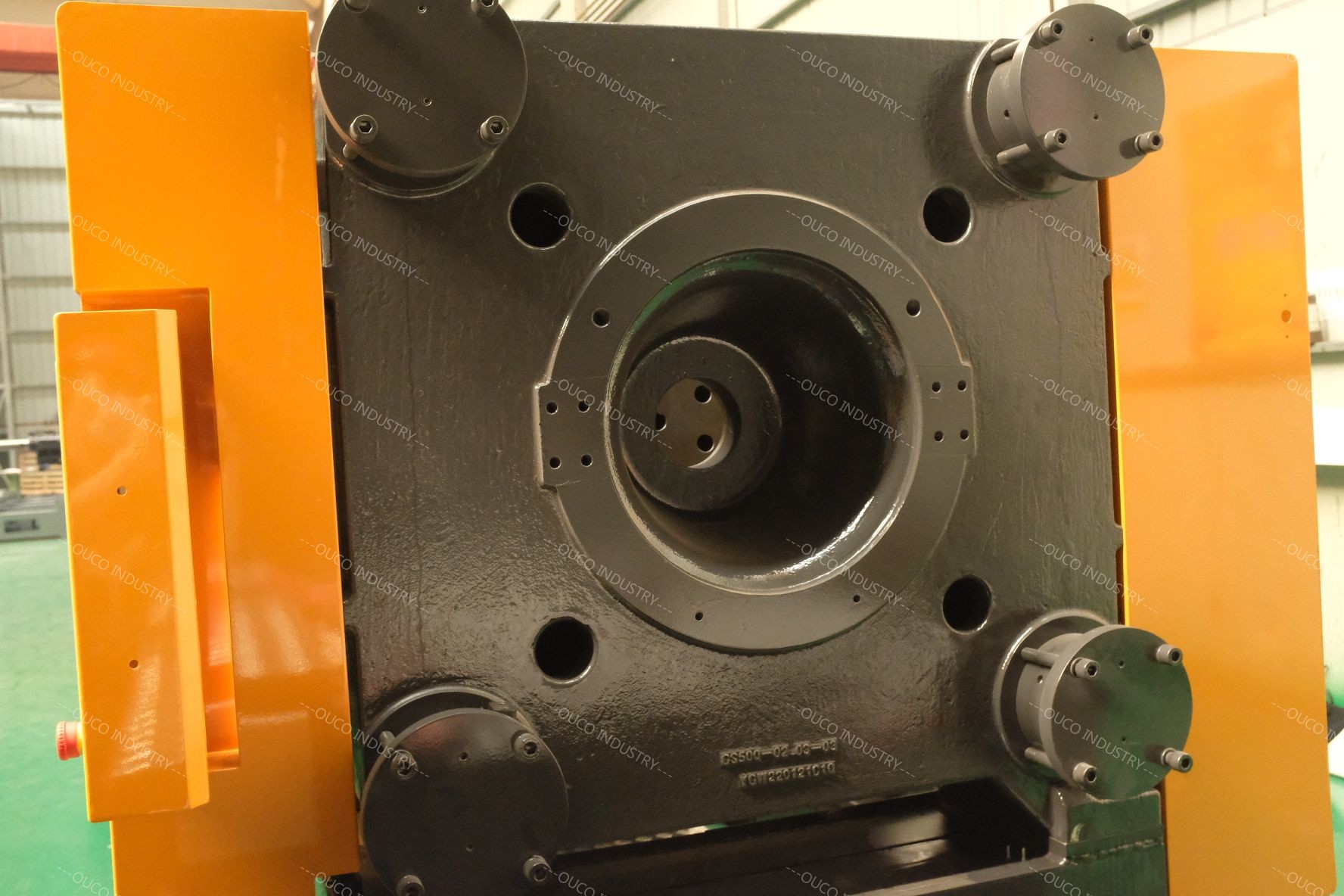

Detail Pictures
