| Place of Origin: | China |
|---|---|
| Brand Name: | OUCO |
| Certification: | CE |
| Model Number: | CWI-180GB |
| Minimum Order Quantity: | 1 sets |
| Price: | Negotiable |
| Packaging Details: | Nude |
| Delivery Time: | 2 months |
| Payment Terms: | L/C, D/A, D/P |
| Supply Ability: | 500 sets/year |
| Name: | Plastic Injection Moulding Machine PET Bottle Embryo Special Machine | Motor: | Servo Energy Saving |
|---|---|---|---|
| Type: | Automation | Function: | Plastic Parts Production |
| Color: | Support Customization | Clamping Way: | Hydraulic |
| High Light: | PET Plastic Bottle Injection Moulding Machine,Embryo Special PET Injection Moulding Machine,75mm PET Injection Moulding Machine |
||

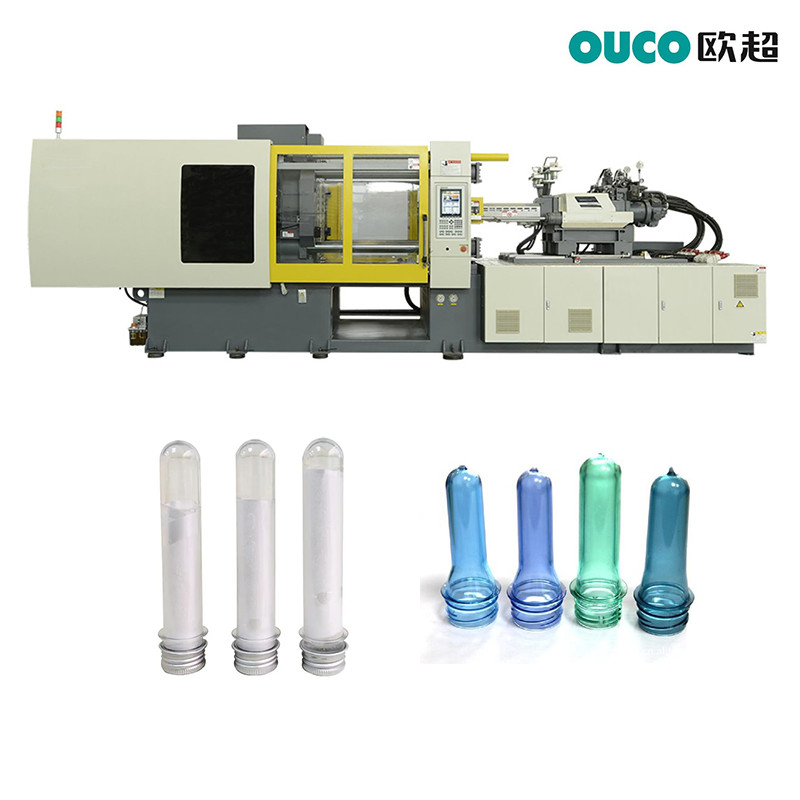

Plastic Injection Moulding Machine PET Bottle Embryo Special Machine
OUCO adopts advanced technology and provides customers with high-quality products and services through strict inspection, assembly, and debugging. We accept customization of PET material injection molding machines and have complete design and production capabilities to fully meet customer customization needs.
Advantage of the injection unit:
The double cylinder structure on the injection unit can ensure cantering performance of the nozzle and seal betten between mould and nozzle, so no plastic leaks. Higher injection accuracy, low coefficient friction and more uniform during injection and plasticising process; easy to adjust and greatly reduce movement inertia during injection, hence improve injection speed and plasticising capacity
Technical Date
| 机型 | 330T | 400T | 530T | ||
| 螺杆直径 | Screw diameter | mm | 75 | 85 | 90 |
| 螺杆长径比 | Screw L/Dratio | L/D | 24 | 24 | 24 |
| 理论注射容积 | Theoretical injection volume | cm3 | 1440 | 2020 | 2700 |
| 注射重量(PS) | Shot weight (PS) | g | 1730 | 2490 | 3330 |
| 注射压力 | Injection pressure | MPa | 136 | 138 | 149 |
| 最大摞杆转速 | Screw speed | r/min | 0-190 | 0-175 | 0-175 |
| 电机总功率 | Pump Motor(Min-Max) | kW | 30 | 37 | 55 |
| 电热功率 | Heater power | kW | 18 | 23 | 34 |
| 锁模力 | Clamping force | kN | 3300 | 4000 | 5300 |
| 开模行程 | Clamping stroke | mm | 620 | 705 | 810 |
| 拉杆内间距 | Tie bar distance W×L | mmxmm | 670*670 | 725*725 | 810*810 |
| 最小模具厚度 | Min. mold thickness | mm | 250 | 250 | 300 |
| 最大模具厚度 | Max. mold thickness | mm | 700 | 800 | 850 |
| 顶出行程 | Ejector stroke | mm | 150 | 185 | 250 |
| 顶出力 | Ejector force forward | kN | 99 | 110 | 150 |
| 顶出杆数 | Number of ejector bar | PC | 1+12 | 1+12 | 1+16 |
| 机械外形尺寸(约) | Machine dimensions(LxWxH) | mxmxm | 6.5*1.7*2.3 | 7.9*2.1*2.5 | 8.4*2.2*2.7 |
| 机器重量(约) | Machine weight | Ton | 11 | 13 | 23 |
