High Speed Injection Molding Machine 88kn Thin Walled Cutlery Dedicated 680 Mm

Basic Information
Place of Origin: China
Brand Name: OUCO
Certification: CE
Model Number: OUCO- GH210
Minimum Order Quantity: 1
Delivery Time: 35 work days
Payment Terms: L/C, T/T
Supply Ability: 2500 Set/Sets per Year
Detail Information
Mold Height: 250 - 680 Mm Ejector Force: 88kn
Weight (KG): 13800 Key Selling Points: High Productivity
Core Components: Gearbox After-sales Service Provided: Video Technical Support
Product Name: High Speed Thin-Walled Injection Molding Machine Cutlery Dedicated Machine
High Light:

Cutlery Dedicated Injection Molding Machine

,

680 mm Injection Molding Machine

,

88kn Injection Molding Machine


Product Description

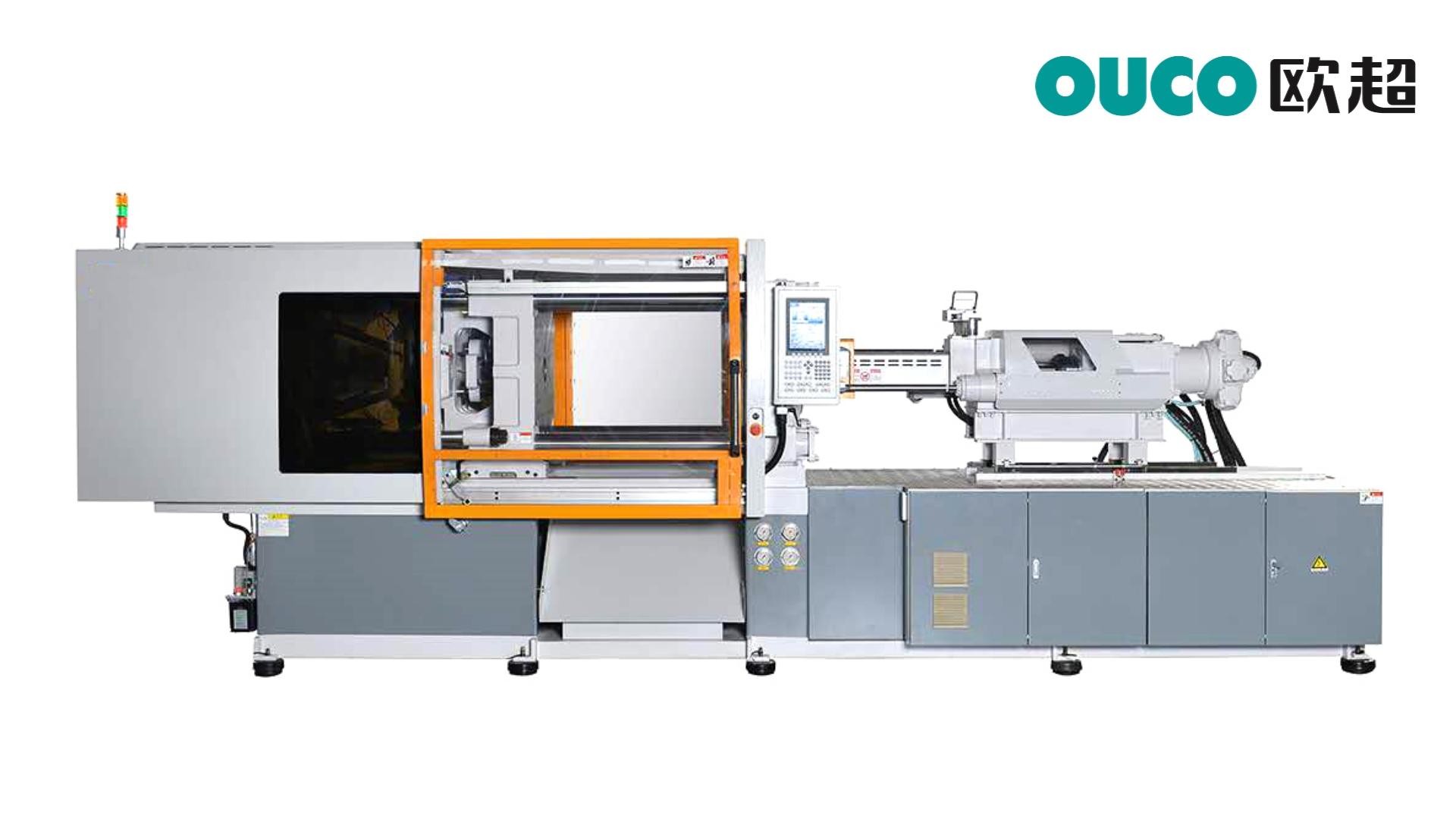

High Speed Thin-Walled Injection Molding Machine Cutlery Dedicated Machine

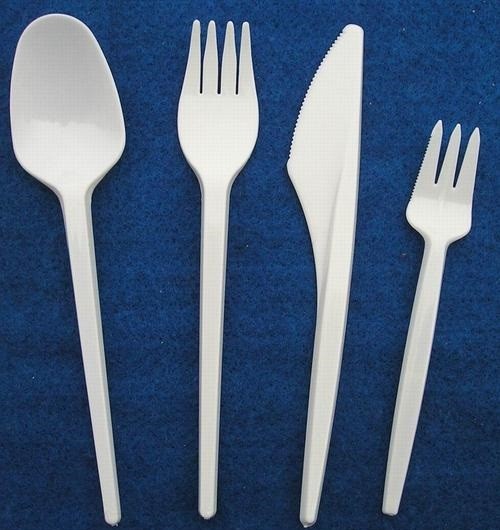

In response to the market demand for thin-walled products, OUCO has developed a specialized high-speed thin-walled injection molding machine, which is widely applicable to the production of tableware. It has the characteristics of fast production speed, short product molding cycle, stable product output, and low power consumption.



Product Details

 Double cylinder injection structure

 Bearing friction support system

 Self lubricating graphite sleeve

 High pressure and high-precision servo system






GH210
clamping force

Kn

2100
max.mould opening stroke
mm
490
min.mould height
mm
210
max.mould height
mm
550
mould platen(h*v)
mm*mm

520*520

   ejector stroke

mm

                                                                   150
   ejector force Kn                                                                     61.5
   ejector number N                                                                       5
ejection stroke
mm
225
ejection weight (pp)
g
378
shot valum (theoretical)
cm3
420
injection pressure
Mpa
164
injection speed
mm/s
360
screw speed
rpm
400
max pump pressure
Mpa
23
pump motor power
Kw
61.08
heating power
Kw
15.05
   machine dimension (L*W*H) M*m*m                                                            5.74*1.45*1.78
   oiltank cubage L                                                                     300
   machine weight (estimate) T                                                                     8.3
