| Place of Origin: | China |
|---|---|
| Brand Name: | OUCO |
| Certification: | CE |
| Model Number: | OUCO-500T |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | shipping container |
| Delivery Time: | 35 work days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 2500 Set/Sets per Year |
| Ejector Force: | 5000kN | Power: | 47.2 KW |
|---|---|---|---|
| Mold Height: | 330 - 810 Mm | Open Stroke: | 800 Mm |
| Applicable Industries: | Food & Beverage Factory, Home Use | Core Components: | Pump |
| Product Name: | Energy Saving Automatic Injection Moulding Machine Good Plasticzing Performance | ||
| High Light: | Automatic Injection Moulding Machine Good Plasticzing,Automatic Injection Moulding Machine 810mm,5000kN Automatic Injection Moulding Machine |
||

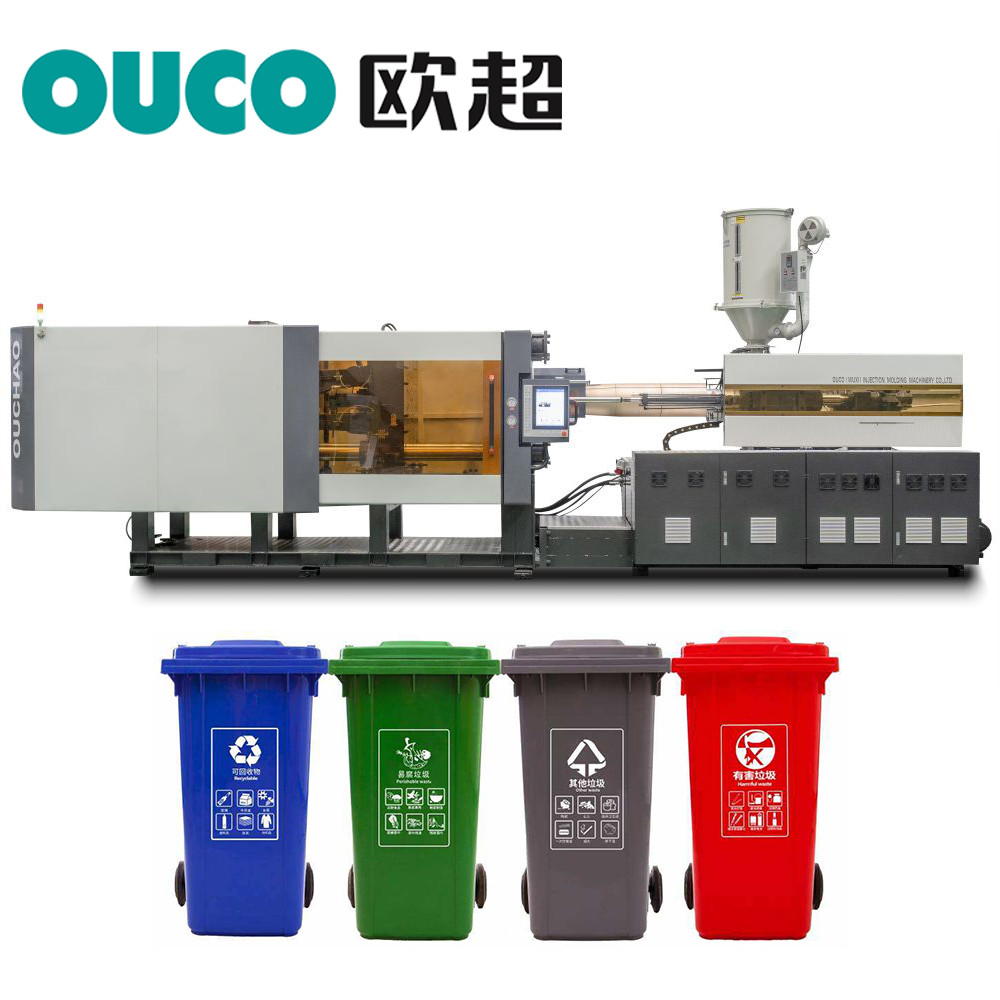

Energy Saving Automatic Injection Moulding Machine Good Plasticzing Performance
1. Equipped with an optimized hydraulic system, the injection speed is greatly improved
2. Optional accumulator injection, with an injection speed of over 400mm/s
3. Matched with special specialized fast screws, presenting higher plasticizing ability
4. Improved dual cylinder balanced injection system.
5. Achieve comprehensive improvement in pre molding, mold opening and closing, and ejection actions.
| 机型 | 300T | 400T | 500T | 600T | 700T | ||||||||||||
| 螺杆规格 | A | B | C | A | B | C | A | B | C | A | B | C | A | B | C | ||
| 螺杆直径 | Screw diameter | mm | 50 | 60 | 65 | 65 | 75 | 80 | 70 | 75 | 85 | 75 | 85 | 90 | 85 | 90 | 100 |
| 螺杆长径比 | Screw L/Dratio | 22 | 22 | 22 | 22 | 22 | 22 | 22 | 22 | 22 | 22 | 22 | 22 | 22 | 22 | 22 | |
| 理论注射容积 | Theoretical injection volume | cm3 | 638 | 918 | 1078 | 1C75 | 1431 | 1628 | 1481 | 1700 | 2184 | 1788 | 2297 | 2575 | 2552 | 2861 | 3533 |
| 注射重量(PS) | Shot weight (PS) | g | 593 | 853 | 1002 | 1C11 | 1345 | 1530 | 1377 | 1581 | 2031 | 1645 | 2113 | 2369 | 2348 | 2632 | 3250 |
| 注射速率 | injection rate(Ps) | g/S | 330 | 475 | 558 | 426 | 568 | 646 | G03 | 693 | 890 | G13 | 788 | 884 | 788 | 883 | 1091 |
| 注射压力 | Injection pressure | MPa | 286 | 198 | 169 | 242 | 182 | 160 | 209 | 182 | 142 | 204 | 159 | 142 | 209 | 187 | 151 |
| 注射行程 | Inject on stroke | mm | 325 | 360 | 385 | 405 | 450 | ||||||||||
| 最大注射速度 | Max. injection speed | mm/s | 178 | 156 | 166 | 157 | 147 | ||||||||||
| 最大摞杆转速 | Screw speed | r/min | 0-200 | 0-200 | 0-200 | 0-200 | 0-180 | ||||||||||
| 系统压力 | Sys. Pressure | MPa | 16 | 16 | 16 | 16 | 16 | ||||||||||
| 电机总功率 | Pump Motor(Min-Max) | kW | 63 | 75 | 94 | 101 | 114 | ||||||||||
| 油泵排量 | Displacement | ml/r | 163 | 100+100 | 125+125 | 160+125 | 160+160 | ||||||||||
| 电机数员 | number of Motors | PC | 1 | 2 | 2 | 2 | 2 | ||||||||||
| 电热功率 | Heater power | kW | 27 | 35 | 41 | 47 | 52 | ||||||||||
| 温控区数 | Number of temp. control zones | 5+1 | 5+1 | 5+1 | 5+1 | 5+1 | |||||||||||
| 锁模力 | Clamping force | kN | 3000 | 4000 | 5000 | 6000 | 7000 | ||||||||||
| 开模行程 | Clamping stroke | mm | 800 | 900 | 1000 | 1150 | 1300 | ||||||||||
| 拉杆内间距 | Tie bar distance W×L | mmxmm | 680x680 | 760x660 | 860x760 | 960x860 | 1020x920 | ||||||||||
| 最小模具厚度 | Min. mold thickness | mm | 210 | 300 | 300 | 350 | 450 | ||||||||||
| 最大模具厚度 | Max. mold thickness | mm | 680 | 730 | 800 | 920 | 1050 | ||||||||||
| 顶出行程 | Ejector stroke | mm | 190 | 190 | 210 | 210 | 210 | ||||||||||
| 顶出力 | Ejector force forward | kN | 62 | 80 | 110 | 113 | 113 | ||||||||||
| 顶出杆数 | Number of ejector bar | PC | 1+12 | 1+12 | 1+12 | 1+12 | 1+12 | ||||||||||
| 油箱容量 | Oil tank capacity | L | 510 | 680 | 850 | 940 | 1020 | ||||||||||
| 机械外形尺寸(约) | Machine dimensions(LxWxH) | mxmxm | 7.7x1.8x1.8 | 8.2x1.9x1.9 | 87x2.0x2.1 | 9.3x2.1x2.3 | 9.7x2.2x2.4 | ||||||||||
| 机器重量(约) | Machine weight | Ton | 10.5 | 15 | 19 | 23 | 25 | ||||||||||
Main Features
Certification
Detailed Images
1, World leading screw plasticizing set design with technology from Europe.
2, Srew for special purposes ( PC, PMMA, POM, etc. ) available as option.
3, Customized plasticizing set available for special application.
