| Place of Origin: | China |
|---|---|
| Brand Name: | OUCO |
| Certification: | CE, ISO9001:2008, SGS |
| Model Number: | OUCO-LYH1280 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Nude |
| Delivery Time: | 2 months |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 500 sets/year |
| Product Name: | Automated Injection Molding Machine With Fast Response And Precise Control | Type: | Automation |
|---|---|---|---|
| Function: | Plastic Parts Production | Motor: | Servo Energy Saving |
| Color: | Support Customization | Stable Performance: | Short Cycle Time |
| Clamping Way: | Hydraulic | Transport Package: | FCL |
| High Light: | Automation Precision Injection Molding Machine,11Kw Automation Injection Molding Machine,42mm Precision Injection Molding Machine |
||

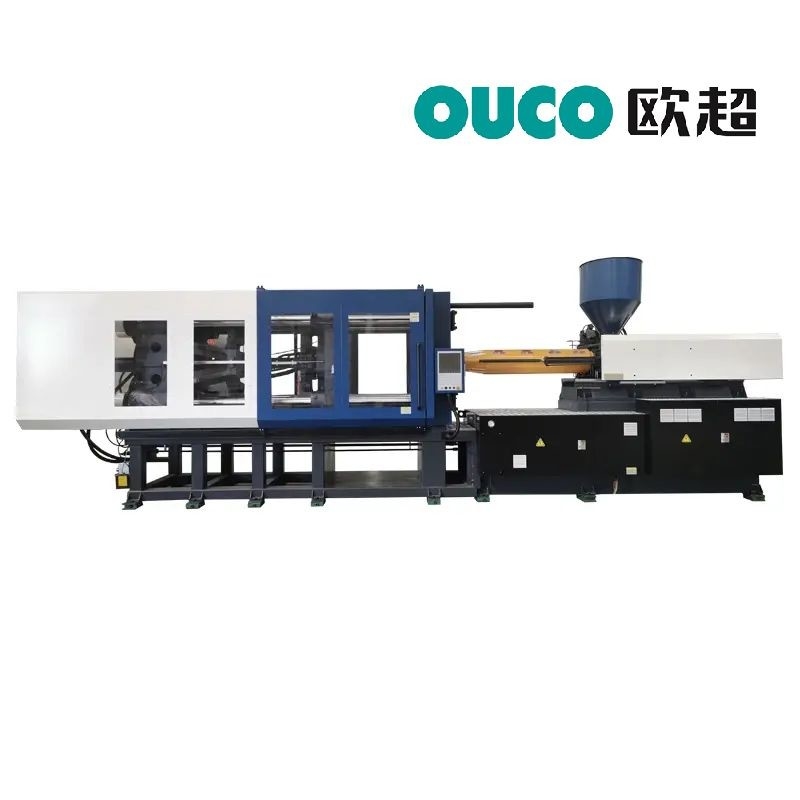

The OUCO small precision series injection molding machine uses a dedicated controller for injection molding machines, which has high-frequency response characteristics.
Equipped with automatic control function for temperature deviation of the material barrel.
Detect abnormalities during the production process and promptly report to the police.
Using well-known brand electrical accessories to ensure the safe and reliable operation of electrical equipment.
Product Advantages
Optimized locking structure for design
Design of high rigidity formwork structure
Equipped with electrical and mechanical safety protection devices
Automatic centralized lubrication system
Parameters
| MODEL | OUCO-LYH1280 | |||||
| CLAMPING UNIT | clamping force (kN) | 1280 | ||||
| Tie bar distance W×L (mm) | 415*375 | |||||
| Max. mold thickness (mm) | 450 | |||||
| Min. mold thickness(mm) | 150 | |||||
| Platen Dimensions W×L (mm) | 605*570 | |||||
| Ejector Stroke(mm) | 120 | |||||
| Ejector Force(Kn) | 40 | |||||
| Ejector Quantily | 5 | |||||
| AS | A | B | ||||
| Injection Unit | Screw Diameter(mm) | 42 | 45 | |||
| Screw L/D ratio | 20 | 19 | ||||
| Theoretical injection volume (cm3) | 221 | 256 | ||||
| Shot Weight (PS) g | 205 | 238 | ||||
| Injection Pressure(MPa) | 170 | 149 | ||||
| Injection Rate (g/s) | 110 | 120 | ||||
| Screw Speed (rpm) | 330 | 250 | ||||
| Other | Motor Power (Kw) | 11 | ||||
| Heater Power (Kw) | 6.9 | |||||
| Machine Weight (kg) | 3.8 | |||||
| Machine size L×W×H (m) | 4.4*1.36*1.8 | |||||
