| Place of Origin: | China |
|---|---|
| Brand Name: | OUCO |
| Certification: | CE, ISO9001 |
| Model Number: | OUCO-180T/220T |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | shipping container |
| Delivery Time: | 1 months |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 500 sets per year |

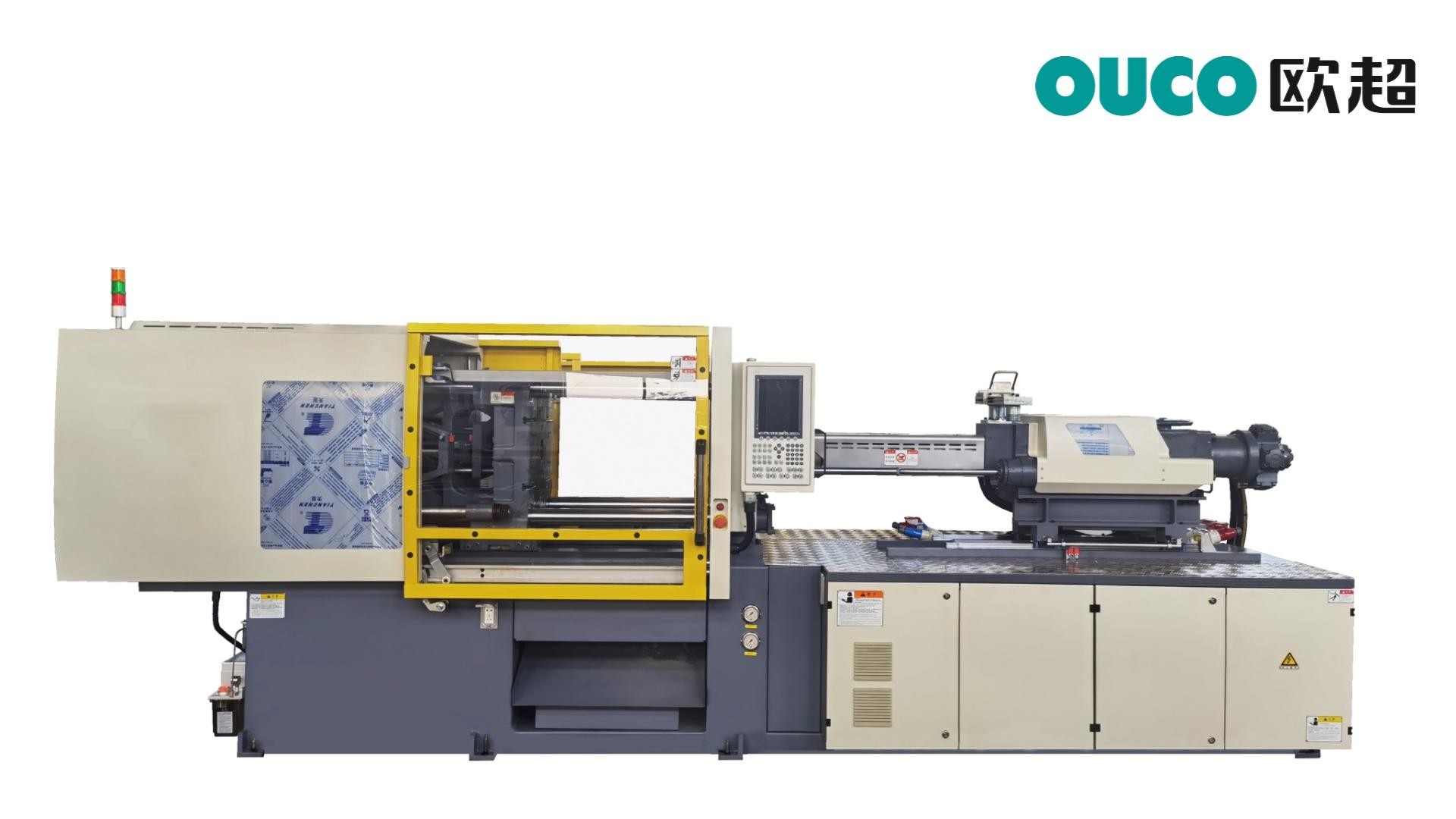

| Product Name: | Efficiency Precision Plastic Injection Molding Machine For Phone Accessories CWI-180/220GF | Plastic Processed:: | PP, PC,PVC |
|---|---|---|---|
| Applicable Industries: | Manufacturing Plant, Food & Beverage Factory | Type: | Automation |
| Warranty:: | 1 Year | Machinery Test Report:: | Provided |
| Place Of Origin: | Wuxi, China | Selling Points: | Competitive Price |
| Video Outgoing-inspection:: | Provided | Machine Style: | Horizontal |
| Condition: | New | Lead Time (days): | About 50 Days |
| High Light: | Precision Servo Motor Injection Molding Machine,CWI-180 Servo Motor Injection Molding Machine,40mm Servo Motor Injection Molding Machine |
||
1. Adopting environmentally friendly design to reduce pollution and avoid additional pollution from the outside of the machinery
2. Fast shooting speed, high design accuracy, and stable product formation
3. Servo oil electronic control system, achieving high-speed and accurate closed-loop control
4. The clamping device is equipped with a lubrication system to reduce friction
5. The sliding foot has self-lubricating function, reducing the pollution of lubricating oil
6. Simultaneously perform mold opening and ejection functions to shorten the product forming cycle and improve productivity
Product Paraments
| GF快速系列 | ||||||||||
| 机型 | CWI-180GF | CWI-220GF | ||||||||
| 合模装置 | 锁模力 Kn | Clamping Force | 1800 | 2200 | ||||||
| 拉杆间距 mm | Space Between Tie-bars | 520×520 | 570×570 | |||||||
| 开模最大开距 mm | Clamping Stroke | 500 | 550 | |||||||
| 最大模厚 mm | Mould Thickness Max | 550 | 600 | |||||||
| 最小模厚 mm | Mould Thickness Min | 200 | 220 | |||||||
| 模板尺寸 mm | Size of Platen | 755×755 | 830×830 | |||||||
| 顶出长度 mm | Ejector Stroke | 140 | 170 | |||||||
| 顶出力 Kn | Ejector Force | 53 | 80 | |||||||
| 顶针数 | Ejector Quantily | 5 | 9 | |||||||
| 注射装置 | 射胶装置 | Injection Unit | 420I | 650I | 650I | 860I | ||||
| 螺杆直径 mm | Screw Diameter | 35 | 40 | 40 | 45 | 40 | 45 | 45 | 50 | |
| 螺杆长径比 | Screw L/D ratio | 24 | 21 | 24 | 21 | 24 | 21 | 23 | 21 | |
| 理论射胶容积 cm3 | Shot Size | 163 | 214 | 251 | 318 | 251 | 318 | 358 | 442 | |
| 注射重量 (PS)g | Shot Weight | 150 | 196 | 231 | 293 | 231 | 292 | 329 | 406 | |
| oz | 5.3 | 6.9 | 8.2 | 10.3 | 8.2 | 10.3 | 11.6 | 14.3 | ||
| 注塑压力 Mpa | Injection Pressure | 256 | 196 | 256 | 202 | 256 | 202 | 256 | 207 | |
| 注射速度 mm/s | Injection Speed | 238 | 182 | 228 | 180 | |||||
| 注塑速率 cm3/s | Injection Rate | 229 | 229 | 229 | 290 | 286 | 363 | 286 | 354 | |
| 螺杆最大转速 rpm | Screw Speed | 400 | 400 | 400 | 350 | |||||
| 其他 | 油泵电机功率 Kw | Motor Power | 36 | 48 | ||||||
| 油泵排量 L/min | 220 | 275 | ||||||||
| 电热功率 Kw | Heater Power | 8.9 | 10.9 | 10.9 | 13 | |||||
| 机器净重 ton | Machine Weight | 6.5 | 7.5 | |||||||
| 机器尺寸(长×宽×高) mm | Machine Dimension | 5455×1620×1820 | 5830×1640×1870 | |||||||

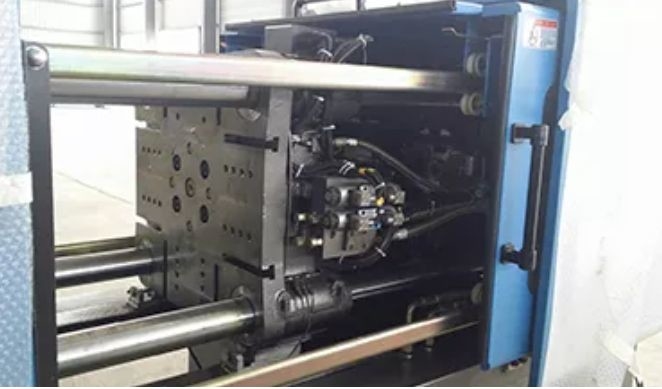

Detailed Pictures
