| Place of Origin: | China |
|---|---|
| Brand Name: | OUCO |
| Certification: | CE, ISO9001 |
| Model Number: | OUCO-300T |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | shipping container |
| Delivery Time: | 1 months |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 500 sets per year |

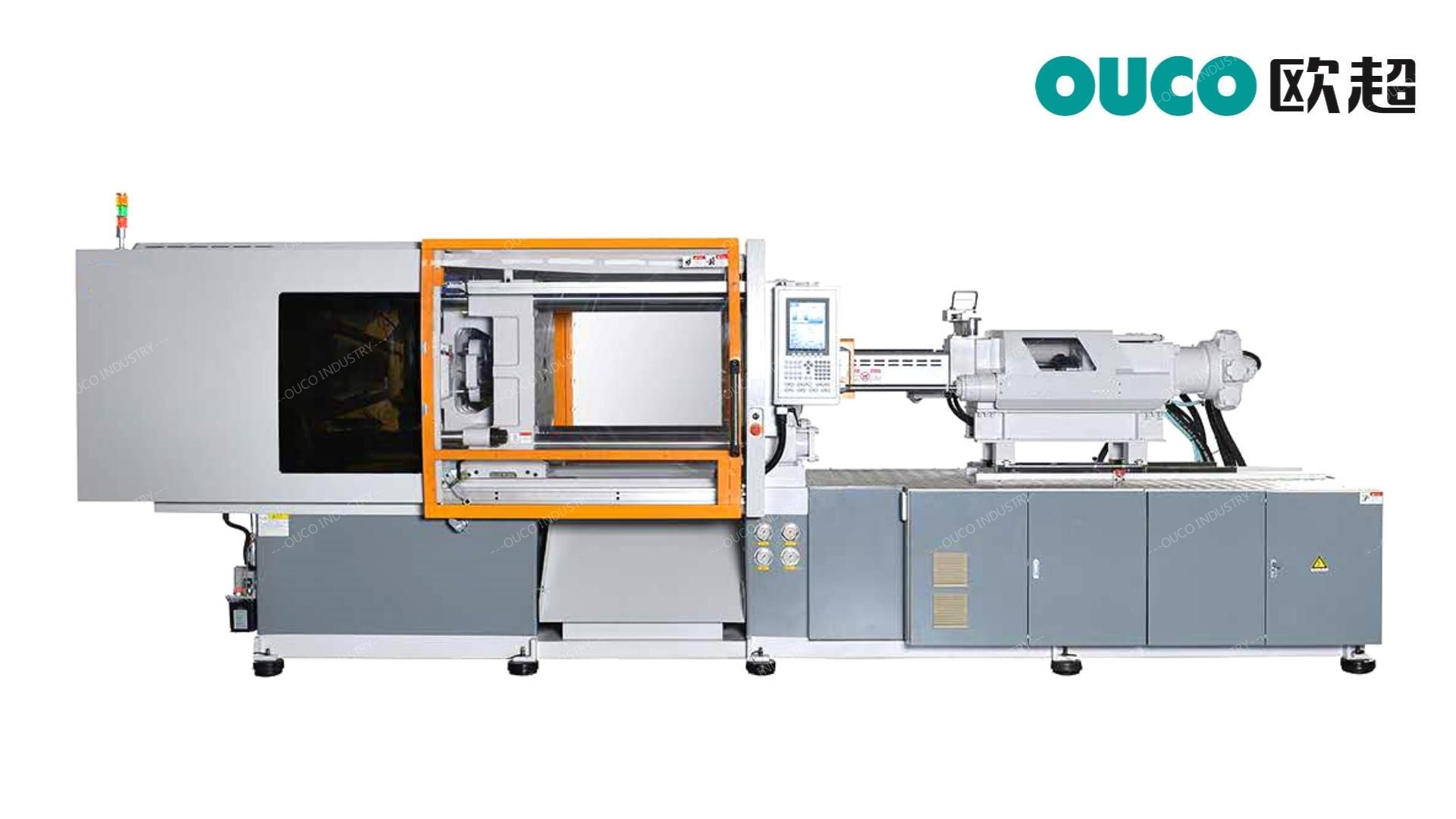

| Product Name: | OUCO Automatic Injection Moulding Machine With Linear Guide High Speed 300Ton | Plastic Processed:: | PP, PC,PVC |
|---|---|---|---|
| Applicable Industries: | Manufacturing Plant, Food & Beverage Factory | Type: | Automation |
| Warranty:: | 1 Year | Machinery Test Report:: | Provided |
| Place Of Origin: | Wuxi, China | Selling Points: | Competitive Price |
| Video Outgoing-inspection:: | Provided | Machine Style: | Horizontal |
| Condition: | New | Lead Time (days): | About 50 Days |
| High Light: | OUCO Automatic Injection Moulding Machine,300Ton Automatic Injection Moulding Machine,50mm Automatic Injection Moulding Machine |
||
Our lubrication system mainly uses soft copper pipe structure for fixed pipelines, which can extend the service life of copper pipes
High precision bilinear guide rail control, effectively reducing mechanical friction and improving injection accuracy
Choose the latest computer from Taiwan's Hongxun, with fast response speed and accurate calculations
The dual servo motor system can control power reasonably and efficiently save energy
Product Paraments
| GK高速薄壁专用机系列 | ||||||
| 机型 | CWI-290GK | CWI-360GK | ||||
| 合模装置 | 锁模力 Kn | Clamping Force | 2900 | 3600 | ||
| 拉杆间距 mm | Space Between Tie-bars | 630×630 | 740×740 | |||
| 开模最大开距 mm | Clamping Stroke | 600 | 680 | |||
| 最大模厚 mm | Mould Thickness Max | 650 | 720 | |||
| 最小模厚 mm | Mould Thickness Min | 240 | 260 | |||
| 模板尺寸 mm | Size of Platen | 940×940 | 1090×1090 | |||
| 顶出长度 mm | Ejector Stroke | 170 | 200 | |||
| 顶出力 Kn | Ejector Force | 80 | 80 | |||
| 顶针数 | Ejector Quantily | 13 | 13 | |||
| 注射装置 | 射胶装置 | Injection Unit | 860I | 1100I | ||
| 螺杆直径 mm | Screw Diameter | 50 | 55 | 55 | 60 | |
| 螺杆长径比 | Screw L/D ratio | 21 | 19.1 | 21 | 19.3 | |
| 理论射胶容积 cm3 | Shot Size | 442 | 534 | 589 | 701 | |
| 注射重量 (PS)g | Shot Weight | 406 | 492 | 542 | 645 | |
| oz | 14.3 | 17.3 | 19.1 | 22.7 | ||
| 注塑压力 Mpa | Injection Pressure | 207 | 171 | 191 | 160 | |
| 注射速度 mm/s | Injection Speed | 295 | 294 | |||
| 注塑速率 cm3/s | Injection Rate | 579 | 700 | 698 | 831 | |
| 塑化能力 g/s | Plasticising Capacity | 6.8 | 8.4 | 6.8 | 8.4 | |
| 螺杆最大转速 rpm | Screw Speed | 350 | 300 | |||
| 其他 | 油泵电机功率 Kw | Motor Power | 50+50 | 50+50 | ||
| 油泵排量 L/min | 450 | 500 | ||||
| 电热功率 Kw | Heater Power | 13 | 15.9 | |||
| 机器净重 ton | Machine Weight | 12 | 14 | |||
| 机器尺寸(长×宽×高) mm | Machine Dimension | 6400×1850×2075 | 7100×2100×2175 | |||
