| Place of Origin: | China |
|---|---|
| Brand Name: | OUCO |
| Certification: | CE, ISO9001:2008, SGS |
| Model Number: | OUCO-400T |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Wood Case & Carton Packaging |
| Delivery Time: | 2 months |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 500 sets/year |

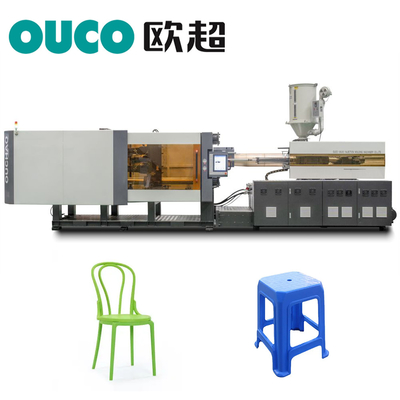

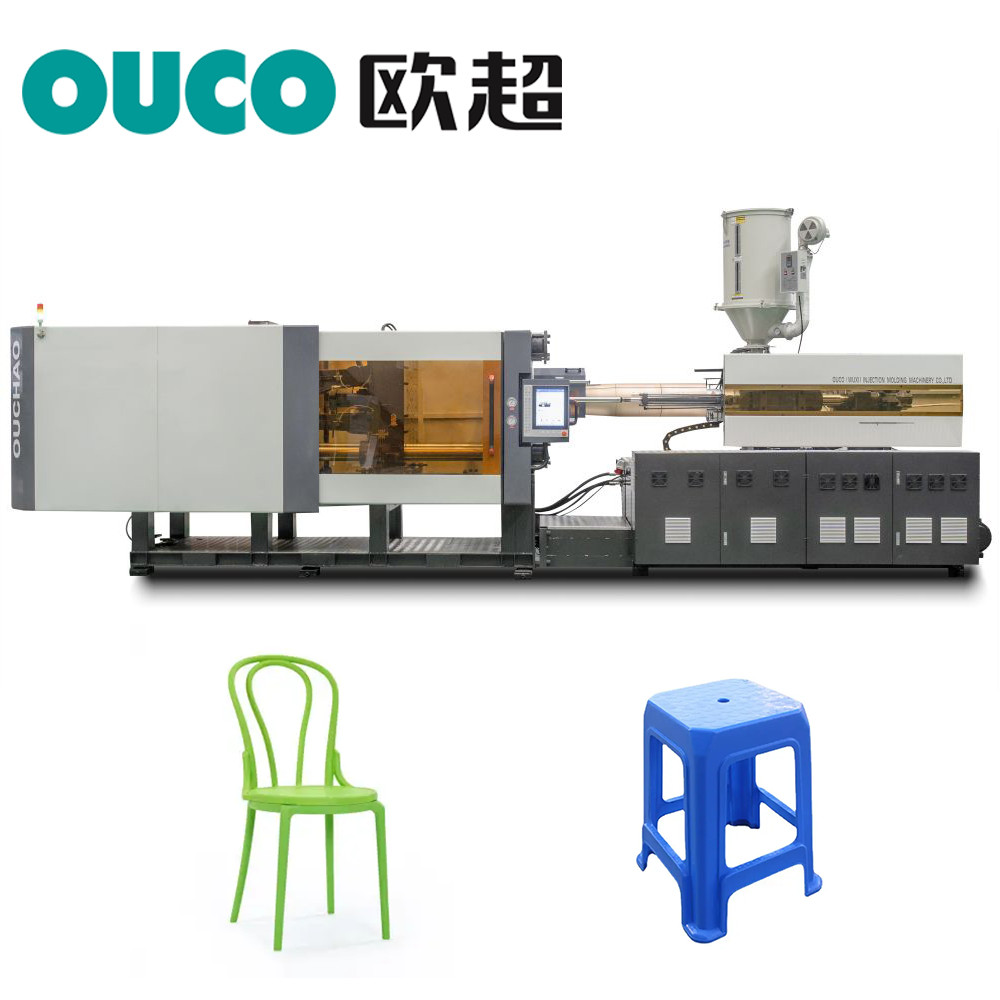

| Product Name: | OUCO Plastic Servo Motor Injection Molding Machine High Speed | Type: | Automation |
|---|---|---|---|
| Function: | Plastic Parts Production | Motor: | Servo Energy Saving |
| Color: | Support Customization | Stable Performance: | Short Cycle Time |
| Clamping Way: | Hydraulic | Machinery Test Report: | Provided |
| Application: | Fruit Plastic Mesh Basket | Condition: | New |
| Transport Package: | FCL | Warranty: | 1 Year |
| High Light: | Plastic Servo Motor Injection Molding Machine,60mm Servo Motor Injection Molding Machine,16MPa Servo Motor Injection Molding Machine |
||
Excellent energy-saving effect - equipped with advanced dual servo motor system, which can save more electricity.
High precision and strong stability - use advanced pressure sensors and rotary encoders to effectively detect the pressure and flow rate of the machine during operation.
Dual guide rod support and dual balanced rapid injection - unique design can make machine operation more efficient and stable.
Fast response and high efficiency - the drive system has high sensitivity and is faster than ordinary injection molding machines. Effectively improving production efficiency.
Parameters
| Model | 300T | 400T | 500T | |||||||
| Screw Specifications | A | B | C | A | B | C | A | B | C | |
| Screwdi ameter | mm | 50 | 60 | 65 | 65 | 75 | 80 | 70 | 75 | 85 |
| Screw L/Dratio | 22 | 22 | 22 | 22 | 22 | 22 | 22 | 22 | 22 | |
| Theoretical injection volume | cm3 | 638 | 918 | 1078 | 1C75 | 1431 | 1628 | 1481 | 1700 | 2184 |
| Shot weight (PS) | g | 593 | 853 | 1002 | 1C11 | 1345 | 1530 | 1377 | 1581 | 2031 |
| injection rate(Ps) | g/S | 330 | 475 | 558 | 426 | 568 | 646 | G03 | 693 | 890 |
| Injection pressure | MPa | 286 | 198 | 169 | 242 | 182 | 160 | 209 | 182 | 142 |
| Inject on stroke | mm | 325 | 360 | 385 | ||||||
| Max. injection speed | mm/s | 178 | 156 | 166 | ||||||
| Screw speed | r/min | 0-200 | 0-200 | 0-200 | ||||||
| Sys. Pressure | MPa | 16 | 16 | 16 | ||||||
| Pump Motor(Min-Max) | kW | 63 | 75 | 94 | ||||||
| Displacement | ml/r | 163 | 100+100 | 125+125 | ||||||
| number of Motors | PC | 1 | 2 | 2 | ||||||
| Heater power | kW | 27 | 35 | 41 | ||||||
| Number oftemp. control zones | 5+1 | 5+1 | 5+1 | |||||||
| Clamping force | kN | 3000 | 4000 | 5000 | ||||||
| Opening stroke | mm | 800 | 900 | 1000 | ||||||
| Tie bar distance W×L | mm*mm | 680x680 | 760x660 | 860x760 | ||||||
| Min. mold thickness | mm | 210 | 300 | 300 | ||||||
| Max. mold thickness | mm | 680 | 730 | 800 | ||||||
| Ejector stroke | mm | 190 | 190 | 210 | ||||||
| Ejector force forward | kN | 62 | 80 | 110 | ||||||
| Number of ejector bar | PC | 1+12 | 1+12 | 1+12 | ||||||
| Oil tank capacity | L | 510 | 680 | 850 | ||||||
| Machine dimensions(LxWxH) | m*m*m | 7.7x1.8x1.8 | 8.2x1.9x1.9 | 87x2.0x2.1 | ||||||
| Machine weight | Ton | 10.5 | 15 | 19 | ||||||

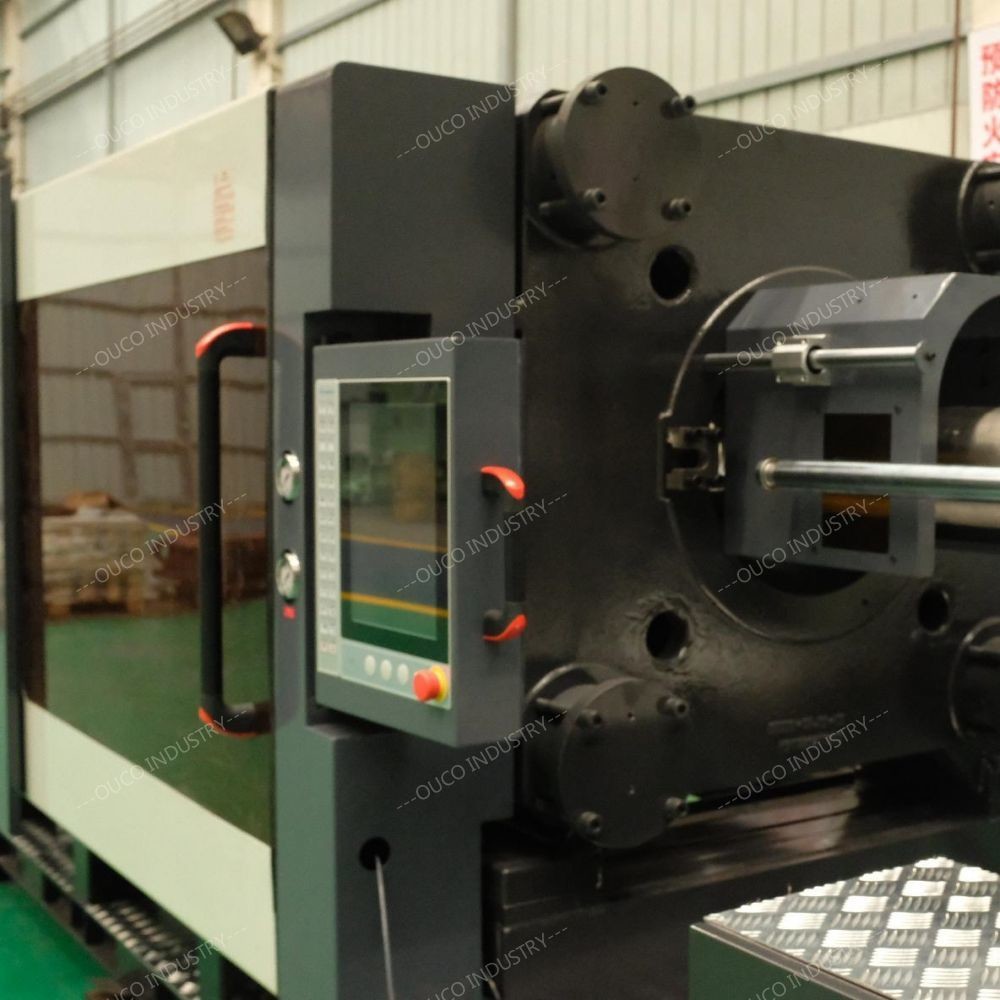

Detail Pictures
