OUCO High Precision Injection Molding Machine With OC - 500T 85mm For Frame

Basic Information
Place of Origin: China
Brand Name: OUCO
Certification: CE
Model Number: OUCO-500T
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: shipping container
Delivery Time: 35 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500 sets per year
Detail Information
Product Name: OUCO Injection Molding Machine With High Injection Volume OC-500T Customized For Frame Type: Automation
Function: Plastic Parts Production Motor: Servo Energy Saving
Color: Support Customization Stable Performance: Short Cycle Time
Clamping Way: Hydraulic Transport Package: FCL
High Light:

85mm OUCO Injection Molding Machine

,

OUCO Injection Molding Machine With OC-500T

,

OUCO Servo Injection Molding Machine


Product Description

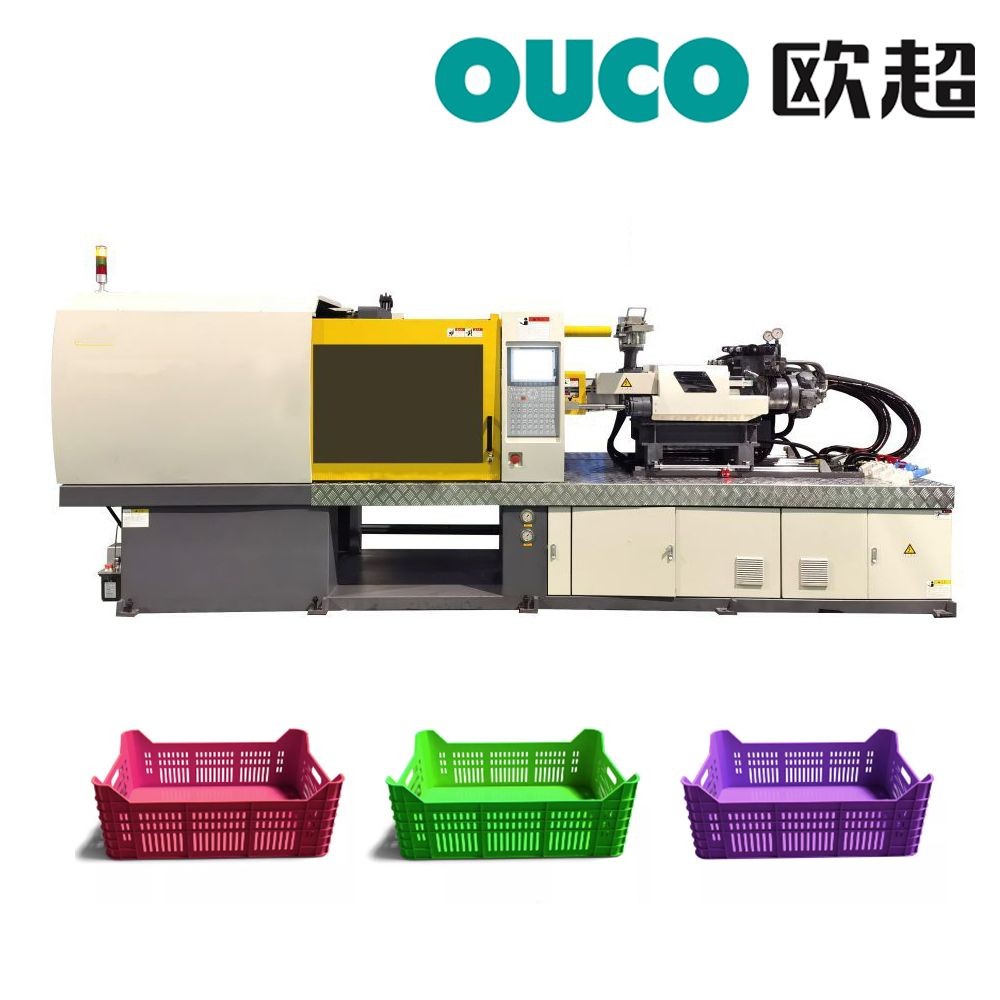

OUCO Injection Molding Machine With High Injection Volume OC-500T Customized For Fruit Frame

OUCO High Precision Injection Molding Machine With OC - 500T 85mm For Frame 0

Why choose Ouco injection molding machine ?

A: Unique Quality .Parts  is provided by well-known manufacturers, such as Schneider ,Siemens.

B: Competitive price.Equipment for the same purpose, our price is lower.

C: Outstanding Service . Both after-sales and sales are proficient in injection molding machines.

Ouco injection molding machine



OUCO's machine has an extremely large injection volume, which can fully meet the general production requirements of fruit frames, and the product quality is guaranteed.

Coupled with OUCO's unique design of ultra long mold opening stroke, the machine can accommodate larger molds, not only for producing fruit frames, but also for producing deep cavity products, achieving multi-purpose use in one machine.

OUCO High Precision Injection Molding Machine With OC - 500T 85mm For Frame 2

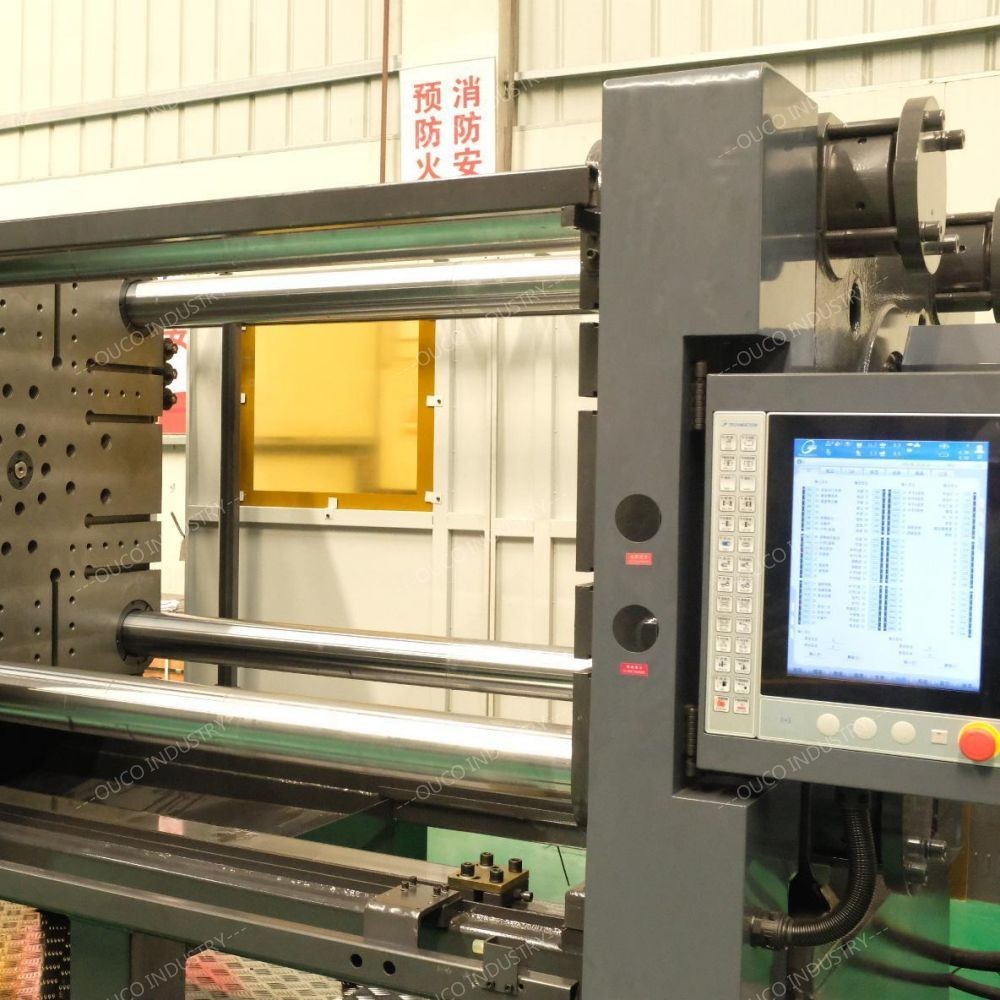

OUCO injection molding machine is equipmeted with outward turning crankshaft.

.injection molding machine is equipmeted with outward turning crankshaft .



Model     600T 700T
Screw Model   C A B C A B C
Screwdi ameter mm 85 75 85 90 85 90 100
Screw L/Dratio   22 22 22 22 22 22 22
Theoretical injection volume cm3 2184 1788 2297 2575 2552 2861 3533
Shot weight (PS) g 2031 1645 2113 2369 2348 2632 3250
injection rate(Ps) g/S 890 G13 788 884 788 883 1091
Injection pressure MPa 142 204 159 142 209 187 151
Inject on stroke mm   405 450
Max. injection speed mm/s   157 147
Screw speed r/min   0-200 0-180
Sys. Pressure MPa   16 16
Pump Motor(Min-Max) kW   101 114
Displacement ml/r   160+125 160+160
number of Motors PC   2 2
Heater power kW   47 52
Number oftemp. control zones     5+1 5+1
Clamping force kN   6000 7000
Opening stroke mm   1150 1300
Tie bar distance W×L mmxmm   960x860 1020x920
Min. mold thickness mm   350 450
Max. mold thickness mm   920 1050
Ejector stroke mm   210 210
Ejector force forward kN   113 113
Number of ejector bar PC   1+12 1+12
Oil tank capacity L   940 1020
Machine dimensions(LxWxH) mxmxm   9.3x2.1x2.3 9.7x2.2x2.4
Machine weight Ton   23 25



All of our machines are equipped with advanced power systems and use dual servo motors.

We use a solvent quantitative lubrication distribution system, which has high lubrication efficiency, greatly reducing friction and extending the service life of components.

Our hydraulic system is provided by well-known Chinese manufacturers, with high standards of safety and reliability.



OUCO High Precision Injection Molding Machine With OC - 500T 85mm For Frame 4
