| Place of Origin: | China |
|---|---|
| Brand Name: | OUCO |
| Certification: | CE |
| Model Number: | OUCO-450T |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | shipping container |
| Delivery Time: | 35 work days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 500 sets per year |

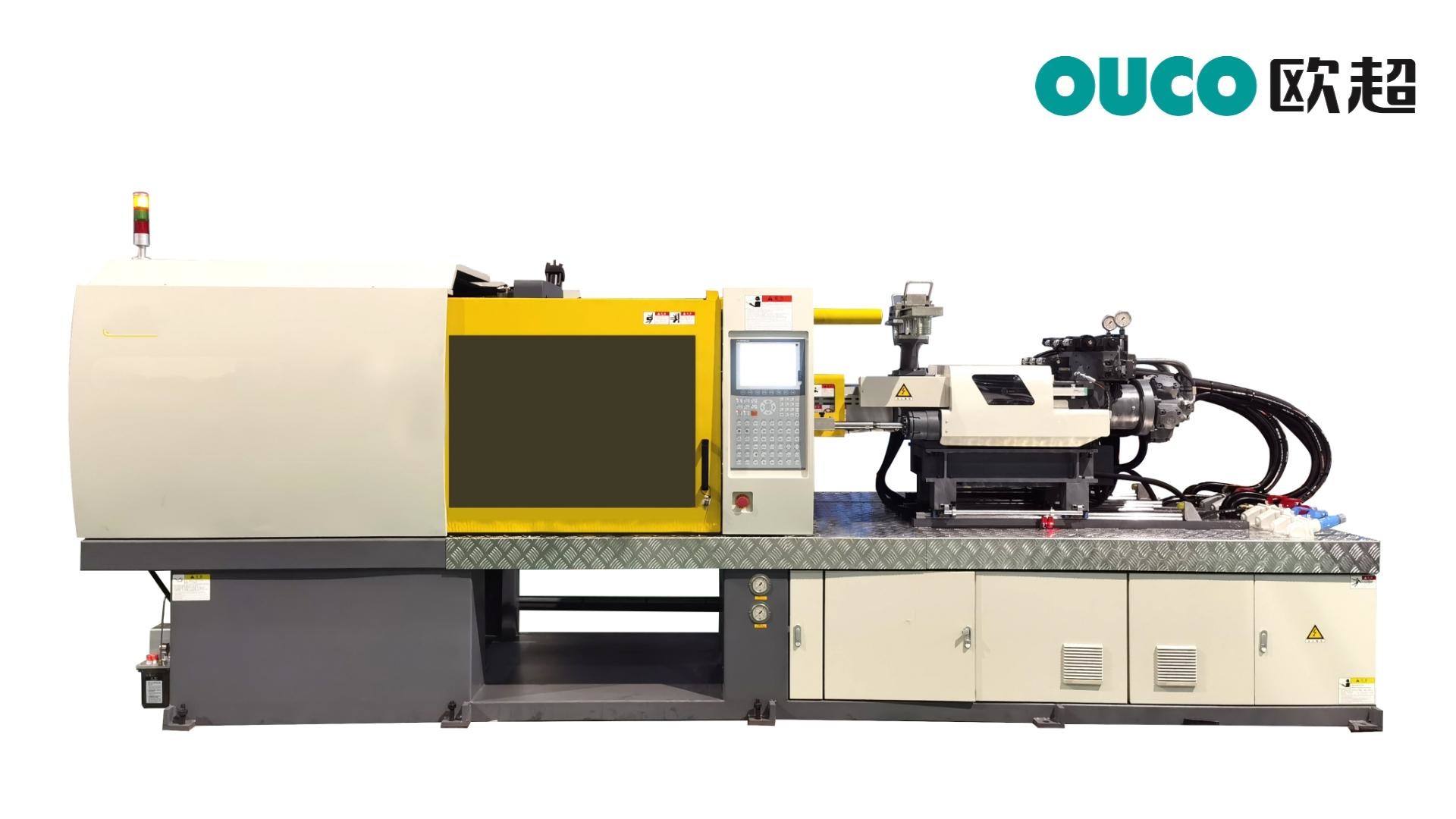

| Product: | 450 T Cheap Injection Moulding Machine, Reliable Manufacturer In China | Condition: | New |
|---|---|---|---|
| Plastic Type: | Thermoplastic | Weight (KG): | 13400 |
| Core Components: | Motor, Pump | Screw Diameter: | 75 Mm |
| Screw L/D Ratio: | 21 | ||
| High Light: | Thermoplastic Horizontal Injection Molding Machine,450Ton Horizontal Injection Molding Machine,Horizontal Injection Molding Machine 75Mm |
||
High Rigidity Clamping Mechanism
High-Speed And Stable Mold Opening And Closing
Extra Large Capaciy Modulus Design
Hydraulic System Provided By Well-known Manufactures In China
Essential Details
| 机型 | 300T | 400T | ||||||
| 螺杆规格 | A | B | C | A | B | C | ||
| 螺杆直径 | Screw diameter | mm | 50 | 60 | 65 | 65 | 75 | 80 |
| 螺杆长径比 | Screw L/Dratio | 22 | 22 | 22 | 22 | 22 | 22 | |
| 理论注射容积 | Theoretical injection volume | cm3 | 638 | 918 | 1078 | 1C75 | 1431 | 1628 |
| 注射重量(PS) | Shot weight (PS) | g | 593 | 853 | 1002 | 1C11 | 1345 | 1530 |
| 注射速率 | injection rate(Ps) | g/S | 330 | 475 | 558 | 426 | 568 | 646 |
| 注射压力 | Injection pressure | MPa | 286 | 198 | 169 | 242 | 182 | 160 |
| 注射行程 | Inject on stroke | mm | 325 | 360 | ||||
| 最大注射速度 | Max. injection speed | mm/s | 178 | 156 | ||||
| 最大摞杆转速 | Screw speed | r/min | 0-200 | 0-200 | ||||
| 系统压力 | Sys. Pressure | MPa | 16 | 16 | ||||
| 电机总功率 | Pump Motor(Min-Max) | kW | 63 | 75 | ||||
| 油泵排量 | Displacement | ml/r | 163 | 100+100 | ||||
| 电机数员 | number of Motors | PC | 1 | 2 | ||||
| 电热功率 | Heater power | kW | 27 | 35 | ||||
| 温控区数 | Number of temp. control zones | 5+1 | 5+1 | |||||
| 锁模力 | Clamping force | kN | 3000 | 4000 | ||||
| 开模行程 | Clamping stroke | mm | 800 | 900 | ||||
| 拉杆内间距 | Tie bar distance W×L | mmxmm | 680x680 | 760x660 | ||||
| 最小模具厚度 | Min. mold thickness | mm | 210 | 300 | ||||
| 最大模具厚度 | Max. mold thickness | mm | 680 | 730 | ||||
| 顶出行程 | Ejector stroke | mm | 190 | 190 | ||||
| 顶出力 | Ejector force forward | kN | 62 | 80 | ||||
| 顶出杆数 | Number of ejector bar | PC | 1+12 | 1+12 | ||||
| 油箱容量 | Oil tank capacity | L | 510 | 680 | ||||
| 机械外形尺寸(约) | Machine dimensions(LxWxH) | mxmxm | 7.7x1.8x1.8 | 8.2x1.9x1.9 | ||||
| 机器重量(约) | Machine weight | Ton | 10.5 | 15 | ||||
Main Features
Big: Bigger one size than other brand machines.
Precision: Products higher precision.
Save: Help customer save 2- 5% material.
100% clamping force use.
Less possibility of flash, save flash trim work.
Save 2% - 5% material.
Offer good protection to mould, platens and tie bars.
Opening stroke 10 - 20% longer
With heavy clamping force waste, only 80 - 85% efficiency.
Moving platen with obvious deformation, cause flashes, wsaste of material and labor of trim the flashes.
