| Place of Origin: | China |
|---|---|
| Brand Name: | OUCO |
| Certification: | CE, ISO9001:2008, SGS |
| Model Number: | OUCO-HS-380T |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Nude |
| Delivery Time: | 2 months |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 500 sets/year |

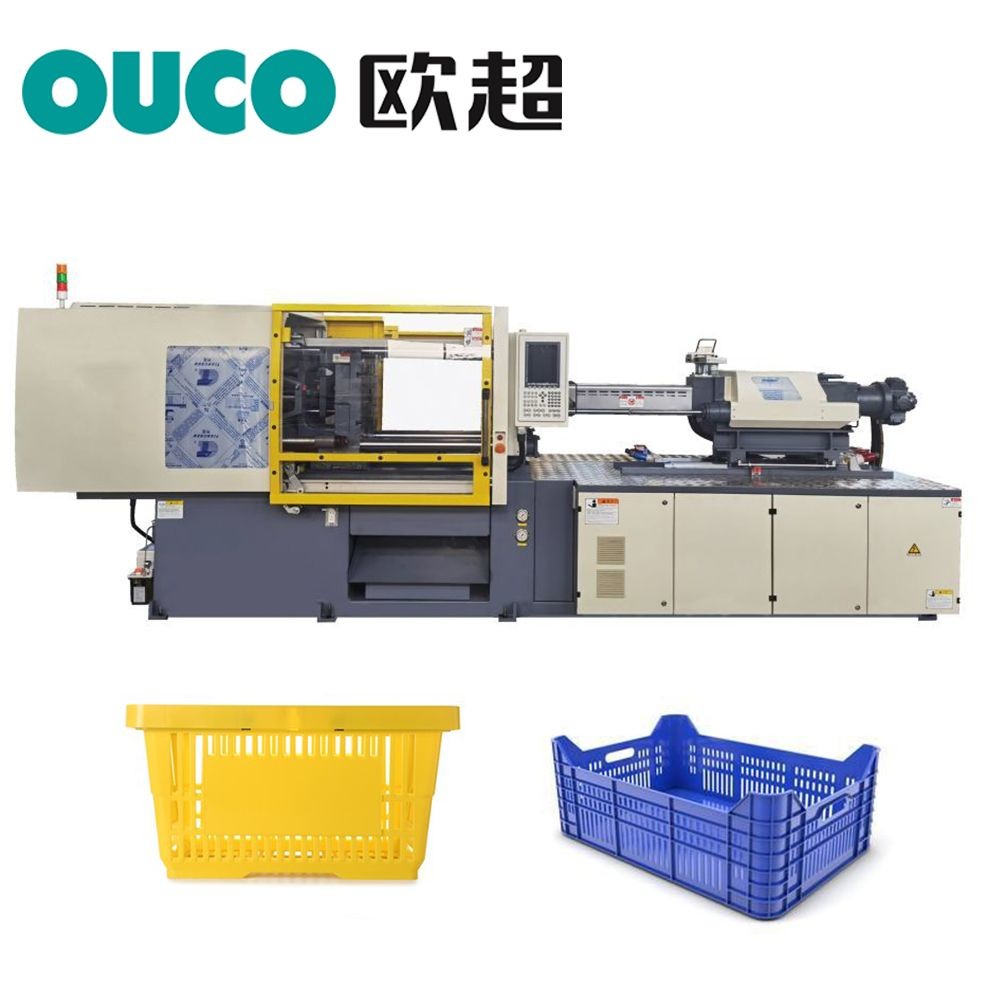

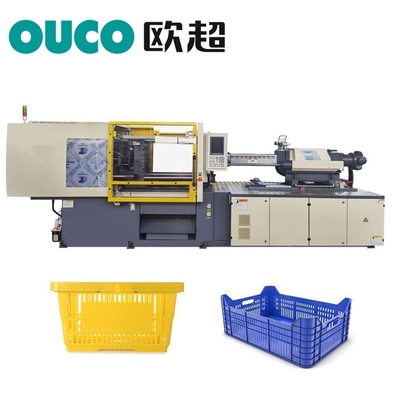

| Product Name: | OUCO Servo Motor Injection Molding Machine Fruit Box Dedicated Machine | Type: | Automation |
|---|---|---|---|
| Function: | Plastic Parts Production | Motor: | Servo Energy Saving |
| Color: | Support Customization | Stable Performance: | Short Cycle Time |
| Clamping Way: | Hydraulic | Transport Package: | FCL |
| High Light: | OUCO Servo Motor Injection Molding Machine,Fruit Box Dedicated Injection Molding Machine,Automation Injection Molding Machine |
||
OUCO has professional injection molding machine production technology, capable of independently developing and producing products, and is equipped with a debugging team. The OUCO fruit box special machine adopts a direct compression external curved central locking structure, with a locking force of 100% transmission.
Product Advantages
The super large mold capacity can accommodate various types of fruit box molds, and different models of products can be produced according to customer needs. Compared to traditional injection molding machine structures, the new design is more time and material-saving.
Parameters
| MODEL | HS-380T | |||||
| Clamping force (kN) | 3800 | |||||
| Space between tie bar (mm*mm) | 720*680 | |||||
| Max. mold thickness (mm) | 730 | |||||
| Min. mold thickness(mm) | 300 | |||||
| Opening stroke (mm) | 800 | |||||
| Ejector stroke(mm) | 190 | |||||
| Ejector force forward(Kn) | 62 | |||||
| Screw diameter(mm) | 85 | |||||
| Screw L/D ratio | 22 | |||||
| Theoretical injection volume (cm3) | 1985 | |||||
| Shot weight (PS) g | 1918 | |||||
| Injection pressure(MPa) | 118 | |||||
| Injection speed (mm/s) | 129 | |||||
| Injection rate (g/s) | 708 | |||||
| Motor power (Kw) | 63 | |||||
| Oil tank capacity(L) | 510 | |||||
| Heater power (Kw) | 27 | |||||
| Machine Weight (kg) | 13.5 | |||||
| Machine size L×W×H (mm) | 7.7*1.8*1.8 | |||||

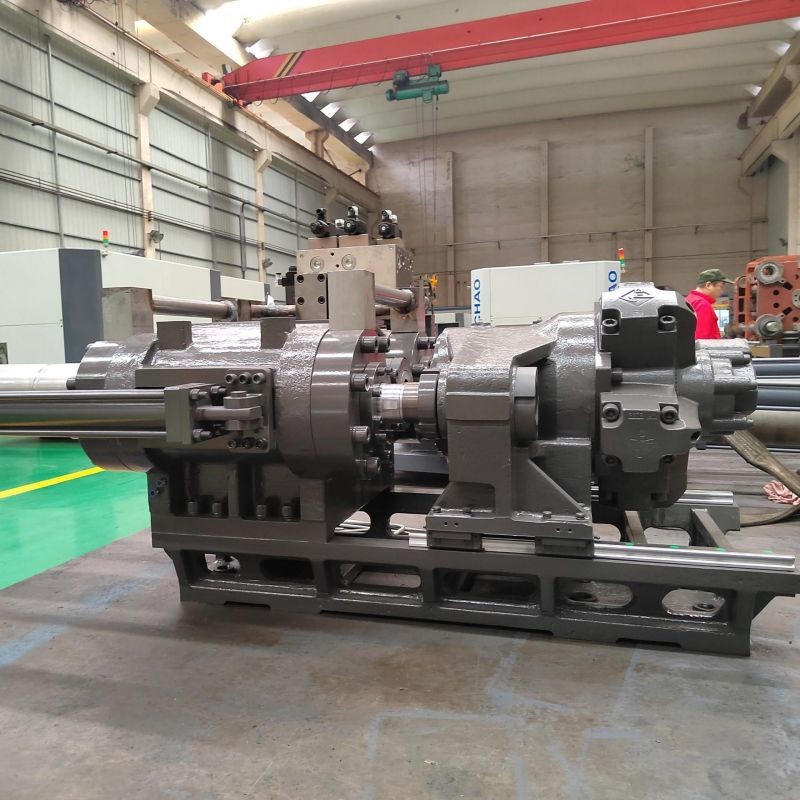

Detail Pictures
