| Place of Origin: | China |
|---|---|
| Brand Name: | OUCO |
| Certification: | CE, ISO9001:2008, SGS |
| Model Number: | OUCO-350T |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Nude |
| Delivery Time: | 2 months |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 500 sets/year |

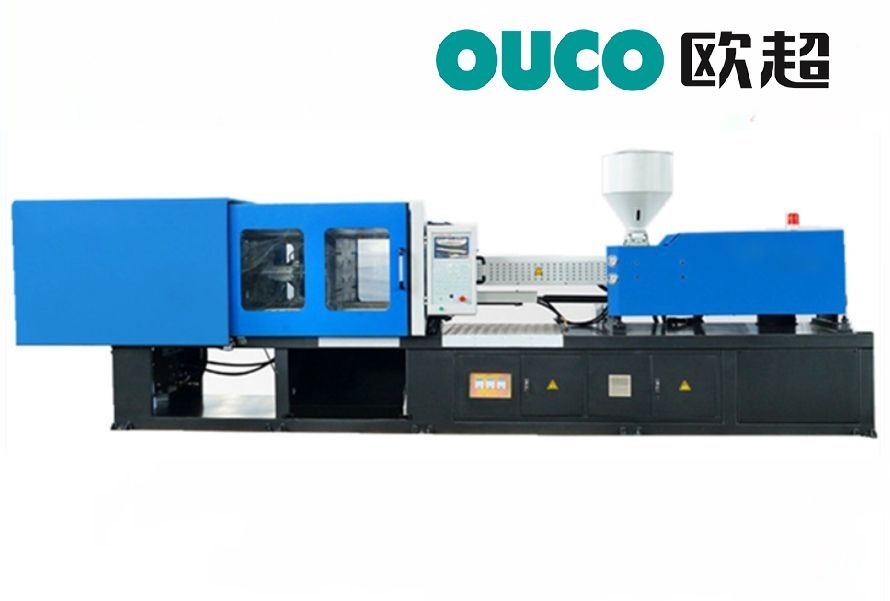

| Product Name: | High Quality PET Preform Injection Molding Machine With Optimize The Clamping Design | Type: | Automation |
|---|---|---|---|
| Function: | Plastic Parts Production | Motor: | Servo Energy Saving |
| Color: | Support Customization | Stable Performance: | Short Cycle Time |
| Clamping Way: | Hydraulic | Transport Package: | FCL |
| High Light: | 80mm PET Injection Molding Machine,Hydraulic PET Injection Molding Machine,85mm automatic injection moulding machines |
||
Product Description
Linear rail injection station
High precision and low friction, reducing mechanical back pressure and energy consumption
Brand new clamping structure
Using finite element analysis software to optimize the clamping design, the stress is uniform
Product Parameters
| 技术參数 SPECIFICATION | ZP2000 | ZP2300 | ZP2800 | ZP3200 | ZP3800 | ZP4300 | ZP4800 | ZP5300 | ZP6200 | ||||||||||
| 注射部份 INJECTION UNIT | IU1100 | IU1100 | IU1700 | IU2400 | IU3000 | IU3600 | IU4400 | IU4400 | IU5700 | ||||||||||
| 注射容積 Shot Weight | cm3 | 829 | 829 | 1270 | 1885 | 2497 | 2799 | 3534 | 3534 | 4752 | |||||||||
| 注射量(PET) Injection Weight | g | 962 | 962 | 1473 | 2187 | 2897 | 3247 | 4099 | 4099 | 5512 | |||||||||
| 螺杆直徑 Screw Diameter | mm | 65 | 65 | 70 | 80 | 85 | 90 | 100 | 100 | 110 | |||||||||
| 螺杆長徑比 Screw L/D Ratio | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | ||||||||||
| 注射壓力 Injection Pressure | Mpa | 137 | 137 | 135 | 127 | 121 | 130 | 125 | 125 | 121 | |||||||||
| 注射速率 Injection Rate | cm3/s | 306 | 333 | 306 | 333 | 450 | 424 | 479 | 455 | 589 | 589 | 647 | 700 | 723 | 734 | 723 | 734 | 851 | 880 |
| 最大塑化能力(PET) Plasticzation Capacity | g/s | 57 | 62 | 57 | 62 | 69 | 85 | 68 | 65 | 96 | 96 | 107 | 116 | 128 | 130 | 128 | 130 | 143 | 148 |
| 最大螺杆轉速 Max Screw Speed | rpm | 162 | 176 | 162 | 176 | 192 | 181 | 162 | 154 | 138 | 138 | 133 | 144 | 120 | 122 | 120 | 122 | 114 | 118 |
| 合模部份 CLAMPING UNIT | |||||||||||||||||||
| 合模力 Clamping Force | Kn | 2000 | 2300 | 2800 | 3200 | 3800 | 4300 | 4800 | 5300 | 6200 | |||||||||
| 最大移模行程 Clamping Stroke | mm | 450 | 530 | 590 | 640 | 680 | 750 | 830 | 850 | 900 | |||||||||
| 連接柱内矩 Space Between Tie Bar (HxV) | mm | 510 X 460 | 560 X 510 | 620 X 570 | 670 X 620 | 730 X 680 | 770 X 720 | 820 X 800 | 860 X 810 | 910 X 860 | |||||||||
| 最大模板矩離 Max. Daylight | mm | 1130 | 1130 | 1240 | 1320 | 1410 | 1500 | 1630 | 1700 | 1800 | |||||||||
| 最大容模厚度 Max. Mold Height | mm | 560 | 600 | 650 | 680 | 730 | 750 | 800 | 850 | 900 | |||||||||
| 最小容模厚度 Min. Mold Height | mm | 160 | 180 | 220 | 250 | 280 | 280 | 320 | 320 | 350 | |||||||||
| 頂出行程 Ejector Stroke | mm | 140 | 150 | 180 | 180 | 200 | 200 | 220 | 260 | 260 | |||||||||
| 最大頂出推力 Ejector Force | Kn | 125 | 125 | 152 | 152 | 182 | 182 | 182 | 232 | 232 | |||||||||
| 電控部份 | |||||||||||||||||||
| 总電机功率(变量泵/伺服) Pump Motor Power (V Pump/Servo) | Kw | 30 | 37 | 30 | 37 | 37 | 46 | 37 | 46 | 48.5 | 55 | 52 | 65 | 55.5 | 65 | 55.5 | 65 | 59 | 75 |
| 電熱功率 Heater Power | Kw | 18 | 18 | 20.2 | 24 | 32 | 36 | 40 | 40 | 45 | |||||||||
| 温度控制區 No.of Heater Control Zone | zone | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | |||||||||
| 系統壓力 System Pressure | Mpa | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 | |||||||||
| 其他 | |||||||||||||||||||
| 油箱容量 Oil Tank Capacity | L | 400 | 400 | 450 | 600 | 650 | 800 | 900 | 900 | 1000 | |||||||||
| 重量(约) Machine Weight | kg | 7700 | 7700 | 9100 | 13500 | 14300 | 16100 | 22200 | 26300 | 28800 | |||||||||
| 外型尺寸 Machine Dimension (LxWxH) | M | 5.5 X 1.6 X 2.2 | 6.1 X 1.6 X 2.2 | 6.6 X 1.6 X 2.2 | 7.4 X 1.7 X 2.2 | 8.2 X 1.8 X 2.3 | 8.6 X 1.9 X 2.2 | 9.6 X 2.1 X 2.4 | 9.9 X 2.2 X 2.4 | 10.3 X 2.2 X 2.4 | |||||||||

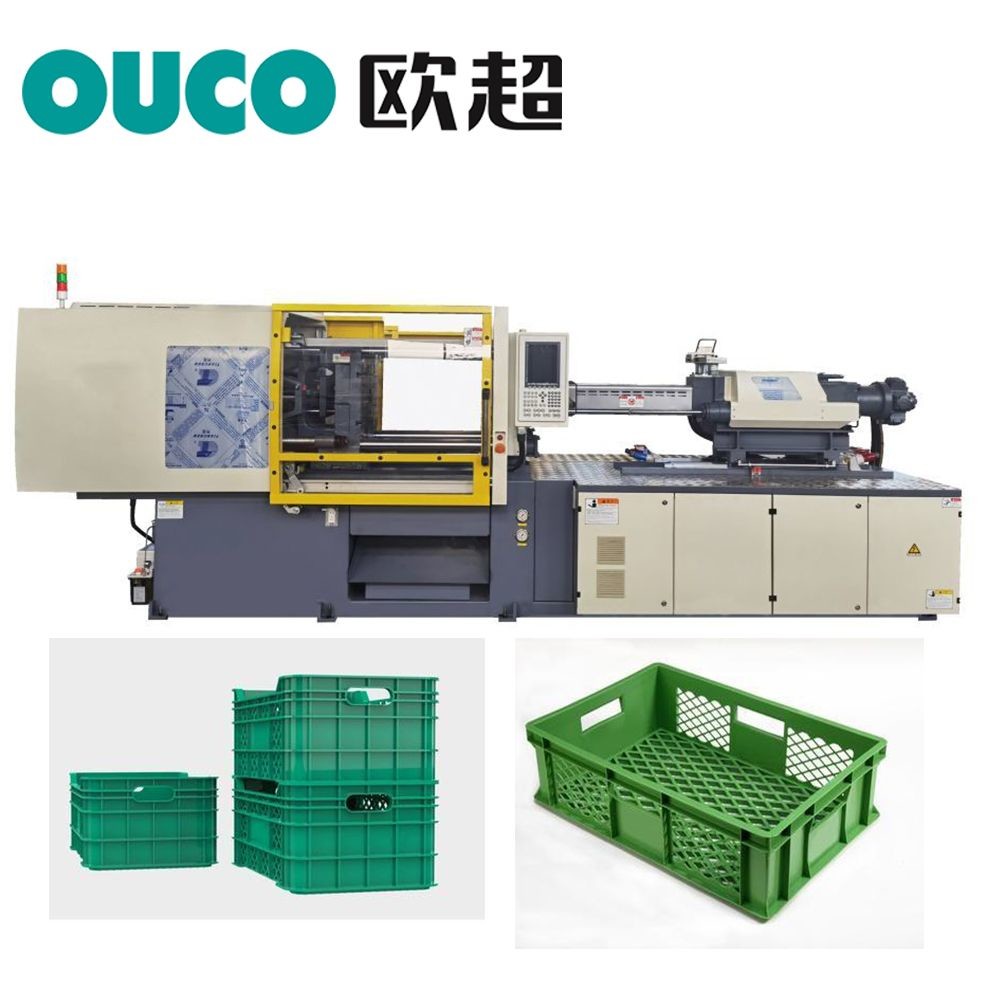

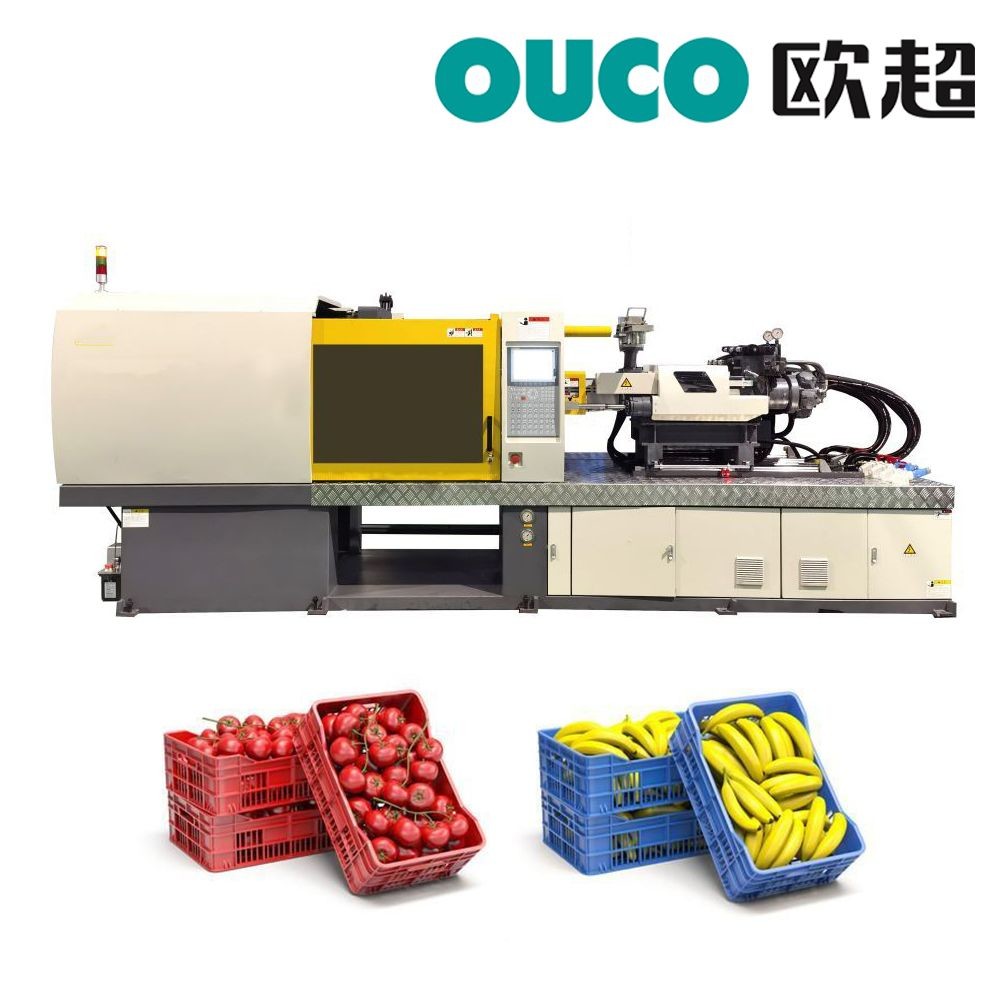

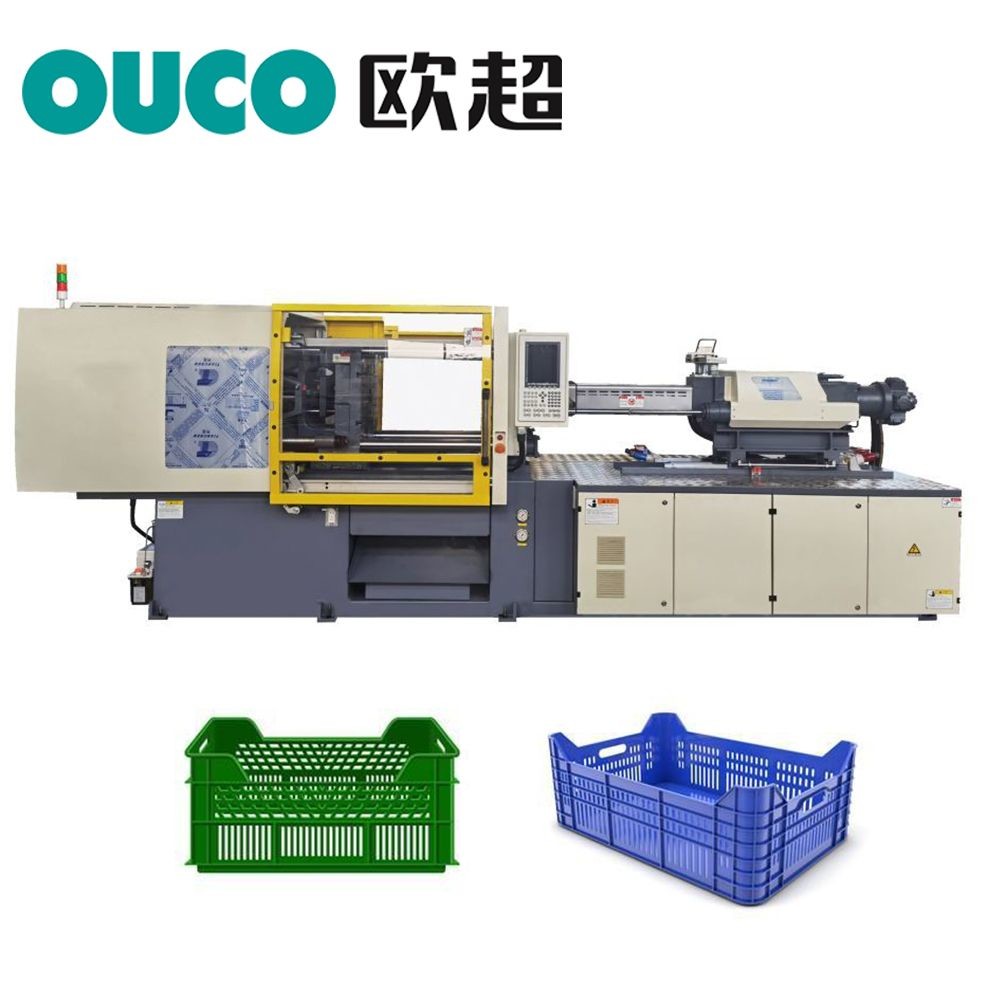

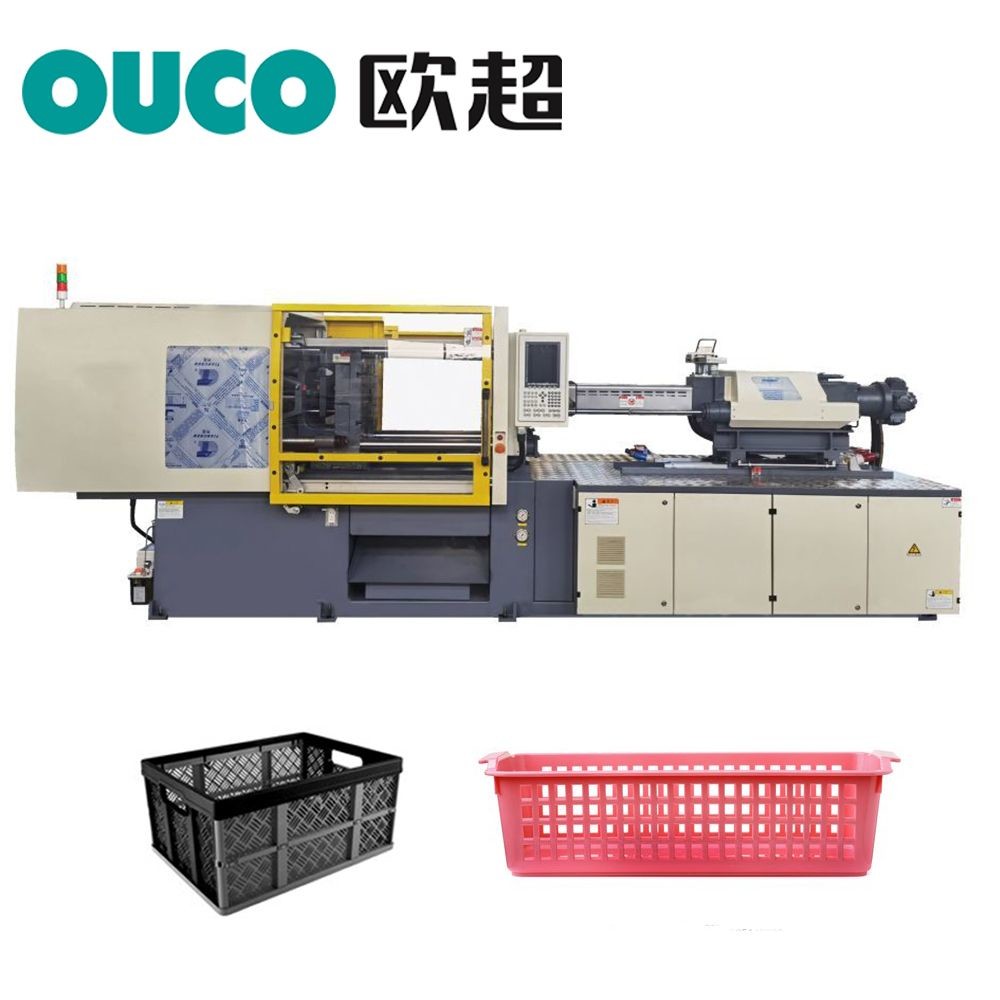

Detail Pictures
