| Place of Origin: | China |
|---|---|
| Brand Name: | OUCO |
| Certification: | CE, ISO9001 |
| Model Number: | OUCO-800t |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | shipping container |
| Delivery Time: | 1 months |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 500 sets per year |

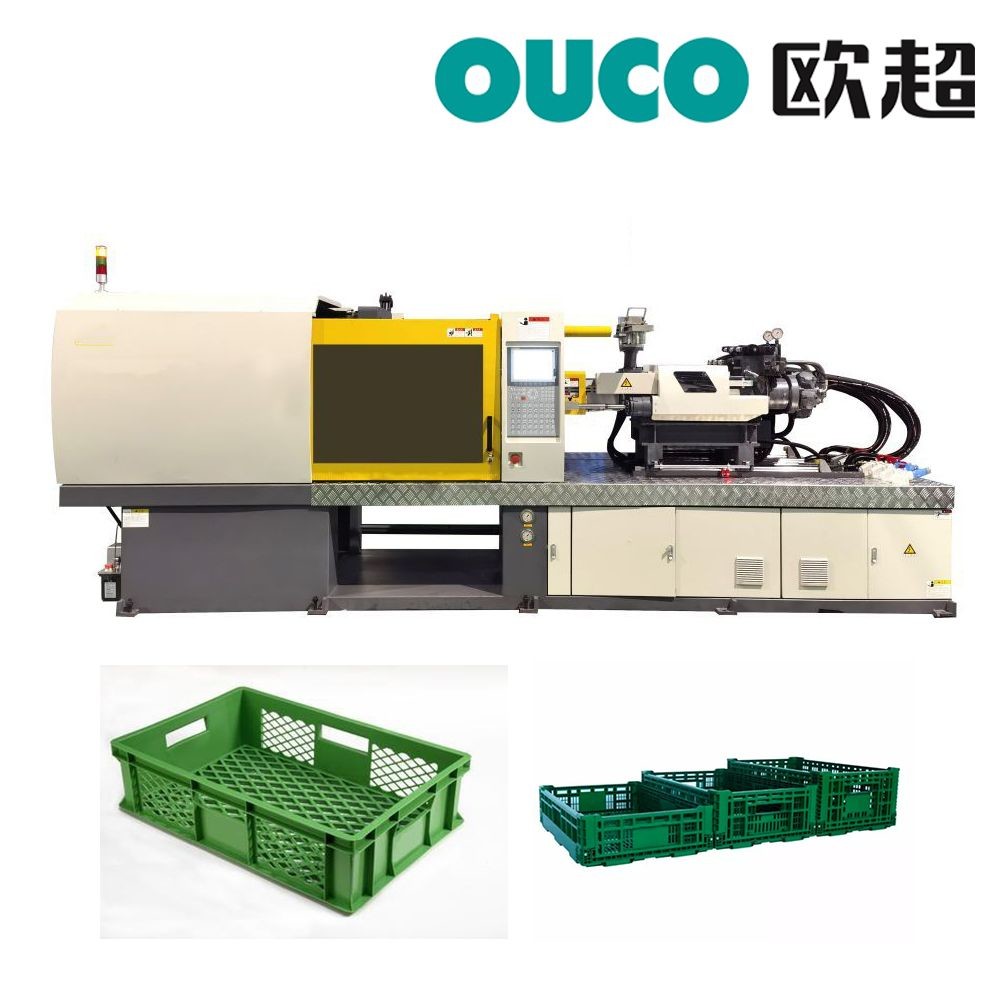

| Product Name: | Customized Production Efficiency 800T Injection Moulding Machine With High Response Closed Loop Servo System | Plastic Processed:: | PP, PC,PVC |
|---|---|---|---|
| Applicable Industries: | Manufacturing Plant, Food & Beverage Factory | Type: | Automation |
| Warranty:: | 1 Year | Machinery Test Report:: | Provided |
| Place Of Origin: | Wuxi, China | Selling Points: | Competitive Price |
| Video Outgoing-inspection:: | Provided | Machine Style: | Horizontal |
| Condition: | New | Lead Time (days): | About 50 Days |
| High Light: | 800T bucket injection molding machine,2500mm bucket injection molding machine,800 ton injection molding machine |
||
1. The special material tube group is adopted, the melting speed is fast, and the color mixing effect is good.
2. The enlarged hydraulic circuit increases the speed of injection and melting.
3. The improved frame structure is more suitable for barrel making requirements.
4. Customized product chute, the product falls out automatically, improving production efficiency.
Product Paraments
| CWI-800S Ⅲ | |||||||||||
| 机型 | 800S Ⅲ | ||||||||||
| 合模装置 | 锁模力 Kn | Clamping Force | 8000 | ||||||||
| 拉杆间距 mm | Space Between Tie-bars | 1070×970 | |||||||||
| 开模最大开距 mm | Clamping Stroke | 2500 | |||||||||
| 最大模具 mm | Mould Thickness Max | 1200 | |||||||||
| 最小模具 mm | Mould Thickness Min | 500 | |||||||||
| 模板尺寸 mm | Size of Platen | 1590×1490 | |||||||||
| 顶出长度 mm | Ejector Stroke | 280 | |||||||||
| 顶出力 Kn | Ejector Force | 212 | |||||||||
| 顶针数 | Ejector Quantily | 25 | |||||||||
| 注塑装置 | 射胶配置 | Injection Equipment | 2800I | 4000I | 6600I | ||||||
| 螺杆直径 mm | Screw Diameter | 70 | 75 | 80 | 80 | 85 | 90 | 90 | 100 | 110 | |
| 螺杆长径比 | Screw L/D ratio | 22.3 | 21 | 19.8 | 22.3 | 21 | 19.8 | 22.9 | 21 | 19.4 | |
| 理论射胶容积 cm3 | Shot Size | 1385 | 1590 | 1809 | 2059 | 2325 | 2606 | 3052 | 3768 | 4559 | |
| 实际射胶量 (PS)g | Shot Weight | 1274 | 1462 | 1664 | 1895 | 2139 | 2398 | 2808 | 3467 | 4195 | |
| oz | 44.9 | 51.6 | 58.7 | 66 | 74.5 | 83.5 | 99 | 122.3 | 148 | ||
| 射胶压力 MP | Injection Pressure | 204 | 178 | 156 | 196 | 174 | 155 | 215 | 176 | 144 | |
| 注射速率 mm/s | Injection Rate | 653 | 750 | 853 | 680 | 768 | 861 | 620 | 765 | 926 | |
| 射胶速度 cm3/s | Injection Speed | 170 | 135 | 97 | |||||||
| 螺杆转速 g/s | Screw Speed | 10~310 | 10~205 | 10~175 | |||||||
| 塑化能力 rpm | Plasticising Capacity | 57.0 | 63.0 | 66.0 | 61.0 | 67.0 | 78.0 | 72.0 | 83.0 | 102.0 | |
| 电力及其他 | 油箱容积 L | Oil Tank Capacity | 900 | ||||||||
| 电热功率 Kw | Heater Power | 30.02 | 43.85 | 46.9 | |||||||
| 电热区数 L | Team Control zone | 5+1 | |||||||||
| 系统压力 MPa | System Pressure Max | 16 | |||||||||
| 油泵输量 L/min | Pump Output | 500 | |||||||||
| 电机功率 Kw | Servo Power | 50+50+7.5 | |||||||||
| 机器净重 ton | Machine Weight | 35 | |||||||||
| 机器尺寸(长×宽×高) mm | Machine Dimension | 9400×2600×2600 | |||||||||

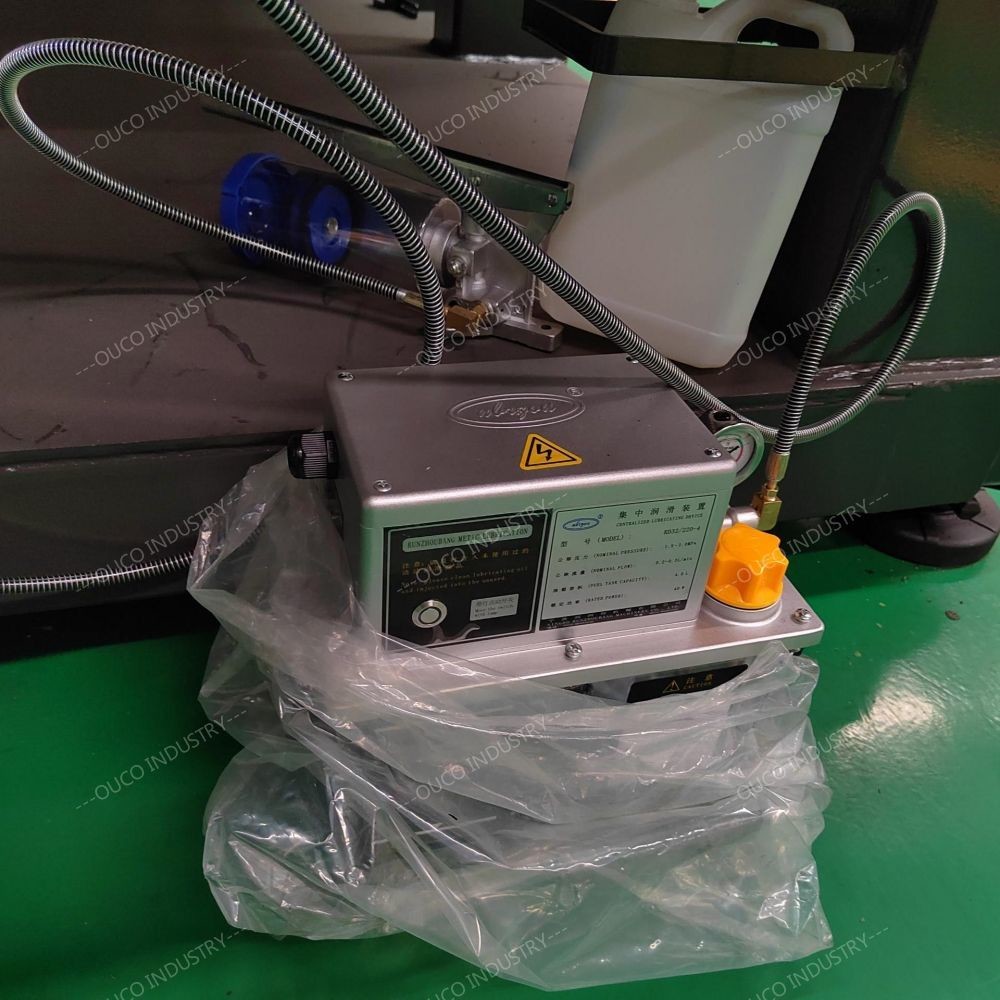

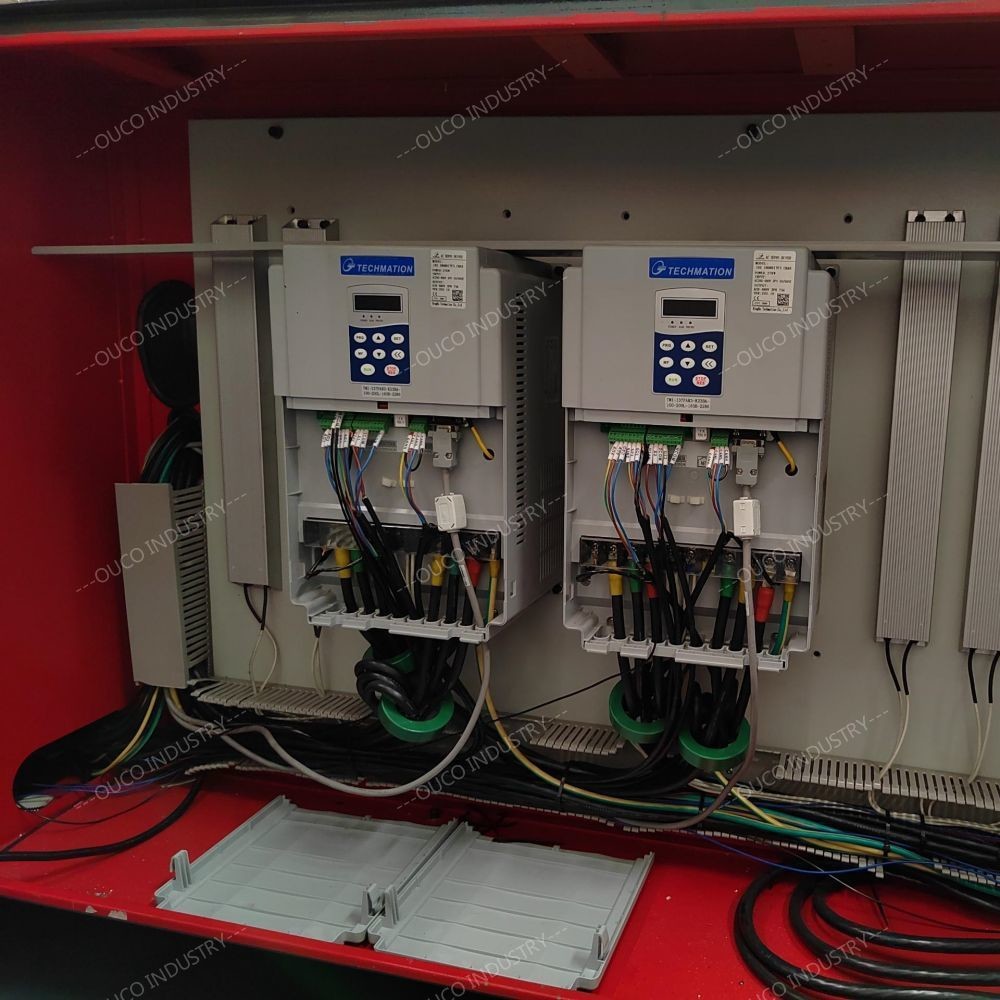

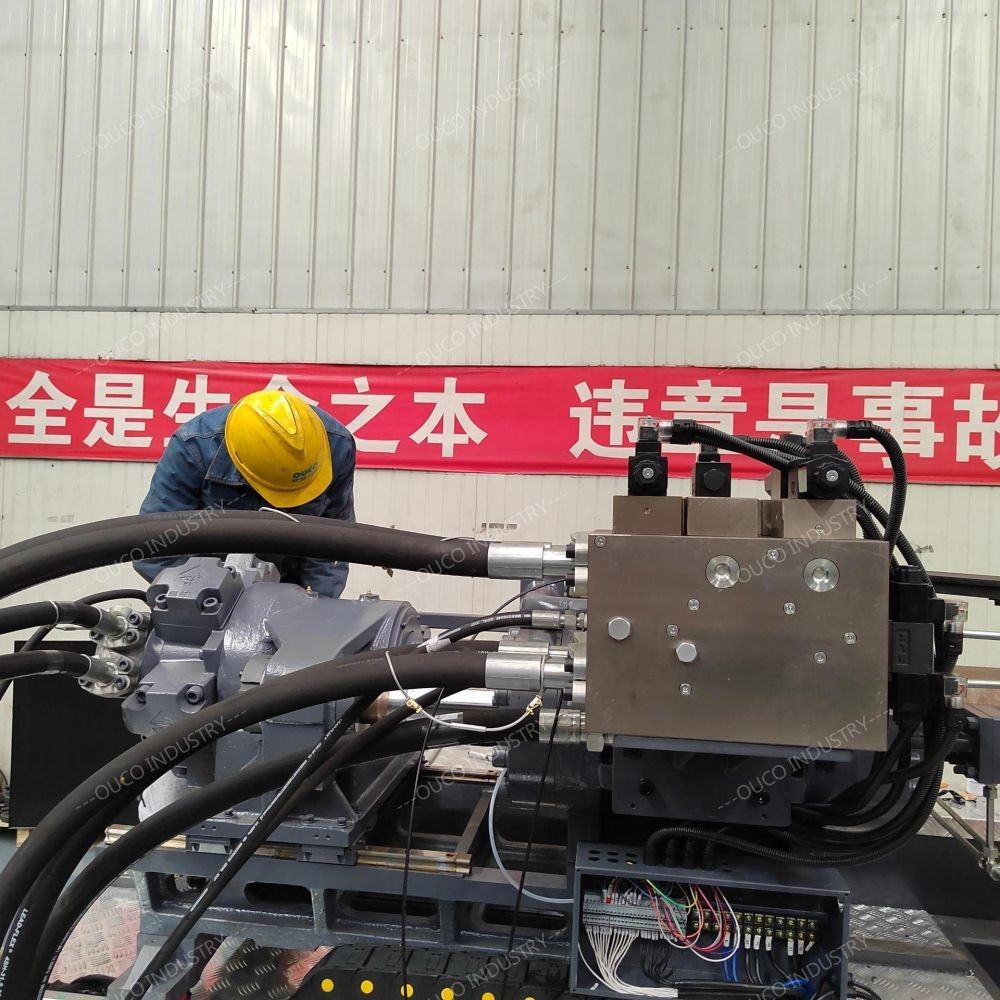

Detailed Pictures
